GRS196-BETQH (2005)
Toyota Lexus Gs460/430/350
Production
Aug 2005
-
Sep 2007
Engine
2GRFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0508- )

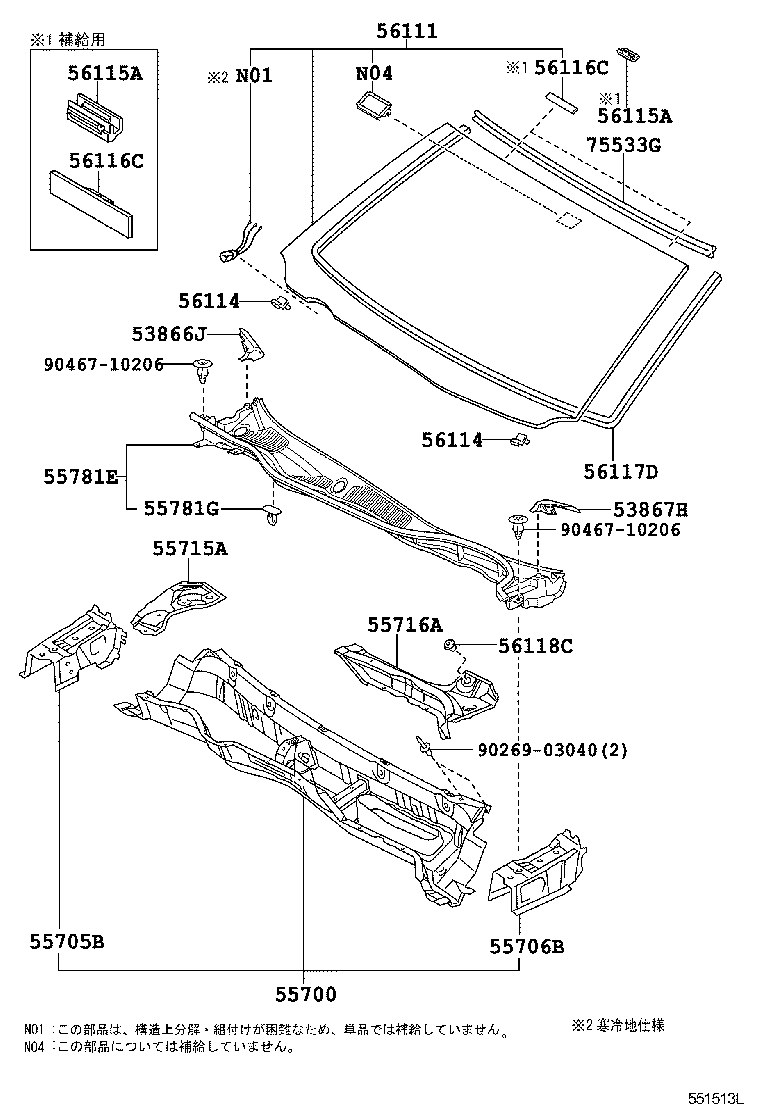

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53866J - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-30110 |
GRS19#,UZS190 |
1 | ||
| 53867H - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-30110 |
GRS19#,UZS190 |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-30A20 |
GRS19#,UZS190 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-30901 |
GRS19#,UZS190 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-30901 |
GRS19#,UZS190 |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-30120 |
GRS19#,UZS190 |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-30150 |
GRS19#,UZS190 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-30110 |
GRS19#,UZS190 |
1 | ||
| 55708-30120 |
GRS19#,UZS190 寒冷地仕様 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-08108 |
GRS19#,UZS190 |
7 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-30A90 |
GRS19#,UZS190 *LAM,T=5.36,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 56101-30A70 |
GRS19#,UZS190 *LAM,T=5.36,ｸﾞﾘｰﾝ |
1 | ||
| 56101-30A91 |
GRS19#,UZS190 *LAM,T=5.36,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 56101-30A71 |
GRS19#,UZS190 *LAM,T=5.36,ｸﾞﾘｰﾝ |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-50020 |
GRS19#,UZS190 |
2 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-50020 |
GRS19#,UZS190 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
GRS19#,UZS190 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
GRS19#,UZS190 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GRS19#,UZS190 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GRS19#,UZS190 |
2 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 56117-30340 |
GRS19#,UZS190 長さ=2864 |
1 | ||
| 56117-30340 |
GRS19#,UZS190 長さ=2864,寒冷地仕様 |
1 | ||
| 56118C - RETAINER, WINDSHIELD GLASS, NO.2 | ||||
| 56118-30080 |
GRS19#,UZS190 寒冷地仕様 |
1 | ||
| 56118-30080 |
GRS19#,UZS190 |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75531-30370 |
GRS19#,UZS190 |
1 | ||
| Common parts | ||||
| 90269-03040 | ||||
| 90467-10206 | ||||
