GRS191-BETQH (2005)

Toyota Lexus Gs460/430/350

Production Aug 2005 - Sep 2007
Engine 2GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )GRS19#

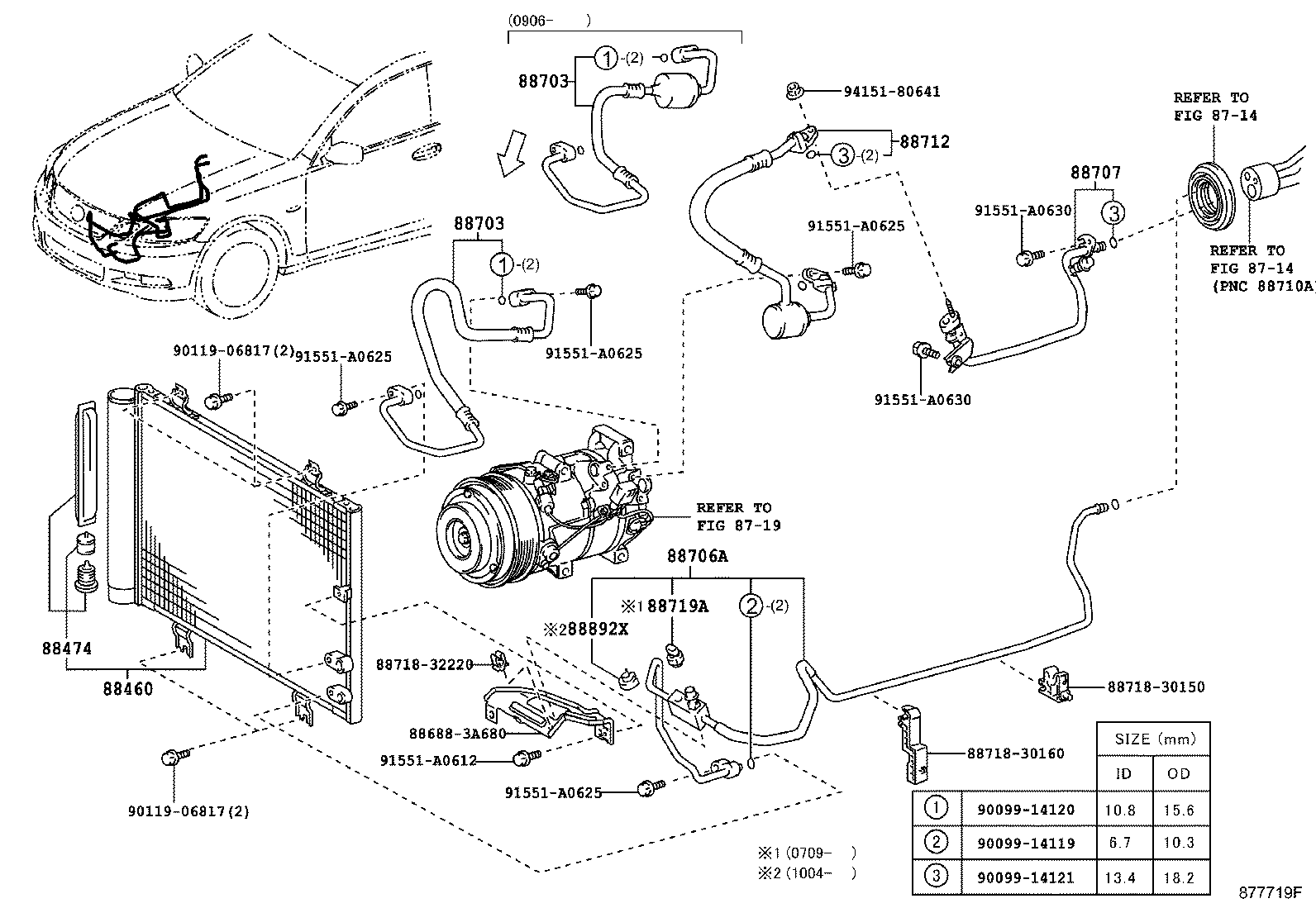

Click highlighted areas on diagram

diagram 8714 8714 8719 88460 88474 886883A680 88703 88703 88706A 88707 88712 8871830150 8871830160 8871832220 88719A 88892X 9009914119 9009914120 9009914121 9011906817 9011906817 91551A0612 91551A0625 91551A0625 91551A0625 91551A0625 91551A0630 91551A0630 9415180641
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-30871

GRS19#,UZS190

 1
88474 - DRYER, COOLER
88474-17010

GRS19#,UZS190

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88711-3A600

GRS19#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88711-3A600

GRS19#

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-3A430

GRS19#,UZS190

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-30690

GRS19#,UZS190

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30160

GRS19#

 1
Common parts
88688-3A680
88718-30150
88718-30160
88718-32220
90099-14119
90099-14120
90099-14121
90119-06817
91551-A0612
91551-A0625
91551-A0630
94151-80641
Linked diagrams
8714
8719
