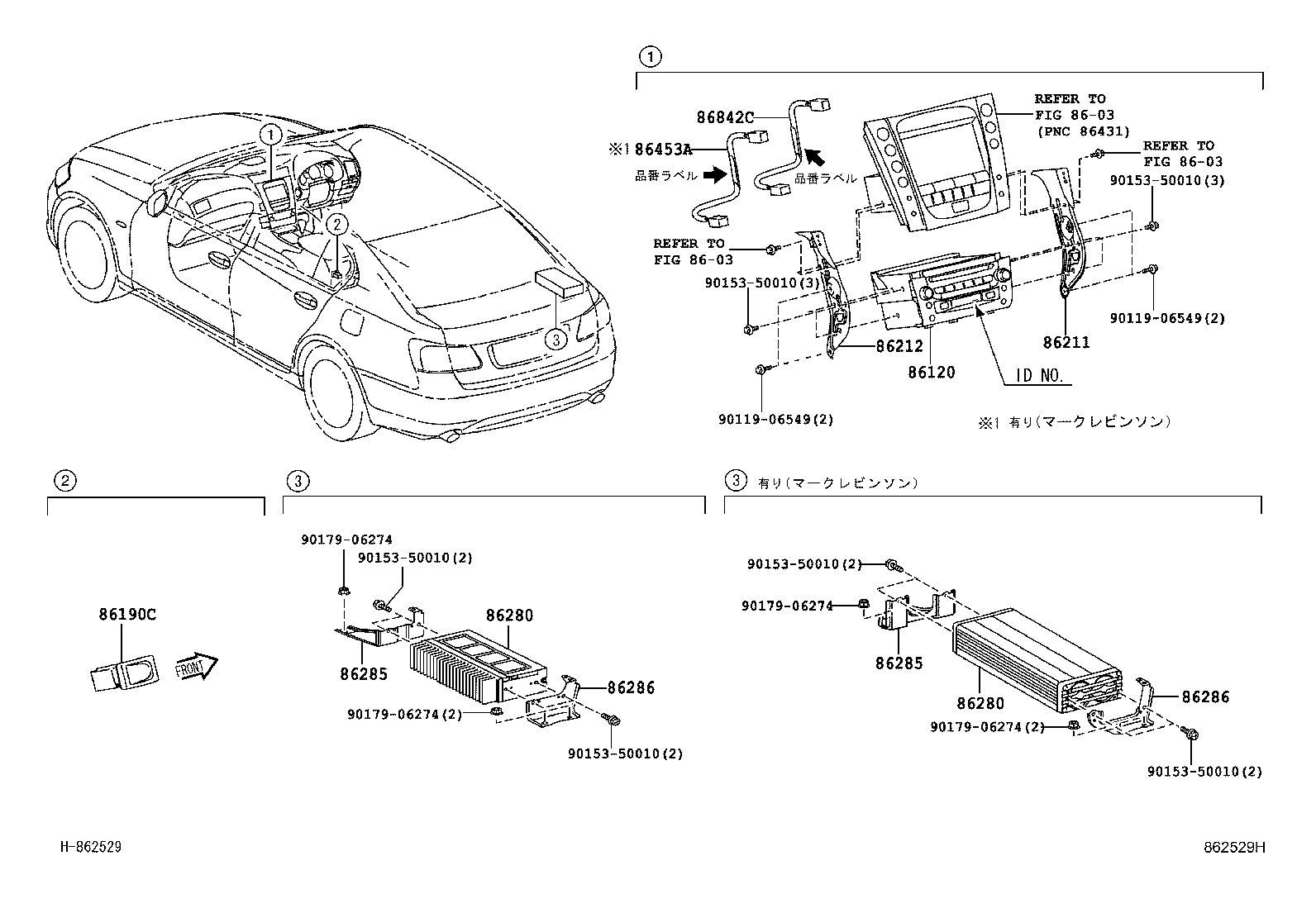

Toyota Lexus gs460/430/350 GRS191 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-30C70C0	GRS19#,UZS190 FUJITSU TEN,BLACK,TRIM1#,2#	08/2005 - 09/2007	1
86120-30C60C0	GRS19#,UZS190 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ,BLACK,TRIM1#,2#	08/2005 - 09/2007	1
86120-30C70E0	GRS19#,UZS190 FUJITSU TEN,ORCHID BROWN,TRIM0#	08/2005 - 09/2007	1
86120-30C60E0	GRS19#,UZS190 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ,ORCHID BROWN,TRIM0#	08/2005 - 09/2007	1
86211 - BRACKET, RADIO, NO.1
86211-30300	GRS19#,UZS190	08/2005 - 09/2007	1
86212 - BRACKET, RADIO, NO.2
86212-30280	GRS19#,UZS190	08/2005 - 09/2007	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-30520	GRS19#,UZS190	08/2005 - 09/2007	1
86280-0W350	GRS19#,UZS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ	08/2005 - 09/2007	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-30520	GRS19#,UZS190	08/2005 - 09/2007	1
86280-0W350	GRS19#,UZS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ	08/2005 - 09/2007	1
86285 - BRACKET, AMPLIFIER, NO.1
86286-30080	GRS19#,UZS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ	08/2005 - 09/2007	1
86285-30290	GRS19#,UZS190	08/2005 - 09/2007	1
86285 - BRACKET, AMPLIFIER, NO.1
86286-30080	GRS19#,UZS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ	08/2005 - 09/2007	1
86285-30290	GRS19#,UZS190	08/2005 - 09/2007	1
86286 - BRACKET, AMPLIFIER, NO.2
86286-30060	GRS19#,UZS190	08/2005 - 09/2007	1
86286-30070	GRS19#,UZS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ	08/2005 - 09/2007	1
86286 - BRACKET, AMPLIFIER, NO.2
86286-30060	GRS19#,UZS190	08/2005 - 09/2007	1
86286-30070	GRS19#,UZS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ	08/2005 - 09/2007	1
86453A - WIRE, MULTI-MEDIA MODULE
86453-30040	GRS19#,UZS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ	07/2006 - 09/2007	1
86453-30040	GRS19#,UZS190 品番ﾗﾍﾞﾙ=86453−30040	07/2006 - 09/2007	1
86842C - WIRE, NAVIGATION
86842-30170	GRS19#,UZS190 品番ﾗﾍﾞﾙ=86842−30170	08/2005 - 09/2007	1
86842-30170	GRS19#,UZS190	08/2005 - 09/2007	1
Common parts
90119-06549
90153-50010
90179-06274
Linked diagrams
8603

Part #	Description	Period	Qty

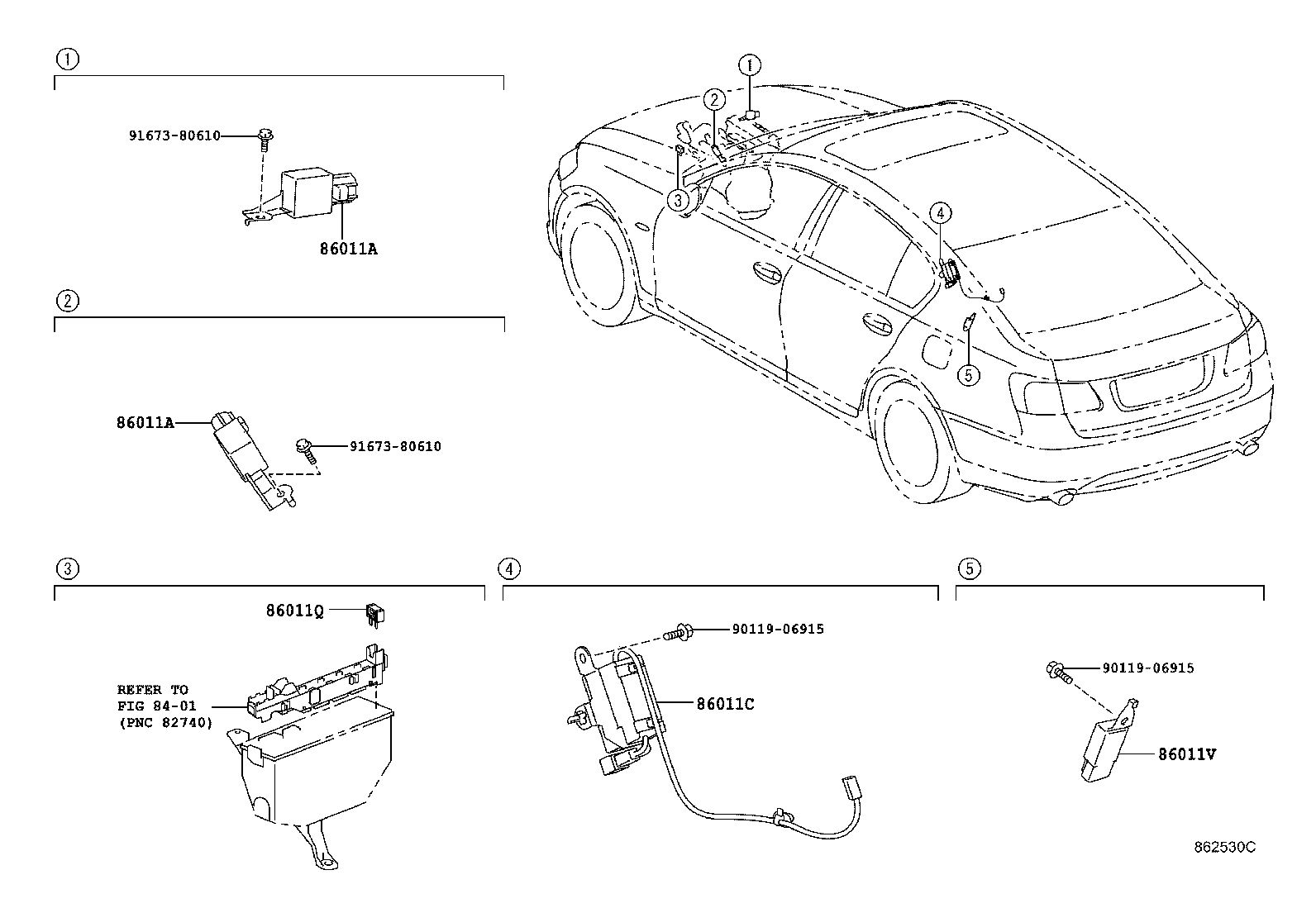

86011A - CONDENSER, RADIO SETTING
90980-04190	GRS19#	08/2005 - 09/2007	2
86011A - CONDENSER, RADIO SETTING
90980-04190	GRS19#	08/2005 - 09/2007	2
86011C - FILTER, NOISE
90980-05368	GRS19#,UZS190	08/2005 - 09/2007	1
86011Q - CONDENSER, RADIO SETTING
90980-04066	GRS19#,UZS190	08/2005 - 09/2007	1
86011V - CONDENSER, RADIO SETTING
90980-04184	GRS19#,UZS190	08/2005 - 09/2007	1
Common parts
90119-06915
91673-80610
Linked diagrams
8401

GRS191-BETQH (2005)

ILLUST NO. 1 OF 2(0508-0909)

ILLUST NO. 2 OF 2(0508- )GRS19#
