GRS191-BETQH (2005)
Toyota Lexus Gs460/430/350

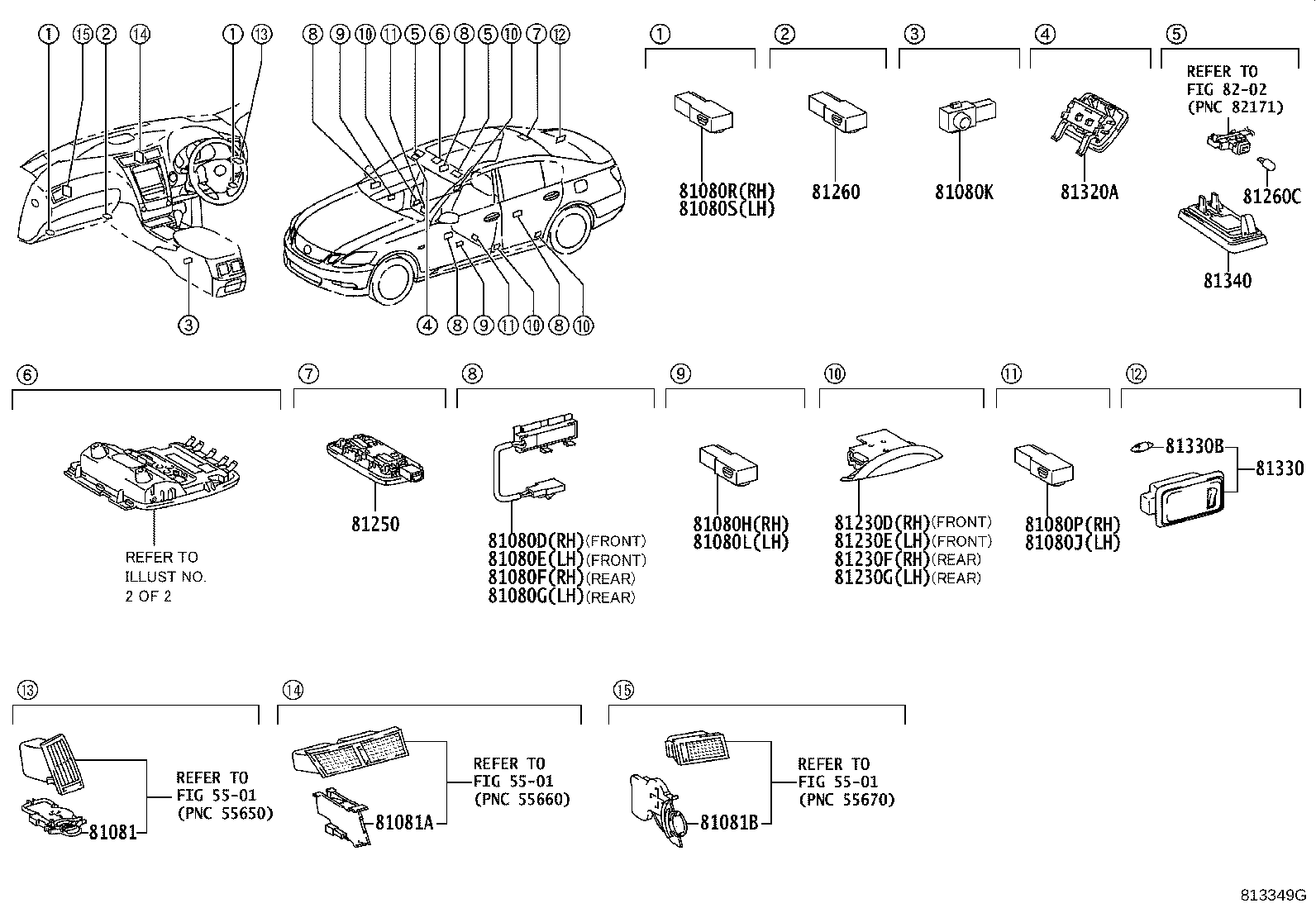

ILLUST NO. 1 OF 2(0508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080D - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-30050 |
GRS19#,UZS190 |
1 | ||
| 81080E - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-30060 |
GRS19#,UZS190 |
1 | ||
| 81080F - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-30050 |
GRS19#,UZS190 |
1 | ||
| 81080G - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-30060 |
GRS19#,UZS190 |
1 | ||
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-22040 |
GRS19#,UZS190 |
1 | ||
| 81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-30010 |
GRS19#,UZS190 |
1 | ||
| 81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION | ||||
| 81080-30010 |
GRS19#,UZS190 |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-22040 |
GRS19#,UZS190 |
1 | ||
| 81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-30010 |
GRS19#,UZS190 |
1 | ||
| 81080R - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-30010 |
GRS19#,UZS190 |
1 | ||
| 81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-30010 |
GRS19#,UZS190 |
1 | ||
| 81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION | ||||
| 81081-30040 |
GRS19#,UZS190 |
1 | ||
| 81081A - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81081-30020 |
GRS19#,UZS190 |
1 | ||
| 81081B - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.3 | ||||
| 81081-30050 |
GRS19#,UZS190 |
1 | ||
| 81230D - LAMP ASSY, FRONT DOOR COURTESY, RH | ||||
| 81230-30180 |
GRS19#,UZS190 |
1 | ||
| 81230E - LAMP ASSY, FRONT DOOR COURTESY, LH | ||||
| 81310-30010 |
GRS19#,UZS190 |
1 | ||
| 81230F - LAMP ASSY, REAR DOOR COURTESY, RH | ||||
| 81230-30180 |
GRS19#,UZS190 |
1 | ||
| 81230G - LAMP ASSY, REAR DOOR COURTESY, LH | ||||
| 81310-30010 |
GRS19#,UZS190 |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-30200B0 |
GRS19#,UZS190 GRAY,TRIM1#,28,29 |
1 | ||
| 81250-30200A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-30010 |
GRS19#,UZS190 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-1106279 |
GRS19#,UZS190 12V 8W |
2 | ||
| 81320A - LAMP ASSY, STEERING SPOT | ||||
| 81320-30010B0 |
GRS19#,UZS190 GRAY,TRIM1#,28,29 |
1 | ||
| 81320-30010A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81250-48010 |
GRS19#,UZS190 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-1305079 |
GRS19#,UZS190 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30100B1 |
GRS19#,UZS190 GRAY,TRIM1#,28,29 |
2 | ||
| 81340-30100A0 |
GRS19#,UZS190 IVORY,TRIM0# |
2 | ||
| Linked diagrams | ||||
| 5501 | ||||
| 8202 | ||||

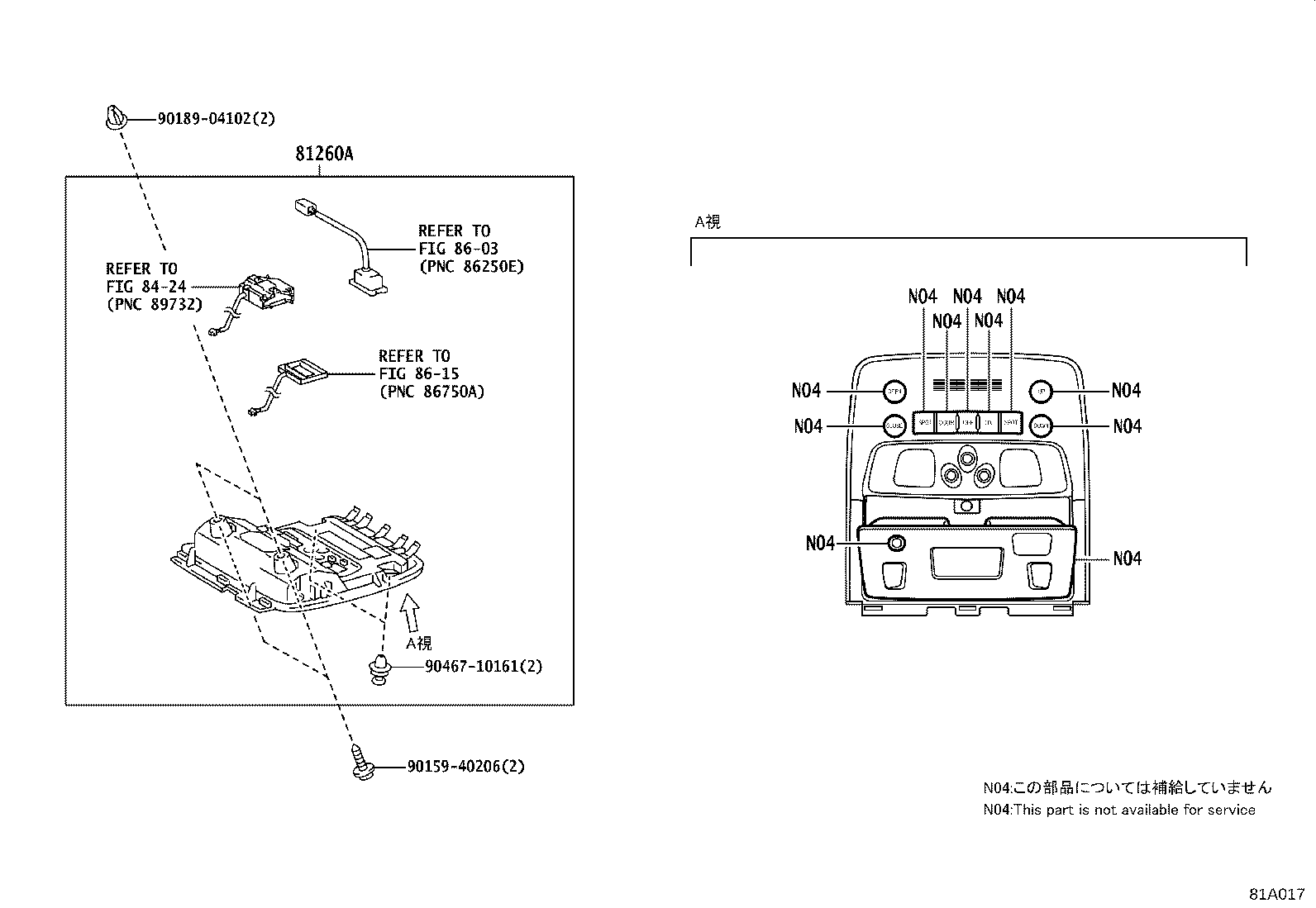

ILLUST NO. 2 OF 2(0508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-30640A0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ)&ﾑｰﾝﾙｰﾌ−有り,IVORY,TRIM0# |
1 | ||
| 81260-30540B0 |
GRS19#,UZS190 ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30630A0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ),IVORY,TRIM0# |
1 | ||
| 81260-30630B0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ),GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30512A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 81260-30542B0 |
GRS19#,UZS190 ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30512B0 |
GRS19#,UZS190 GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30540A0 |
GRS19#,UZS190 ﾑｰﾝﾙｰﾌ−有り,IVORY,TRIM0# |
1 | ||
| 81260-30632B0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ),GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30510A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 81260-30642A0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ)&ﾑｰﾝﾙｰﾌ−有り,IVORY,TRIM0# |
1 | ||
| 81260-30632A0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ),IVORY,TRIM0# |
1 | ||
| 81260-30543B0 |
GRS19#,UZS190 ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30642B0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ)&ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30513B0 |
GRS19#,UZS190 GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30513A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 81260-30640B0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ)&ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30643B0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ)&ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30643A0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ)&ﾑｰﾝﾙｰﾌ−有り,IVORY,TRIM0# |
1 | ||
| 81260-30544B0 |
GRS19#,UZS190 ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30644A0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ)&ﾑｰﾝﾙｰﾌ−有り,IVORY,TRIM0# |
1 | ||
| 81260-30510B0 |
GRS19#,UZS190 GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30633A0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ),IVORY,TRIM0# |
1 | ||
| 81260-30633B0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ),GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30543A0 |
GRS19#,UZS190 ﾑｰﾝﾙｰﾌ−有り,IVORY,TRIM0# |
1 | ||
| 81260-30544A0 |
GRS19#,UZS190 ﾑｰﾝﾙｰﾌ−有り,IVORY,TRIM0# |
1 | ||
| 81260-30644B0 |
GRS19#,UZS190 盗難防止ｼｽﾃﾑ−有り(ｱﾗｰﾑ&侵入ｾﾝｻ&ｾｷｭﾘﾃｨｶﾒﾗ)&ﾑｰﾝﾙｰﾌ−有り,GRAY,TRIM1#,28,29 |
1 | ||
| 81260-30542A0 |
GRS19#,UZS190 ﾑｰﾝﾙｰﾌ−有り,IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90159-40206 | ||||
| 90189-04102 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 8424 | ||||
| 8603 | ||||
| 8615 | ||||
