GRS191-BETQH (2007)
Toyota Lexus Gs460/430/350

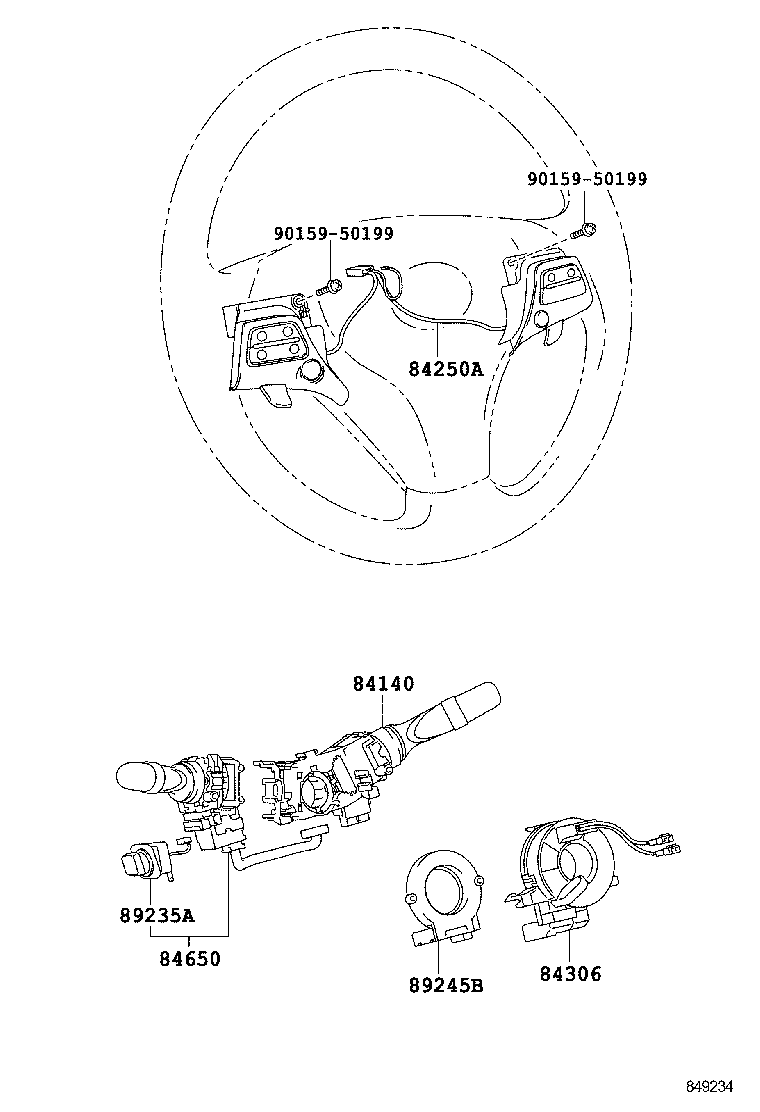

ILLUST NO. 6 OF 8(0709- )
ｲｸﾞﾆｯｼｮﾝ & ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30300 |
GRS19#,UZS190 |
1 | ||
| 84140-30290 |
GRS19#,UZS190 寒冷地仕様 |
1 | ||
| 84140-30290 |
GRS19#,URS190 寒冷地仕様 |
1 | ||
| 84140-30300 |
GRS19#,URS190 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-30080E0 |
GRS19# ORCHID BROWN,TRIM0# |
1 | ||
| 84250-30390E0 |
GRS19# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−*MRT&*PSB&*PBA,ORCHID BROWN,TRIM0# |
1 | ||
| 84250-30390C0 |
GRS19# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−*MRT&*PSB&*PBA,BLACK,TRIM1#,2# |
1 | ||
| 84250-30080C0 |
GRS19# BLACK,TRIM1#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
GRS19#,UZS190 |
1 | ||
| 84306-48030 |
GRS19#,URS190 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30580 |
GRS19# “Art Works” *(M) |
1 | ||
| 84652-30531 |
GRS19#,UZS190 |
1 | ||
| 84652-30531 |
GRS19#,URS190 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-48010 |
GRS19#,UZS190 |
1 | ||
| 89235-48010 |
GRS19#,URS190 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-30080 |
GRS19# |
1 | ||
| 89245-30080 |
GRS19# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

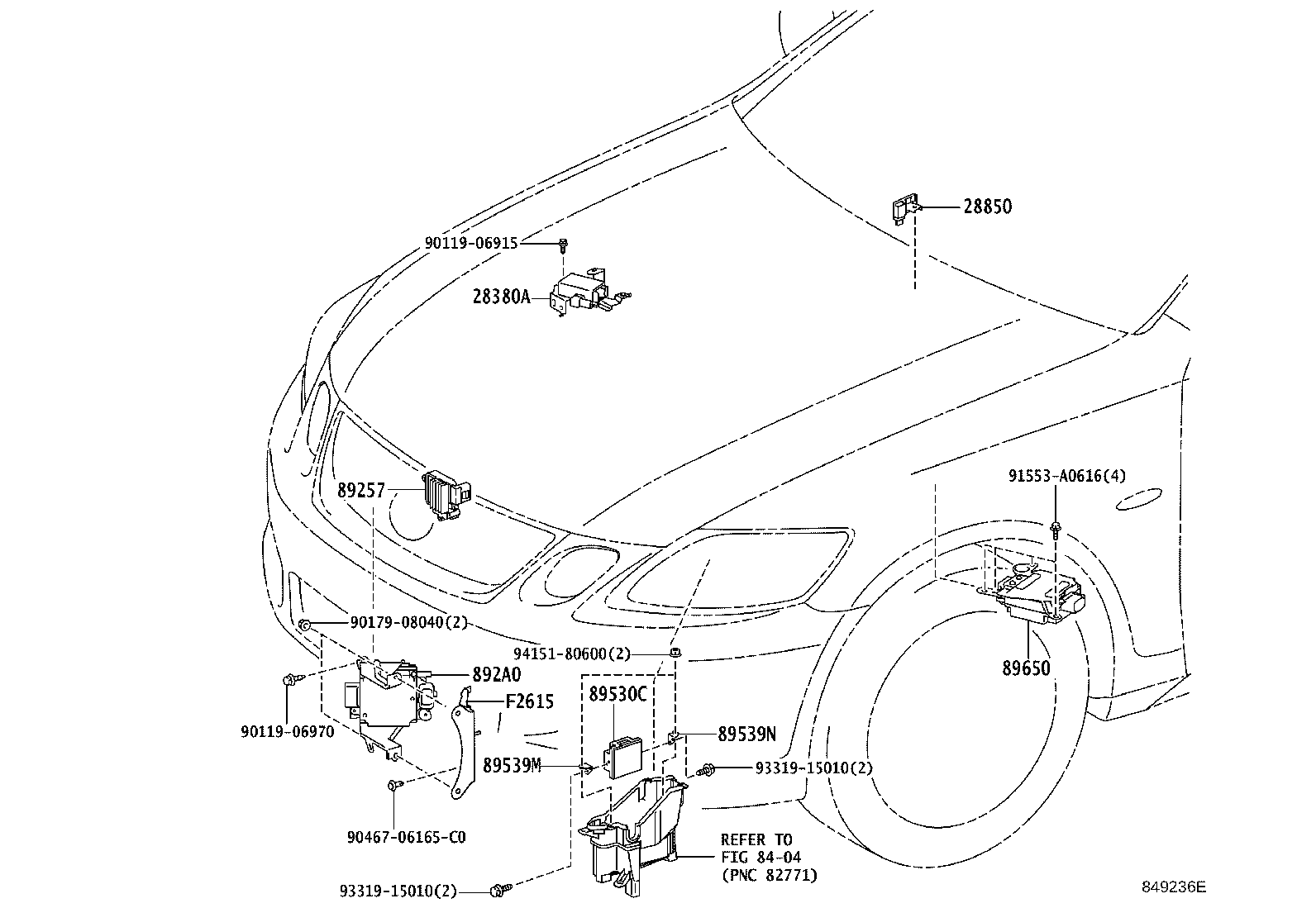

ILLUST NO. 2 OF 8(0709- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31040 |
2GRFSE,1URFSE..GRS19#,URS190 |
1 | ||
| 23080-31040 |
2GRFSE..GRS19# |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-50010 |
2GRFSE,3UZFE..GRS19#,UZS190 |
1 | ||
| 28850-31020 |
2GRFSE,1URFSE..GRS19#,URS190 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30070 |
GRS19#,UZS190 |
1 | ||
| 89257-30070 |
GRS19# |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30624 |
GRS19# TOYOTA |
1 | ||
| 89650-30711 |
GRS19# TOYOTA |
1 | ||
| 89650-30712 |
GRS19# TOYOTA |
1 | ||
| 89650-30710 |
GRS19# TOYOTA |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06970 | ||||
| 90179-08040 | ||||
| 90467-06165C0 | ||||
| 91553-A0616 | ||||
| 93319-15010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||

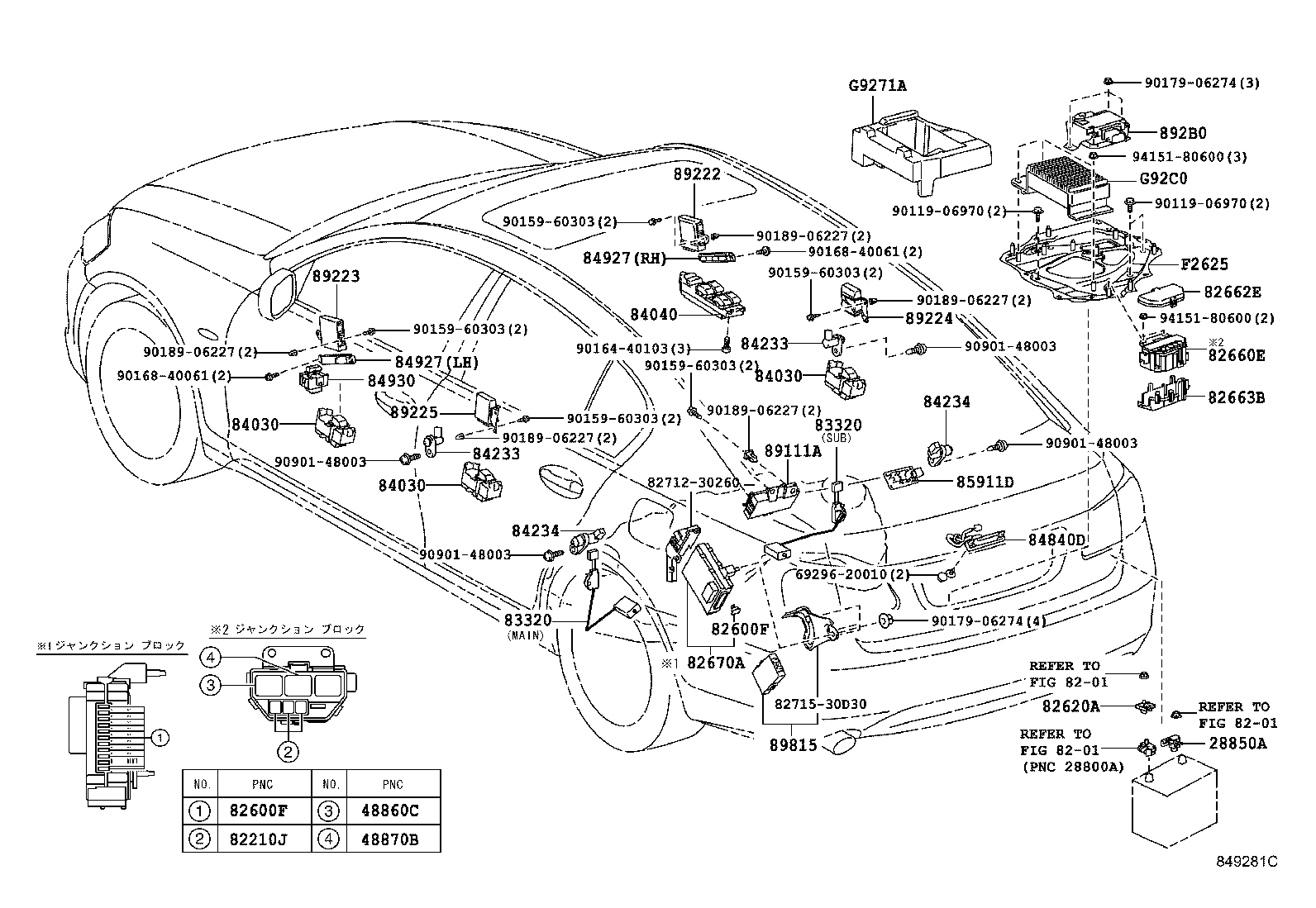

ILLUST NO. 8 OF 8(0709- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
GRS19#,UZS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
GRS19#,URS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
GRS19#,UZS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
GRS19#,URS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
GRS19#,URS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS19#,UZS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09022 |
GRS19#,UZS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
GRS19#,UZS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
GRS19#,URS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
GRS19#,UZS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
GRS19#,UZS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
GRS19#,UZS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09024 |
GRS19#,UZS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
GRS19#,URS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
GRS19#,UZS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
GRS19#,URS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
GRS19#,UZS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
GRS19#,URS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
GRS19#,URS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
GRS19#,URS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS19#,URS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
GRS19#,UZS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09020 |
GRS19#,URS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
GRS19#,URS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
GRS19#,UZS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
GRS19#,URS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
GRS19#,UZS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
GRS19#,URS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
GRS19#,URS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS19#,UZS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09022 |
GRS19#,UZS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
GRS19#,UZS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
GRS19#,URS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
GRS19#,UZS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
GRS19#,UZS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
GRS19#,UZS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09024 |
GRS19#,UZS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
GRS19#,URS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
GRS19#,UZS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
GRS19#,URS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
GRS19#,UZS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
GRS19#,URS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
GRS19#,URS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
GRS19#,URS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS19#,URS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
GRS19#,UZS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09020 |
GRS19#,URS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
GRS19#,URS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-30250 |
GRS19#,UZS190 |
1 | ||
| 82670-30250 |
GRS19#,URS190 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-30530 |
GRS19#,UZS190 ﾒｲﾝ |
1 | ||
| 83320-30540 |
GRS19#,UZS190 ｻﾌﾞ |
1 | ||
| 83320-30540 |
GRS19#,URS190 ｻﾌﾞ |
1 | ||
| 83320-30530 |
GRS19#,URS190 ﾒｲﾝ |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-30530 |
GRS19#,UZS190 ﾒｲﾝ |
1 | ||
| 83320-30540 |
GRS19#,UZS190 ｻﾌﾞ |
1 | ||
| 83320-30540 |
GRS19#,URS190 ｻﾌﾞ |
1 | ||
| 83320-30530 |
GRS19#,URS190 ﾒｲﾝ |
1 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84810-30170 |
GRS19#,URS190 |
3 | ||
| 84030-30090 |
GRS19#,UZS190 |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84810-30170 |
GRS19#,URS190 |
3 | ||
| 84030-30090 |
GRS19#,UZS190 |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84810-30170 |
GRS19#,URS190 |
3 | ||
| 84030-30090 |
GRS19#,UZS190 |
3 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-30150 |
GRS19#,URS190 |
1 | ||
| 84040-30210 |
GRS19#,URS190 |
1 | ||
| 84040-30140 |
GRS19#,UZS190 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRS19#,UZS190 |
2 | ||
| 84231-53010 |
GRS19#,URS190 |
2 | ||
| 84231-50190 |
GRS19#,URS190 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRS19#,UZS190 |
2 | ||
| 84231-53010 |
GRS19#,URS190 |
2 | ||
| 84231-50190 |
GRS19#,URS190 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GRS19#,URS190 |
2 | ||
| 84231-53010 |
GRS19#,UZS190 |
2 | ||
| 84231-50190 |
GRS19#,URS190 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GRS19#,URS190 |
2 | ||
| 84231-53010 |
GRS19#,UZS190 |
2 | ||
| 84231-50190 |
GRS19#,URS190 |
2 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-21010 |
GRS19#,URS190 |
1 | ||
| 84840-21010 |
GRS19#,UZS190 |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-30060 |
GRS19#,UZS190 ｼｰﾄ表皮−本革,右側 |
1 | ||
| 84927-30100 |
GRS19#,URS190 ｼｰﾄ表皮−本革,左側 |
1 | ||
| 84927-30070 |
GRS19#,UZS190 ｼｰﾄ表皮−本革,左側 |
1 | ||
| 84927-30090 |
GRS19#,URS190 ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ),右側 |
1 | ||
| 84927-30100 |
GRS19#,URS190 ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ),左側 |
1 | ||
| 84927-30090 |
GRS19#,URS190 ｼｰﾄ表皮−本革,右側 |
1 | ||
| 84927-30090 |
GRS19# “Art Works” *(M)&ｼｰﾄ表皮−本革,右側 |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-30060 |
GRS19#,UZS190 ｼｰﾄ表皮−本革,右側 |
1 | ||
| 84927-30100 |
GRS19#,URS190 ｼｰﾄ表皮−本革,左側 |
1 | ||
| 84927-30070 |
GRS19#,UZS190 ｼｰﾄ表皮−本革,左側 |
1 | ||
| 84927-30090 |
GRS19#,URS190 ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ),右側 |
1 | ||
| 84927-30100 |
GRS19#,URS190 ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ),左側 |
1 | ||
| 84927-30090 |
GRS19#,URS190 ｼｰﾄ表皮−本革,右側 |
1 | ||
| 84927-30090 |
GRS19# “Art Works” *(M)&ｼｰﾄ表皮−本革,右側 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-30090 |
GRS19#,UZS190 |
1 | ||
| 84930-30070 |
GRS19#,URS190 |
1 | ||
| 85911D - RELAY, REAR SUNSHADE | ||||
| 85911-50010 |
GRS19# ｻﾝｼｪｰﾄﾞ−有り |
1 | ||
| 85911-50010 |
GRS19# ｻﾝｼｪｰﾄﾞ−有り |
1 | ||
| 89111A - COMPUTER, NETWORK GATEWAY, NO.2 | ||||
| 89111-30061 |
GRS19# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89111-30060 |
GRS19#,URS190 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89111-30060 |
GRS19#,UZS190 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 89222 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH | ||||
| 89222-30170 |
GRS19#,URS190 |
1 | ||
| 89222-30110 |
GRS19#,UZS190 |
1 | ||
| 89223 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH | ||||
| 89222-30110 |
GRS19#,UZS190 |
1 | ||
| 89222-30170 |
GRS19#,URS190 |
1 | ||
| 89224 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH | ||||
| 89224-30100 |
GRS19#,URS190 |
1 | ||
| 89224-30070 |
GRS19#,UZS190 |
1 | ||
| 89225 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH | ||||
| 89225-30010 |
GRS19#,UZS190 |
1 | ||
| 89225-30040 |
GRS19#,URS190 |
1 | ||
| 89815 - COMPUTER, SEAT BELT CONTROL | ||||
| 89815-30140 |
GRS19#,URS190 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−*MRT&*PSB&*PBA |
1 | ||
| 89815-30130 |
GRS19# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 89815-30170 |
GRS19#,URS190 |
1 | ||
| 89815-30040 |
GRS19#,UZS190 |
1 | ||
| 89815-30180 |
GRS19#,URS190 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−*MRT&*PSB&*PBA |
1 | ||
| 89815-30170 |
GRS19# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 89815-30060 |
GRS19#,UZS190 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞｰ方式 |
1 | ||
| 89815-30130 |
GRS19#,URS190 |
1 | ||
| Common parts | ||||
| 69296-20010 | ||||
| 82712-30260 | ||||
| 82715-30D30 | ||||
| 90119-06970 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90168-40061 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8201 | ||||

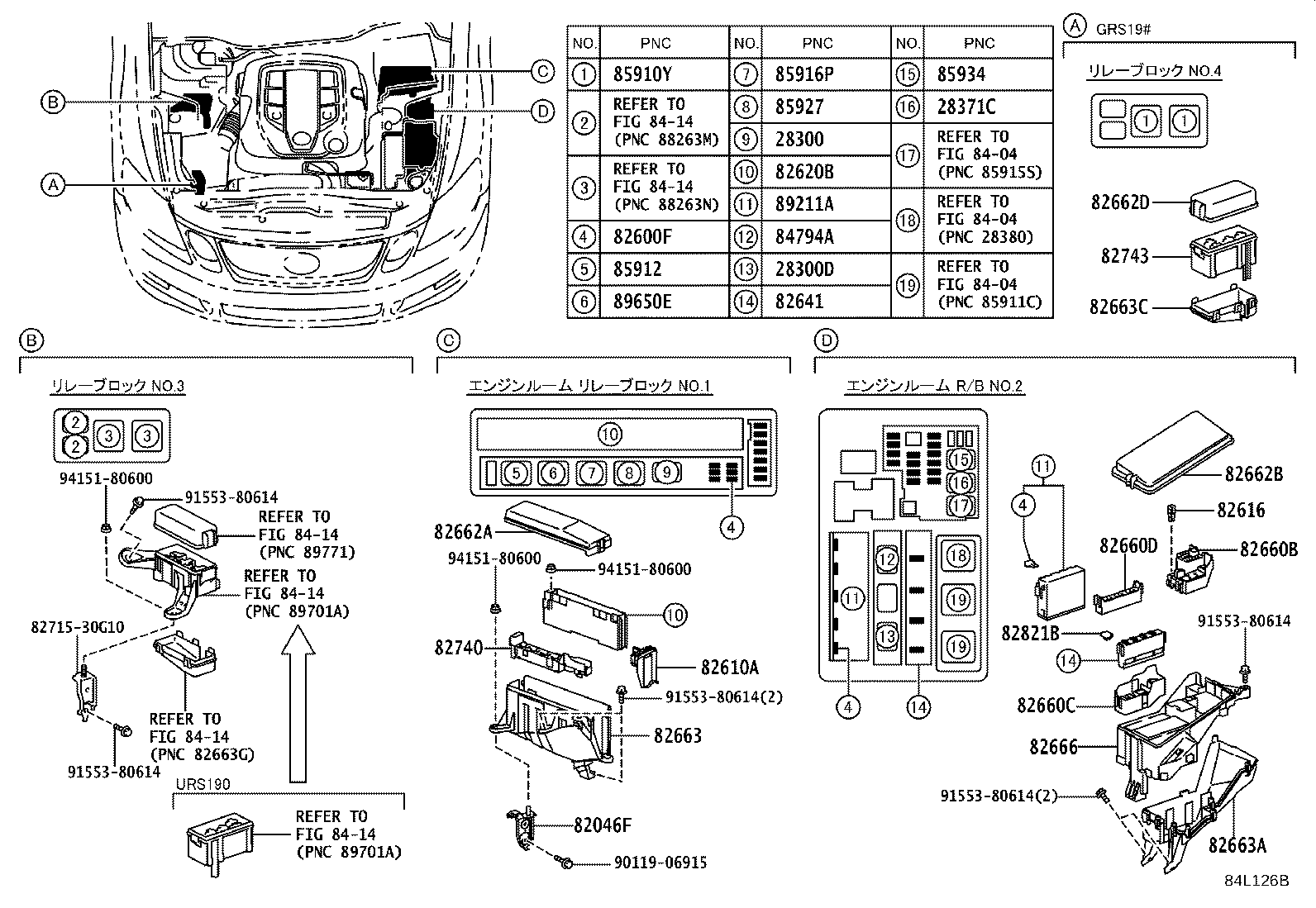

ILLUST NO. 3 OF 8(0709- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2GRFSE,3UZFE..GRS19#,UZS190 |
1 | ||
| 28300-28010 |
2GRFSE,1URFSE..GRS19#,URS190 |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
2GRFSE,3UZFE..GRS19#,UZS190 |
1 | ||
| 90987-02027 |
2GRFSE,1URFSE..GRS19#,URS190 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2GRFSE,3UZFE..GRS19#,UZS190 |
1 | ||
| 90987-02027 |
2GRFSE,1URFSE..GRS19#,URS190 |
1 | ||
| 82046F - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30100 |
GRS19#,UZS190 |
1 | ||
| 82046-30100 |
GRS19#,URS190 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
GRS19#,UZS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
GRS19#,URS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
GRS19#,UZS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
GRS19#,URS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
GRS19#,URS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS19#,UZS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09022 |
GRS19#,UZS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
GRS19#,UZS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
GRS19#,URS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
GRS19#,UZS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
GRS19#,UZS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
GRS19#,UZS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09024 |
GRS19#,UZS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
GRS19#,URS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
GRS19#,UZS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
GRS19#,URS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
GRS19#,UZS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
GRS19#,URS190 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
GRS19#,URS190 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
GRS19#,URS190 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GRS19#,URS190 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
GRS19#,UZS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09020 |
GRS19#,URS190 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
GRS19#,URS190 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-30130 |
GRS19#,UZS190 |
1 | ||
| 82610-30130 |
GRS19#,URS190 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRS19#,UZS190 |
1 | ||
| 82616-58010 |
GRS19#,URS190 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30170 |
GRS19#,UZS190 |
1 | ||
| 82620-30170 |
GRS19# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-30250 |
GRS19#,UZS190 |
1 | ||
| 82641-30250 |
GRS19#,URS190 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-30A00 |
GRS19#,URS190 |
1 | ||
| 82660-30A00 |
GRS19#,UZS190 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-30A60 |
GRS19#,URS190 |
1 | ||
| 82660-30A10 |
GRS19#,UZS190 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-30A20 |
GRS19#,UZS190 |
1 | ||
| 82660-30A20 |
GRS19#,URS190 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30610 |
GRS19#,UZS190 |
1 | ||
| 82662-30612 |
GRS19# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-30620 |
GRS19# |
1 | ||
| 82662-30A30 |
GRS19# |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-30650 |
GRS19# |
1 | ||
| 82662-30650 |
GRS19# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30200 |
GRS19#,URS190 |
1 | ||
| 82663-30200 |
GRS19#,UZS190 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30210 |
GRS19#,URS190 |
1 | ||
| 82663-30210 |
GRS19#,UZS190 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-30240 |
GRS19# |
1 | ||
| 82663-30240 |
GRS19# |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30730 |
GRS19# |
1 | ||
| 82666-30730 |
GRS19#,UZS190 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-30340 |
GRS19#,URS190 |
1 | ||
| 82740-30340 |
GRS19#,UZS190 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-30050 |
GRS19# |
1 | ||
| 82743-30050 |
GRS19# |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-47090 |
GRS19#,URS190 |
1 | ||
| 82821-47090 |
GRS19#,UZS190 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
GRS19#,URS190 寒冷地仕様 |
1 | ||
| 90987-02027 |
GRS19#,UZS190 寒冷地仕様 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02025 |
GRS19# |
2 | ||
| 90987-02025 |
GRS19# |
2 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
GRS19#,UZS190 |
1 | ||
| 90987-04010 |
GRS19#,URS190 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRS19#,URS190 |
1 | ||
| 90987-02025 |
GRS19#,UZS190 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
GRS19#,URS190 |
1 | ||
| 90987-02025 |
GRS19#,UZS190 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02027 |
GRS19# |
1 | ||
| 90987-02027 |
GRS19# |
1 | ||
| 89211A - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89211-30020 |
GRS19#,UZS190 |
1 | ||
| 89211-30020 |
GRS19#,URS190 |
1 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90987-02025 |
GRS19#,UZS190 |
1 | ||
| 90987-02025 |
GRS19#,URS190 |
1 | ||
| Common parts | ||||
| 82715-30G10 | ||||
| 90119-06915 | ||||
| 91553-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
