GWS191-BEXQH (2007)
Toyota Lexus Gs450h

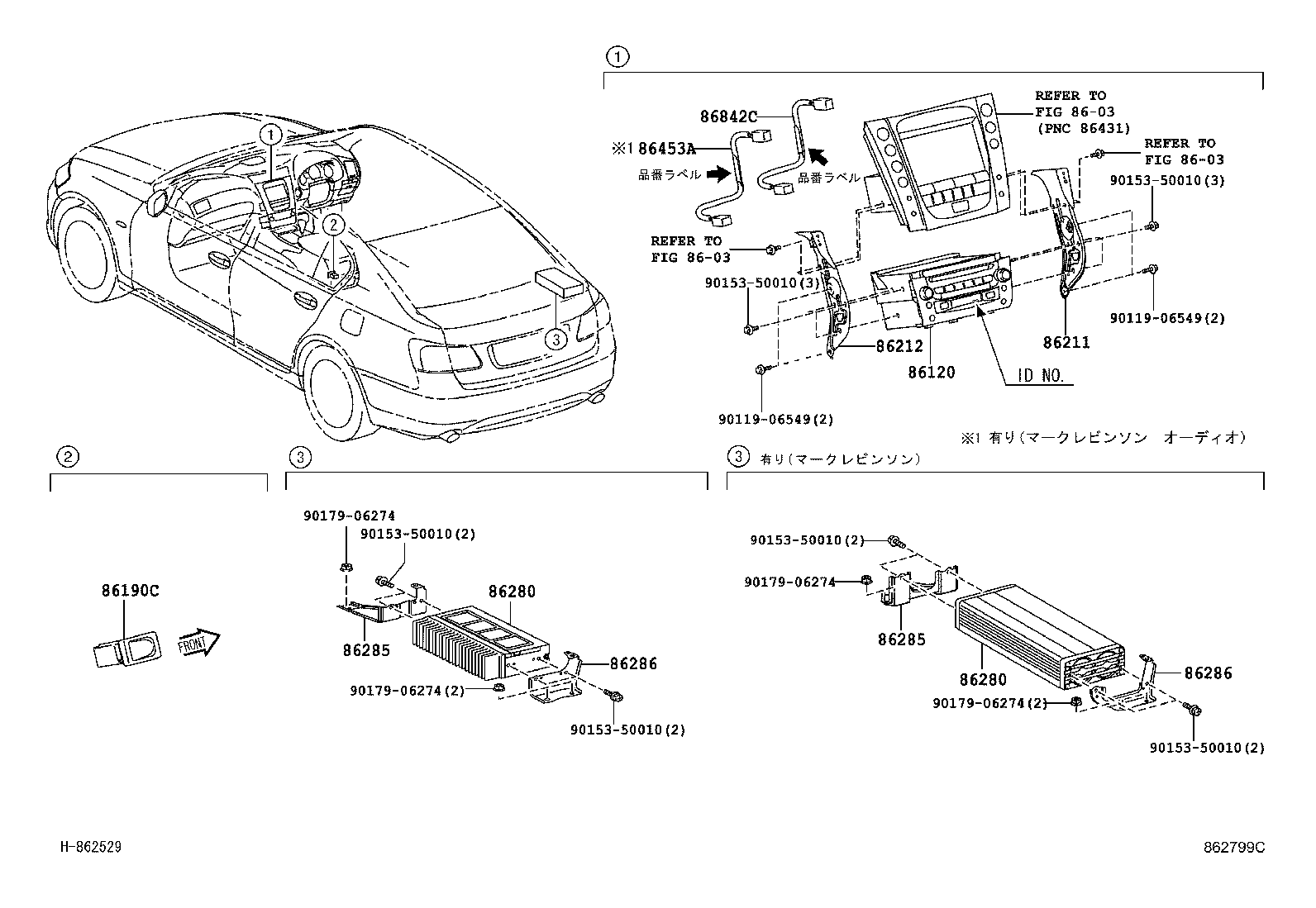

ILLUST NO. 1 OF 2(0602-0909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-30C60E0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30C60C0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ,BLACK,TRIM1#,2# |
1 | ||
| 86120-30F60C0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,BLACK,TRIM04,1#,2# |
1 | ||
| 86120-30F60E0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ORCHID BROWN,TRIM00,01,02,03 |
1 | ||
| 86120-30F70E0 |
GWS191 FUJITSU TEN,ID=15884,ORCHID BROWN,TRIM00,01,02,03 |
1 | ||
| 86120-30C70C0 |
GWS191 FUJITSU TEN,BLACK,TRIM1#,2# |
1 | ||
| 86120-30F70C0 |
GWS191 FUJITSU TEN,ID=15884,BLACK,TRIM04,1#,2# |
1 | ||
| 86120-30M00E0 |
GWS191 PIONEER,ORCHID BROWN,TRIM02,03 |
1 | ||
| 86120-30C70E0 |
GWS191 FUJITSU TEN,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30M10E0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ORCHID BROWN,TRIM02,03 |
1 | ||
| 86120-30M00C0 |
GWS191 PIONEER,BLACK,TRIM04,1#,2# |
1 | ||
| 86120-30M10C0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,BLACK,TRIM04,1#,2# |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-48010 |
GWS191 |
1 | ||
| 86190-30010 |
GWS191 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30300 |
GWS191 |
1 | ||
| 86211-30300 |
GWS191 |
1 | ||
| 86211-30360 |
GWS191 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30330 |
GWS191 |
1 | ||
| 86212-30280 |
GWS191 |
1 | ||
| 86212-30280 |
GWS191 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W350 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86280-30520 |
GWS191 |
1 | ||
| 86280-30520 |
GWS191 |
1 | ||
| 86280-0W350 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86280-0W720 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86280-30620 |
GWS191 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W350 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86280-30520 |
GWS191 |
1 | ||
| 86280-30520 |
GWS191 |
1 | ||
| 86280-0W350 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86280-0W720 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86280-30620 |
GWS191 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30290 |
GWS191 |
1 | ||
| 86285-30350 |
GWS191 |
1 | ||
| 86286-30080 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86285-30290 |
GWS191 |
1 | ||
| 86286-30080 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86285-30360 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30290 |
GWS191 |
1 | ||
| 86285-30350 |
GWS191 |
1 | ||
| 86286-30080 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86285-30290 |
GWS191 |
1 | ||
| 86286-30080 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86285-30360 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30060 |
GWS191 |
1 | ||
| 86286-30060 |
GWS191 |
1 | ||
| 86286-30130 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86286-30120 |
GWS191 |
1 | ||
| 86286-30070 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86286-30070 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30060 |
GWS191 |
1 | ||
| 86286-30060 |
GWS191 |
1 | ||
| 86286-30130 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86286-30120 |
GWS191 |
1 | ||
| 86286-30070 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86286-30070 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86453A - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-30040 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86453-30040 |
GWS191 品番ﾗﾍﾞﾙ=86453−30040 |
1 | ||
| 86453-30040 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86453-30040 |
GWS191 品番ﾗﾍﾞﾙ=86453−30040 |
1 | ||
| 86842C - WIRE, NAVIGATION | ||||
| 86842-30170 |
GWS191 |
1 | ||
| 86842-30170 |
GWS191 |
1 | ||
| 86842-30170 |
GWS191 品番ﾗﾍﾞﾙ=86842−30170 |
1 | ||
| 86842-30170 |
GWS191 品番ﾗﾍﾞﾙ=86842−30170 |
1 | ||
| Common parts | ||||
| 90119-06549 | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 1 OF 2(0909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-30C60E0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30C60C0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ,BLACK,TRIM1#,2# |
1 | ||
| 86120-30F60C0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,BLACK,TRIM04,1#,2# |
1 | ||
| 86120-30F60E0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ORCHID BROWN,TRIM00,01,02,03 |
1 | ||
| 86120-30F70E0 |
GWS191 FUJITSU TEN,ID=15884,ORCHID BROWN,TRIM00,01,02,03 |
1 | ||
| 86120-30C70C0 |
GWS191 FUJITSU TEN,BLACK,TRIM1#,2# |
1 | ||
| 86120-30F70C0 |
GWS191 FUJITSU TEN,ID=15884,BLACK,TRIM04,1#,2# |
1 | ||
| 86120-30M00E0 |
GWS191 PIONEER,ORCHID BROWN,TRIM02,03 |
1 | ||
| 86120-30C70E0 |
GWS191 FUJITSU TEN,ORCHID BROWN,TRIM0# |
1 | ||
| 86120-30M10E0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ORCHID BROWN,TRIM02,03 |
1 | ||
| 86120-30M00C0 |
GWS191 PIONEER,BLACK,TRIM04,1#,2# |
1 | ||
| 86120-30M10C0 |
GWS191 PIONEER,ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,BLACK,TRIM04,1#,2# |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-48010 |
GWS191 |
1 | ||
| 86190-30010 |
GWS191 |
1 | ||
| 861A1 - COMPUTER, MULTI-MEDIA INTERFACE | ||||
| 861A0-77010 |
GWS191 |
1 | ||
| 861A0-77010 |
GWS191 |
1 | ||
| 861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1 | ||||
| 861A2-30010 |
GWS191 |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-30570 |
GWS191 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30300 |
GWS191 |
1 | ||
| 86211-30300 |
GWS191 |
1 | ||
| 86211-30360 |
GWS191 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30330 |
GWS191 |
1 | ||
| 86212-30280 |
GWS191 |
1 | ||
| 86212-30280 |
GWS191 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W350 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86280-30520 |
GWS191 |
1 | ||
| 86280-30520 |
GWS191 |
1 | ||
| 86280-0W350 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86280-0W720 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86280-30620 |
GWS191 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-0W350 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86280-30520 |
GWS191 |
1 | ||
| 86280-30520 |
GWS191 |
1 | ||
| 86280-0W350 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86280-0W720 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86280-30620 |
GWS191 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30290 |
GWS191 |
1 | ||
| 86285-30350 |
GWS191 |
1 | ||
| 86286-30080 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86285-30290 |
GWS191 |
1 | ||
| 86286-30080 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86285-30360 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30290 |
GWS191 |
1 | ||
| 86285-30350 |
GWS191 |
1 | ||
| 86286-30080 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86285-30290 |
GWS191 |
1 | ||
| 86286-30080 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86285-30360 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30060 |
GWS191 |
1 | ||
| 86286-30060 |
GWS191 |
1 | ||
| 86286-30130 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86286-30120 |
GWS191 |
1 | ||
| 86286-30070 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86286-30070 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30060 |
GWS191 |
1 | ||
| 86286-30060 |
GWS191 |
1 | ||
| 86286-30130 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86286-30120 |
GWS191 |
1 | ||
| 86286-30070 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR |
1 | ||
| 86286-30070 |
GWS191 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ |
1 | ||
| Common parts | ||||
| 90119-06549 | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8603 | ||||
