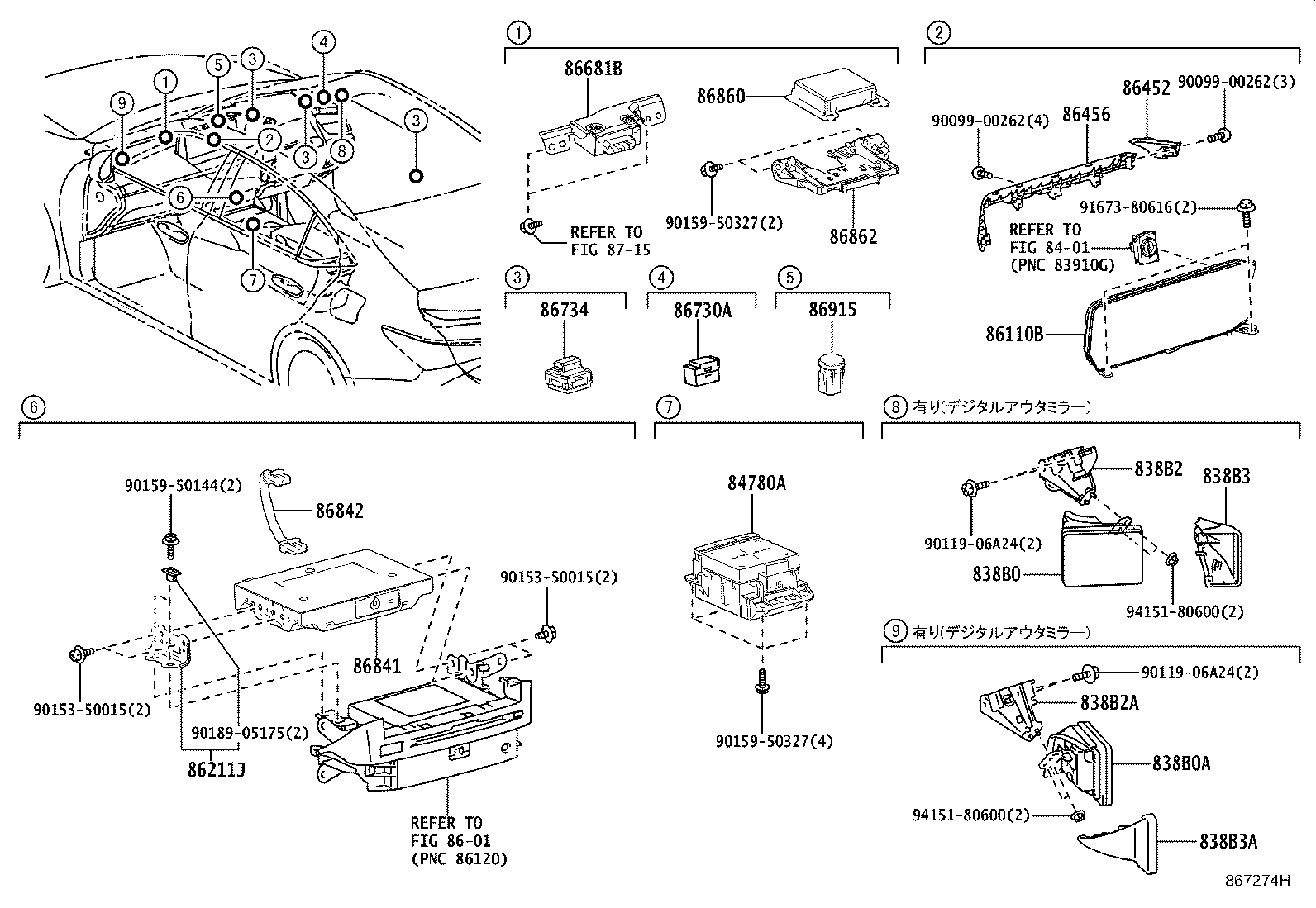

Toyota Lexus es300h AXZH10 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
838B0 - DISPLAY ASSY, OUTER MIRROR, RH
838B0-33010	AXZH1# ｱｳﾀﾐﾗｰ−ﾃﾞｼﾞﾀﾙｱｳﾀﾐﾗｰ	10/2018 - 08/2021	1
838B0A - DISPLAY ASSY, OUTER MIRROR, LH
838B0-33020	AXZH10 ｱｳﾀﾐﾗｰ−ﾃﾞｼﾞﾀﾙｱｳﾀﾐﾗｰ	10/2018 - 07/2020	1
838B2 - BRACKET, OUTER MIRROR DISPLAY, RH
838B2-33010	AXZH10 ｱｳﾀﾐﾗｰ−ﾃﾞｼﾞﾀﾙｱｳﾀﾐﾗｰ	10/2018 - 07/2020	1
838B2A - BRACKET, OUTER MIRROR DISPLAY, LH
838B2-33020	AXZH10 ｱｳﾀﾐﾗｰ−ﾃﾞｼﾞﾀﾙｱｳﾀﾐﾗｰ	10/2018 - 07/2020	1
838B3 - COVER, OUTER MIRROR DISPLAY, RH
838B3-33030	AXZH10 ｱｳﾀﾐﾗｰ−ﾃﾞｼﾞﾀﾙｱｳﾀﾐﾗｰ	10/2018 - 07/2020	1
838B3A - COVER, OUTER MIRROR DISPLAY, LH
838B3-33040	AXZH10 ｱｳﾀﾐﾗｰ−ﾃﾞｼﾞﾀﾙｱｳﾀﾐﾗｰ	10/2018 - 07/2020	1
84780A - CONTROLLER ASSY, REMOTE OPERATION
84780-33210	AXZH10	10/2018 - 07/2020	1
86110B - MULTI-DISPLAY ASSY
86111-33100	AXZH10 DENSO	10/2018 - 07/2020	1
86211J - BRACKET, RADIO RECEIVER, NO.1
86211-33380	AXZH10	10/2018 - 07/2020	1
86452 - PANEL, SUB-CLUSTER MODULE, NO.1
86452-33040C0	AXZH10 BLACK,TRIM1#,2#	10/2018 - 07/2020	1
86452-33040E0	AXZH10 NOBLE BROWN,TRIM5#,6#	10/2018 - 07/2020	1
86456 - COVER, MULTI-MEDIA MODULE
86456-33040	AXZH10	10/2018 - 07/2020	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-11010	AXZH10	10/2018 - 07/2020	1
86734 - MICROPHONE, ACTIVE NOISE CONTROL
86734-11010	AXZH10	10/2018 - 07/2020	3
86841 - COMPUTER, NAVIGATION
86840-33343	AXZH10	04/2020 - 07/2020	1
86840-33341	AXZH10	05/2019 - 07/2019	1
86840-33342	AXZH10	08/2019 - 03/2020	1
86840-33340	AXZH10	10/2018 - 04/2019	1
86842 - WIRE, NAVIGATION, NO.1
86842-11010	AXZH10	10/2018 - 07/2020	1
86860 - ANTENNA ASSY, NAVIGATION
86880-78010	AXZH10	10/2018 - 07/2020	1
86862 - BRACKET, NAVIGATION ANTENNA
86862-58020	AXZH10	10/2018 - 03/2019	1
86862-42010	AXZH10	03/2019 - 07/2020	1
86915 - TRANSCEIVER, OPTICAL BEACON
86915-60010	AXZH10	10/2018 - 07/2020	1
Common parts
90099-00262
90119-06A24
90153-50015
90159-50144
90159-50327
90189-05175
91673-80616
94151-80600
Linked diagrams
8401
8601
8715

AXZH10-AEXGB (2018)

(1810- )
