AXZH10-AEXGB (2018)

Toyota Lexus Es300h

Production Oct 2018 - Jul 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1810- )

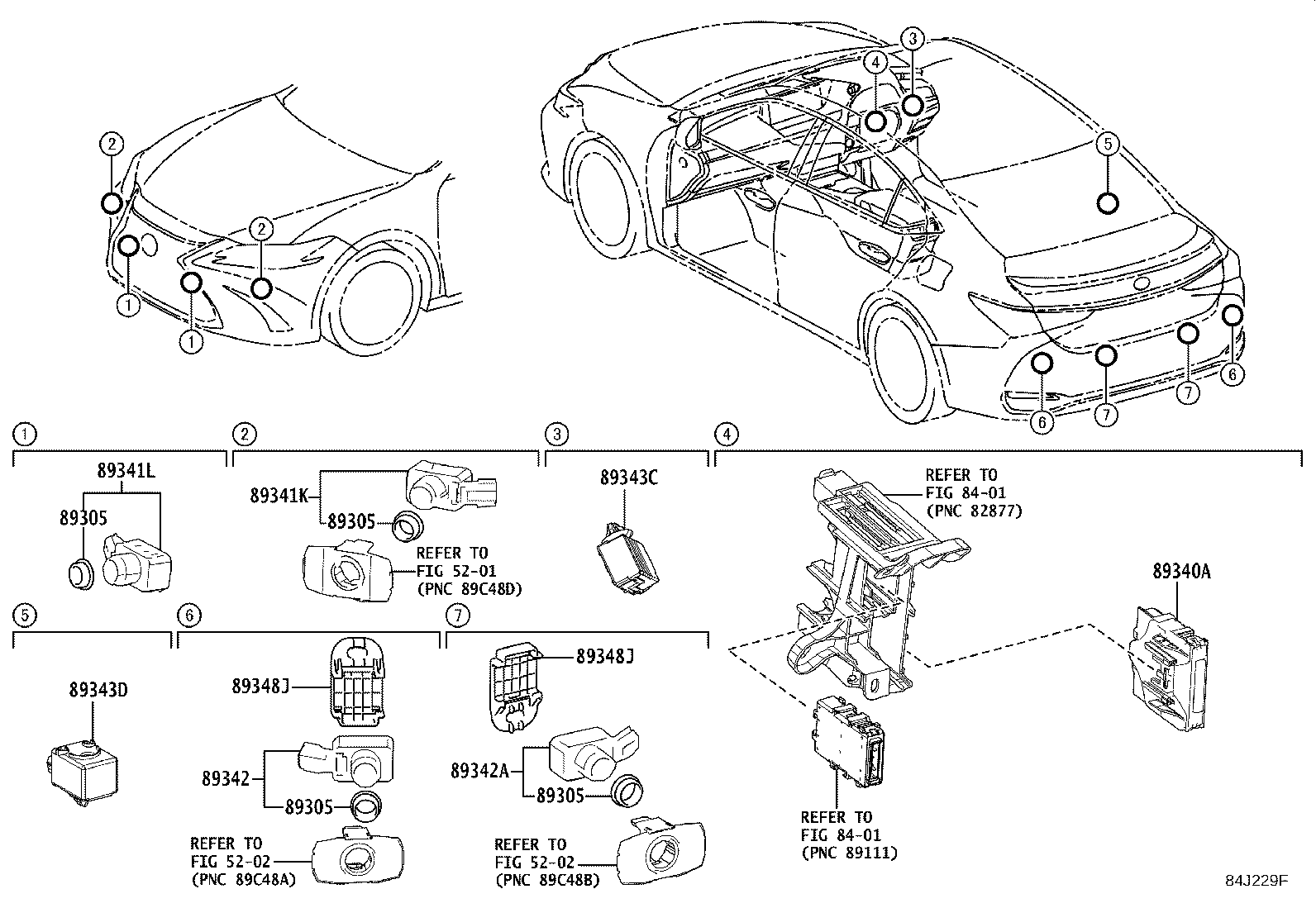

Click highlighted areas on diagram

diagram 5201 5202 5202 8401 8401 89305 89305 89305 89305 89340A 89341K 89341L 89342 89342A 89343C 89343D 89348J 89348J
Part # Description Qty Price
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

AXZH10

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

AXZH10

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

AXZH10

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

AXZH10

 1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-33331

AXZH10

F SPORT

 1
89340-33312

AXZH10

 1
89340-33311

AXZH10

 1
89340-33330

AXZH10

F SPORT

 1
89340-33310

AXZH10

 1
89340-33332

AXZH10

F SPORT

 1
89341K - SENSOR, ULTRASONIC, FRONT CORNER
89341-33220C2

AXZH10

BLACK,212

 2
89341-33220A2

AXZH10

F SPORT,WHITE NOVA GF.,083

 2
89341-33220C3

AXZH10

GRAPHITE BLACK GF.,223

 2
89341-33220B2

AXZH10

MERCURY GRAY MC.,1H9

 2
89341-33220B7

AXZH10

PLATINUM SILVER ME.,1J4

 2
89341-33220A3

AXZH10

SONIC QUARTZ,085

 2
89341-33220D1

AXZH10

RED MC.CS.,3R1

 2
89341-33220B4

AXZH10

SONIC TITANIUM,1J7

 2
89341-33220J1

AXZH10

F SPORT,HEAT BLUE CONTRAST LAYERI,8X1

 2
89341-33220E4

AXZH10

ICE ECRU M.M.,4X8

 2
89341-33220J2

AXZH10

DEEP BLUE MC.,8X5

 2
89341-33220G0

AXZH10

SUNLIGHT GREEN M.M.,6X0

 2
89341L - SENSOR, ULTRASONIC, FRONT CENTER
89341-33220C4

AXZH10

MAT BLACK

 2
89342 - SENSOR, ULTRASONIC, REAR CORNER
89341-33220B7

AXZH10

PLATINUM SILVER ME.,1J4

 2
89341-33220D1

AXZH10

RED MC.CS.,3R1

 2
89341-33220B4

AXZH10

SONIC TITANIUM,1J7

 2
89341-33220A3

AXZH10

SONIC QUARTZ,085

 2
89341-33220C2

AXZH10

BLACK,212

 2
89341-33220C3

AXZH10

GRAPHITE BLACK GF.,223

 2
89341-33220A2

AXZH10

F SPORT,WHITE NOVA GF.,083

 2
89341-33220J2

AXZH10

DEEP BLUE MC.,8X5

 2
89341-33220G0

AXZH10

SUNLIGHT GREEN M.M.,6X0

 2
89341-33220E4

AXZH10

ICE ECRU M.M.,4X8

 2
89341-33220J1

AXZH10

F SPORT,HEAT BLUE CONTRAST LAYERI,8X1

 2
89341-33220B2

AXZH10

MERCURY GRAY MC.,1H9

 2
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-33220A2

AXZH10

F SPORT,WHITE NOVA GF.,083

 2
89341-33220J1

AXZH10

F SPORT,HEAT BLUE CONTRAST LAYERI,8X1

 2
89341-33220G0

AXZH10

SUNLIGHT GREEN M.M.,6X0

 2
89341-33220B4

AXZH10

SONIC TITANIUM,1J7

 2
89341-33220C3

AXZH10

GRAPHITE BLACK GF.,223

 2
89341-33220A3

AXZH10

SONIC QUARTZ,085

 2
89341-33220E4

AXZH10

ICE ECRU M.M.,4X8

 2
89341-33220C2

AXZH10

BLACK,212

 2
89341-33220D1

AXZH10

RED MC.CS.,3R1

 2
89341-33220B7

AXZH10

PLATINUM SILVER ME.,1J4

 2
89341-33220J2

AXZH10

DEEP BLUE MC.,8X5

 2
89341-33220B2

AXZH10

MERCURY GRAY MC.,1H9

 2
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-48010

AXZH10

 1
89343D - BUZZER, CLEARANCE WARNING, NO.2
89747-30040

AXZH10

 1
89348J - CLIP, ULTRASONIC SENSOR
89348-58130

AXZH10

 4
89348J - CLIP, ULTRASONIC SENSOR
89348-58130

AXZH10

 4
Linked diagrams
5201
5202
8401
