AXZH10-AEXGB (2018)
Toyota Lexus Es300h
(1810- )
ｱﾘ(ｵｸﾀﾞｹｼﾞｭｳﾃﾞﾝ)

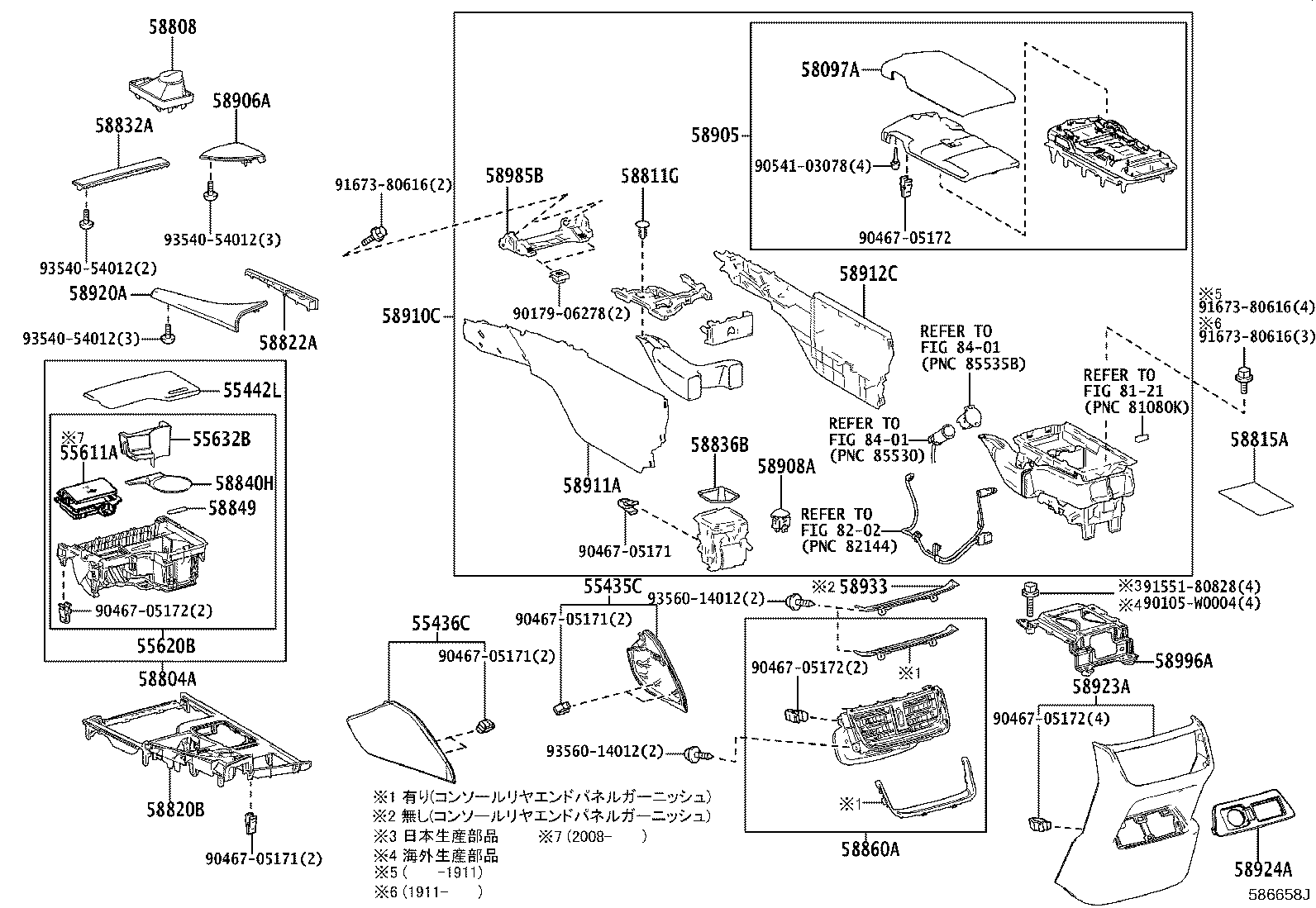

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-33130C5 |
AXZH10 BLACK/RED,TRIM25 |
1 | ||
| 55435-33130C6 |
AXZH10 BLACK/LT.GRAY,TRIM1#,21,22,23,24 |
1 | ||
| 55435-33150E0 |
AXZH10 NOBLE BROWN/BORDEAU,TRIM5#,6# |
1 | ||
| 55435-33130E2 |
AXZH10 NOBLE BROWN/BORDEAU,TRIM5#,6# |
1 | ||
| 55435-33150C0 |
AXZH10 BLACK/RED,TRIM25 |
1 | ||
| 55435-33150C1 |
AXZH10 BLACK/LT.GRAY,TRIM1#,21,22,23,24 |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-33130C5 |
AXZH10 BLACK/RED,TRIM25 |
1 | ||
| 55436-33150E0 |
AXZH10 NOBLE BROWN/BORDEAU,TRIM5#,6# |
1 | ||
| 55436-33130E2 |
AXZH10 NOBLE BROWN/BORDEAU,TRIM5#,6# |
1 | ||
| 55436-33150C1 |
AXZH10 BLACK/LT.GRAY,TRIM1#,21,22,23,24 |
1 | ||
| 55436-33130C6 |
AXZH10 BLACK/LT.GRAY,TRIM1#,21,22,23,24 |
1 | ||
| 55436-33150C0 |
AXZH10 BLACK/RED,TRIM25 |
1 | ||
| 55442L - DOOR, INSTRUMENT PANEL | ||||
| 55442-33270F0 |
AXZH1# version L,NATURAL BROWN,TRIM12,22,52,62 |
1 | ||
| 55442-33260 |
AXZH1# |
1 | ||
| 55442-33270E0 |
AXZH1# version L,DK.BROWN,TRIM13,23,53,63 |
1 | ||
| 55442-33270C0 |
AXZH1# version L,BLACK,TRIM11,21,51,61 |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-33460 |
AXZH10 |
1 | ||
| 55632B - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55634-33040 |
AXZH10 |
1 | ||
| 58097A - COVER SUB-ASSY, CONSOLE COMPARTMENT DOOR, INNER | ||||
| 58097-33020B1 |
AXZH10 CHATEAU,TRIM11,13 |
1 | ||
| 58097-33020A0 |
AXZH10 RICH CREAM,TRIM6# |
1 | ||
| 58097-33020F1 |
AXZH10 TOPAZ,TRIM51,53 |
1 | ||
| 58097-33020B0 |
AXZH10 CHATEAU,TRIM11,12,13 |
1 | ||
| 58097-33020A1 |
AXZH10 RICH CREAM,TRIM61,63 |
1 | ||
| 58097-33020A0 |
AXZH10 RICH CREAM,TRIM61,62,63 |
1 | ||
| 58097-33020C1 |
AXZH10 BLACK,TRIM21,23,24 |
1 | ||
| 58097-33020C0 |
AXZH10 BLACK,TRIM21,22,23 |
1 | ||
| 58097-33020D0 |
AXZH10 RED,TRIM25 |
1 | ||
| 58097-33020F0 |
AXZH10 TOPAZ BROWN,TRIM51,52,53 |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-33C80F0 |
AXZH10 version L,NATURAL BROWN,TRIM12,22,52,62 |
1 | ||
| 58804-33C80C0 |
AXZH10 version L,BLACK,TRIM11,21,51,61 |
1 | ||
| 58804-33C80E0 |
AXZH10 version L,DK.BROWN,TRIM13,23,53,63 |
1 | ||
| 58804-33C70 |
AXZH10 |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-33150C2 |
AXZH1# BLACK/RED,TRIM25 |
1 | ||
| 58808-33150C1 |
AXZH10 BLACK/LT.GRAY,TRIM1#,20,21,23,24,5#,6# |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58801-33200C1 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/BLACK,TRIM21,23,24 |
1 | ||
| 58801-33200E0 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,NOBLE BROWN/RICH CREAM(VI,TRIM6# |
1 | ||
| 58801-33200C0 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/BLACK(PRINT LEATHER,TRIM21,22,23 |
1 | ||
| 58801-33200C4 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/CHATEAU,TRIM11,13 |
1 | ||
| 58801-33200C2 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/RED,TRIM25 |
1 | ||
| 58801-33200C3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK/CHATEAU(VISCO),TRIM11,12,13 |
1 | ||
| 58801-33200E0 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,NOBLE BROWN/RICH CREAM(VI,TRIM61,62,63 |
1 | ||
| 58801-33200E1 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,NOBLE BROWN/TOPAZ BROWN(V,TRIM51,52,53 |
1 | ||
| 58801-33200E3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,NOBLE BROWN/RICH CREAM,TRIM61,63 |
1 | ||
| 58801-33200E2 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,NOBLE BROWN/TOPAZ,TRIM51,53 |
1 | ||
| 58811G - CLIP(CONSOL BOX) | ||||
| 90467-05161C0 |
AXZH10 BLACK |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-33190 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58815-33200 |
AXZH10 |
1 | ||
| 58820B - PANEL ASSY, CONSOLE, UPPER | ||||
| 58820-33030 |
AXZH1# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-33440 |
AXZH1# |
1 | ||
| 58832A - GARNISH, CONSOLE UPPER PANEL, REAR | ||||
| 58832-33230 |
AXZH1# |
1 | ||
| 58832-33240C0 |
AXZH1# version L,BLACK,TRIM11,21,51,61 |
1 | ||
| 58832-33240E0 |
AXZH1# version L,DK.BROWN,TRIM13,23,53,63 |
1 | ||
| 58832-33240F0 |
AXZH1# version L,NATURAL BROWN,TRIM12,22,52,62 |
1 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-33050 |
AXZH1# |
1 | ||
| 58840H - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-33030 |
AXZH1# |
1 | ||
| 58849 - COVER, CONSOLE BOX HOLE, NO.2 | ||||
| 58849-33060 |
AXZH1# |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-33100 |
AXZH10 |
1 | ||
| 58860-33130E0 |
AXZH10 version L&ｴｱｺﾝ−3席独立温度ｺﾝﾄﾛｰﾙ & 有り(湿度ｾﾝｻ),DK.BROWN,TRIM13,23,53,63 |
1 | ||
| 58860-33130C0 |
AXZH10 version L&ｴｱｺﾝ−3席独立温度ｺﾝﾄﾛｰﾙ & 有り(湿度ｾﾝｻ),BLACK,TRIM11,21,51,61 |
1 | ||
| 58860-33130F0 |
AXZH10 version L&ｴｱｺﾝ−3席独立温度ｺﾝﾄﾛｰﾙ & 有り(湿度ｾﾝｻ),NATURAL BROWN,TRIM12,22,52,62 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-33560D3 |
AXZH10 RED,TRIM25 |
1 | ||
| 58905-33560A2 |
AXZH10 RICH CREAM(VISCO),TRIM6# |
1 | ||
| 58905-33560B4 |
AXZH10 CHATEAU,TRIM11,13 |
1 | ||
| 58905-33560F4 |
AXZH10 TOPAZ,TRIM51,53 |
1 | ||
| 58905-33580A2 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,RICH CREAM(VISCO),TRIM6# |
1 | ||
| 58905-33560C4 |
AXZH10 BLACK,TRIM21,23,24 |
1 | ||
| 58905-33560B3 |
AXZH10 CHATEAU(VISCO),TRIM11,12,13 |
1 | ||
| 58905-33560C3 |
AXZH10 BLACK(PRINT LEATHER),TRIM21,22,23 |
1 | ||
| 58905-33560F3 |
AXZH10 TOPAZ BROWN(VISCO),TRIM51,52,53 |
1 | ||
| 58905-33580F3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,TOPAZ BROWN(VISCO),TRIM51,52,53 |
1 | ||
| 58905-33560A3 |
AXZH10 RICH CREAM/NOBLE BROWN,TRIM61,63 |
1 | ||
| 58905-33580A3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,RICH CREAM/NOBLE BROWN,TRIM61,63 |
1 | ||
| 58905-33580B3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,CHATEAU(VISCO),TRIM11,12,13 |
1 | ||
| 58905-33580C3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK(PRINT LEATHER),TRIM21,22,23 |
1 | ||
| 58905-33580D3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,RED,TRIM25 |
1 | ||
| 58905-33560A2 |
AXZH10 RICH CREAM(VISCO),TRIM61,62,63 |
1 | ||
| 58905-33580A2 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,RICH CREAM(VISCO),TRIM61,62,63 |
1 | ||
| 58905-33580F4 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,TOPAZ,TRIM51,53 |
1 | ||
| 58905-33580C4 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM21,23,24 |
1 | ||
| 58905-33580B4 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,CHATEAU,TRIM11,13 |
1 | ||
| 58906A - PAD SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58906-33080C2 |
AXZH1# BLACK,TRIM1#,2#,5#,6# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-33150 |
AXZH10 |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-33240E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58911-33240C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-33250C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 58912-33250E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-33130F1 |
AXZH1# TOPAZ,TRIM5# |
1 | ||
| 58920-33130C1 |
AXZH1# BLACK,TRIM21,23,24 |
1 | ||
| 58920-33130D1 |
AXZH1# RED,TRIM25 |
1 | ||
| 58920-33130B1 |
AXZH1# CHATEAU,TRIM1# |
1 | ||
| 58920-33130A1 |
AXZH1# RICH CREAM,TRIM6# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-33150E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58923-33150C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 58924A - PANEL, CONSOLE REAR END, NO.2 | ||||
| 58924-33080E0 |
AXZH10 ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W,NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58924-33070C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 58924-33070E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58924-33080C0 |
AXZH10 ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W,BLACK,TRIM1#,2# |
1 | ||
| 58933 - GARNISH, CONSOLE REAR END PANEL | ||||
| 58934-33010C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 58934-33010E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58985B - RETAINER, CONSOLE BOX, NO.1 | ||||
| 58985-33150 |
AXZH10 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-33120 |
AXZH10 |
1 | ||
| Common parts | ||||
| 90105-W0004 | ||||
| 90179-06278 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90541-03078 | ||||
| 91551-80828 | ||||
| 91673-80616 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
| 8615 | ||||
(1810- )

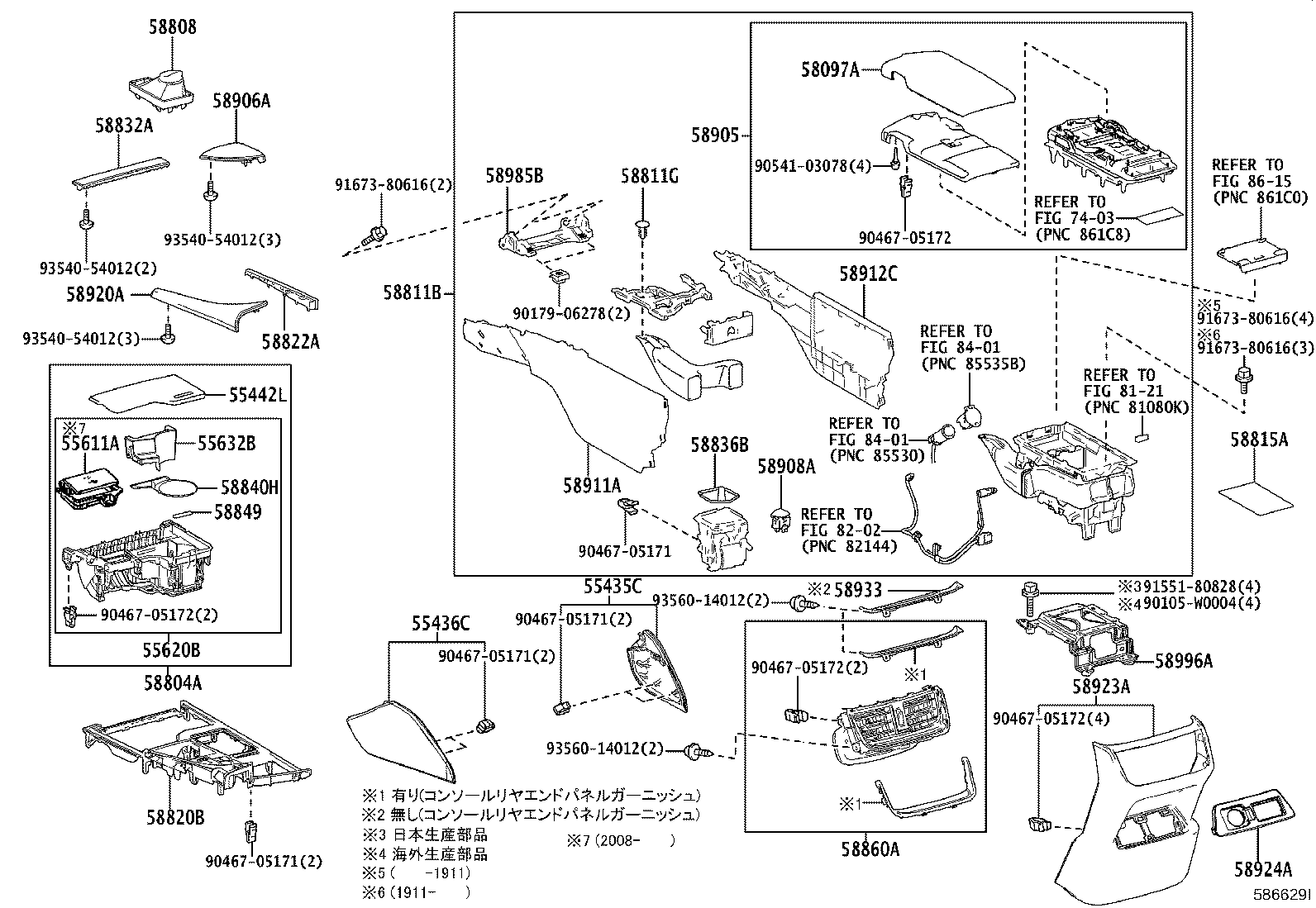

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-33130C5 |
AXZH10 BLACK/RED,TRIM25 |
1 | ||
| 55435-33130C6 |
AXZH10 BLACK/LT.GRAY,TRIM1#,21,22,23,24 |
1 | ||
| 55435-33150E0 |
AXZH10 NOBLE BROWN/BORDEAU,TRIM5#,6# |
1 | ||
| 55435-33130E2 |
AXZH10 NOBLE BROWN/BORDEAU,TRIM5#,6# |
1 | ||
| 55435-33150C0 |
AXZH10 BLACK/RED,TRIM25 |
1 | ||
| 55435-33150C1 |
AXZH10 BLACK/LT.GRAY,TRIM1#,21,22,23,24 |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-33130C5 |
AXZH10 BLACK/RED,TRIM25 |
1 | ||
| 55436-33150E0 |
AXZH10 NOBLE BROWN/BORDEAU,TRIM5#,6# |
1 | ||
| 55436-33130E2 |
AXZH10 NOBLE BROWN/BORDEAU,TRIM5#,6# |
1 | ||
| 55436-33150C1 |
AXZH10 BLACK/LT.GRAY,TRIM1#,21,22,23,24 |
1 | ||
| 55436-33130C6 |
AXZH10 BLACK/LT.GRAY,TRIM1#,21,22,23,24 |
1 | ||
| 55436-33150C0 |
AXZH10 BLACK/RED,TRIM25 |
1 | ||
| 55442L - DOOR, INSTRUMENT PANEL | ||||
| 55442-33270F0 |
AXZH1# version L,NATURAL BROWN,TRIM12,22,52,62 |
1 | ||
| 55442-33260 |
AXZH1# |
1 | ||
| 55442-33270E0 |
AXZH1# version L,DK.BROWN,TRIM13,23,53,63 |
1 | ||
| 55442-33270C0 |
AXZH1# version L,BLACK,TRIM11,21,51,61 |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-33460 |
AXZH10 |
1 | ||
| 55632B - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55634-33040 |
AXZH10 |
1 | ||
| 58097A - COVER SUB-ASSY, CONSOLE COMPARTMENT DOOR, INNER | ||||
| 58097-33020B1 |
AXZH10 CHATEAU,TRIM11,13 |
1 | ||
| 58097-33020A0 |
AXZH10 RICH CREAM,TRIM6# |
1 | ||
| 58097-33020F1 |
AXZH10 TOPAZ,TRIM51,53 |
1 | ||
| 58097-33020B0 |
AXZH10 CHATEAU,TRIM11,12,13 |
1 | ||
| 58097-33020A1 |
AXZH10 RICH CREAM,TRIM61,63 |
1 | ||
| 58097-33020A0 |
AXZH10 RICH CREAM,TRIM61,62,63 |
1 | ||
| 58097-33020C1 |
AXZH10 BLACK,TRIM21,23,24 |
1 | ||
| 58097-33020C0 |
AXZH10 BLACK,TRIM21,22,23 |
1 | ||
| 58097-33020D0 |
AXZH10 RED,TRIM25 |
1 | ||
| 58097-33020F0 |
AXZH10 TOPAZ BROWN,TRIM51,52,53 |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-33C80F0 |
AXZH10 version L,NATURAL BROWN,TRIM12,22,52,62 |
1 | ||
| 58804-33C80C0 |
AXZH10 version L,BLACK,TRIM11,21,51,61 |
1 | ||
| 58804-33C80E0 |
AXZH10 version L,DK.BROWN,TRIM13,23,53,63 |
1 | ||
| 58804-33C70 |
AXZH10 |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-33150C2 |
AXZH1# BLACK/RED,TRIM25 |
1 | ||
| 58808-33150C1 |
AXZH10 BLACK/LT.GRAY,TRIM1#,20,21,23,24,5#,6# |
1 | ||
| 58811G - CLIP(CONSOL BOX) | ||||
| 90467-05161C0 |
AXZH10 BLACK |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-33190 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58815-33200 |
AXZH10 |
1 | ||
| 58820B - PANEL ASSY, CONSOLE, UPPER | ||||
| 58820-33030 |
AXZH1# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-33440 |
AXZH1# |
1 | ||
| 58832A - GARNISH, CONSOLE UPPER PANEL, REAR | ||||
| 58832-33230 |
AXZH1# |
1 | ||
| 58832-33240C0 |
AXZH1# version L,BLACK,TRIM11,21,51,61 |
1 | ||
| 58832-33240E0 |
AXZH1# version L,DK.BROWN,TRIM13,23,53,63 |
1 | ||
| 58832-33240F0 |
AXZH1# version L,NATURAL BROWN,TRIM12,22,52,62 |
1 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-33050 |
AXZH1# |
1 | ||
| 58840H - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-33030 |
AXZH1# |
1 | ||
| 58849 - COVER, CONSOLE BOX HOLE, NO.2 | ||||
| 58849-33060 |
AXZH1# |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-33100 |
AXZH10 |
1 | ||
| 58860-33130E0 |
AXZH10 version L&ｴｱｺﾝ−3席独立温度ｺﾝﾄﾛｰﾙ & 有り(湿度ｾﾝｻ),DK.BROWN,TRIM13,23,53,63 |
1 | ||
| 58860-33130C0 |
AXZH10 version L&ｴｱｺﾝ−3席独立温度ｺﾝﾄﾛｰﾙ & 有り(湿度ｾﾝｻ),BLACK,TRIM11,21,51,61 |
1 | ||
| 58860-33130F0 |
AXZH10 version L&ｴｱｺﾝ−3席独立温度ｺﾝﾄﾛｰﾙ & 有り(湿度ｾﾝｻ),NATURAL BROWN,TRIM12,22,52,62 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-33560D3 |
AXZH10 RED,TRIM25 |
1 | ||
| 58905-33560A2 |
AXZH10 RICH CREAM(VISCO),TRIM6# |
1 | ||
| 58905-33560B4 |
AXZH10 CHATEAU,TRIM11,13 |
1 | ||
| 58905-33560F4 |
AXZH10 TOPAZ,TRIM51,53 |
1 | ||
| 58905-33580A2 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,RICH CREAM(VISCO),TRIM6# |
1 | ||
| 58905-33560C4 |
AXZH10 BLACK,TRIM21,23,24 |
1 | ||
| 58905-33560B3 |
AXZH10 CHATEAU(VISCO),TRIM11,12,13 |
1 | ||
| 58905-33560C3 |
AXZH10 BLACK(PRINT LEATHER),TRIM21,22,23 |
1 | ||
| 58905-33560F3 |
AXZH10 TOPAZ BROWN(VISCO),TRIM51,52,53 |
1 | ||
| 58905-33580F3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,TOPAZ BROWN(VISCO),TRIM51,52,53 |
1 | ||
| 58905-33560A3 |
AXZH10 RICH CREAM/NOBLE BROWN,TRIM61,63 |
1 | ||
| 58905-33580A3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,RICH CREAM/NOBLE BROWN,TRIM61,63 |
1 | ||
| 58905-33580B3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,CHATEAU(VISCO),TRIM11,12,13 |
1 | ||
| 58905-33580C3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK(PRINT LEATHER),TRIM21,22,23 |
1 | ||
| 58905-33580D3 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,RED,TRIM25 |
1 | ||
| 58905-33560A2 |
AXZH10 RICH CREAM(VISCO),TRIM61,62,63 |
1 | ||
| 58905-33580A2 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,RICH CREAM(VISCO),TRIM61,62,63 |
1 | ||
| 58905-33580F4 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,TOPAZ,TRIM51,53 |
1 | ||
| 58905-33580C4 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM21,23,24 |
1 | ||
| 58905-33580B4 |
AXZH10 おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,CHATEAU,TRIM11,13 |
1 | ||
| 58906A - PAD SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58906-33080C2 |
AXZH1# BLACK,TRIM1#,2#,5#,6# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-33150 |
AXZH10 |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-33540C7 |
AXZH10 BLACK/BLACK,TRIM21,23,24 |
1 | ||
| 58910-3354023 |
AXZH10 BLACK/CHATEAU,TRIM11,13 |
1 | ||
| 58910-3354022 |
AXZH10 BLACK/CHATEAU(VISCO),TRIM11,12,13 |
1 | ||
| 58910-33540E7 |
AXZH10 NOBLE BROWN/TOPAZ,TRIM51,53 |
1 | ||
| 58910-3354020 |
AXZH10 BLACK/RED,TRIM25 |
1 | ||
| 58910-33540E5 |
AXZH10 NOBLE BROWN/R.CREAM(VISCO,TRIM61,62,63 |
1 | ||
| 58910-33540E8 |
AXZH10 NOBLE BROWN/RICH CREAM,TRIM61,63 |
1 | ||
| 58910-33540C6 |
AXZH10 BLACK/BLACK(PRINT LEATHER,TRIM21,22,23 |
1 | ||
| 58910-33540E5 |
AXZH10 NOBLE BROWN/R.CREAM(VISCO,TRIM6# |
1 | ||
| 58910-33540E6 |
AXZH10 NOBLE BROWN/TOPAZ BROWN(V,TRIM51,52,53 |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-33240E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58911-33240C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-33250C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 58912-33250E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-33130F1 |
AXZH1# TOPAZ,TRIM5# |
1 | ||
| 58920-33130C1 |
AXZH1# BLACK,TRIM21,23,24 |
1 | ||
| 58920-33130D1 |
AXZH1# RED,TRIM25 |
1 | ||
| 58920-33130B1 |
AXZH1# CHATEAU,TRIM1# |
1 | ||
| 58920-33130A1 |
AXZH1# RICH CREAM,TRIM6# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-33150E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58923-33150C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 58924A - PANEL, CONSOLE REAR END, NO.2 | ||||
| 58924-33080E0 |
AXZH10 ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W,NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58924-33070C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 58924-33070E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58924-33080C0 |
AXZH10 ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W,BLACK,TRIM1#,2# |
1 | ||
| 58933 - GARNISH, CONSOLE REAR END PANEL | ||||
| 58934-33010C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 58934-33010E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 58985B - RETAINER, CONSOLE BOX, NO.1 | ||||
| 58985-33150 |
AXZH10 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-33120 |
AXZH10 |
1 | ||
| Common parts | ||||
| 90105-W0004 | ||||
| 90179-06278 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90541-03078 | ||||
| 91551-80828 | ||||
| 91673-80616 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
