AXZH10-AEXGB (2018)
Toyota Lexus Es300h

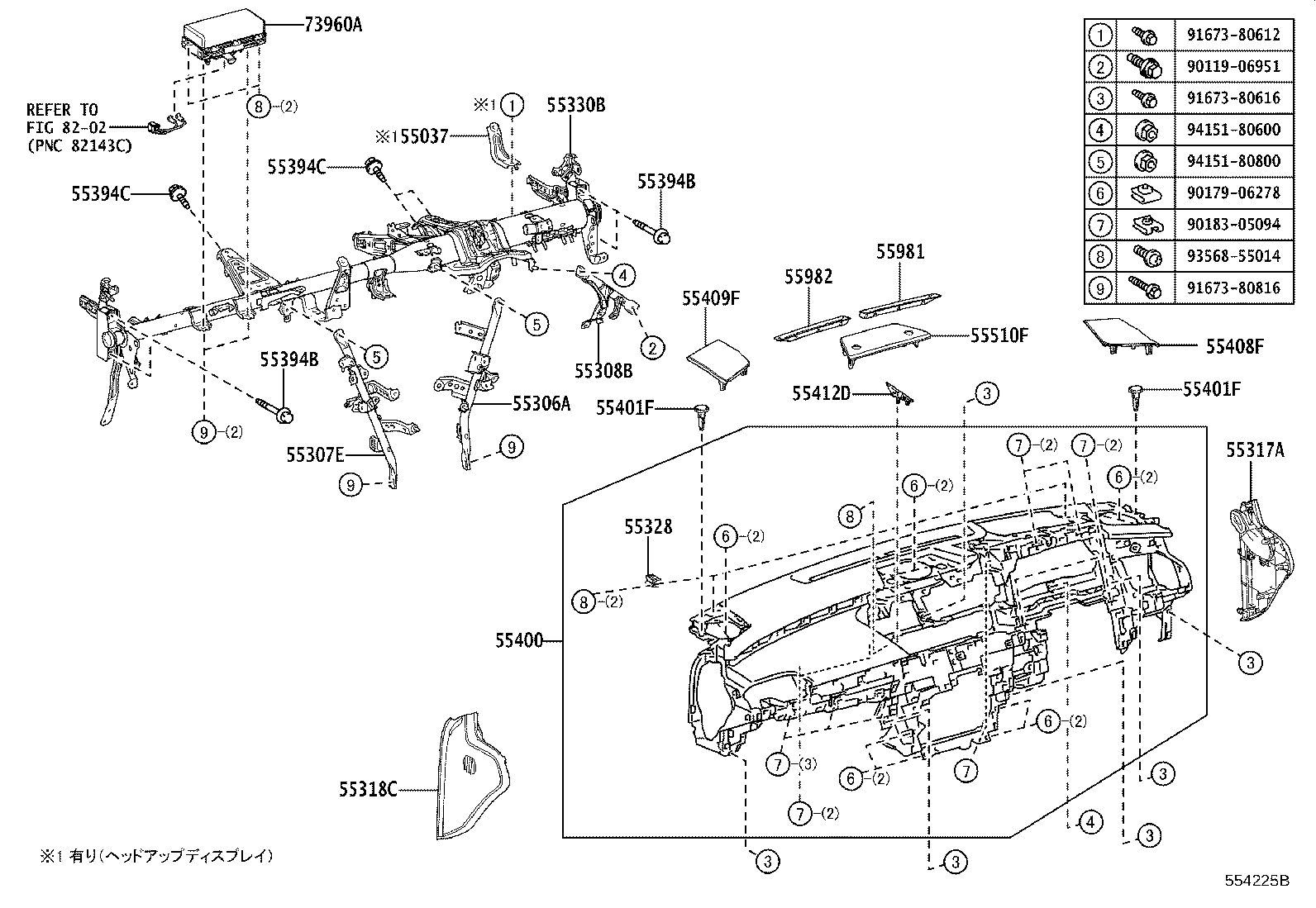

ILLUST NO. 1 OF 2(1810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55037 - BRACKET SUB-ASSY, INSTRUMENT PANEL METER | ||||
| 5538J-33010 |
AXZH10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-33190 |
AXZH10 運転席側 |
1 | ||
| 55307E - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-33220 |
AXZH10 助手席側 |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-33250 |
AXZH10 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-33240E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55317-33240C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-33210E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55318-33210C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
AXZH10 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-33460 |
AXZH10 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 90105-08473 |
AXZH10 |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 90105-08473 |
AXZH10 |
4 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 90119-08D16 |
AXZH10 |
3 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 90119-08D16 |
AXZH10 |
3 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-33030C3 |
AXZH10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,SOFT BLACK/RED,TRIM25 |
1 | ||
| 55400-33030C4 |
AXZH10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,SOFT BLACK/LT.GRAY,TRIM1#,21,22,23,24 |
1 | ||
| 55400-33030E2 |
AXZH10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,NOBLE BROWN/BROWN,TRIM5# |
1 | ||
| 55400-33030E0 |
AXZH10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,NOBLE BROWN/IVORY,TRIM6# |
1 | ||
| 55400-33040E0 |
AXZH10 NOBLE BROWN/IVORY,TRIM6# |
1 | ||
| 55400-33040E2 |
AXZH10 NOBLE BROWN/BROWN,TRIM5# |
1 | ||
| 55400-33040C3 |
AXZH10 SOFT BLACK/RED,TRIM25 |
1 | ||
| 55400-33040C4 |
AXZH10 SOFT BLACK/LT.GRAY,TRIM1#,21,23,24 |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
AXZH10 |
2 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
AXZH10 |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-33140E0 |
AXZH10 NOBLE BROWN,TRIM5#,6#,運転席側 |
1 | ||
| 55408-33150C0 |
AXZH10 ｵｰﾃﾞｨｵ−12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & *BD & *MAR,BLACK,TRIM1#,2#,^転席側 |
1 | ||
| 55408-33140C0 |
AXZH10 BLACK,TRIM1#,2#,運転席側 |
1 | ||
| 55408-33150E0 |
AXZH10 ｵｰﾃﾞｨｵ−12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & *BD & *MAR,NOBLE BROWN,TRIM5#,6#,運転席側 |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-33160E0 |
AXZH10 NOBLE BROWN,TRIM5#,6#,助手席側 |
1 | ||
| 55409-33160C0 |
AXZH10 BLACK,TRIM1#,2#,助手席側 |
1 | ||
| 55409-33170C0 |
AXZH10 ｵｰﾃﾞｨｵ−12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & *BD & *MAR,BLACK,TRIM1#,2#,侮關ﾈ側 |
1 | ||
| 55409-33170E0 |
AXZH10 ｵｰﾃﾞｨｵ−12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & *BD & *MAR,NOBLE BROWN,TRIM5#,6#,助手席側 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-33250 |
AXZH10 |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-33120E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55510-33130E0 |
AXZH10 ｵｰﾃﾞｨｵ−12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & *BD & *MAR,NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55510-33120C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55510-33130C0 |
AXZH10 ｵｰﾃﾞｨｵ−12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & *BD & *MAR,BLACK,TRIM1#,2# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-33190 |
AXZH10 運転席側 |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-33080 |
AXZH10 助手席側 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-33240 |
AXZH10 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

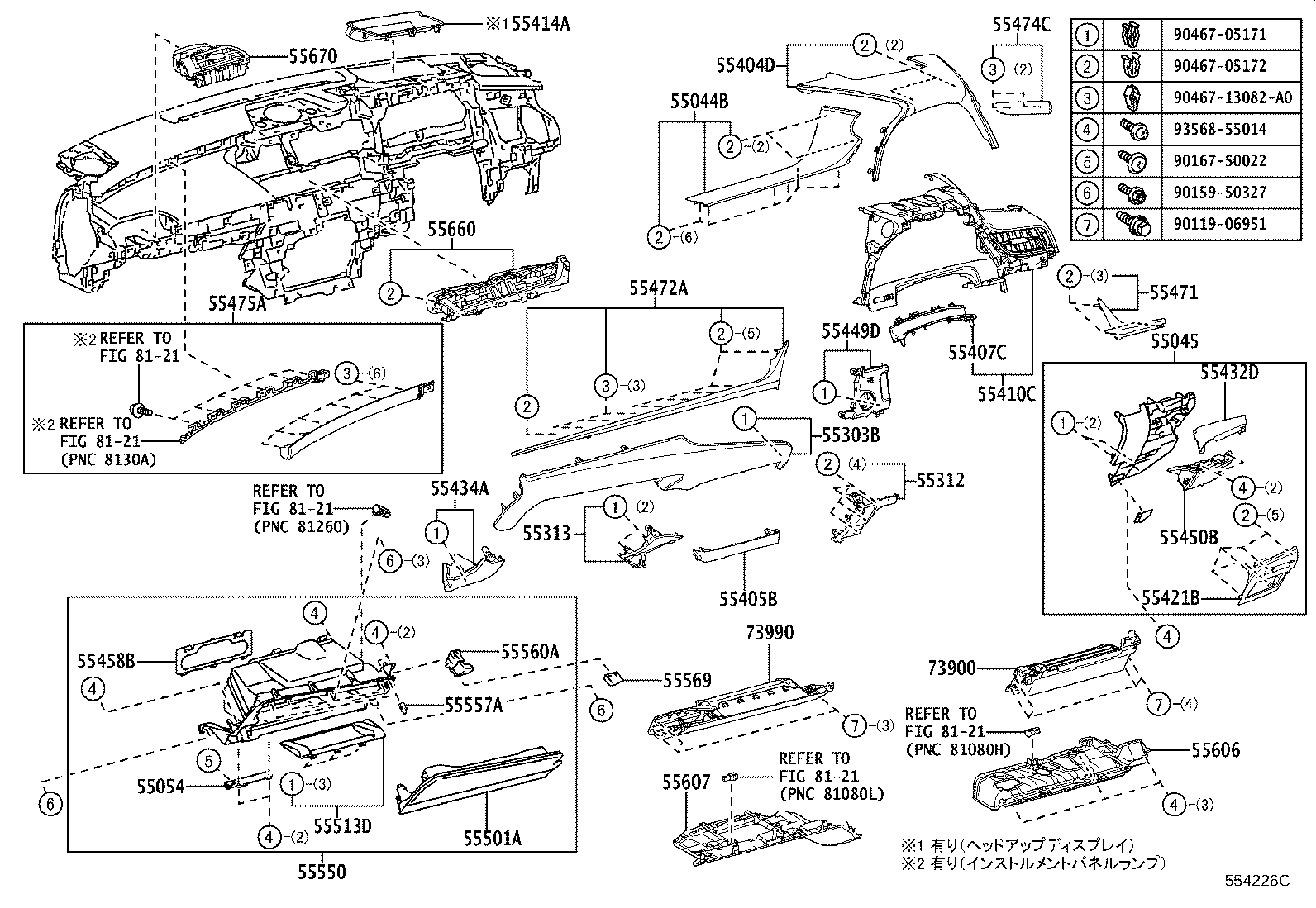

ILLUST NO. 2 OF 2(1810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55044-33020E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55044-33020C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-33120E0 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W,KOHAKU,TRIM6# |
1 | ||
| 55045-33120C0 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK,TRIM1#,2# |
1 | ||
| 55045-33120C0 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W,BLACK,TRIM1#,2# |
1 | ||
| 55045-33120C0 |
AXZH1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK,TRIM1#,2# |
1 | ||
| 55045-33120E0 |
AXZH1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,KOHAKU,TRIM6# |
1 | ||
| 55045-33120E1 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,NOBLE BROWN,TRIM5# |
1 | ||
| 55045-33120E0 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,KOHAKU,TRIM6# |
1 | ||
| 55045-33120E1 |
AXZH1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,NOBLE BROWN,TRIM5# |
1 | ||
| 55045-33120E1 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W,NOBLE BROWN,TRIM5# |
1 | ||
| 55045-33130E0 |
AXZH1# KOHAKU,TRIM6# |
1 | ||
| 55045-33130C0 |
AXZH1# BLACK,TRIM1#,2# |
1 | ||
| 55045-33130E1 |
AXZH1# NOBLE BROWN,TRIM5# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33150 |
AXZH10 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-33370C1 |
AXZH10 SOFT BLACK,TRIM1#,2# |
1 | ||
| 55303-33370E1 |
AXZH10 NOBLE BROWN,TRIM5# |
1 | ||
| 55303-33370E0 |
AXZH10 KOHAKU,TRIM6# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-33120E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55312-33120C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55313 - PANEL, INSTRUMENT, LOWER LH | ||||
| 55313-33110C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55313-33110E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-33190C4 |
AXZH10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK,TRIM1#,2# |
1 | ||
| 55404-33200E1 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55404-33200C4 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55404-33190E1 |
AXZH10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-33360 |
AXZH10 |
1 | ||
| 55405-33380 |
AXZH10 ｵｰﾃﾞｨｵ−12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & *BD & *MAR |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-33080C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55407-33080E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-33110C1 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55410-33110E1 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-33120C0 |
AXZH10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK,TRIM1#,2# |
1 | ||
| 55414-33120E0 |
AXZH10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-33140C0 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W,BLACK,TRIM1#,2# |
1 | ||
| 55421-33140E1 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W,NOBLE BROWN,TRIM5# |
1 | ||
| 55421-33140C0 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK,TRIM1#,2# |
1 | ||
| 55421-33140E0 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,KOHAKU,TRIM6# |
1 | ||
| 55421-33140C0 |
AXZH1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,BLACK,TRIM1#,2# |
1 | ||
| 55421-33140E0 |
AXZH1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,KOHAKU,TRIM6# |
1 | ||
| 55421-33150C0 |
AXZH1# BLACK,TRIM1#,2# |
1 | ||
| 55421-33140E0 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W,KOHAKU,TRIM6# |
1 | ||
| 55421-33150E1 |
AXZH1# NOBLE BROWN,TRIM5# |
1 | ||
| 55421-33140E1 |
AXZH1# ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,NOBLE BROWN,TRIM5# |
1 | ||
| 55421-33140E1 |
AXZH1# ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,NOBLE BROWN,TRIM5# |
1 | ||
| 55421-33150E0 |
AXZH1# KOHAKU,TRIM6# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-33410 |
AXZH1# |
1 | ||
| 55434A - PANEL, INSTRUMENT FINISH, LOWER SUB | ||||
| 55434-33160C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55434-33160E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-33110C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55449-33110E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-33170E0 |
AXZH1# KOHAKU,TRIM6# |
1 | ||
| 55450-33170E0 |
AXZH10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,KOHAKU,TRIM6# |
1 | ||
| 55450-33170E1 |
AXZH1# NOBLE BROWN,TRIM5# |
1 | ||
| 55450-33170E0 |
AXZH10 ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W,KOHAKU,TRIM6# |
1 | ||
| 55450-33170C0 |
AXZH1# BLACK,TRIM1#,2# |
1 | ||
| 55450-33170E0 |
AXZH10 ｱｸｾｻﾘｺﾈｸﾀ−DC12V 120W & AC100V 1500W&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り,KOHAKU,TRIM6# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55459-33120 |
AXZH10 |
1 | ||
| 55471 - MOULDING, INSTRUMENT CLUSTER, NO.1 | ||||
| 55471-33110 |
AXZH10 |
1 | ||
| 55472A - MOULDING, INSTRUMENT CLUSTER, NO.2 | ||||
| 55472-33270 |
AXZH10 |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-33430 |
AXZH10 F SPORT |
1 | ||
| 55474-33410C0 |
AXZH10 BLACK,TRIM11,21,51,61 |
1 | ||
| 55474-33410F0 |
AXZH10 NATURAL BROWN,TRIM12,22,52,62 |
1 | ||
| 55474-33410E0 |
AXZH10 DK.BROWN,TRIM13,23,53,63 |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55470-33030F0 |
AXZH10 version L&ｴｱｺﾝ−3席独立温度ｺﾝﾄﾛｰﾙ & 有り(湿度ｾﾝｻ),NATURAL BROWN,TRIM12,22,52,62 |
1 | ||
| 55475-33510E0 |
AXZH10 DK.BROWN,TRIM13,23,53,63 |
1 | ||
| 55470-33030E0 |
AXZH10 version L&ｴｱｺﾝ−3席独立温度ｺﾝﾄﾛｰﾙ & 有り(湿度ｾﾝｻ),DK.BROWN,TRIM13,23,53,63 |
1 | ||
| 55470-33030C0 |
AXZH10 version L&ｴｱｺﾝ−3席独立温度ｺﾝﾄﾛｰﾙ & 有り(湿度ｾﾝｻ),BLACK,TRIM11,21,51,61 |
1 | ||
| 55475-33510C0 |
AXZH10 BLACK,TRIM11,21,51,61 |
1 | ||
| 55475-33530 |
AXZH10 F SPORT |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-33260C2 |
AXZH10 BLACK/BLACK,TRIM1#,2# |
1 | ||
| 55501-33260E5 |
AXZH10 NOBLE BROWN/KOHAKU,TRIM6# |
1 | ||
| 55501-33260E4 |
AXZH10 NOBLE BROWN/NOBLE BROWN,TRIM5# |
1 | ||
| 55513D - PLATE, GLOVE COMPARTMENT, NO.2 | ||||
| 55513-33050 |
AXZH10 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-33100E3 |
AXZH10 KOHAKU,TRIM6# |
1 | ||
| 55550-33100C1 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55550-33100E2 |
AXZH10 NOBLE BROWN,TRIM5# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
AXZH10 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-33080C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55506-33080E0 |
AXZH10 KOHAKU,TRIM6# |
1 | ||
| 55506-33080E1 |
AXZH10 NOBLE BROWN,TRIM5# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-33060E1 |
AXZH10 NOBLE BROWN,TRIM5# |
1 | ||
| 55569-33060E0 |
AXZH10 KOHAKU,TRIM6# |
1 | ||
| 55569-33060C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-33040 |
AXZH10 運転席側 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-33230 |
AXZH10 助手席側 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-33320 |
AXZH10 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-33480 |
AXZH10 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-33150C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 73900-33150E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-33060C0 |
AXZH10 BLACK,TRIM1#,2# |
1 | ||
| 73990-33060E0 |
AXZH10 NOBLE BROWN,TRIM5#,6# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90167-50022 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-13082A0 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
