ZWA10-AHXEB (2010)
Toyota Lexus Ct200h

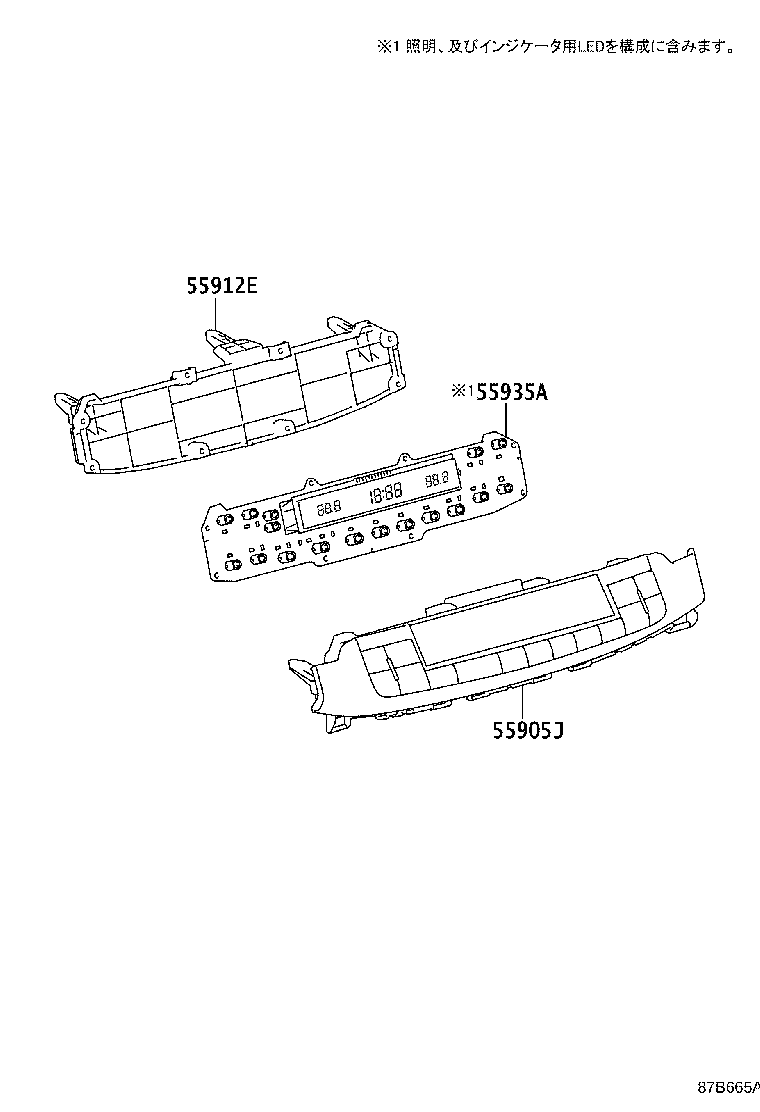

ILLUST NO. 1 OF 3(1012- )
ﾋｰﾀｺﾝﾄﾛｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-76020 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 55905-76010 |
ZWA10 |
1 | ||
| 55905-76020 |
ZWA10 |
1 | ||
| 55912E - BASE, HEATER CONTROL, LOWER | ||||
| 55912-76010 |
ZWA10 |
1 | ||
| 55935A - CIRCUIT, CENTER CLUSTER MODULE | ||||
| 55935-76010 |
ZWA10 |
1 | ||
| 55935-76020 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 55935-76020 |
ZWA10 |
1 | ||

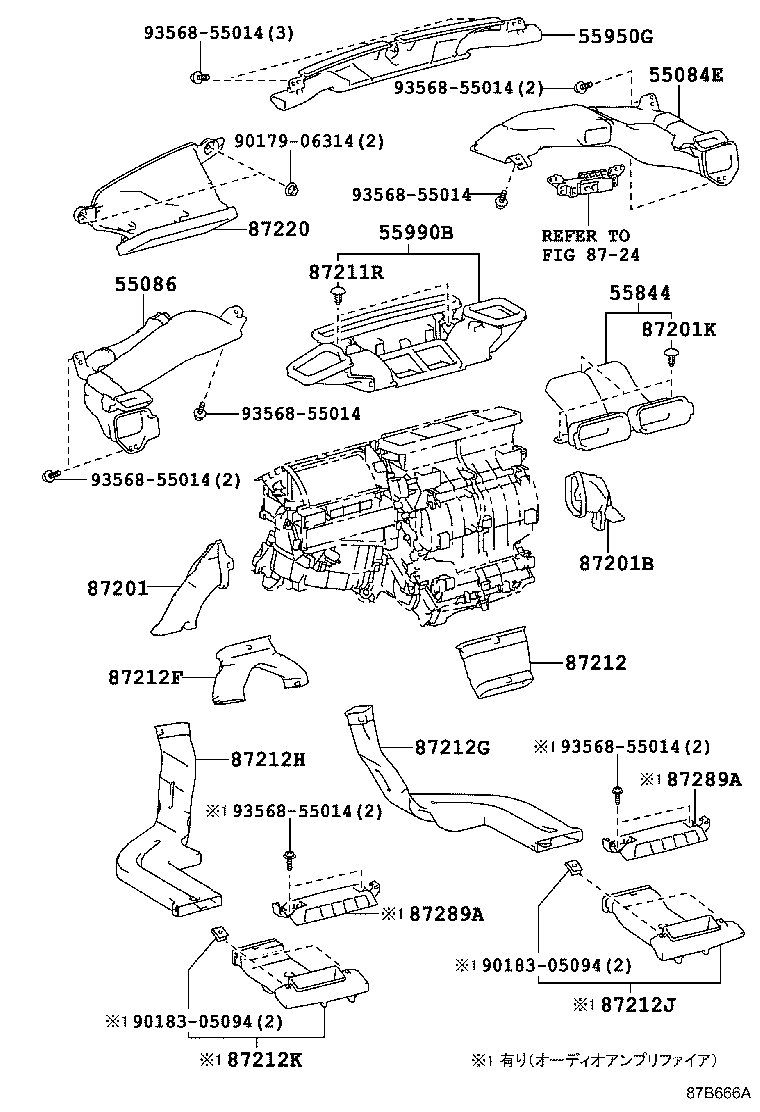

ILLUST NO. 2 OF 3(1012- )
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-76030 |
ZWA10 |
1 | ||
| 55084-76031 |
ZWA10 |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-76020 |
ZWA10 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-76020 |
ZWA10 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-76010 |
ZWA10 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-76020 |
ZWA10 |
1 | ||
| 55990-76021 |
ZWA10 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-75050 |
ZWA10 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-75040 |
ZWA10 |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-0504522 |
ZWA10 BLACK |
3 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-0504522 |
ZWA10 BLACK |
2 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-75010 |
ZWA10 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87212-75020 |
ZWA10 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87213-75010 |
ZWA10 |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87213-75020 |
ZWA10 |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87275-75010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 87275-75010 |
ZWA10 |
1 | ||
| 87275-75010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 87212K - DUCT, AIR, REAR NO.6 | ||||
| 87276-75010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 87276-75010 |
ZWA10 |
1 | ||
| 87276-75010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-76020 |
ZWA10 |
1 | ||
| 87289A - BEZEL, REAR HEATER REGISTER, NO.1 | ||||
| 87289-75011 |
ZWA10 |
2 | ||
| 87289-75010 |
ZWA10 |
2 | ||
| 87289-75010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
2 | ||
| 87289-75010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
2 | ||
| 87289A - BEZEL, REAR HEATER REGISTER, NO.1 | ||||
| 87289-75011 |
ZWA10 |
2 | ||
| 87289-75010 |
ZWA10 |
2 | ||
| 87289-75010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
2 | ||
| 87289-75010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
2 | ||
| Common parts | ||||
| 90179-06314 | ||||
| 90183-05094 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8724 | ||||

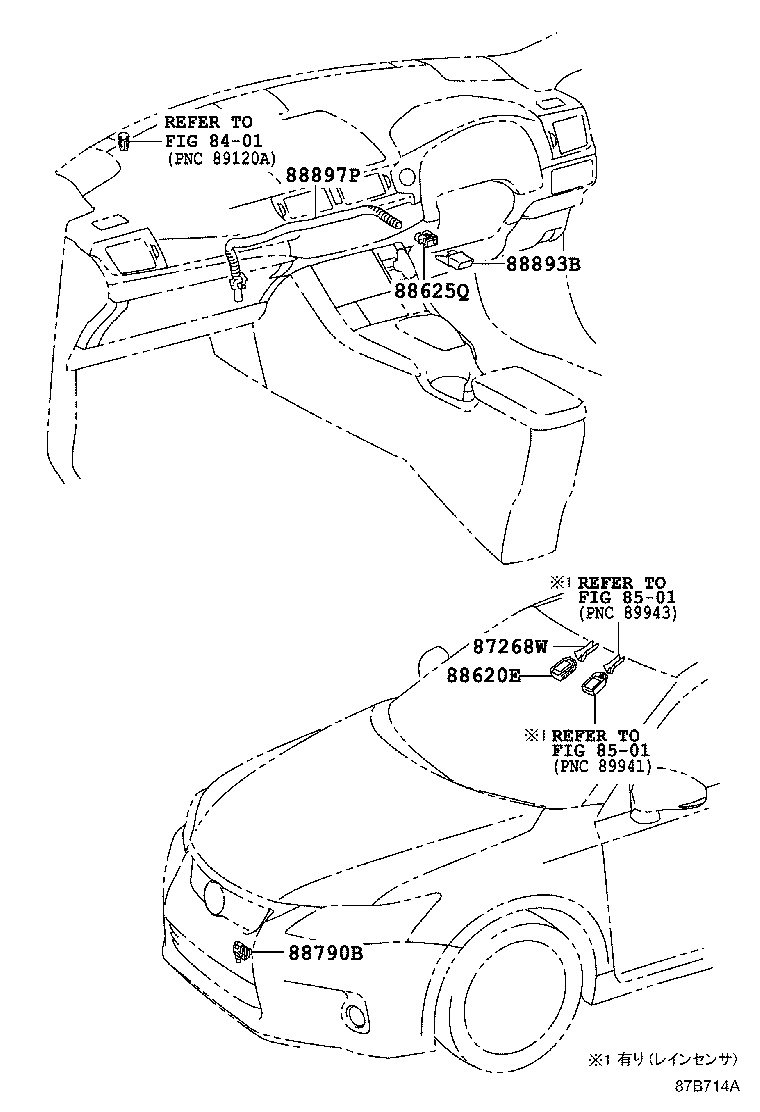

ILLUST NO. 3 OF 3(1012- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87268W - PROTECTOR | ||||
| 87268-76010 |
ZWA10 |
1 | ||
| 88620E - THERMISTOR ASSY, AIR CONDITIONER | ||||
| 88620-76011 |
ZWA10 |
1 | ||
| 88620-33010 |
ZWA10 |
1 | ||
| 88620-76010 |
ZWA10 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ZWA10 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
ZWA10 |
1 | ||
| 88893B - CLAMP (FOR COOLER AIR HOSE) | ||||
| 88893-76010 |
ZWA10 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88505-76020 |
ZWA10 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8501 | ||||
