ZWA10-AHXEB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

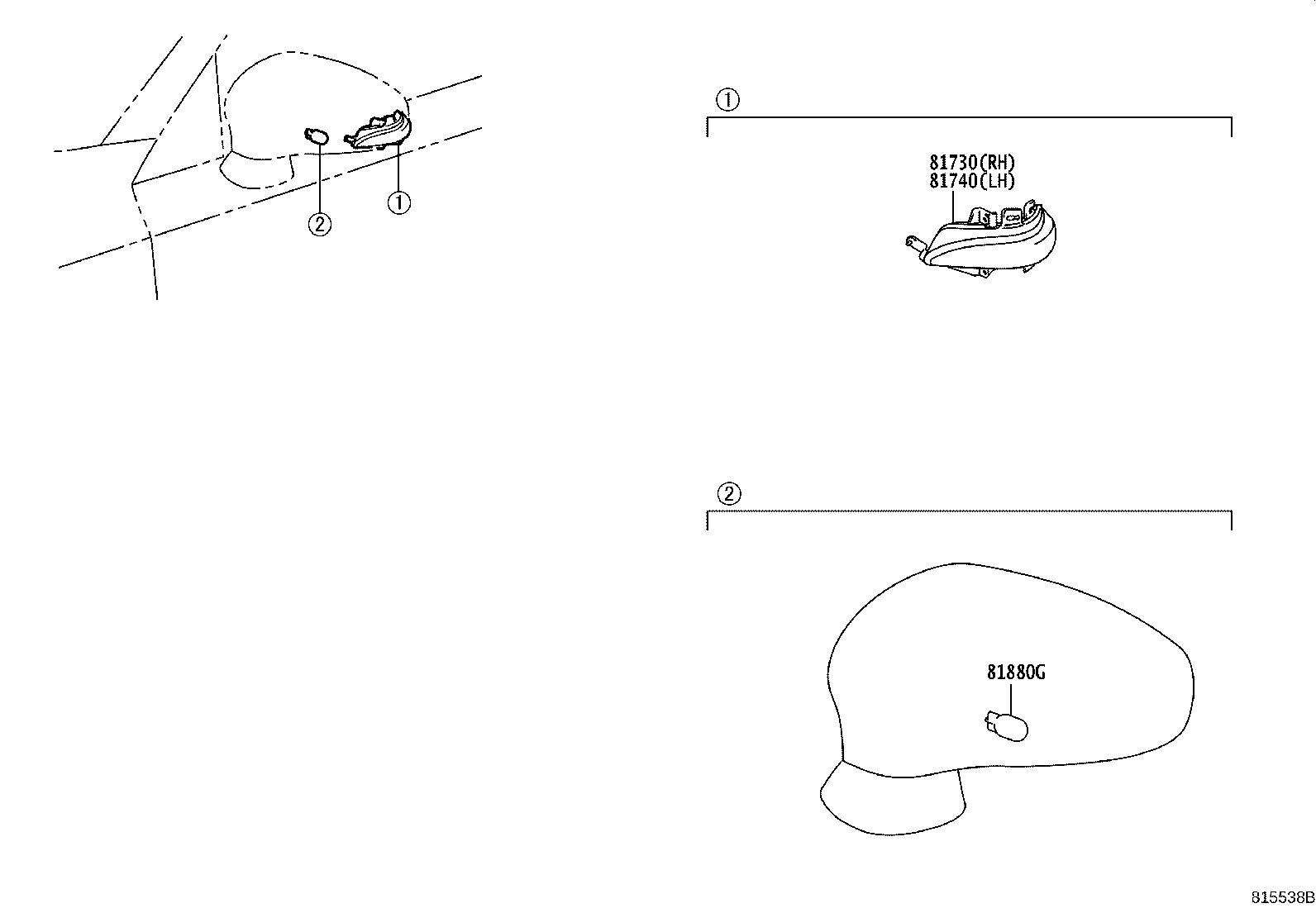

diagram 81730 81740 81880G
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-76010

ZWA10..B

Creative Textile Interior *(A)

 1
81730-76010

ZWA10

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-76010

ZWA10..B

Creative Textile Interior *(A)

 1
81740-76010

ZWA10

 1
81880G - BULB, OUTER MIRROR LAMP ASSY
99132-12050

ZWA10

12V 5W

 2
99132-12050

ZWA10..B

12V 5W,Creative Textile Interior *(A)

 2
