ZWA10-AHXEB (2010)
Toyota Lexus Ct200h

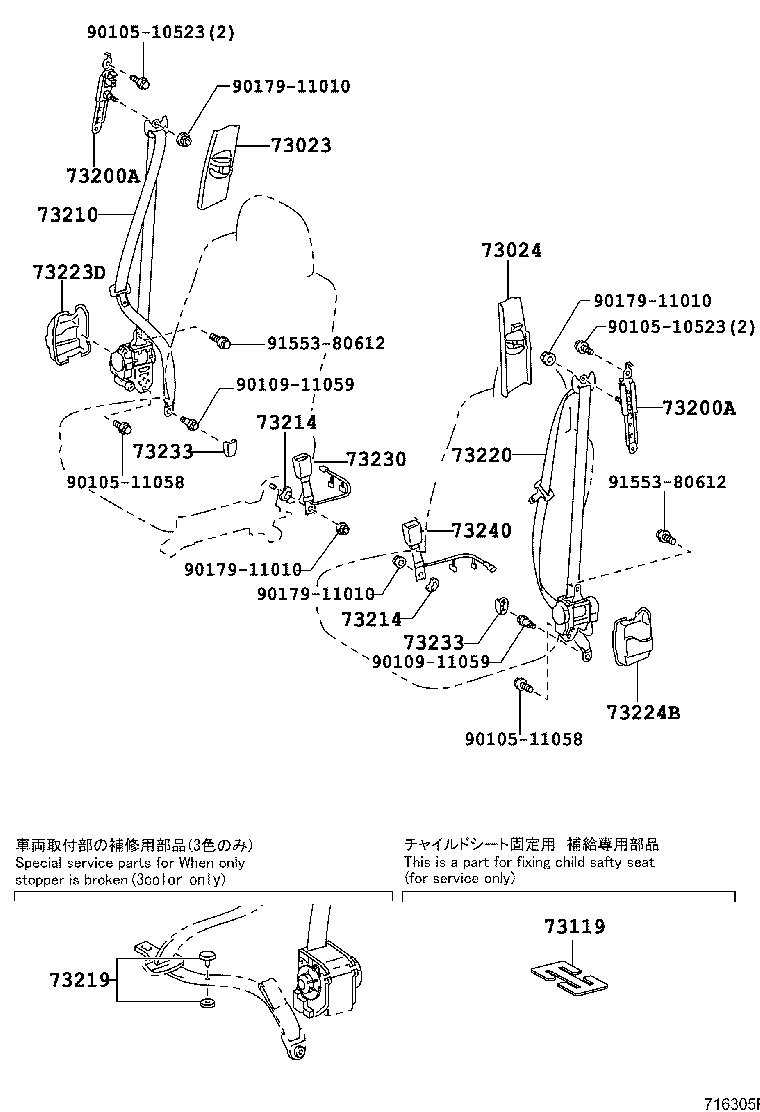

ILLUST NO. 1 OF 2(1012- )
ﾌﾛﾝﾄ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-53020B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73023-53020C0 |
ZWA10..B BLACK,TRIM0#,2#,30,31,40,42,80,81 |
1 | ||
| 73023-53020B0 |
ZWA10..B LT.GRAY,TRIM0#,20,21,22,23,30,40,80 |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-53020B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73024-53020C0 |
ZWA10..B BLACK,TRIM0#,2#,30,31,40,42,80,81 |
1 | ||
| 73024-53020B0 |
ZWA10..B LT.GRAY,TRIM0#,20,21,22,23,30,40,80 |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ZWA10 |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZWA10 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZWA10 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-76060B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73210-76050B0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73210-76050C0 |
ZWA10..B F SPORT,BLACK/BLACK,TRIM00,05,2#,30,31,40,42,80,81 |
1 | ||
| 73210-76050C0 |
ZWA10..B F SPORT&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73210-76050C0 |
ZWA10..B F SPORT&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73210-76060B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73210-76060C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73210-76050B0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73210-76050B0 |
ZWA10..E BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73210-76050B0 |
ZWA10..B BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73210-76060C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73210-76060B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73210-76050B0 |
ZWA10..B ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73210-76060B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73210-76061B0 |
ZWA10..E ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73210-76061B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73210-76060B0 |
ZWA10..E ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73210-76051C0 |
ZWA10..B F SPORT,BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73210-76061B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73210-76060B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73210-76051B0 |
ZWA10..E BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73210-76061B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73210-76060C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,05,2#,30,31,40,42,80,81 |
1 | ||
| 73210-76061C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73210-76061C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73210-76060C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/BLACK,TRIM00,05,2#,30,31,40,42,80,81 |
1 | ||
| 73210-76050C0 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73210-76062B0 |
ZWA10..E ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73210-76051B0 |
ZWA10..B BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73210-76060C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73210-76052B0 |
ZWA10..B BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73210-76061C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73210-76061B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73210-76061C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73210-76052B0 |
ZWA10..E BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73210-76052C0 |
ZWA10..B F SPORT,BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73210-76062B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73210-76062B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73210-76062C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73210-76062C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73210-76062C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73210-76062B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73210-76062B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73210-76062C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-75010 |
ZWA10 |
2 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-75010 |
ZWA10 |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ZWA10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
ZWA10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
ZWA10 ｸﾞﾚｰ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-76070C0 |
ZWA10..B F SPORT&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73220-76080B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73220-76070B0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73220-76070C0 |
ZWA10..B F SPORT&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73220-76070B0 |
ZWA10..B BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73220-76070B0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73220-76070B0 |
ZWA10..E BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73220-76080C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73220-76080B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73220-76080B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73220-76080B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73220-76080C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73220-76070C0 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73220-76081B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73220-76071B0 |
ZWA10..B BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73220-76080B0 |
ZWA10..E ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73220-76080C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73220-76080C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73220-76080C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73220-76080B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73220-76081B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73220-76070C0 |
ZWA10..B F SPORT,BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73220-76081B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73220-76081C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73220-76070B0 |
ZWA10..B ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73220-76071C0 |
ZWA10..B F SPORT,BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73220-76081C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73220-76072B0 |
ZWA10..B BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73220-76082B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73220-76082B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73220-76072B0 |
ZWA10..E BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73220-76081C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73220-76071B0 |
ZWA10..E BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73220-76081B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73220-76082B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73220-76081B0 |
ZWA10..E ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73220-76082B0 |
ZWA10..E ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73220-76081C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73220-76082C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り),BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73220-76082C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73220-76082B0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/LT.GRAY,TRIM00,01,20 |
1 | ||
| 73220-76072C0 |
ZWA10..B F SPORT,BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73220-76082C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73220-76082C0 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK/BLACK,TRIM00,01,20,23 |
1 | ||
| 73223D - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-76010 |
ZWA10 |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-76010 |
ZWA10 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-76030C0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
1 | ||
| 73230-76030C0 |
ZWA10..B ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
1 | ||
| 73230-76040C0 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73230-76030C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
1 | ||
| 73230-76020C0 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73230-76030C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
1 | ||
| 73230-76030C0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
1 | ||
| 73230-76030C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
1 | ||
| 73230-76030C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
1 | ||
| 73230-76040C0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73230-76030C0 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
1 | ||
| 73230-76030C0 |
ZWA10..B Creative Textile Interior *(A)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM20 |
1 | ||
| 73230-76040C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 73233-60020C0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 73233-60020C0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZWA10..B ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-76030C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73240-76030C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
1 | ||
| 73240-76030C0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
1 | ||
| 73240-76040C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
1 | ||
| 73240-76040C0 |
ZWA10..B ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
1 | ||
| 73240-76040C0 |
ZWA10..B Creative Textile Interior *(A)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM20 |
1 | ||
| 73240-76040C0 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
1 | ||
| 73240-76030C0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
1 | ||
| 73240-76040C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2# |
1 | ||
| 73240-76030C0 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90105-11058 | ||||
| 90109-11059 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

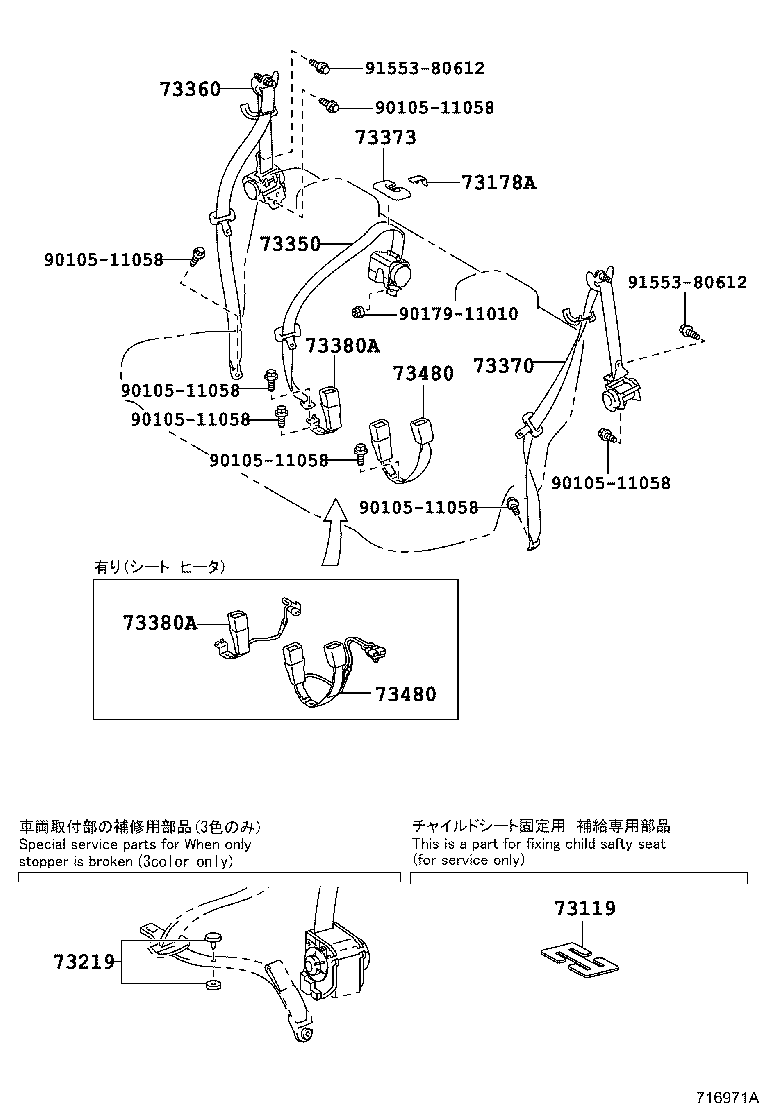

ILLUST NO. 2 OF 2(1012- )
ﾘﾔ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ZWA10 |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-12060C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ZWA10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33030 |
ZWA10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33020 |
ZWA10 ｸﾞﾚｰ |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73350-76011C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-76010B1 |
ZWA10..B LT.GRAY/BLACK,TRIM00,20,30,40,80 |
1 | ||
| 73360-76010B1 |
ZWA10..E LT.GRAY/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73360-76011C1 |
ZWA10..B BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73360-76010C1 |
ZWA10..B BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73360-76011B1 |
ZWA10..E BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73360-76011B1 |
ZWA10..B BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-76010B1 |
ZWA10..E LT.GRAY/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73370-76010C1 |
ZWA10..B BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73370-76011C1 |
ZWA10..B BLACK,TRIM00,20,23,30,40,80 |
1 | ||
| 73370-76011B1 |
ZWA10..E BLACK/LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73370-76011B1 |
ZWA10..B BLACK/LT.GRAY,TRIM00,20,30,40,80 |
1 | ||
| 73370-76010B1 |
ZWA10..B LT.GRAY/BLACK,TRIM00,20,30,40,80 |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-12020C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-76020C0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73380-76020C0 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73380-76010C0 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-76020C0 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73380-76020C0 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73380-76010C0 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-76020C2 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73480-76010C2 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73480-76020C2 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-76020C2 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73480-76010C2 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73480-76020C2 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
