ZWA10-AHXEB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

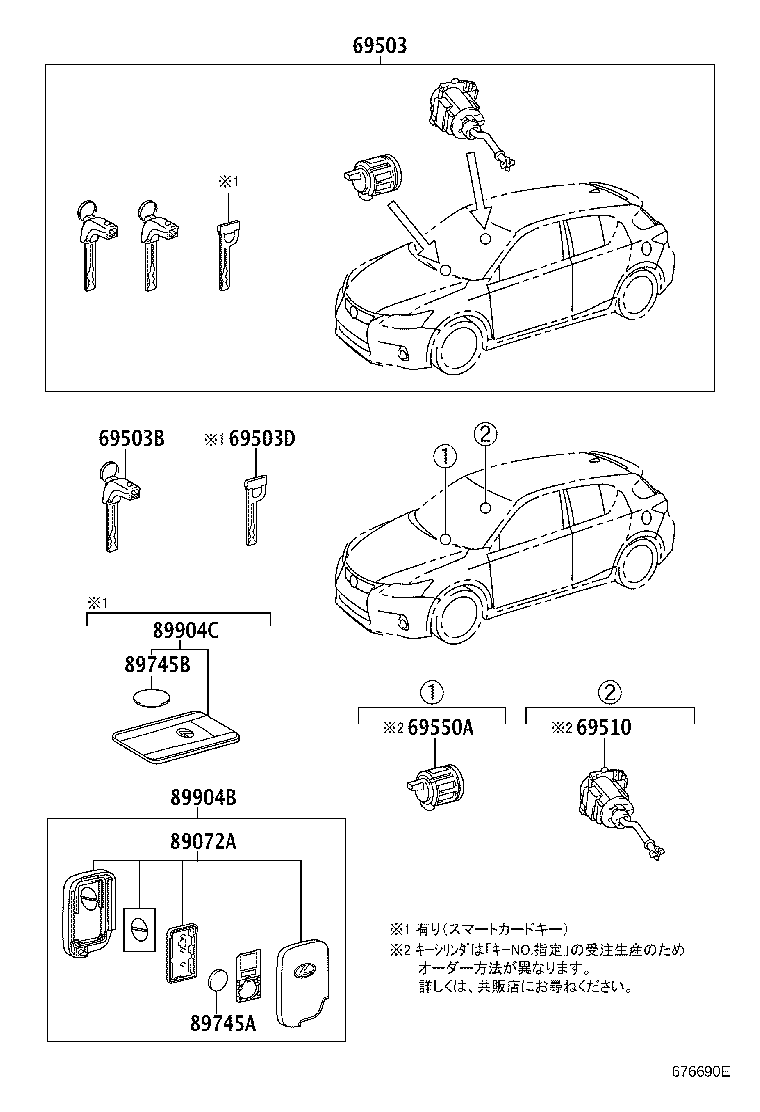

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-76060 |
ZWA10..B |
1 | ||
| 69005-76050 |
ZWA10..E |
1 | ||
| 69005-76060 |
ZWA10..E 電子ｷｰ(2個)+ｽﾏｰﾄｶｰﾄﾞｷｰ(1個) |
1 | ||
| 69005-76050 |
ZWA10..B 電子ｷｰ(2個) |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-50240 |
ZWA10 ﾏｽﾀｰｷｰ |
2 | ||
| 69503D - KEY, CUT(CARD KEY) | ||||
| 69515-50220 |
ZWA10..E ﾏｽﾀｰｷｰ,電子ｷｰ(2個)+ｽﾏｰﾄｶｰﾄﾞｷｰ(1個) |
1 | ||
| 69515-50220 |
ZWA10..B ﾏｽﾀｰｷｰ |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-76020 |
ZWA10 |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-50040 |
ZWA10 |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-48730 |
ZWA10 |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-52020 |
ZWA10 |
1 | ||
| 89745B - BATTERY, TRANSMITTER(CARD KEY) | ||||
| 89745-50030 |
ZWA10..E 電子ｷｰ(2個)+ｽﾏｰﾄｶｰﾄﾞｷｰ(1個) |
1 | ||
| 89745-50030 |
ZWA10..B 電子ｷｰ(2個) |
1 | ||
| 89745-50030 |
ZWA10..B |
1 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-48501 |
ZWA10 |
2 | ||
| 89904C - TRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY) | ||||
| 89994-48151 |
ZWA10..B |
1 | ||
| 89994-48151 |
ZWA10..B 電子ｷｰ(2個) |
1 | ||
| 89994-48151 |
ZWA10..E 電子ｷｰ(2個)+ｽﾏｰﾄｶｰﾄﾞｷｰ(1個) |
1 | ||
