ZWA10-AHXEB (2010)
Toyota Lexus Ct200h

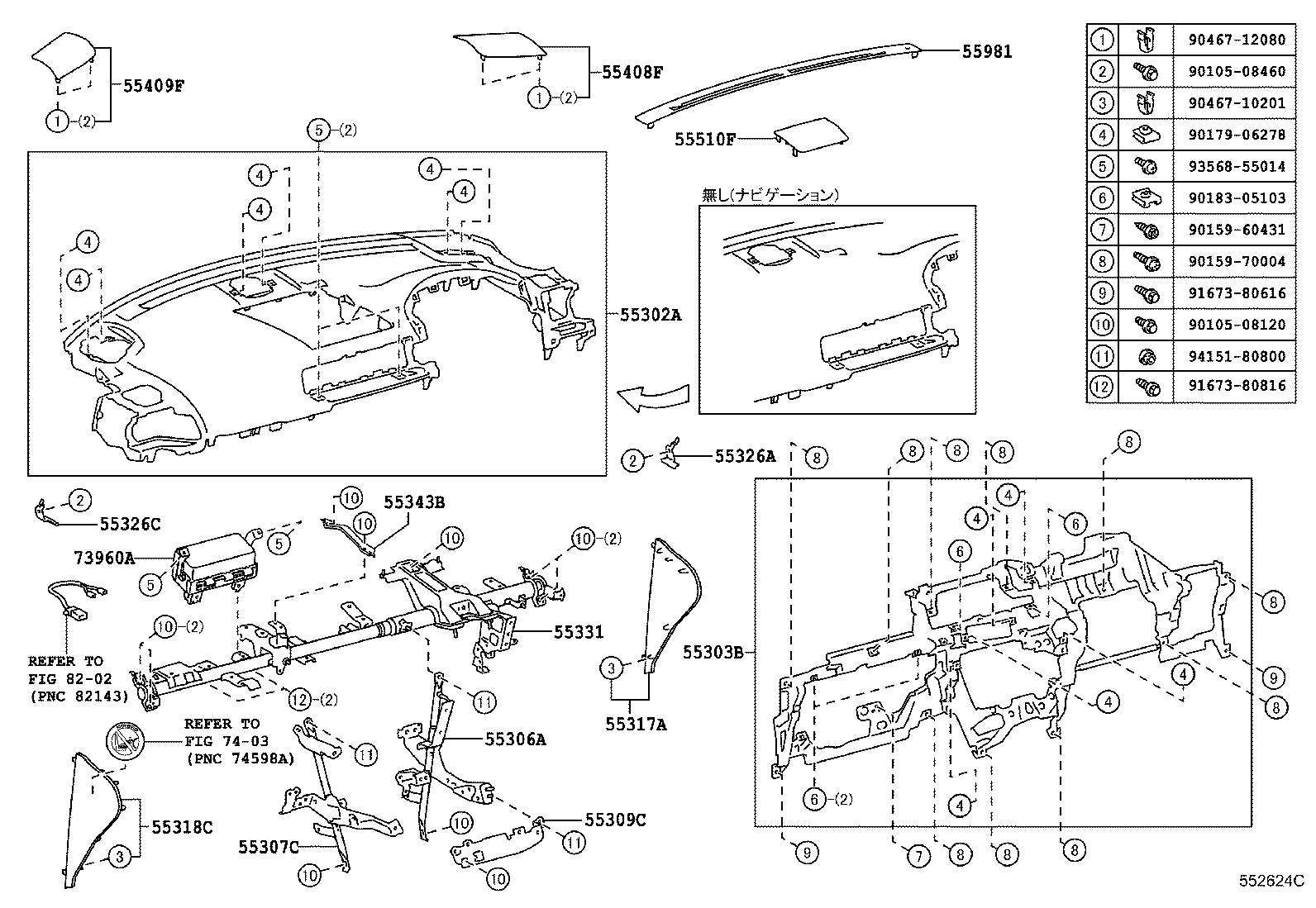

ILLUST NO. 1 OF 3(1012-1708)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-76030C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55302-76040C0 |
ZWA10 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55302-76040C0 |
ZWA10 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55302-76040C0 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-76020 |
ZWA10 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-76020 |
ZWA10 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-76020 |
ZWA10 |
1 | ||
| 55309C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55309-76020 |
ZWA10 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-76010 |
ZWA10 |
1 | ||
| 55326C - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55326-76020 |
ZWA10 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-76020 |
ZWA10 |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-76020 |
ZWA10 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-76020C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55408-76020C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55408-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55408-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55409-76020C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55409-76020C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55409-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-76030C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55510-76040C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55510-76040C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55510-76040C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-76021 |
ZWA10 |
1 | ||
| 73960-76020 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-08460 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||

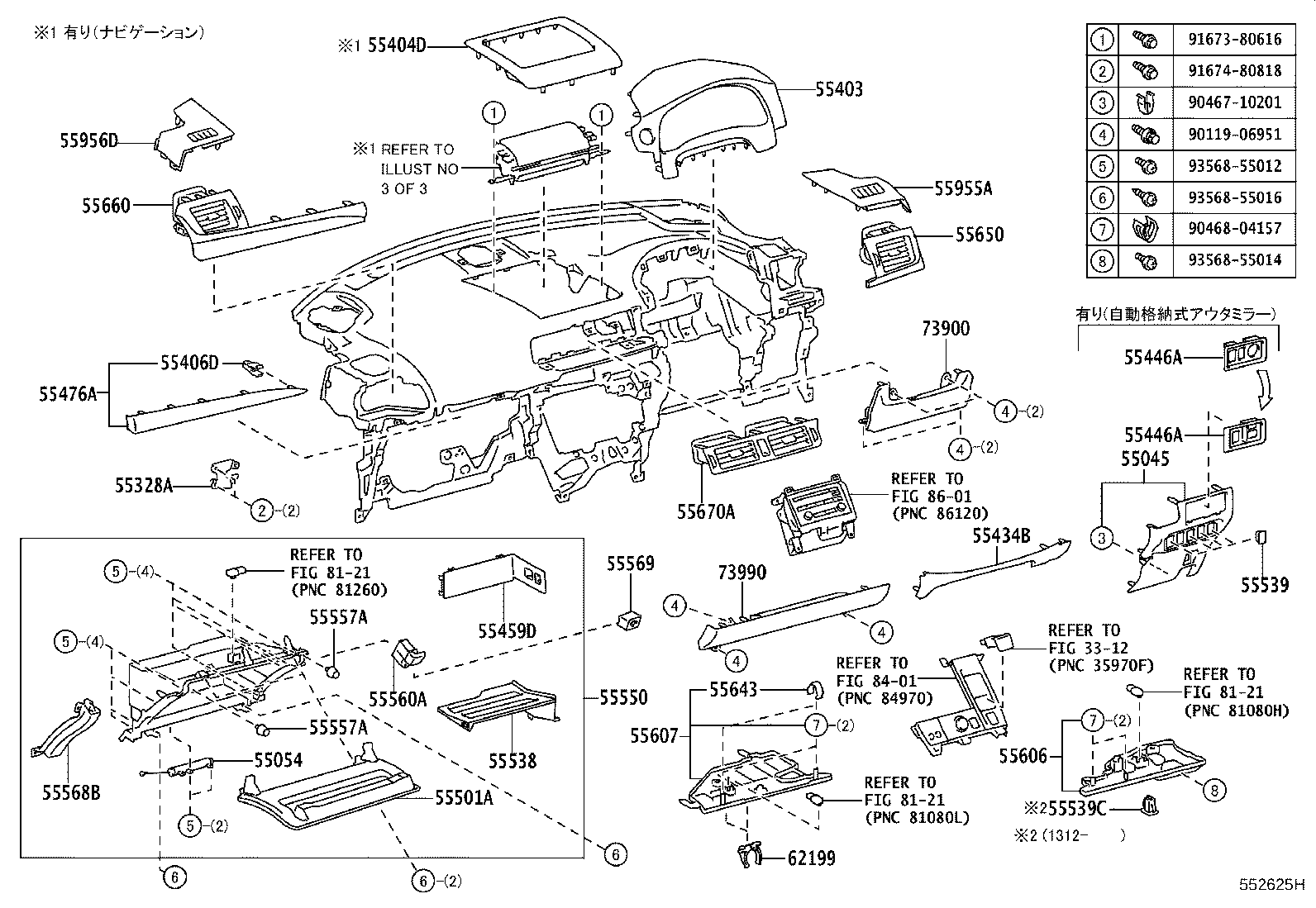

ILLUST NO. 2 OF 3(1012-1609)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-76021C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55045-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-76010 |
ZWA10 |
1 | ||
| 55054-76011 |
ZWA10 |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-76020 |
ZWA10 |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-76041C2 |
ZWA10..B Creative Textile Interior *(A),BLACK/RED,TRIM20 |
1 | ||
| 55403-76041C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55403-76042C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55403-76040C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55403-76041C3 |
ZWA10..B Creative Textile Interior *(A),BLACK/BLUE,TRIM20 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-76030C0 |
ZWA10 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55404-76030C0 |
ZWA10 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55404-76030C0 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55404-76030C0 |
ZWA10 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−無し(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-12080 |
ZWA10 |
5 | ||
| 90467-12080 |
ZWA10 ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−木目 |
4 | ||
| 90467-12080 |
ZWA10 ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−ﾊﾞﾝﾌﾞｰ |
4 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-76050C0 |
ZWA10..B version L&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
1 | ||
| 55446-76050C0 |
ZWA10..B version L&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
1 | ||
| 55446-76040C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55446-76050C0 |
ZWA10..B Creative Textile Interior *(A),BLACK,TRIM20 |
1 | ||
| 55446-76050C0 |
ZWA10..B F SPORT&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
1 | ||
| 55446-76050C0 |
ZWA10..B F SPORT&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-76050C0 |
ZWA10..B version L&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
1 | ||
| 55446-76050C0 |
ZWA10..B version L&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
1 | ||
| 55446-76040C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55446-76050C0 |
ZWA10..B Creative Textile Interior *(A),BLACK,TRIM20 |
1 | ||
| 55446-76050C0 |
ZWA10..B F SPORT&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ,BLACK,TRIM0#,2# |
1 | ||
| 55446-76050C0 |
ZWA10..B F SPORT&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ,BLACK,TRIM0#,2# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-76020 |
ZWA10 |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55476-76050 |
ZWA10 ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−木目 |
1 | ||
| 55476-76100 |
ZWA10 ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−ﾊﾞﾝﾌﾞｰ |
1 | ||
| 55471-76060 |
ZWA10..B Creative Textile Interior *(A) |
1 | ||
| 55471-76030 |
ZWA10 |
1 | ||
| 55471-76040 |
ZWA10..B ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ−ﾒﾀﾘｯｸ |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55538 - RETAINER,GLOVE COMPARTMENT | ||||
| 55567-76020 |
ZWA10 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ZWA10..B ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ),BLACK |
1 | ||
| 55539-28160C0 |
ZWA10..B ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−木目,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ),BLACK |
1 | ||
| 55539-28160C0 |
ZWA10 寒冷地仕様&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55539-28160C0 |
ZWA10 寒冷地仕様,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55539-28160C0 |
ZWA10..B 寒冷地仕様&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55539-28160C0 |
ZWA10 BLACK |
1 | ||
| 55539-28160C0 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK |
1 | ||
| 55539-28160C0 |
ZWA10 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−B+ﾋｰﾀ(ﾊﾟﾄﾞﾙ付き),BLACK |
1 | ||
| 55539-28160C0 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55539-28160C0 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55539-28160C0 |
ZWA10..B ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-76030C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55550-76031C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55550-76032C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZWA10 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZWA10 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-76020 |
ZWA10 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-76022 |
ZWA10 |
1 | ||
| 55606-76021 |
ZWA10 |
1 | ||
| 55606-76020 |
ZWA10 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-76020 |
ZWA10 |
1 | ||
| 55643 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.1 | ||||
| 55612-76010 |
ZWA10 |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55955A - PLATE, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55955-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55956D - PLATE, DEFROSTER NOZZLE OPENING, NO.2 | ||||
| 55956-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 90468-25003 |
ZWA10 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-76021C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73900-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 73990-76021C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90467-10201 | ||||
| 90468-04157 | ||||
| 91673-80616 | ||||
| 91674-80818 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8121 | ||||
| 8401 | ||||
| 8601 | ||||

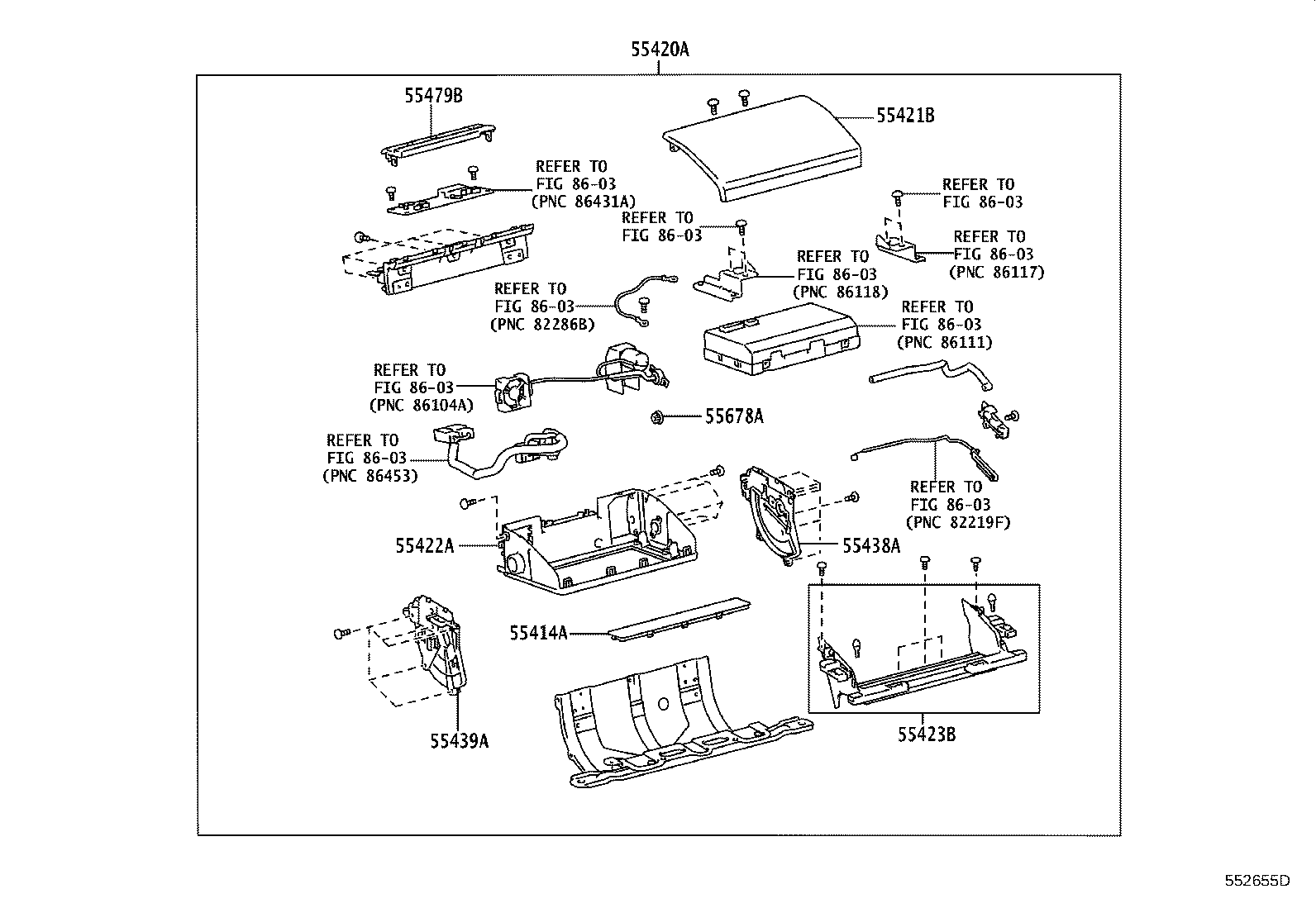

ILLUST NO. 3 OF 3(1012-1708)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-76010C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55414-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55414-76010C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-76170C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55420-76030C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55420-76030C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-76040C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55421-76040C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55421-76040C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55422-76010C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55422-76010C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-76030C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55423-76030C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55423-76030C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55438A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55438-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 55438-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 55438-76010 |
ZWA10 |
1 | ||
| 55439A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3 | ||||
| 55439-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 55439-76010 |
ZWA10 |
1 | ||
| 55439-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 55479-76010 |
ZWA10 |
1 | ||
| 55479-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 55678A - GEAR, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55678-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 55678-76010 |
ZWA10 |
1 | ||
| 55678-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| Linked diagrams | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
