ZWA10-AHXBB (2013)

Toyota Lexus Ct200h

Production Dec 2013 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 5(1312- )

Click highlighted areas on diagram

I-POD/VTRｾﾂｿﾞｸｹｰﾌﾞﾙ

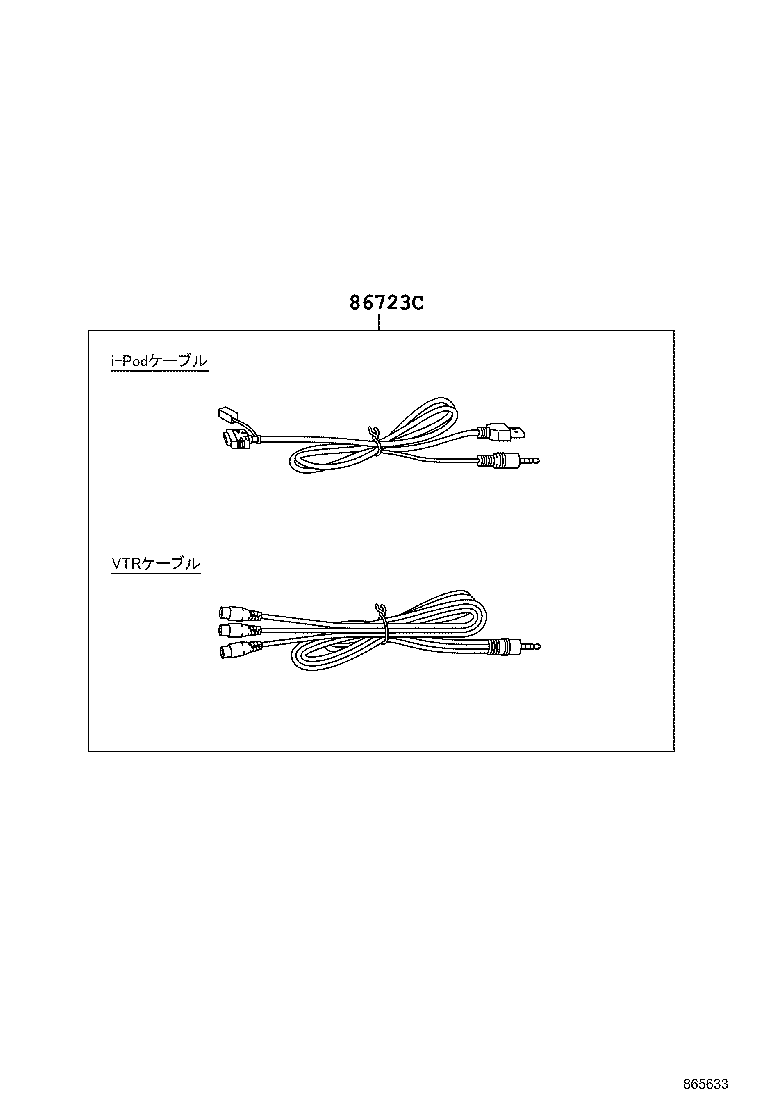

diagram 86723C
Part # Description Qty Price
86723C - WIRE, MOBILEPHONE
86723-53010

ZWA10

 1
