ZWA10-AHXBB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

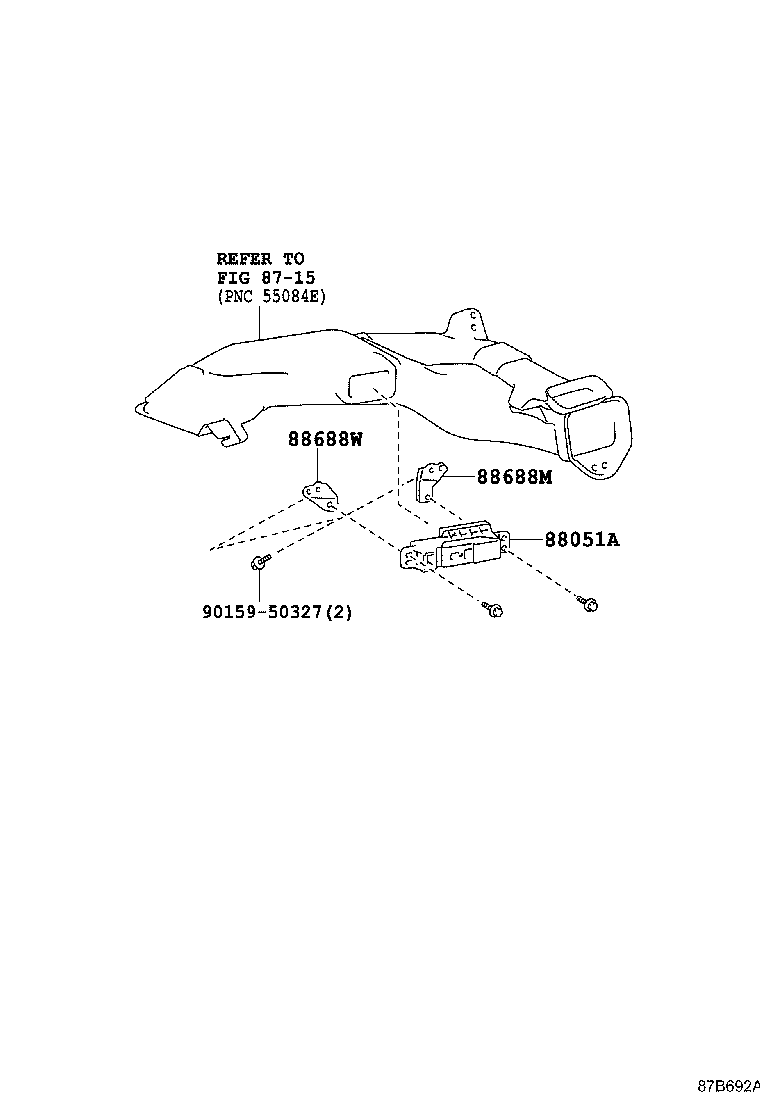

Click highlighted areas on diagram

diagram 8715 88051A 88688M 88688W 9015950327
Part # Description Qty Price
88051A - GENERATOR SUB-ASSY,ION
88051-12010

ZWA10

 1
88688M - BRACKET, AIR PURIFIER, NO.2
88688-76030

ZWA10

 1
88688W - BRACKET, AIR PURIFIER, NO.1
88688-76020

ZWA10

 1
Common parts
90159-50327
Linked diagrams
8715
