ZWA10-AHXBB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

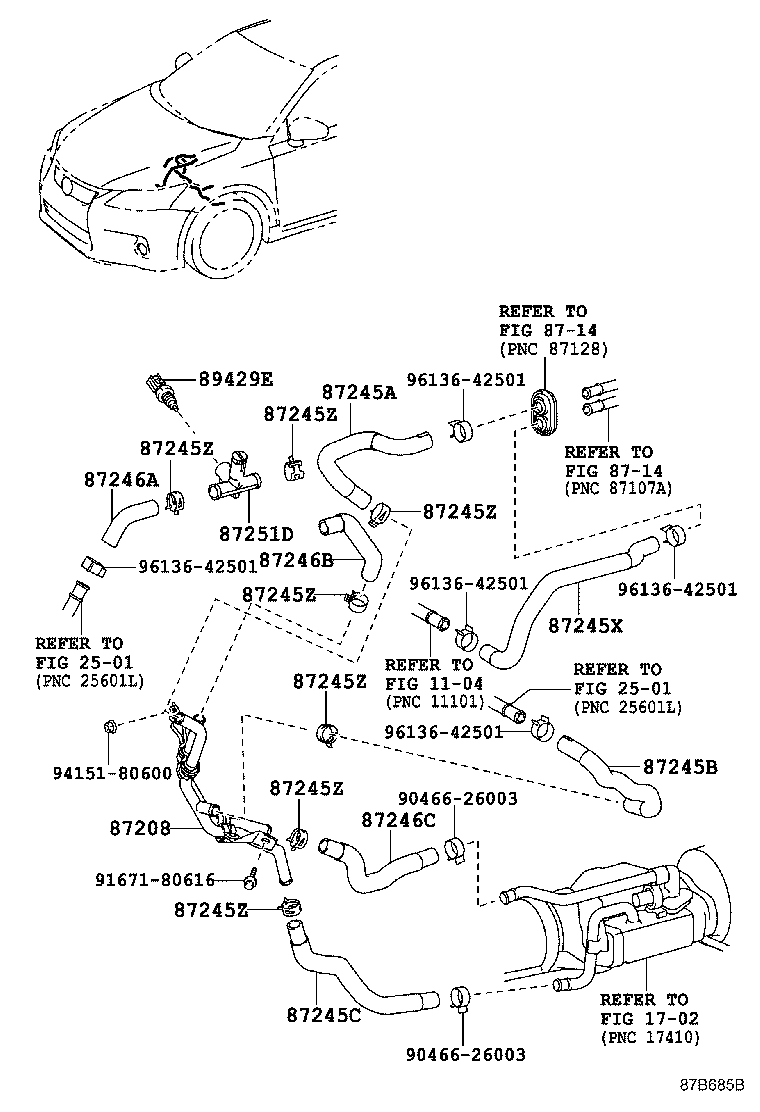

Click highlighted areas on diagram

diagram 1104 1702 2501 2501 8714 8714 87208 87245A 87245B 87245C 87245X 87245Z 87245Z 87245Z 87245Z 87245Z 87245Z 87245Z 87246A 87246B 87246C 87251D 89429E 9046626003 9046626003 9167180616 9415180600 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-76010

ZWA10

 1
87245A - HOSE, HEATER WATER, INLET A
87245-76010

ZWA10

 1
87245B - HOSE, HEATER WATER, INLET B
87245-47310

ZWA10

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-47300

ZWA10

 1
87245X - HOSE, HEATER WATER
87245-47260

ZWA10

 1
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90467-22011

ZWA10

 7
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90467-22011

ZWA10

 7
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90467-22011

ZWA10

 7
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90467-22011

ZWA10

 7
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90467-22011

ZWA10

 7
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90467-22011

ZWA10

 7
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
90467-22011

ZWA10

 7
87246A - HOSE, HEATER WATER, OUTLET A
87245-47270

ZWA10

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-47280

ZWA10

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-47290

ZWA10

 1
87251D - JOINT, WATER, NO.1
87251-47020

ZWA10

 1
89429E - SENSOR, WATER TEMPERATURE
89429-47010

ZWA10

 1
Common parts
90466-26003
91671-80616
94151-80600
96136-42501
Linked diagrams
1104
1702
2501
8714
