ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

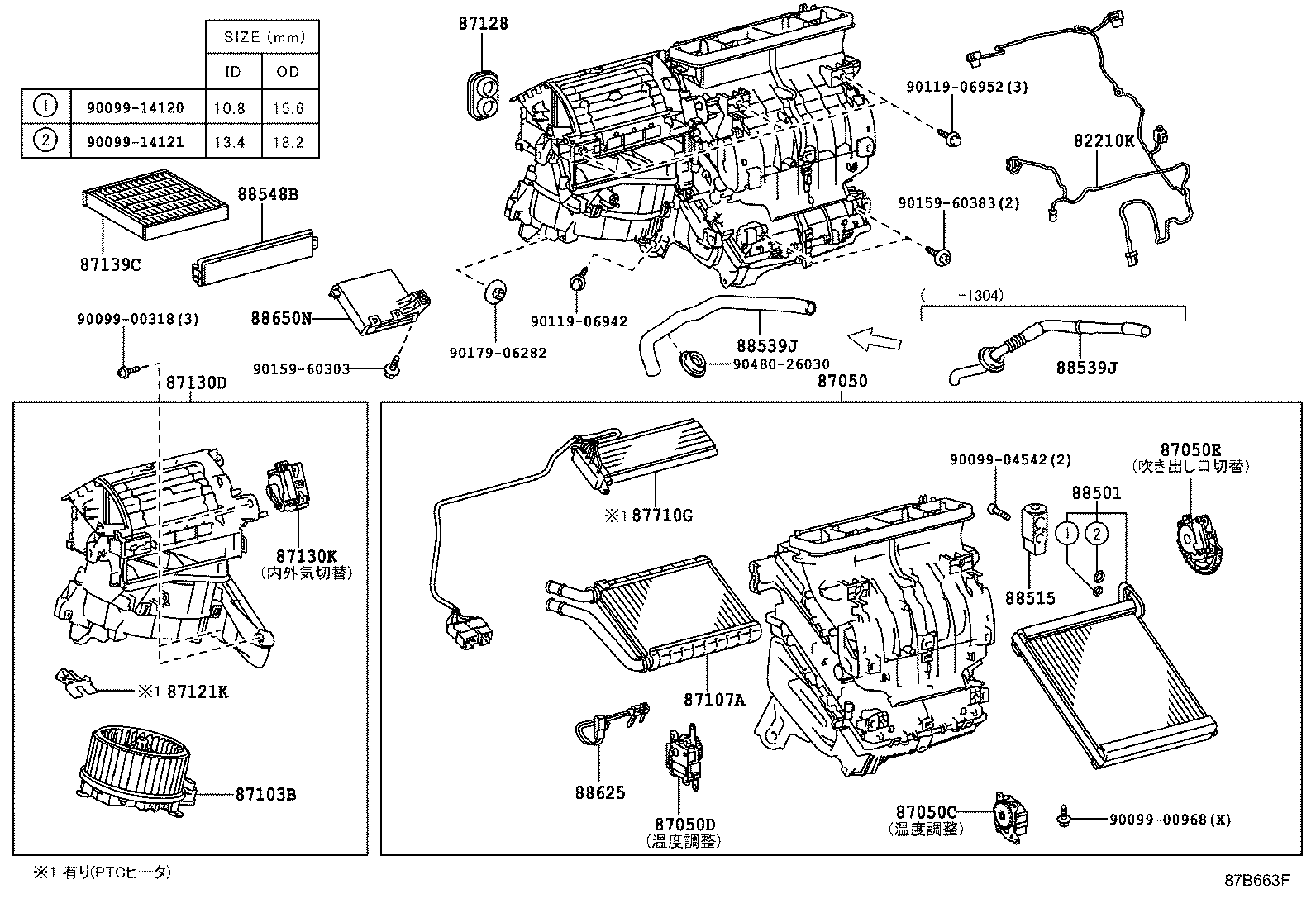

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-12040 |
ZWA10 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-75010 |
ZWA10 |
1 | ||
| 87050-76020 |
ZWA10 寒冷地仕様 |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-12170 |
ZWA10 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-42090 |
ZWA10 |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-42100 |
ZWA10 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-75011 |
ZWA10 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
ZWA10 |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87452-76020 |
ZWA10 寒冷地仕様 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-76010 |
ZWA10 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-75020 |
ZWA10 |
1 | ||
| 87130-76020 |
ZWA10 寒冷地仕様 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-42120 |
ZWA10 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-5010079 |
ZWA10 花粉･脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-5006079 |
ZWA10 脱臭ﾌｨﾙﾀ |
1 | ||
| 87139-3004079 |
ZWA10 微細塵ﾌｨﾙﾀ,工場装着品 |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-12010 |
ZWA10 寒冷地仕様 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-75010 |
ZWA10 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-26070 |
ZWA10 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12210 |
ZWA10 |
1 | ||
| 88539-12190 |
ZWA10 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12210 |
ZWA10 |
1 | ||
| 88539-12190 |
ZWA10 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42010 |
ZWA10 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
ZWA10 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-76030 |
ZWA10..B 寒冷地仕様&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ｵｰﾃﾞｨｵ−AM/FM DVD13ｽﾋﾟｰｶ *MAR |
1 | ||
| 88650-76070 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 88650-76160 |
ZWA10 寒冷地仕様 |
1 | ||
| 88650-76180 |
ZWA10 |
1 | ||
| 88650-76070 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 88650-76040 |
ZWA10 寒冷地仕様 |
1 | ||
| 88650-76080 |
ZWA10 |
1 | ||
| 88650-76030 |
ZWA10 寒冷地仕様&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||
