ZWA10-AHXBB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012-1312)

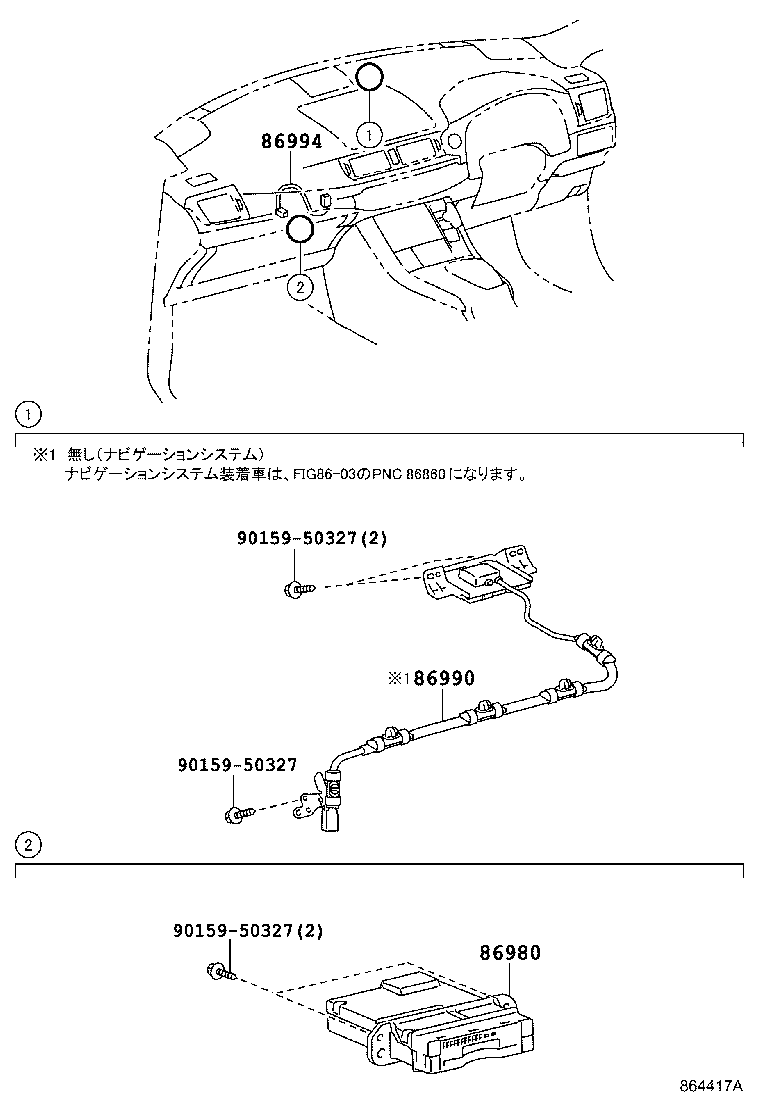

Click highlighted areas on diagram

diagram 86980 86990 86994 9015950327 9015950327 9015950327
Part # Description Qty Price
86980 - COMPUTER ASSY, TOLL COLLECTION
86980-30080

ZWA10

 1
86980-76010

ZWA10

 1
86990 - ANTENNA ASSY, TOLL COLLECTION
86990-76010

ZWA10

 1
86994 - WIRE, TOLL COLLECTION ANTENNA
86994-76010

ZWA10

 1
86994-76020

ZWA10

 1
Common parts
90159-50327
