ZWA10-AHXBB (2010)
Toyota Lexus Ct200h

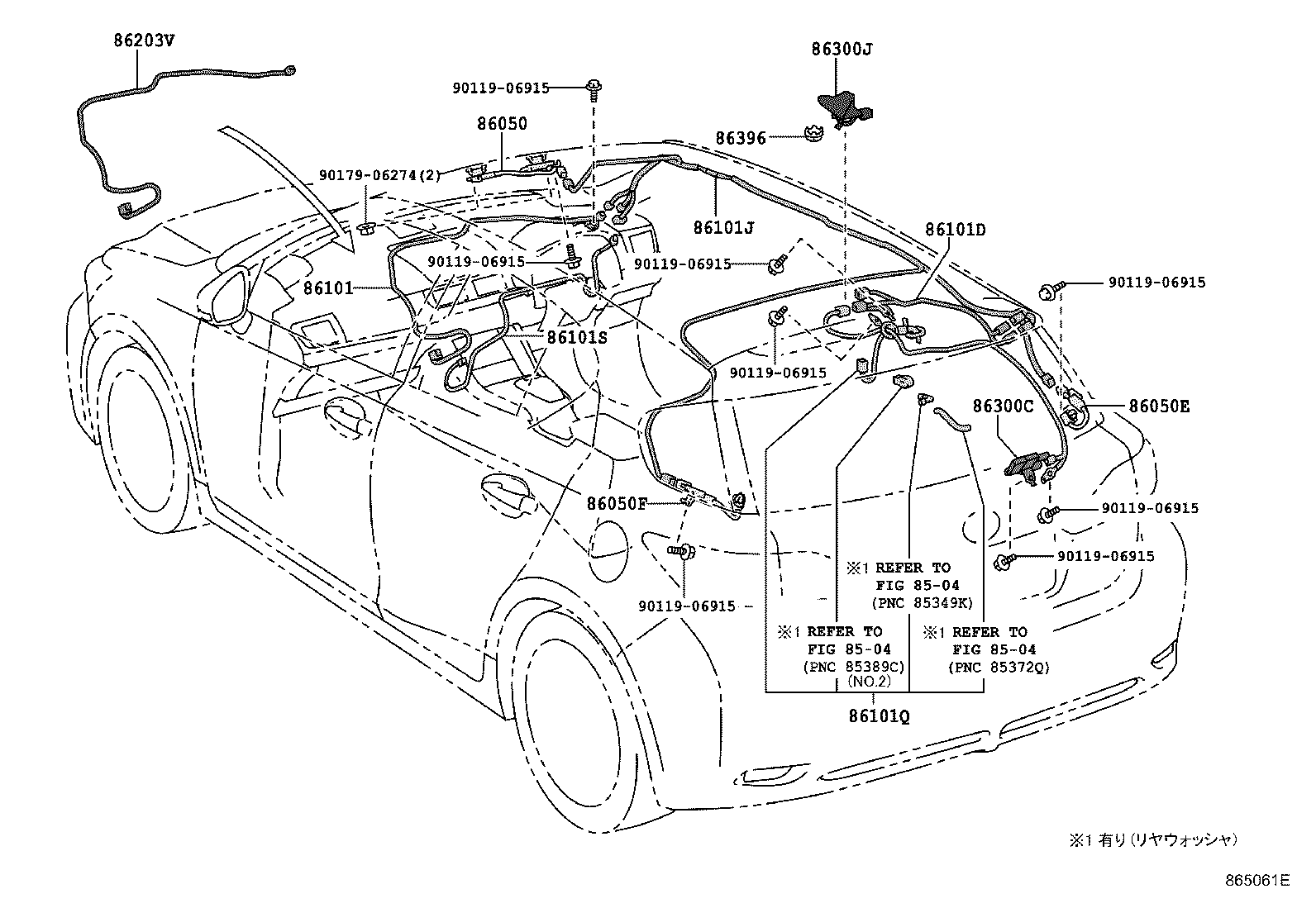

ILLUST NO. 1 OF 2(1012-1208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-76040 |
ZWA10 |
1 | ||
| 86050-76010 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86050E - ANTENNA ASSY, TELEVISION | ||||
| 86050-76060 |
ZWA10 |
1 | ||
| 86050-76030 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86050F - ANTENNA ASSY, TELEVISION | ||||
| 86050-76050 |
ZWA10 |
1 | ||
| 86050-76020 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-76020 |
ZWA10 |
1 | ||
| 86101-76021 |
ZWA10 |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-76310 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101-76301 |
ZWA10 |
1 | ||
| 86101-76300 |
ZWA10 |
1 | ||
| 86101-76311 |
ZWA10 |
1 | ||
| 86101-76311 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-76161 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101-76160 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101-76101 |
ZWA10 |
1 | ||
| 86101-76350 |
ZWA10 |
1 | ||
| 86101-76100 |
ZWA10 |
1 | ||
| 86101Q - CORD SUB-ASSY, ANTENNA, NO.4 | ||||
| 86101-76290 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 86101-76280 |
ZWA10..B |
1 | ||
| 86101-76290 |
ZWA10..E |
1 | ||
| 86101-76281 |
ZWA10..E |
1 | ||
| 86101-76280 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 86101-76291 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 86101-76281 |
ZWA10..B |
1 | ||
| 86101-76291 |
ZWA10..E |
1 | ||
| 86101-76281 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 86300C - ANTENNA ASSY, AMPLIFIER, NO.2 | ||||
| 86300-76010 |
ZWA10 |
1 | ||
| 86300-76060 |
ZWA10 |
1 | ||
| 86300J - ANTENNA ASSY, ROOF | ||||
| 86760-76060B0 |
ZWA10 SILVER M.M.,1G1 |
1 | ||
| 86760-76060C1 |
ZWA10 BLACK OPAL MC.,214 |
1 | ||
| 86760-76060J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
1 | ||
| 86760-76060B3 |
ZWA10 PLATINUM SILVER ME.,1J4 |
1 | ||
| 86760-76060F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
1 | ||
| 86760-76060D0 |
ZWA10 RED MC.CS.,3R1 |
1 | ||
| 86760-76060C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 86760-76060A0 |
ZWA10 WHITE PEARL CS.,077 |
1 | ||
| 86760-76060B1 |
ZWA10 MERCURY GRAY MC.,1H9 |
1 | ||
| 86760-76060A1 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 86760-76060J0 |
ZWA10 BLUE ME.,8U1 |
1 | ||
| 86760-76060C0 |
ZWA10 BLACK,212 |
1 | ||
| 86760-76060E0 |
ZWA10 FIRE AGATE M.M.,4V3 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-47010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8504 | ||||

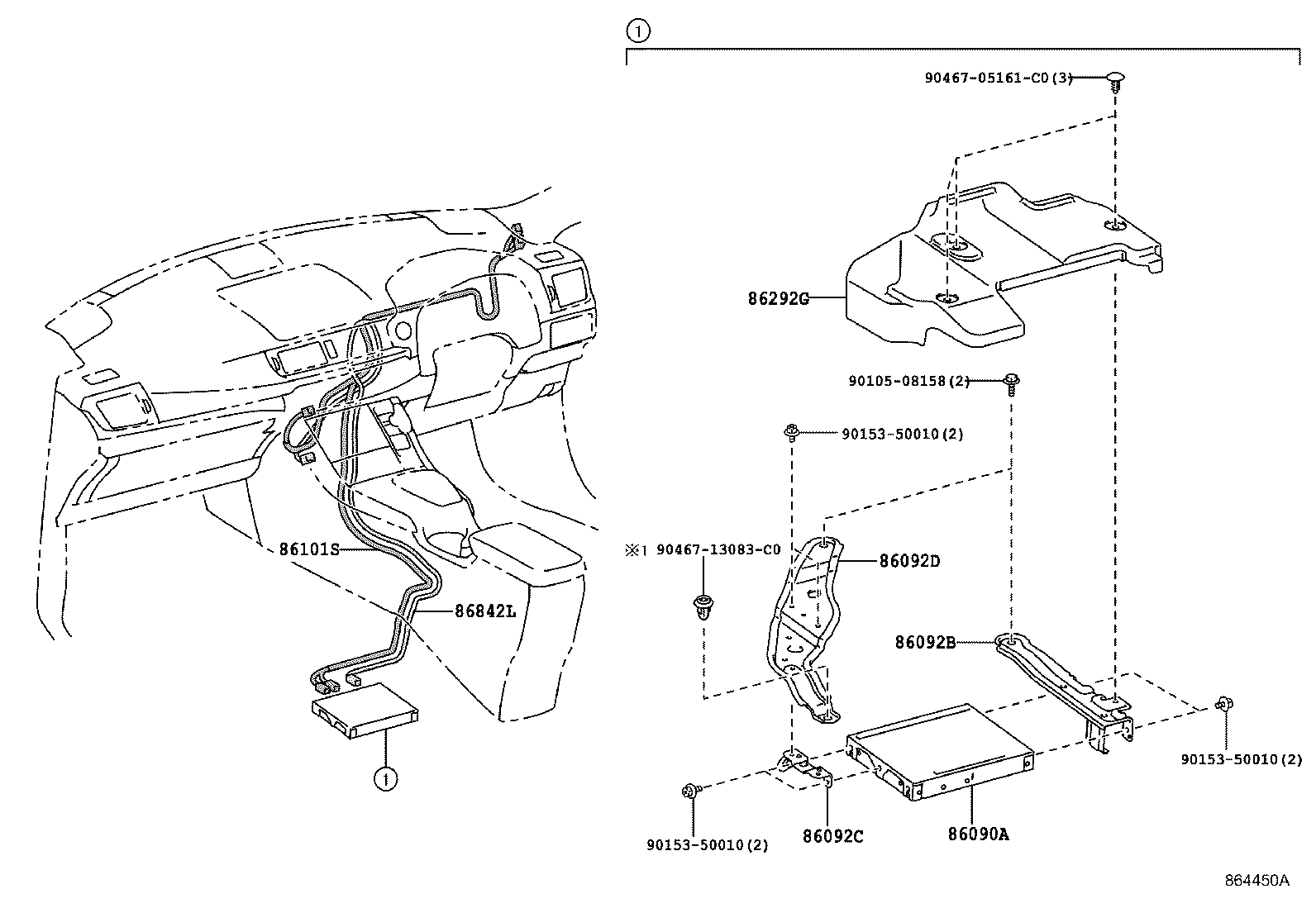

ILLUST NO. 2 OF 2(1012-1208)
ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86090A - TUNER ASSY, DIGITAL TELEVISION | ||||
| 86091-48020 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86092B - BRACKET SET, DIGITAL TELEVISION, NO.1 | ||||
| 86092-75010 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86092C - BRACKET SET, DIGITAL TELEVISION, NO.2 | ||||
| 86092-75030 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86092D - BRACKET SET, DIGITAL TELEVISION, NO.3 | ||||
| 86092-75040 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101S - CORD SUB-ASSY, ANTENNA | ||||
| 86101-76010 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101-76330 |
ZWA10 |
1 | ||
| 86292G - COVER, TELEVISION SET | ||||
| 86292-75020 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86842L - WIRE, NAVIGATION, NO.1 | ||||
| 86842-76010 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90153-50010 | ||||
| 90467-05161C0 | ||||
| 90467-13083C0 | ||||
(1208-1312)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-76040 |
ZWA10 |
1 | ||
| 86050-76010 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86050E - ANTENNA ASSY, TELEVISION | ||||
| 86050-76060 |
ZWA10 |
1 | ||
| 86050-76030 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86050F - ANTENNA ASSY, TELEVISION | ||||
| 86050-76020 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86050-76050 |
ZWA10 |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-76020 |
ZWA10 |
1 | ||
| 86101-76021 |
ZWA10 |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-76310 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101-76301 |
ZWA10 |
1 | ||
| 86101-76300 |
ZWA10 |
1 | ||
| 86101-76311 |
ZWA10 |
1 | ||
| 86101-76311 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-76161 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101-76160 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101-76101 |
ZWA10 |
1 | ||
| 86101-76350 |
ZWA10 |
1 | ||
| 86101-76100 |
ZWA10 |
1 | ||
| 86101Q - CORD SUB-ASSY, ANTENNA, NO.4 | ||||
| 86101-76290 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 86101-76280 |
ZWA10..B |
1 | ||
| 86101-76290 |
ZWA10..E |
1 | ||
| 86101-76281 |
ZWA10..E |
1 | ||
| 86101-76280 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 86101-76291 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 86101-76281 |
ZWA10..B |
1 | ||
| 86101-76291 |
ZWA10..E |
1 | ||
| 86101-76281 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 86101S - CORD SUB-ASSY, ANTENNA | ||||
| 86101-76010 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86101-76330 |
ZWA10 |
1 | ||
| 86203V - WIRE SUB ASSY, RADIO | ||||
| 86203-76070 |
ZWA10 |
1 | ||
| 86300C - ANTENNA ASSY, AMPLIFIER, NO.2 | ||||
| 86300-76010 |
ZWA10 |
1 | ||
| 86300-76060 |
ZWA10 |
1 | ||
| 86300J - ANTENNA ASSY, ROOF | ||||
| 86760-76060B0 |
ZWA10 SILVER M.M.,1G1 |
1 | ||
| 86760-76060C1 |
ZWA10 BLACK OPAL MC.,214 |
1 | ||
| 86760-76060J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
1 | ||
| 86760-76060B3 |
ZWA10 PLATINUM SILVER ME.,1J4 |
1 | ||
| 86760-76060F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
1 | ||
| 86760-76060D0 |
ZWA10 RED MC.CS.,3R1 |
1 | ||
| 86760-76060C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 86760-76060A0 |
ZWA10 WHITE PEARL CS.,077 |
1 | ||
| 86760-76060B1 |
ZWA10 MERCURY GRAY MC.,1H9 |
1 | ||
| 86760-76060A1 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 86760-76060J0 |
ZWA10 BLUE ME.,8U1 |
1 | ||
| 86760-76060C0 |
ZWA10 BLACK,212 |
1 | ||
| 86760-76060E0 |
ZWA10 FIRE AGATE M.M.,4V3 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-47010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8504 | ||||
