ZWA10-AHXBB (2010)
Toyota Lexus Ct200h

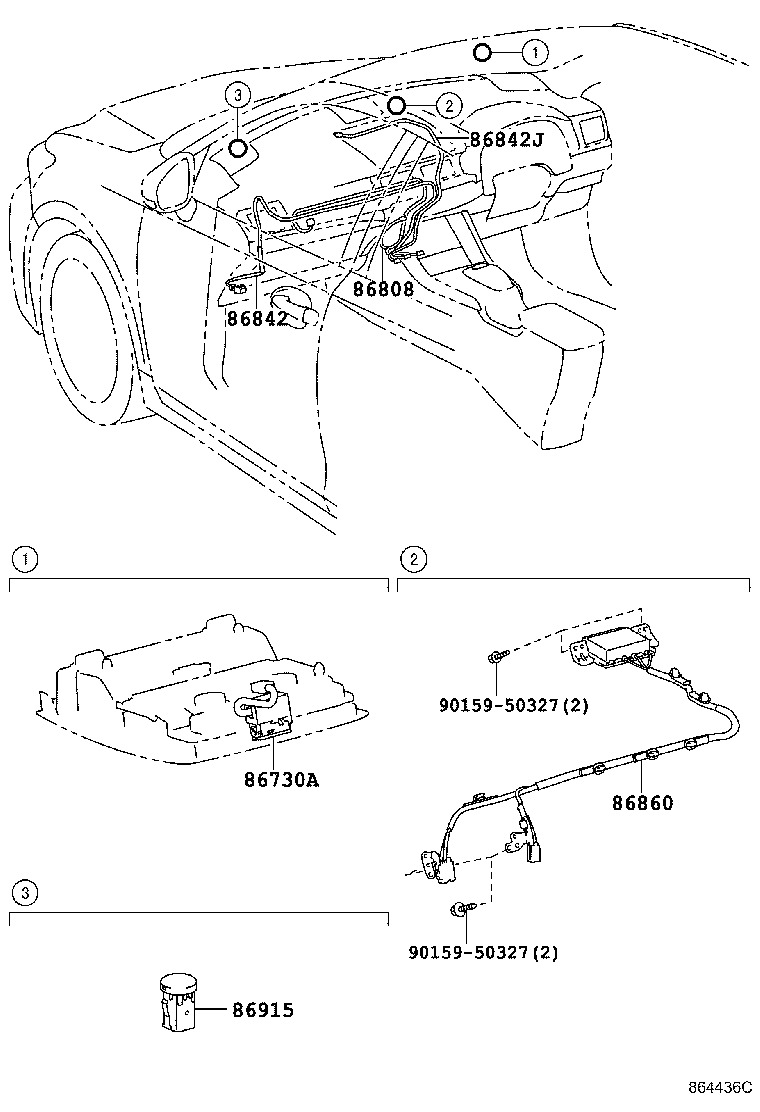

ILLUST NO. 2 OF 2(1012-1208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-20060 |
ZWA10 自動車電話−BLUETOOTH対応 |
1 | ||
| 86730-20060 |
ZWA10 |
1 | ||
| 86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1 | ||||
| 86808-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86808-76040 |
ZWA10 |
1 | ||
| 86808-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-76060 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86842-76060 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 86842J - WIRE, NAVIGATION, NO.2 | ||||
| 86842-76170 |
ZWA10 |
1 | ||
| 86842-76020 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86842-76020 |
ZWA10..B ｲﾝﾅﾐﾗｰ−自動防眩&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86870-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86870-76030 |
ZWA10 |
1 | ||
| 86870-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86870-76010 |
ZWA10 |
1 | ||
| 86915 - TRANSCEIVER, OPTICAL BEACON | ||||
| 86915-60010 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86915-60010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
ILLUST NO. 1 OF 2(1012-1208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610P - COVER ASSY, RH | ||||
| 81610-76010C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81610-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81610-76010C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81610-76010C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81610-76010C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 82219F - WIRE, SENSOR | ||||
| 82219-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 82219-76010 |
ZWA10 |
1 | ||
| 82219-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 82286B - WIRE, EARTH, NO.2 | ||||
| 82286-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 82286-76010 |
ZWA10 |
1 | ||
| 82286-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 84013D - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-76020C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84013-76020C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84013-76030C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84013-76030C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84782 - BOARD, REMOTE OPERATION | ||||
| 84782-48010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(日本語表示) |
1 | ||
| 84782-48010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(英語表示) |
1 | ||
| 84782-76010 |
ZWA10 |
1 | ||
| 84782-48010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(英語表示) |
1 | ||
| 84782-48010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(日本語表示) |
1 | ||
| 84811E - KNOB, SWITCH | ||||
| 84811-48010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84811-48010C1 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84811-48010C1 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84811-48010C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84811-48010C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 86104A - CONTROLLER SUB-ASSY, MULTI-DISPLAY | ||||
| 86104-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86104-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 86104-76010 |
ZWA10 |
1 | ||
| 86111 - MULTI-DISPLAY | ||||
| 86111-76020 |
ZWA10..B PANASONIC,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86111-76020 |
ZWA10 PANASONIC,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 86111-76030 |
ZWA10 PANASONIC |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-76010 |
ZWA10 |
1 | ||
| 86117-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 86117-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86118 - BRACKET, MULTI-DISPLAY CONTROLER, B | ||||
| 86118-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 86118-76010 |
ZWA10 |
1 | ||
| 86118-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86431A - BOARD, DISPLAY MODULE | ||||
| 86431-76101 |
ZWA10 |
1 | ||
| 86431-76100 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86431-76100 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 86431-76100 |
ZWA10 |
1 | ||
| 86453 - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86453-76020 |
ZWA10 |
1 | ||
| 86453-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 89279Q - COVER | ||||
| 89279-48010C1 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 89279-48010C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 89279-48010C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 89279-48010C1 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 89279-48010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 93540-53008 | ||||
| Linked diagrams | ||||
| 5501 | ||||

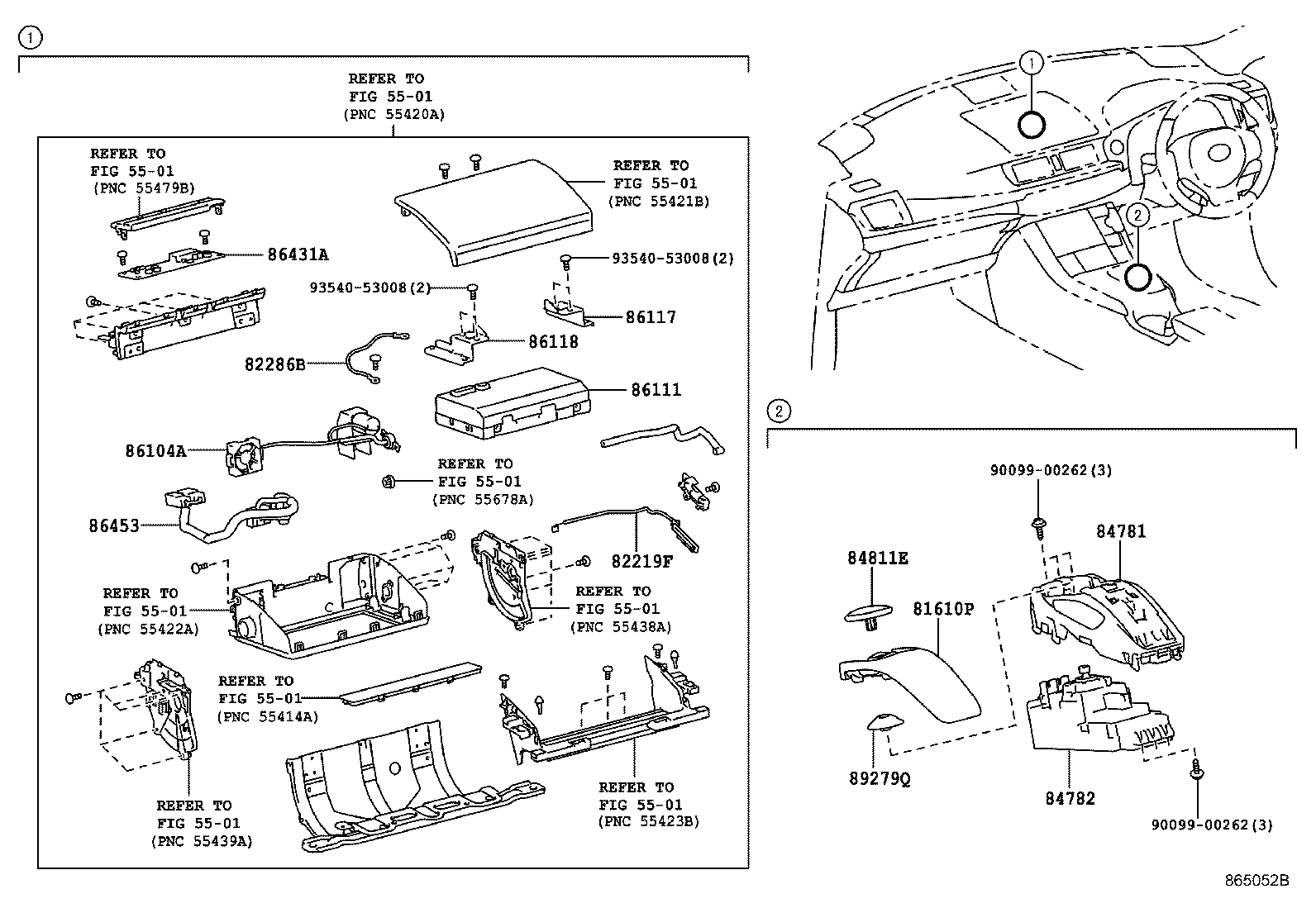

ILLUST NO. 1 OF 2(1208-1312)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610P - COVER ASSY, RH | ||||
| 81610-76010C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81610-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81610-76010C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81610-76010C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81610-76010C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 82219F - WIRE, SENSOR | ||||
| 82219-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 82219-76010 |
ZWA10 |
1 | ||
| 82219-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 82286B - WIRE, EARTH, NO.2 | ||||
| 82286-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 82286-76010 |
ZWA10 |
1 | ||
| 82286-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 84781 - SWITCH, REMOTE OPERATION | ||||
| 84781-76050C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84781-76060C0 |
ZWA10 ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84782 - BOARD, REMOTE OPERATION | ||||
| 84782-48010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(日本語表示) |
1 | ||
| 84782-48010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(英語表示) |
1 | ||
| 84782-76010 |
ZWA10 |
1 | ||
| 84782-48010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(英語表示) |
1 | ||
| 84782-48010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(日本語表示) |
1 | ||
| 84811E - KNOB, SWITCH | ||||
| 84811-48010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84811-48010C1 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84811-48010C1 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84811-48010C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 84811-48010C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 86104A - CONTROLLER SUB-ASSY, MULTI-DISPLAY | ||||
| 86104-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86104-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 86104-76010 |
ZWA10 |
1 | ||
| 86111 - MULTI-DISPLAY | ||||
| 86111-76020 |
ZWA10..B PANASONIC,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86111-76020 |
ZWA10 PANASONIC,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 86111-76030 |
ZWA10 PANASONIC |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-76010 |
ZWA10 |
1 | ||
| 86117-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 86117-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86118 - BRACKET, MULTI-DISPLAY CONTROLER, B | ||||
| 86118-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 86118-76010 |
ZWA10 |
1 | ||
| 86118-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86431A - BOARD, DISPLAY MODULE | ||||
| 86431-76101 |
ZWA10 |
1 | ||
| 86431-76100 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86431-76100 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 86431-76100 |
ZWA10 |
1 | ||
| 86453 - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 86453-76020 |
ZWA10 |
1 | ||
| 86453-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 89279Q - COVER | ||||
| 89279-48010C1 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 89279-48010C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(英語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 89279-48010C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 89279-48010C1 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&ﾅﾋﾞ遠隔操作装置−有り(日本語表示),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 89279-48010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 93540-53008 | ||||
| Linked diagrams | ||||
| 5501 | ||||

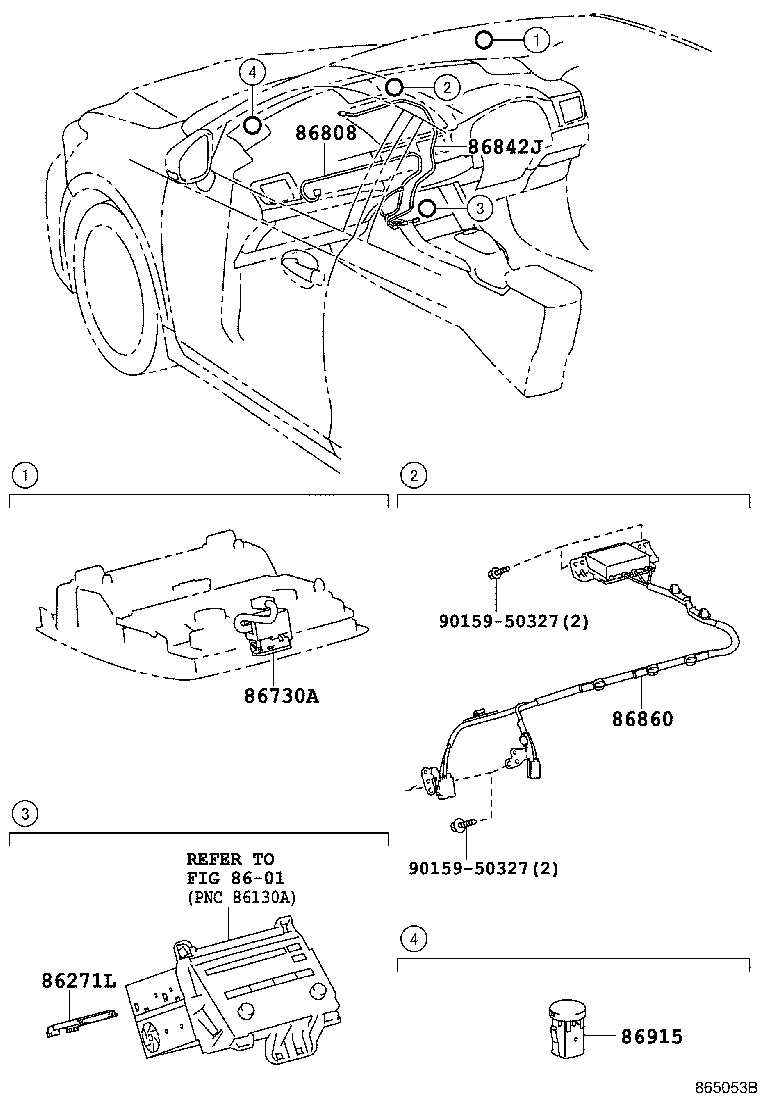

ILLUST NO. 2 OF 2(1208-1312)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86271L - HARD DISC | ||||
| 86271-30661 |
ZWA10 |
1 | ||
| 86271-30663 |
ZWA10 |
1 | ||
| 86271-30662 |
ZWA10 |
1 | ||
| 86271-30664 |
ZWA10 |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-20060 |
ZWA10 自動車電話−BLUETOOTH対応 |
1 | ||
| 86730-20060 |
ZWA10 |
1 | ||
| 86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1 | ||||
| 86808-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86808-76040 |
ZWA10 |
1 | ||
| 86808-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86842J - WIRE, NAVIGATION, NO.2 | ||||
| 86842-76170 |
ZWA10 |
1 | ||
| 86842-76020 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86842-76020 |
ZWA10..B ｲﾝﾅﾐﾗｰ−自動防眩&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86870-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86870-76030 |
ZWA10 |
1 | ||
| 86870-76010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86870-76010 |
ZWA10 |
1 | ||
| 86915 - TRANSCEIVER, OPTICAL BEACON | ||||
| 86915-60010 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 86915-60010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
