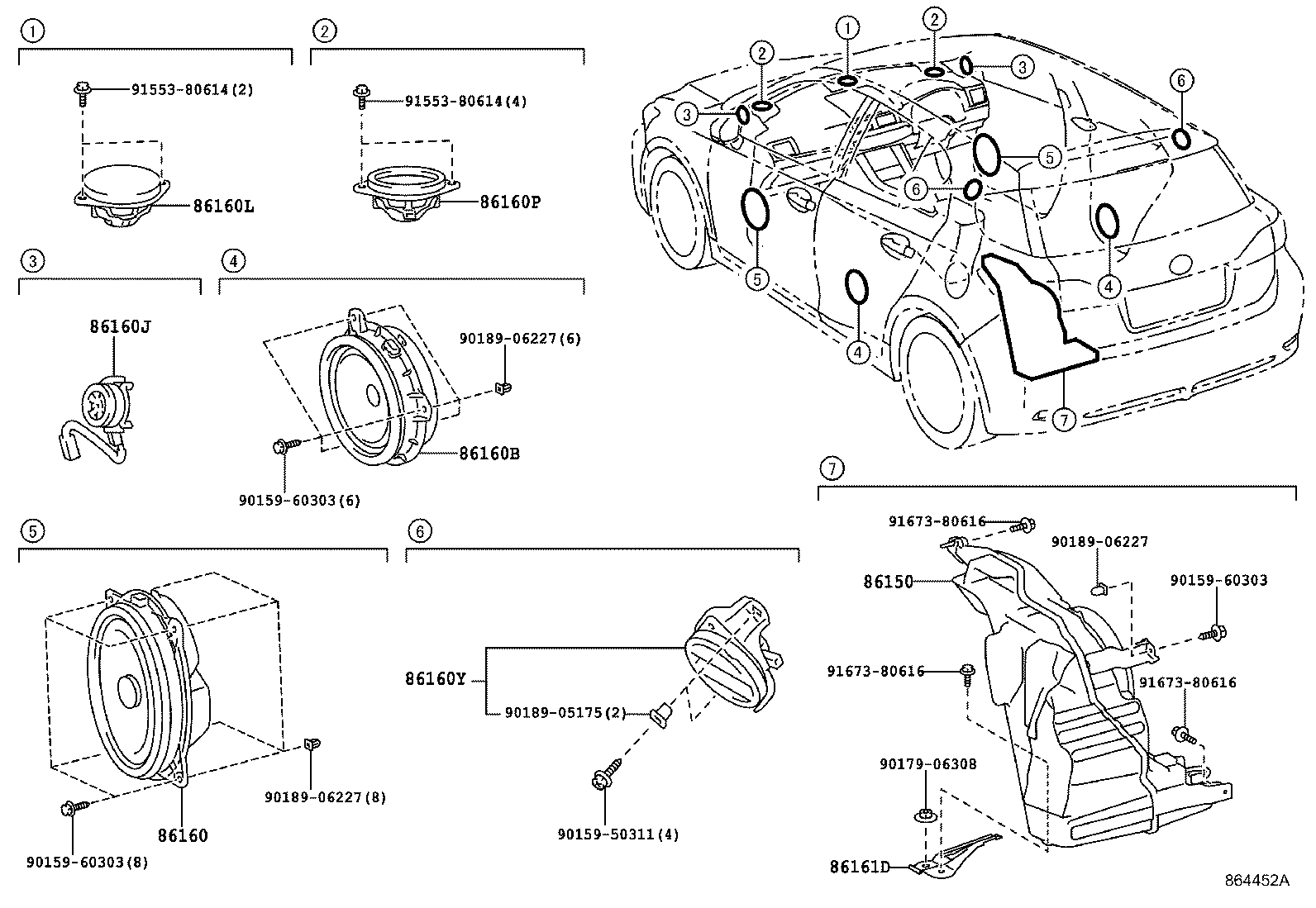

Toyota Lexus ct200h ZWA10 SPEAKER

Part #	Description	Period	Qty
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-76010	ZWA10	08/2012 - 12/2013	1
86150-0W150	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 12/2013	1
86150-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86160 - SPEAKER ASSY, FRONT NO.1
86160-0WC90	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 12/2013	2
86160-76050	ZWA10	12/2010 - 12/2013	2
86160B - SPEAKER ASSY, REAR
86160-76060	ZWA10	12/2010 - 12/2013	2
86160J - SPEAKER ASSY, FRONT NO.3
86160-76040	ZWA10	08/2012 - 12/2013	2
86160-76040	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	2
86160-0WU00	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 12/2013	2
86160L - SPEAKER ASSY, FRONT NO.4
86160-76030	ZWA10	08/2012 - 12/2013	1
86160-0WL00	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 12/2013	1
86160-76030	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86160P - SPEAKER ASSY, FRONT NO.2
86160-0WU40	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 12/2013	2
86160-76030	ZWA10	12/2010 - 12/2013	2
86160Y - SPEAKER ASSY, REAR NO.2
86160-0WU20	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,左側	12/2010 - 12/2013	1
86160-0WU10	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,右側	12/2010 - 12/2013	1
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86161-76010	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
86161-76010	ZWA10	08/2012 - 12/2013	1
Common parts
90159-50311
90159-60303
90179-06308
90189-05175
90189-06227
91553-80614
91673-80616

ZWA10-AHXBB (2010)

(1012- )
