Toyota Lexus ct200h ZWA10 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
JP
LEXUS CT200H
ZWA10-AHXBB (2010)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

ZWA10-AHXBB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

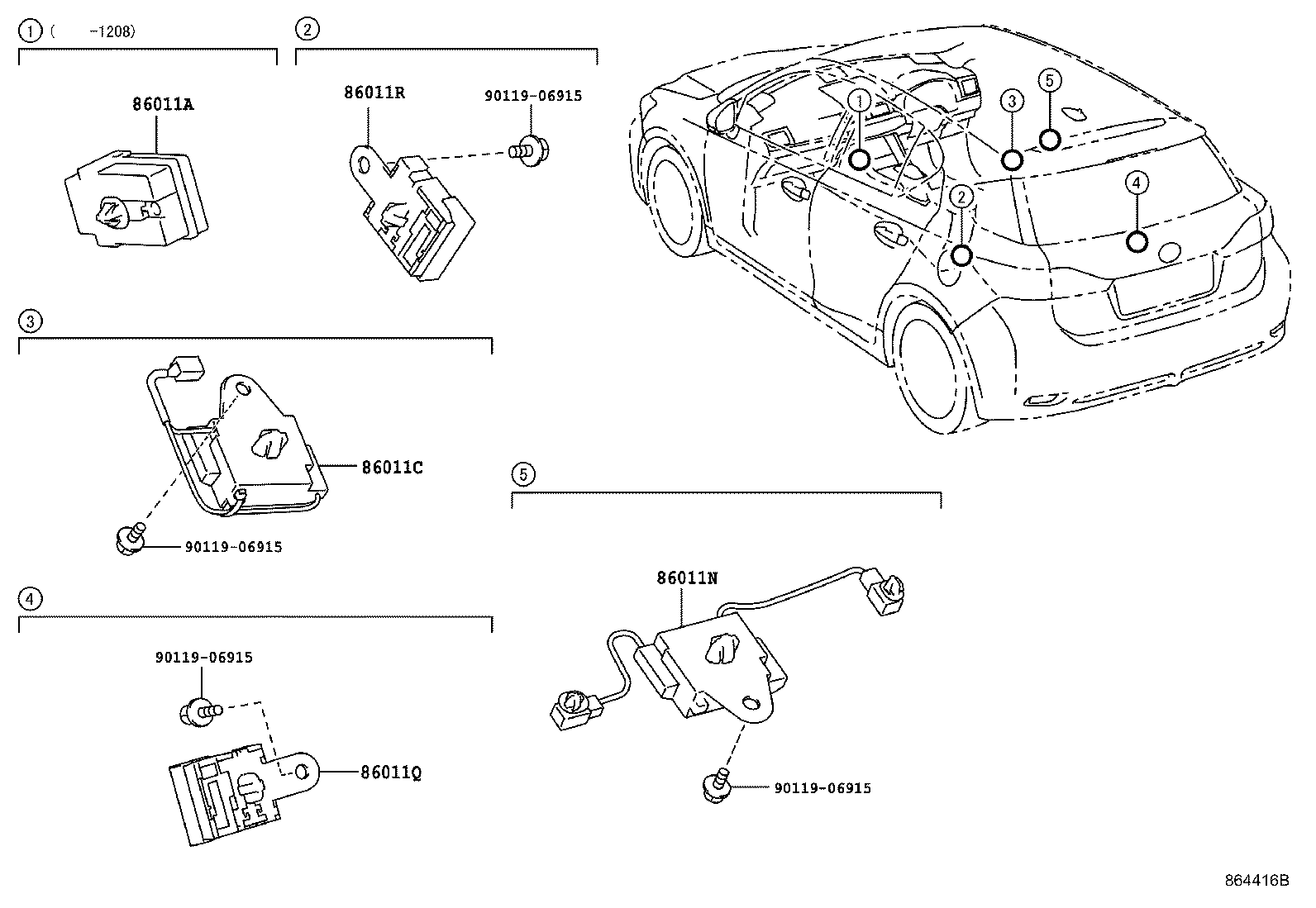

ILLUST NO. 4 OF 5(1012- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
86516-76010	ZWA10	12/2010 - 08/2012	1
86011C - FILTER, NOISE
863B0-76020	ZWA10	12/2010 - 12/2013	1
86011N - FILTER, NOISE
863B0-76010	ZWA10	12/2010 - 12/2013	1
86011Q - CONDENSER, RADIO SETTING
90980-04189	ZWA10	12/2010 - 12/2013	1
86011R - CONDENSER, RADIO SETTING
90980-04189	ZWA10	12/2010 - 12/2013	1
Common parts
90119-06915

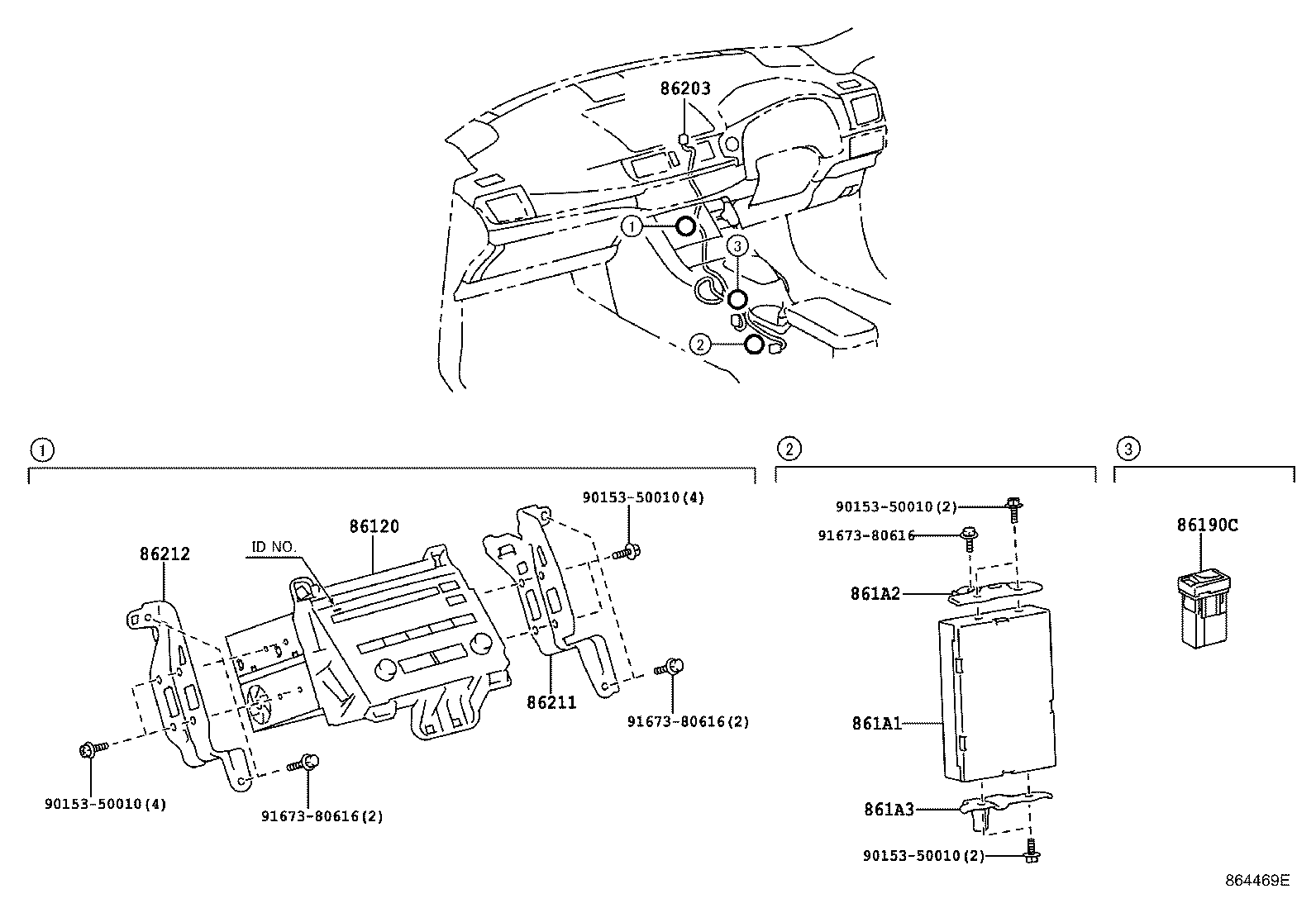

ILLUST NO. 1 OF 5(1012-1208)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-76021	ZWA10..B FUJITSU TEN,ID=10521,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR,TYPE A:ｲﾗｽﾄ参照	04/2011 - 08/2011	1
86120-76011	ZWA10 FUJITSU TEN,ID=10522,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰJ,TYPE A:ｲﾗｽﾄ参照	04/2011 - 08/2011	1
86120-76020	ZWA10..B FUJITSU TEN,ID=10521,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR,TYPE A:ｲﾗｽﾄ参照	12/2010 - 03/2011	1
86120-76030	ZWA10..B PANASONIC,ID=50833,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ@*MAR,TYPE B:ｲﾗｽﾄ参照	12/2010 - 08/2012	1
86120-76022	ZWA10..B FUJITSU TEN,ID=10521,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR,TYPE A:ｲﾗｽﾄ参照	09/2011 - 05/2012	1
86120-76030	ZWA10 PANASONIC,ID=50833,TYPE B:ｲﾗｽﾄ参照	12/2010 - 08/2012	1
86120-76010	ZWA10 FUJITSU TEN,ID=10522,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰJ,TYPE A:ｲﾗｽﾄ参照	12/2010 - 03/2011	1
86120-76030	ZWA10 PANASONIC,ID=50833,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,TYPE B:ｲﾗｽﾄ参照	12/2010 - 08/2012	1
86120-76012	ZWA10 FUJITSU TEN,ID=10522,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰJ,TYPE A:ｲﾗｽﾄ参照	09/2011 - 05/2012	1
86120-76013	ZWA10 FUJITSU TEN,ID=10522,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰJ,TYPE A:ｲﾗｽﾄ参照	06/2012 - 08/2012	1
86120-76023	ZWA10..B FUJITSU TEN,ID=10521,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR,TYPE A:ｲﾗｽﾄ参照	06/2012 - 08/2012	1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-76010	ZWA10	12/2010 - 12/2013	1
861A1 - COMPUTER, MULTI-MEDIA INTERFACE
861A0-77010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
861A0-77010	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1
861A2-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
861A2-76010	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
861A3 - BRACKET, MULTI-MEDIA INTERFACE, NO.2
861A3-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
861A3-76010	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
86203 - WIRE, RADIO
86203-76010	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
86203-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86203-76050	ZWA10	08/2012 - 12/2013	1
86203-76030	ZWA10	12/2010 - 08/2012	1
86211 - BRACKET, RADIO, NO.1
86211-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86211-76010	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
86211-76060	ZWA10	08/2012 - 12/2013	1
86211-76030	ZWA10	12/2010 - 08/2012	1
86212 - BRACKET, RADIO, NO.2
86212-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86212-76060	ZWA10	08/2012 - 12/2013	1
86212-76010	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
86212-76030	ZWA10	12/2010 - 08/2012	1
Common parts
90153-50010
91673-80616

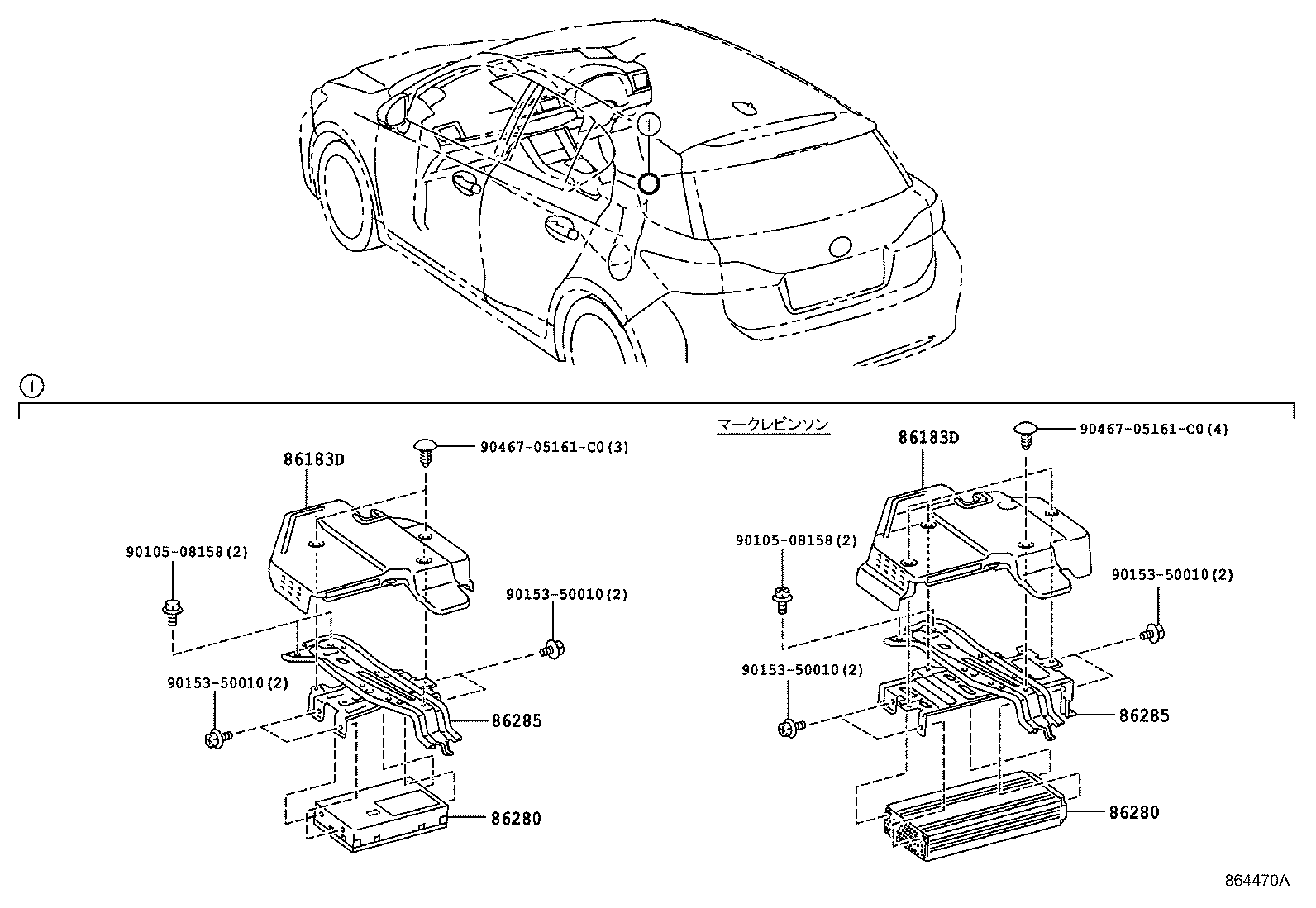

ILLUST NO. 3 OF 5(1012- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86183D - COVER, AUDIO AMPLIFIER
86183-75020	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 12/2013	1
86183-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86183-76010	ZWA10	08/2012 - 12/2013	1
86183D - COVER, AUDIO AMPLIFIER
86183-75020	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 12/2013	1
86183-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86183-76010	ZWA10	08/2012 - 12/2013	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0WB50	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	08/2012 - 12/2013	1
86280-76030	ZWA10	08/2012 - 12/2013	1
86280-76030	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	08/2012 - 12/2013	1
86280-0W840	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
86280-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0WB50	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	08/2012 - 12/2013	1
86280-76030	ZWA10	08/2012 - 12/2013	1
86280-76030	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	08/2012 - 12/2013	1
86280-0W840	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
86280-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-75030	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 12/2013	1
86285-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86285-76010	ZWA10	08/2012 - 12/2013	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-75030	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 12/2013	1
86285-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86285-76010	ZWA10	08/2012 - 12/2013	1
Common parts
90105-08158
90153-50010
90467-05161C0

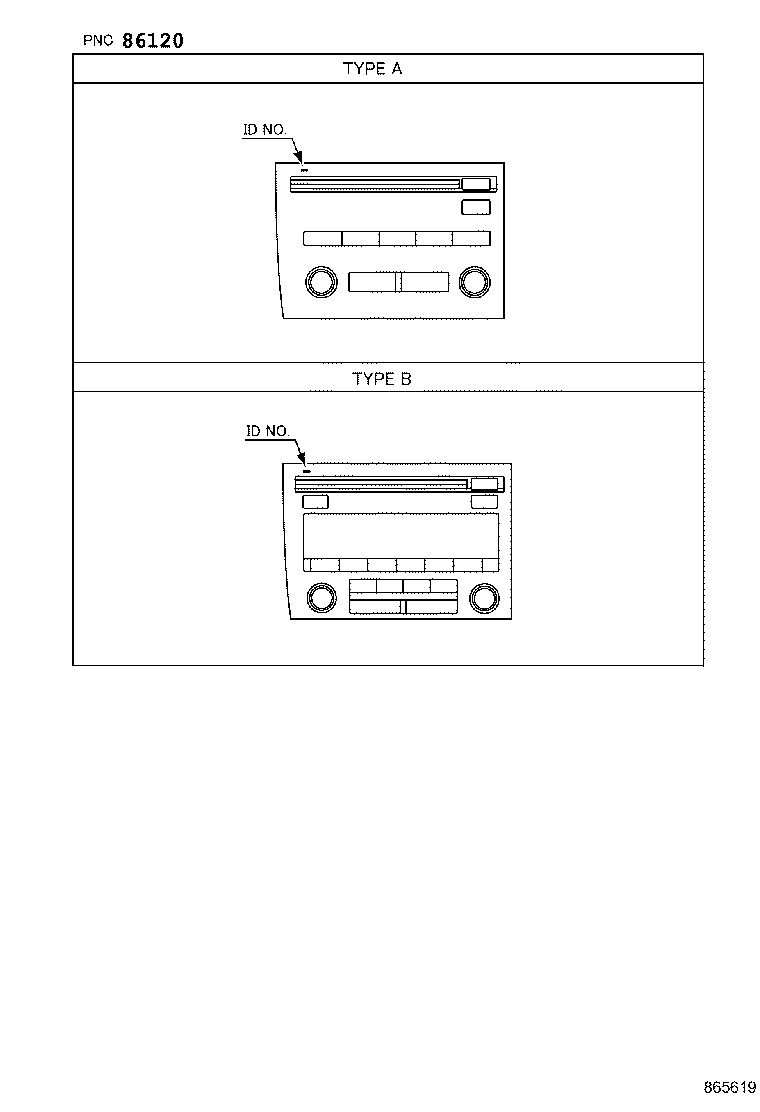

ILLUST NO. 2 OF 5(1012-1208)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-76021	ZWA10..B FUJITSU TEN,ID=10521,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR,TYPE A:ｲﾗｽﾄ参照	04/2011 - 08/2011	1
86120-76011	ZWA10 FUJITSU TEN,ID=10522,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰJ,TYPE A:ｲﾗｽﾄ参照	04/2011 - 08/2011	1
86120-76020	ZWA10..B FUJITSU TEN,ID=10521,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR,TYPE A:ｲﾗｽﾄ参照	12/2010 - 03/2011	1
86120-76030	ZWA10..B PANASONIC,ID=50833,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ@*MAR,TYPE B:ｲﾗｽﾄ参照	12/2010 - 08/2012	1
86120-76022	ZWA10..B FUJITSU TEN,ID=10521,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR,TYPE A:ｲﾗｽﾄ参照	09/2011 - 05/2012	1
86120-76030	ZWA10 PANASONIC,ID=50833,TYPE B:ｲﾗｽﾄ参照	12/2010 - 08/2012	1
86120-76010	ZWA10 FUJITSU TEN,ID=10522,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰJ,TYPE A:ｲﾗｽﾄ参照	12/2010 - 03/2011	1
86120-76030	ZWA10 PANASONIC,ID=50833,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,TYPE B:ｲﾗｽﾄ参照	12/2010 - 08/2012	1
86120-76012	ZWA10 FUJITSU TEN,ID=10522,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰJ,TYPE A:ｲﾗｽﾄ参照	09/2011 - 05/2012	1
86120-76013	ZWA10 FUJITSU TEN,ID=10522,ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰJ,TYPE A:ｲﾗｽﾄ参照	06/2012 - 08/2012	1
86120-76023	ZWA10..B FUJITSU TEN,ID=10521,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR,TYPE A:ｲﾗｽﾄ参照	06/2012 - 08/2012	1

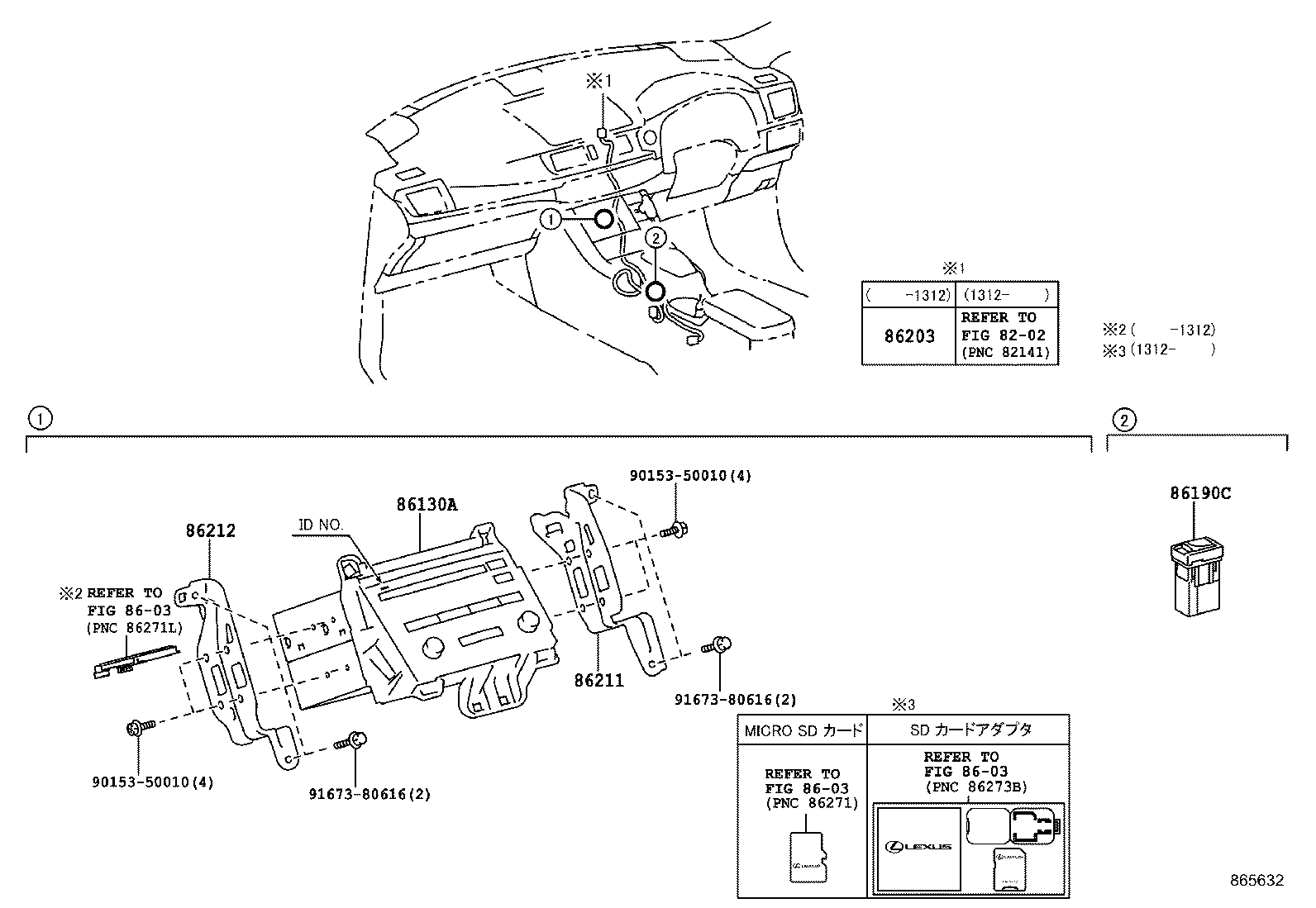

ILLUST NO. 1 OF 5(1208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86130A - RECEIVER ASSY, MULTI-MEDIA MODULE
86804-76070	ZWA10..B FUJITSU TEN,ID100123,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR	08/2012 - 09/2012	1
86804-76060	ZWA10 FUJITSU TEN,ID100122	08/2012 - 09/2012	1
86804-76073	ZWA10..B FUJITSU TEN,ID100123,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR	02/2013 - 12/2013	1
86804-76061	ZWA10 FUJITSU TEN,ID100122	09/2012 - 10/2012	1
86804-76071	ZWA10..B FUJITSU TEN,ID100123,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR	09/2012 - 10/2012	1
86804-76072	ZWA10..B FUJITSU TEN,ID100123,ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟ[ｶ *MAR	11/2012 - 01/2013	1
86804-76062	ZWA10 FUJITSU TEN,ID100122	11/2012 - 01/2013	1
86804-76063	ZWA10 FUJITSU TEN,ID100122	02/2013 - 12/2013	1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-76010	ZWA10	12/2010 - 12/2013	1
86203 - WIRE, RADIO
86203-76010	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
86203-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86203-76050	ZWA10	08/2012 - 12/2013	1
86203-76030	ZWA10	12/2010 - 08/2012	1
86211 - BRACKET, RADIO, NO.1
86211-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86211-76010	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
86211-76060	ZWA10	08/2012 - 12/2013	1
86211-76030	ZWA10	12/2010 - 08/2012	1
86212 - BRACKET, RADIO, NO.2
86212-76010	ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ	12/2010 - 08/2012	1
86212-76060	ZWA10	08/2012 - 12/2013	1
86212-76010	ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR	12/2010 - 08/2012	1
86212-76030	ZWA10	12/2010 - 08/2012	1
Common parts
90153-50010
91673-80616
