ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
(1012-1312)

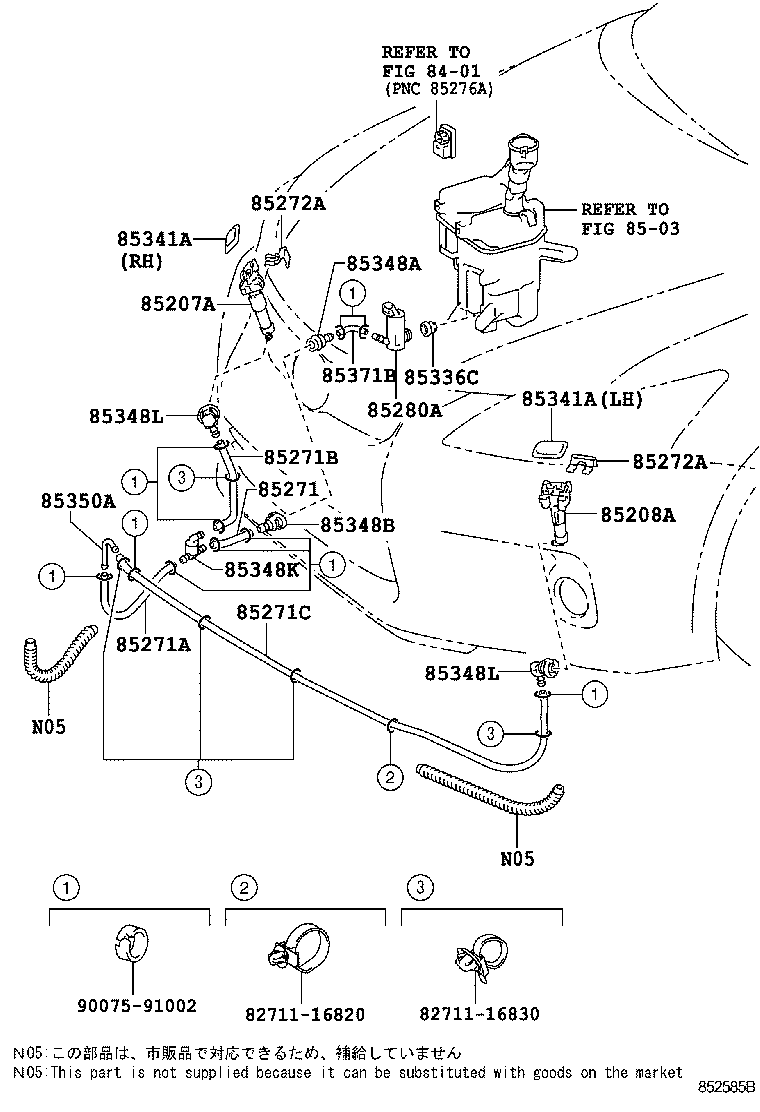

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-76010 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-76010 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15053 |
ZWA10 長さ=35,ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15069 |
ZWA10 長さ=280,ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15058 |
ZWA10 長さ=120,ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90075-15087 |
ZWA10 長さ=1250,ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-28030 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-28030 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-47010 |
ZWA10..B 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85280-47010 |
ZWA10..E 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85280-47010 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85280-47010 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85280-47010 |
ZWA10..E 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85280-47010 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 90099-32089 |
ZWA10..E 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-32089 |
ZWA10..B 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-32089 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-32089 |
ZWA10..E 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-32089 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-32089 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-76010B2 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,DK.GRAY MC.,1G0,右側 |
1 | ||
| 85353-76010C0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK,212,右側 |
1 | ||
| 85353-76010B0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVER M.M.,1G1,右側 |
1 | ||
| 85353-76010D0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,RED MC.CS.,3R1,右側 |
1 | ||
| 85353-76010E0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,FIRE AGATE M.M.,4V3,右側 |
1 | ||
| 85353-76010J0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLUE ME.,8U1,右側 |
1 | ||
| 85353-76010A0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,WHITE PEARL CS.,077,右側 |
1 | ||
| 85354-76010F0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,FLARE YELLOW M.M.,5B1,左側 |
1 | ||
| 85354-76010D0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,RED MC.CS.,3R1,左側 |
1 | ||
| 85354-76010C0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK,212,左側 |
1 | ||
| 85354-76010E0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,FIRE AGATE M.M.,4V3,左側 |
1 | ||
| 85353-76010F0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,FLARE YELLOW M.M.,5B1,右側 |
1 | ||
| 85353-76010C1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK OPAL MC.,214,右側 |
1 | ||
| 85354-76010B2 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,DK.GRAY MC.,1G0,左側 |
1 | ||
| 85354-76010J1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVERY BLUE ME.,8U9,左側 |
1 | ||
| 85353-76010B1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,MERCURY GRAY MC.,1H9,右側 |
1 | ||
| 85353-76010B3 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,PLATINUM SILVER ME.,1J4,右側 |
1 | ||
| 85354-76010B1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,MERCURY GRAY MC.,1H9,左側 |
1 | ||
| 85354-76010J0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLUE ME.,8U1,左側 |
1 | ||
| 85353-76010A1 |
ZWA10..B ﾍｯﾄﾞﾗﾝﾌﾟ−LED,WHITE NOVA GF.,083,右側 |
1 | ||
| 85354-76010A0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,WHITE PEARL CS.,077,左側 |
1 | ||
| 85353-76010C2 |
ZWA10..B Creative Textile Interior *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,STARLIGHT BLACK GF.,217,右側 |
1 | ||
| 85354-76010C1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK OPAL MC.,214,左側 |
1 | ||
| 85354-76010C2 |
ZWA10..B Creative Textile Interior *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,STARLIGHT BLACK GF.,217,左側 |
1 | ||
| 85353-76010J1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVERY BLUE ME.,8U9,右側 |
1 | ||
| 85354-76010A1 |
ZWA10..B ﾍｯﾄﾞﾗﾝﾌﾟ−LED,WHITE NOVA GF.,083,左側 |
1 | ||
| 85354-76010B3 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,PLATINUM SILVER ME.,1J4,左側 |
1 | ||
| 85354-76010B0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVER M.M.,1G1,左側 |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-76010C0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK,212,右側 |
1 | ||
| 85353-76010B2 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,DK.GRAY MC.,1G0,右側 |
1 | ||
| 85353-76010B0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVER M.M.,1G1,右側 |
1 | ||
| 85353-76010D0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,RED MC.CS.,3R1,右側 |
1 | ||
| 85353-76010E0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,FIRE AGATE M.M.,4V3,右側 |
1 | ||
| 85353-76010J0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLUE ME.,8U1,右側 |
1 | ||
| 85353-76010A0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,WHITE PEARL CS.,077,右側 |
1 | ||
| 85354-76010F0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,FLARE YELLOW M.M.,5B1,左側 |
1 | ||
| 85354-76010D0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,RED MC.CS.,3R1,左側 |
1 | ||
| 85354-76010C0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK,212,左側 |
1 | ||
| 85354-76010E0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,FIRE AGATE M.M.,4V3,左側 |
1 | ||
| 85353-76010F0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,FLARE YELLOW M.M.,5B1,右側 |
1 | ||
| 85353-76010C1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK OPAL MC.,214,右側 |
1 | ||
| 85354-76010B2 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,DK.GRAY MC.,1G0,左側 |
1 | ||
| 85354-76010J1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVERY BLUE ME.,8U9,左側 |
1 | ||
| 85353-76010B1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,MERCURY GRAY MC.,1H9,右側 |
1 | ||
| 85353-76010B3 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,PLATINUM SILVER ME.,1J4,右側 |
1 | ||
| 85354-76010B1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,MERCURY GRAY MC.,1H9,左側 |
1 | ||
| 85354-76010J0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLUE ME.,8U1,左側 |
1 | ||
| 85353-76010A1 |
ZWA10..B ﾍｯﾄﾞﾗﾝﾌﾟ−LED,WHITE NOVA GF.,083,右側 |
1 | ||
| 85354-76010A0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,WHITE PEARL CS.,077,左側 |
1 | ||
| 85353-76010C2 |
ZWA10..B Creative Textile Interior *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,STARLIGHT BLACK GF.,217,右側 |
1 | ||
| 85354-76010C1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK OPAL MC.,214,左側 |
1 | ||
| 85354-76010C2 |
ZWA10..B Creative Textile Interior *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,STARLIGHT BLACK GF.,217,左側 |
1 | ||
| 85353-76010J1 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVERY BLUE ME.,8U9,右側 |
1 | ||
| 85354-76010A1 |
ZWA10..B ﾍｯﾄﾞﾗﾝﾌﾟ−LED,WHITE NOVA GF.,083,左側 |
1 | ||
| 85354-76010B3 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,PLATINUM SILVER ME.,1J4,左側 |
1 | ||
| 85354-76010B0 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVER M.M.,1G1,左側 |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17002 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90075-17002 |
ZWA10..B 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90075-17002 |
ZWA10..E 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90075-17002 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90075-17002 |
ZWA10..E 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90075-17002 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17005 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 90075-17007 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17001 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17001 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
2 | ||
| 85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3 | ||||
| 90075-17004 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85371B - HOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT) | ||||
| 90075-15059 |
ZWA10..B 長さ=80,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90075-15059 |
ZWA10..E 長さ=80,寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90075-15059 |
ZWA10..E 長さ=80,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90075-15059 |
ZWA10..B 長さ=80,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90075-15059 |
ZWA10 長さ=80,ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90075-15059 |
ZWA10..E 長さ=80,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82711-16830 | ||||
| 90075-91002 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8503 | ||||
