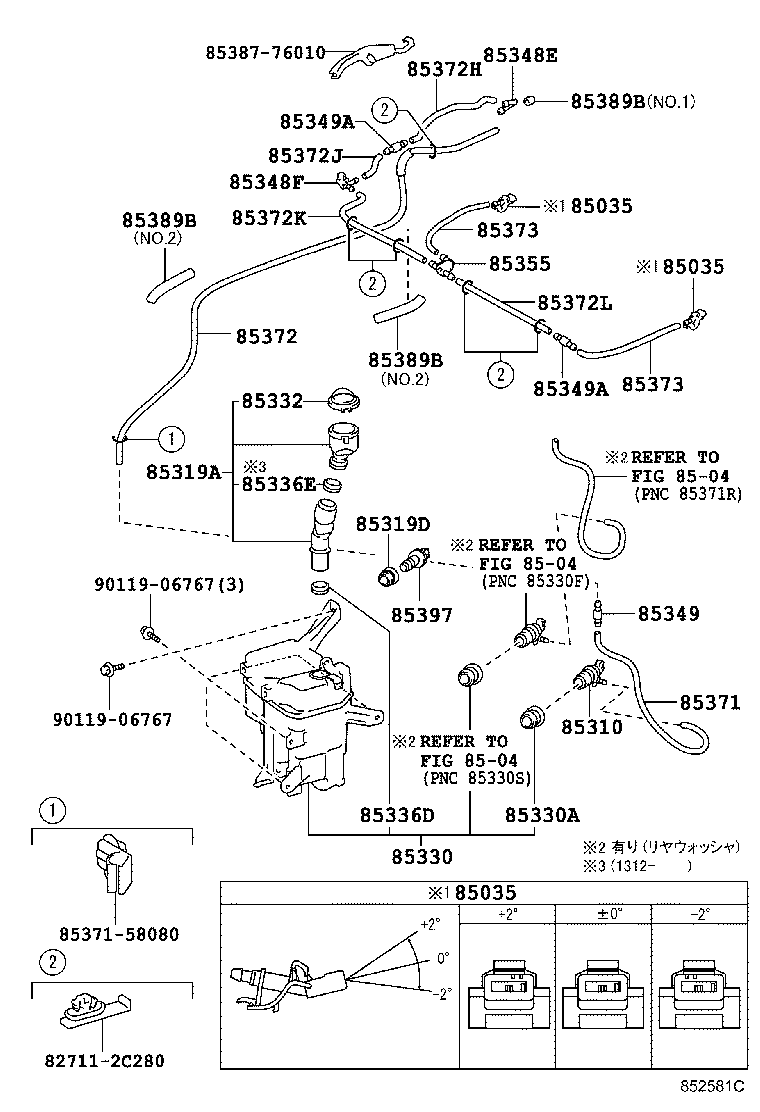

ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12350 |
ZWA10 角度 +2 |
2 | ||
| 85381-12340 |
ZWA10 角度 −2 |
2 | ||
| 85381-12330 |
ZWA10 角度 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12350 |
ZWA10 角度 +2 |
2 | ||
| 85381-12340 |
ZWA10 角度 −2 |
2 | ||
| 85381-12330 |
ZWA10 角度 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12350 |
ZWA10 角度 +2 |
2 | ||
| 85381-12340 |
ZWA10 角度 −2 |
2 | ||
| 85381-12330 |
ZWA10 角度 0 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-60190 |
ZWA10 |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-76010 |
ZWA10..E |
1 | ||
| 85319-76010 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 85319-76020 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85359-76020 |
ZWA10..E 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85319-76020 |
ZWA10..E 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85359-76020 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85319-76020 |
ZWA10..B |
1 | ||
| 85359-76020 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85359-76020 |
ZWA10..E 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85319-76020 |
ZWA10..E 寒冷地仕様 |
1 | ||
| 85359-76020 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85319-76020 |
ZWA10..E |
1 | ||
| 85359-76020 |
ZWA10..B 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
ZWA10 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-76010 |
ZWA10..B 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 85315-76020 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85315-76020 |
ZWA10..B |
1 | ||
| 85315-76030 |
ZWA10..E ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76030 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76020 |
ZWA10..E 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85315-76040 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76040 |
ZWA10..E 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76010 |
ZWA10..E |
1 | ||
| 85315-76030 |
ZWA10..B 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76010 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 85315-76030 |
ZWA10..E 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76040 |
ZWA10..B ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76020 |
ZWA10..E |
1 | ||
| 85315-76040 |
ZWA10..E ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
ZWA10 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-76010 |
ZWA10 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30160 |
ZWA10 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-12360 |
ZWA10 |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85377-32220 |
ZWA10 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ZWA10 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ZWA10 |
2 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ZWA10 |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ZWA10 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ZWA10..E *H,L=460,寒冷地仕様 |
1 | ||
| 90099-33080 |
ZWA10..B *H,L=460 |
1 | ||
| 90099-33080 |
ZWA10..B *H,L=460,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460,寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..B *H,L=460,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 90099-33080 |
ZWA10..B *H,L=430,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 90099-33080 |
ZWA10..B *H,L=460,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=430 |
1 | ||
| 90099-33080 |
ZWA10 *H,L=460,ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ZWA10 *H,L=870 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
ZWA10 *H,L=305 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
ZWA10 *H,L=60 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
ZWA10 *H,L=480 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
ZWA10 *H,L=325 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZWA10 *H,L=230 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZWA10 *H,L=230 |
2 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-76020 |
ZWA10 NO.2 |
2 | ||
| 85389-76030 |
ZWA10 NO.1 |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-76020 |
ZWA10 NO.2 |
2 | ||
| 85389-76030 |
ZWA10 NO.1 |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-76020 |
ZWA10 NO.2 |
2 | ||
| 85389-76030 |
ZWA10 NO.1 |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-30400 |
ZWA10 |
1 | ||
| Common parts | ||||
| 82711-2C280 | ||||
| 85371-58080 | ||||
| 85387-76010 | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8504 | ||||

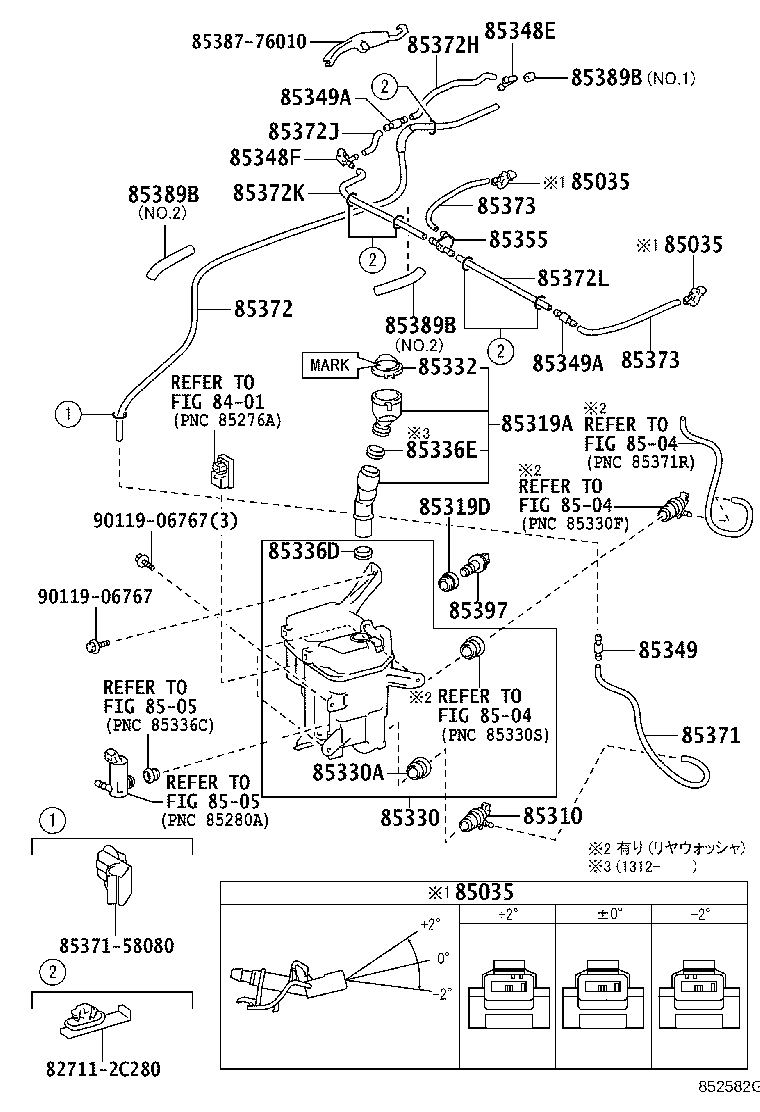

(1012- )
ｱﾘ(ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12350 |
ZWA10 角度 +2 |
2 | ||
| 85381-12340 |
ZWA10 角度 −2 |
2 | ||
| 85381-12330 |
ZWA10 角度 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12350 |
ZWA10 角度 +2 |
2 | ||
| 85381-12340 |
ZWA10 角度 −2 |
2 | ||
| 85381-12330 |
ZWA10 角度 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12350 |
ZWA10 角度 +2 |
2 | ||
| 85381-12340 |
ZWA10 角度 −2 |
2 | ||
| 85381-12330 |
ZWA10 角度 0 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-60190 |
ZWA10 |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-76010 |
ZWA10..E |
1 | ||
| 85319-76010 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 85319-76020 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85359-76020 |
ZWA10..E 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85319-76020 |
ZWA10..E 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85359-76020 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85319-76020 |
ZWA10..B |
1 | ||
| 85359-76020 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85359-76020 |
ZWA10..E 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85319-76020 |
ZWA10..E 寒冷地仕様 |
1 | ||
| 85359-76020 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85319-76020 |
ZWA10..E |
1 | ||
| 85359-76020 |
ZWA10..B 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
ZWA10 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-76010 |
ZWA10..B 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 85315-76020 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85315-76020 |
ZWA10..B |
1 | ||
| 85315-76030 |
ZWA10..E ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76030 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76020 |
ZWA10..E 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85315-76040 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76040 |
ZWA10..E 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76010 |
ZWA10..E |
1 | ||
| 85315-76030 |
ZWA10..B 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76010 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 85315-76030 |
ZWA10..E 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76040 |
ZWA10..B ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85315-76020 |
ZWA10..E |
1 | ||
| 85315-76040 |
ZWA10..E ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
ZWA10 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-76010 |
ZWA10 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30160 |
ZWA10 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-12360 |
ZWA10 |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85377-32220 |
ZWA10 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ZWA10 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ZWA10 |
2 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ZWA10 |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ZWA10 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ZWA10..E *H,L=460,寒冷地仕様 |
1 | ||
| 90099-33080 |
ZWA10..B *H,L=460 |
1 | ||
| 90099-33080 |
ZWA10..B *H,L=460,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460,寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..B *H,L=460,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 90099-33080 |
ZWA10..B *H,L=430,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 90099-33080 |
ZWA10..B *H,L=460,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=430 |
1 | ||
| 90099-33080 |
ZWA10 *H,L=460,ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 90099-33080 |
ZWA10..E *H,L=460 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ZWA10 *H,L=870 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
ZWA10 *H,L=305 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
ZWA10 *H,L=60 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
ZWA10 *H,L=480 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
ZWA10 *H,L=325 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZWA10 *H,L=230 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZWA10 *H,L=230 |
2 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-76020 |
ZWA10 NO.2 |
2 | ||
| 85389-76030 |
ZWA10 NO.1 |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-76020 |
ZWA10 NO.2 |
2 | ||
| 85389-76030 |
ZWA10 NO.1 |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-76020 |
ZWA10 NO.2 |
2 | ||
| 85389-76030 |
ZWA10 NO.1 |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-30400 |
ZWA10 |
1 | ||
| Common parts | ||||
| 82711-2C280 | ||||
| 85371-58080 | ||||
| 85387-76010 | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8504 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
