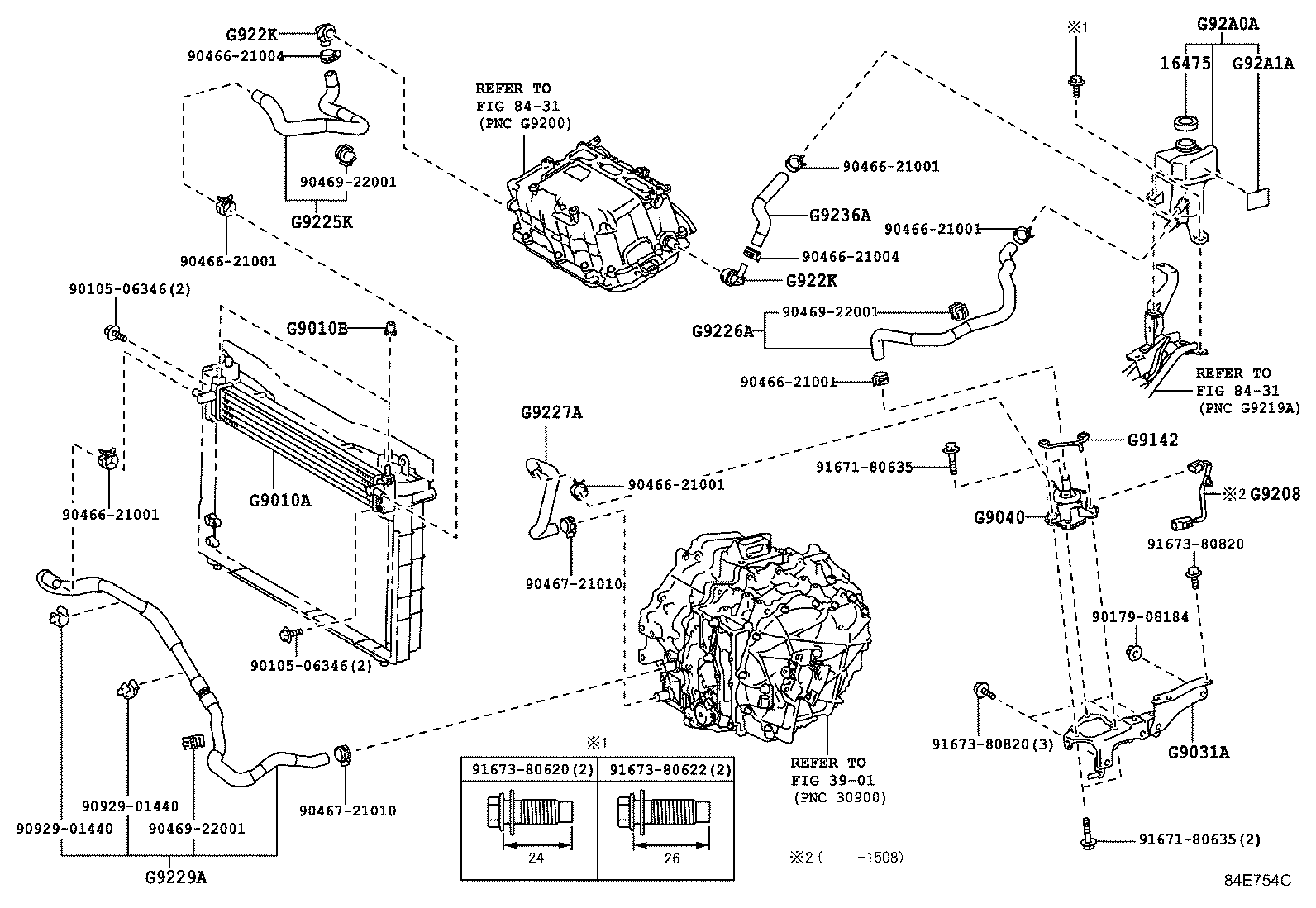

Toyota Lexus ct200h ZWA10 INVERTER COOLING

Part #	Description	Period	Qty
16475 - CAP, RESERVE TANK
16475-37010	2ZRFXE..ZWA10	12/2010 - 12/2013	1
G9010A - RADIATOR ASSY
G9010-76010	ZWA10	12/2010 - 12/2013	1
G9010B - CUSHION, INVERTER RADIATOR
16716-37010	ZWA10	12/2010 - 12/2013	2
G9031A - BRACKET SUB-ASSY, HV WATER PUMP
G9031-47010	ZWA10	12/2010 - 12/2013	1
G9040 - INVERTER WATER PUMP ASSY(W/MOTOR)
G9040-52010	ZWA10	08/2012 - 12/2013	1
G9040-48020	ZWA10	12/2010 - 04/2011	1
G9040-47090	ZWA10	04/2011 - 08/2012	1
G9142 - BRACKET, HYBRID WATER PUMP, NO.2
G9142-47010	ZWA10	12/2010 - 12/2013	1
G9208 - WIRE SUB-ASSY, INVERTER
G9208-47080	ZWA10	12/2010 - 12/2013	1
G9225K - HOSE, INVERTER COOLING, NO.1
G9225-76010	ZWA10	12/2010 - 12/2013	1
G9226A - HOSE, INVERTER COOLING, NO.2
G9226-47020	ZWA10	12/2010 - 12/2013	1
G9227A - HOSE, INVERTER COOLING, NO.3
G9227-47020	ZWA10	12/2010 - 12/2013	1
G9229A - HOSE, INVERTER COOLING, NO.5
G9229-76010	ZWA10	12/2010 - 12/2013	1
G922K - CONNECTOR, HYBRID WATER HOSE
G922K-47011	ZWA10	12/2010 - 12/2013	2
G922K - CONNECTOR, HYBRID WATER HOSE
G922K-47011	ZWA10	12/2010 - 12/2013	2
G9236A - HOSE, INVERTER COOLING, NO.6
G9236-47031	ZWA10	12/2010 - 12/2013	1
G92A0A - TANK ASSY, INVERTER RESERVE
G92A0-76010	ZWA10	12/2010 - 12/2013	1
G92A1A - LABEL, HYBRID COOLANT SYSTEM INFORMATION
G92A1-76010	ZWA10	12/2010 - 12/2013	1
Common parts
90105-06346
90179-08184
90466-21001
90466-21004
90467-21010
90469-22001
90929-01440
91671-80635
91673-80620
91673-80622
91673-80820
Linked diagrams
3901
8431

ZWA10-AHXBB (2010)
