Toyota Lexus ct200h ZWA10 HV INVERTER

ZWA10-AHXBB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

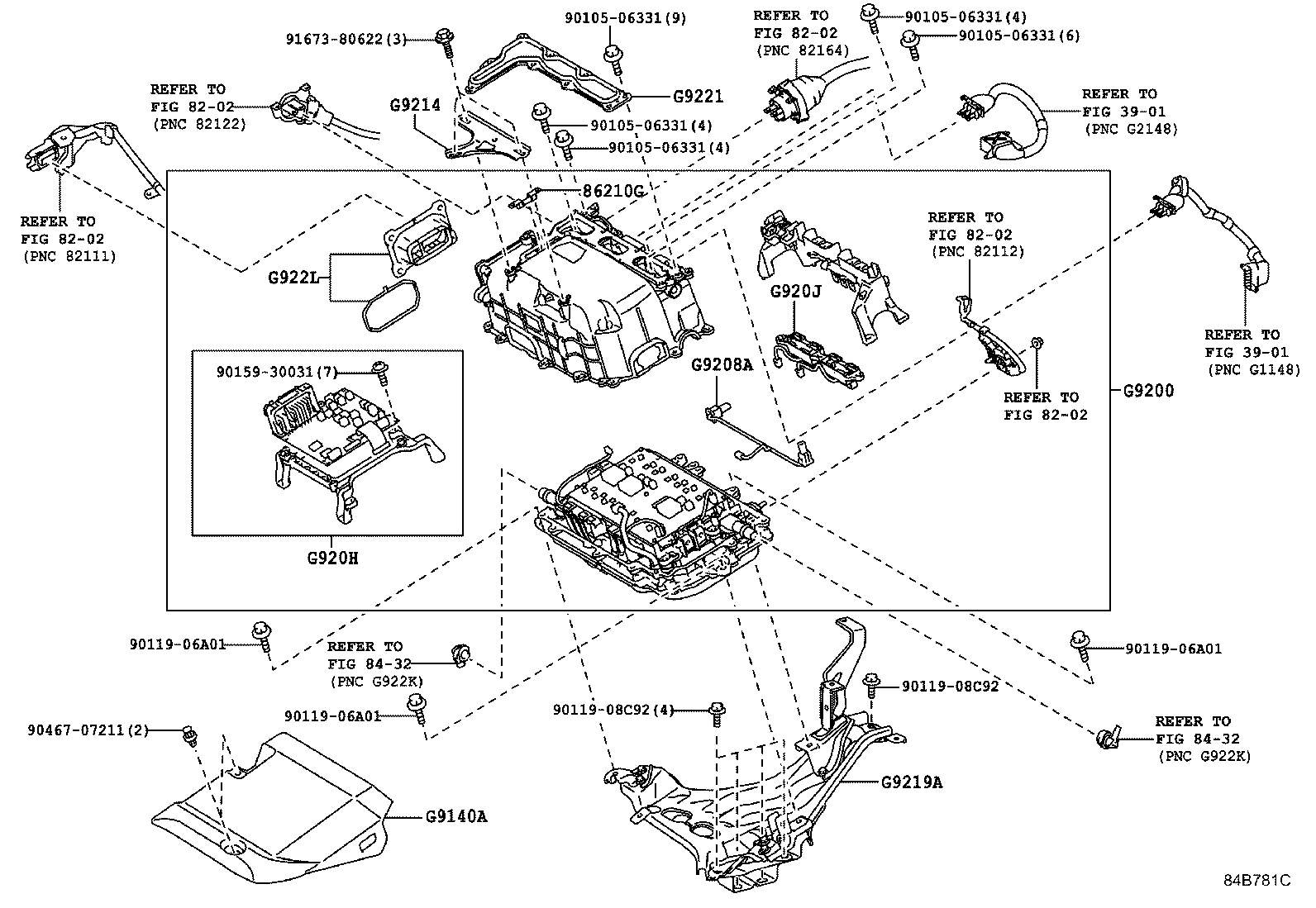

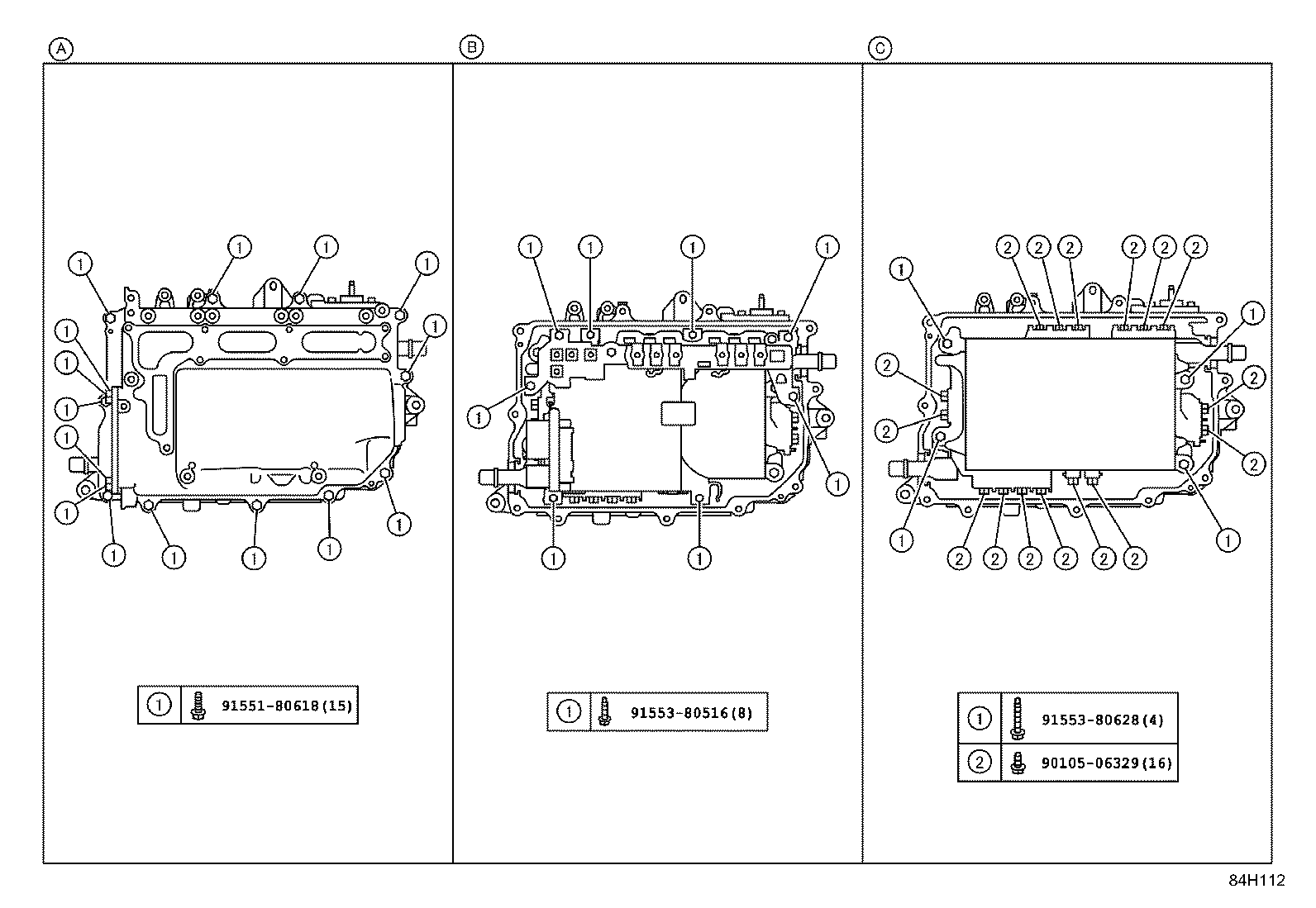

ｲﾝﾊﾞｰﾀASSY

Part #	Description	Period	Qty
86210G - FUSE, HIGH VOLTAGE
90982-11050	ZWA10	05/2011 - 12/2013	1
G9140A - COVER ASSY, INVERTER, LH
G9140-76010	ZWA10 ｴﾝｼﾞﾝﾙｰﾑｶﾊﾞｰ−有り(ｲﾝﾊﾞｰﾀ & ﾗｼﾞｴｰﾀﾘｻﾞｰﾊﾞﾀﾝｸ)	12/2010 - 12/2013	1
G9200 - INVERTER ASSY, W/CONVERTER
G9200-79015	ZWA10	08/2011 - 05/2013	1
G9200-79025	ZWA10	06/2013 - 12/2013	1
G92A0-76020	ZWA10	12/2010 - 07/2011	1
G9208A - WIRE SUB-ASSY, INVERTER
G9208-47090	ZWA10	12/2010 - 12/2013	1
G920H - COMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL
G920H-47030	ZWA10	12/2010 - 12/2013	1
G920J - SENSOR SUB-ASSY, INVERTER CURRENT
G920J-52010	ZWA10	12/2010 - 12/2013	1
G9214 - BRACKET, INVERTER, NO.1
G9214-76010	ZWA10	12/2010 - 12/2013	1
G9219A - BRACKET, INVERTER TRAY
G9110-47011	ZWA10	12/2010 - 08/2013	1
G9110-47030	ZWA10	09/2013 - 12/2013	1
G9221 - COVER, INVERTER
G9022-47041	ZWA10	12/2010 - 12/2013	1
G922L - COVER, INVERTER SIGNAL CONNECTOR
G922L-47010	ZWA10	12/2010 - 12/2013	1
Common parts
90105-06331
90119-06A01
90119-08C92
90159-30031
90467-07211
91673-80622
Linked diagrams
3901
8202
8432

Click highlighted areas on diagram

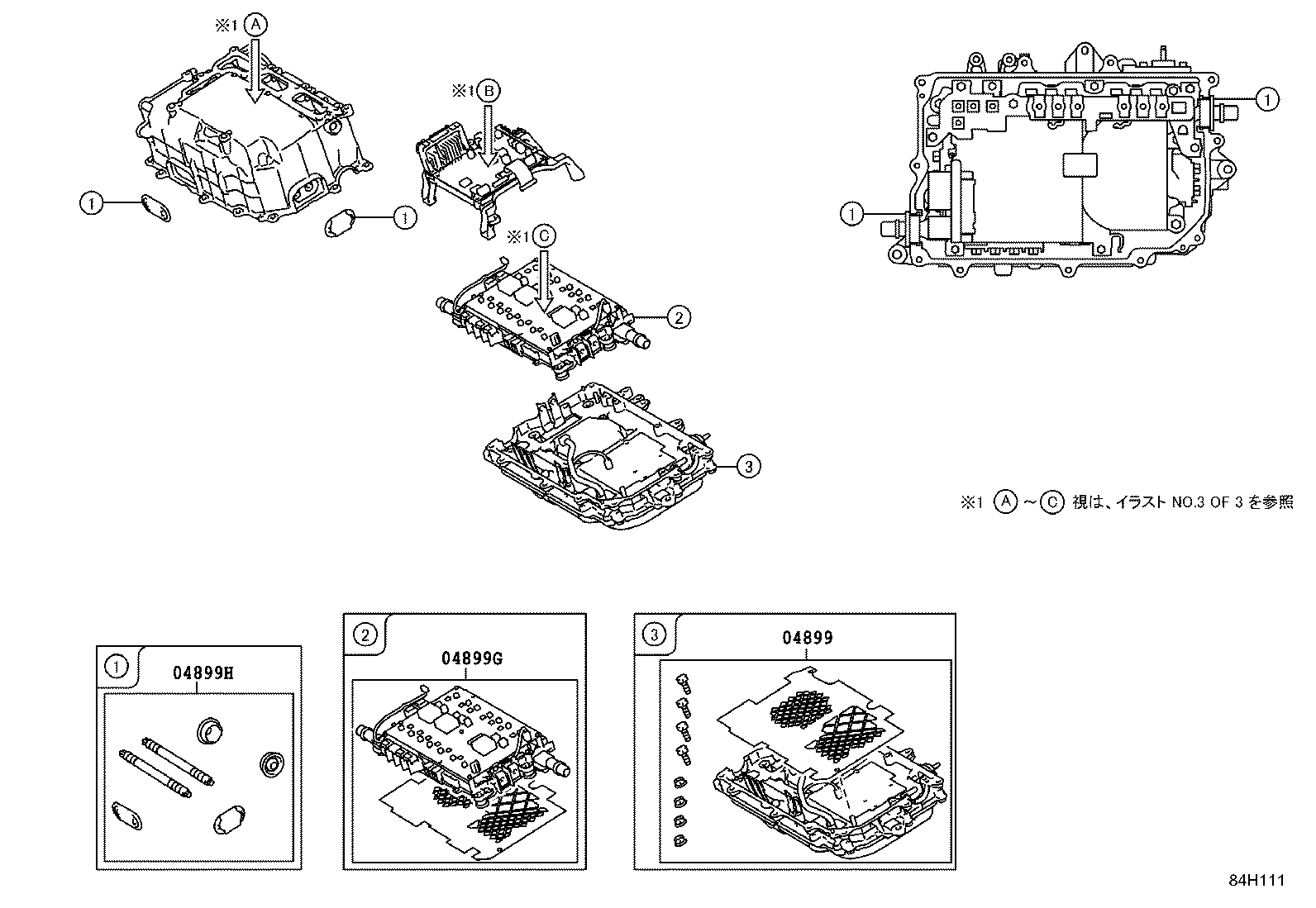

KITﾌﾞﾋﾝ

Part #	Description	Period	Qty
04899 - CONVERTER KIT, HV
04899-76010	ZWA10	12/2010 - 12/2013	1
04899G - TRANSISTOR KIT, POWER MODULE INTELLIGENT
04899-47070	ZWA10	12/2010 - 12/2013	1
04899H - PLUG KIT, INVERTER DRAIN
04899-47060	ZWA10	12/2010 - 12/2013	1

Click highlighted areas on diagram
