ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

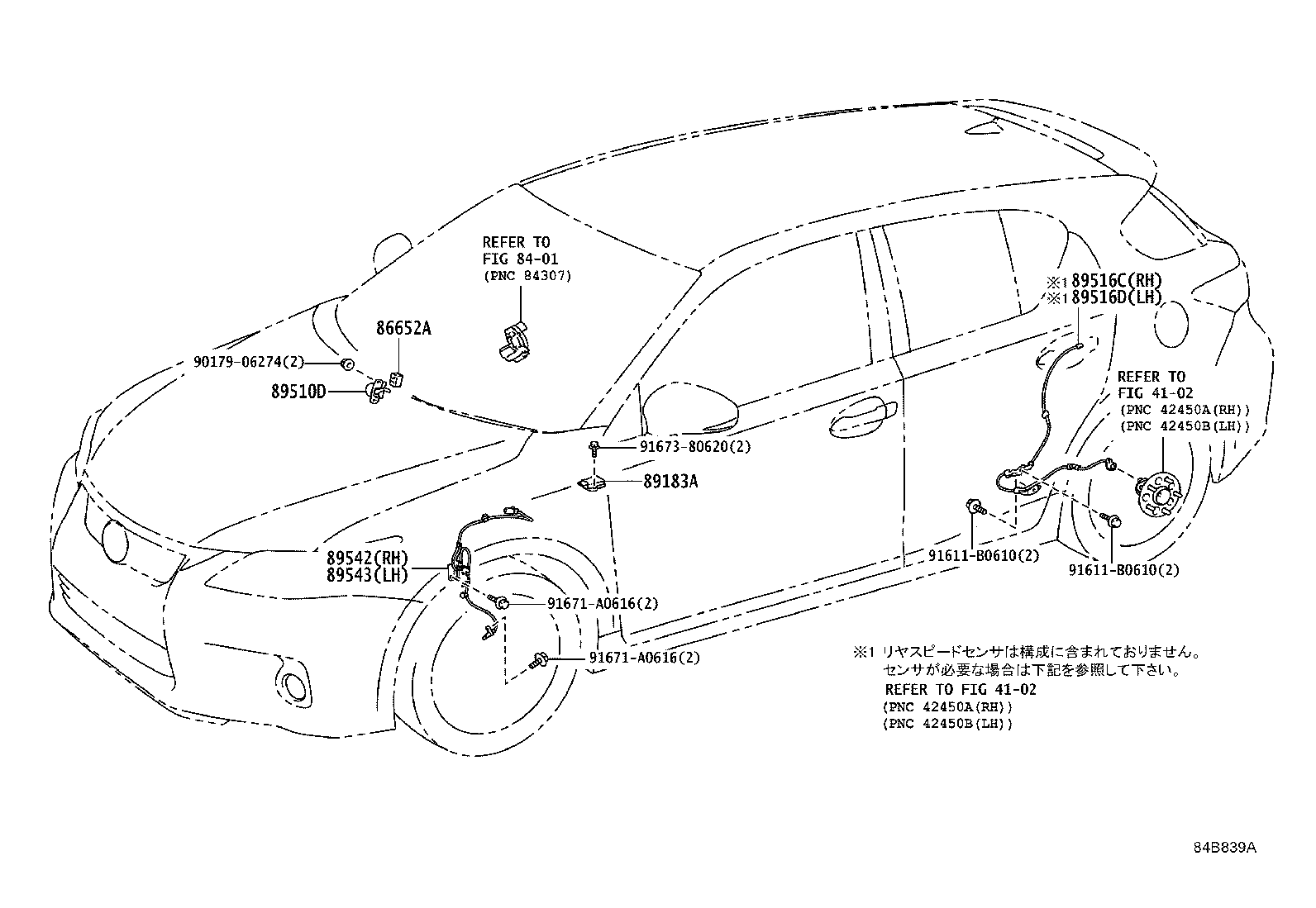

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-50010 |
ZWA10 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り) |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89183-48030 |
ZWA10 |
1 | ||
| 89510D - SENSOR ASSY, BRAKE PEDAL STROKE | ||||
| 89510-20041 |
ZWA10 |
1 | ||
| 89516C - WIRE, SKID CONTROL SENSOR, RH | ||||
| 89516-12160 |
ZWA10 |
1 | ||
| 89516D - WIRE, SKID CONTROL SENSOR, LH | ||||
| 89516-12170 |
ZWA10 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-47030 |
ZWA10 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-47030 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91611-B0610 | ||||
| 91671-A0616 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8401 | ||||
