ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
ILLUST NO. 1 OF12(1012-1312)

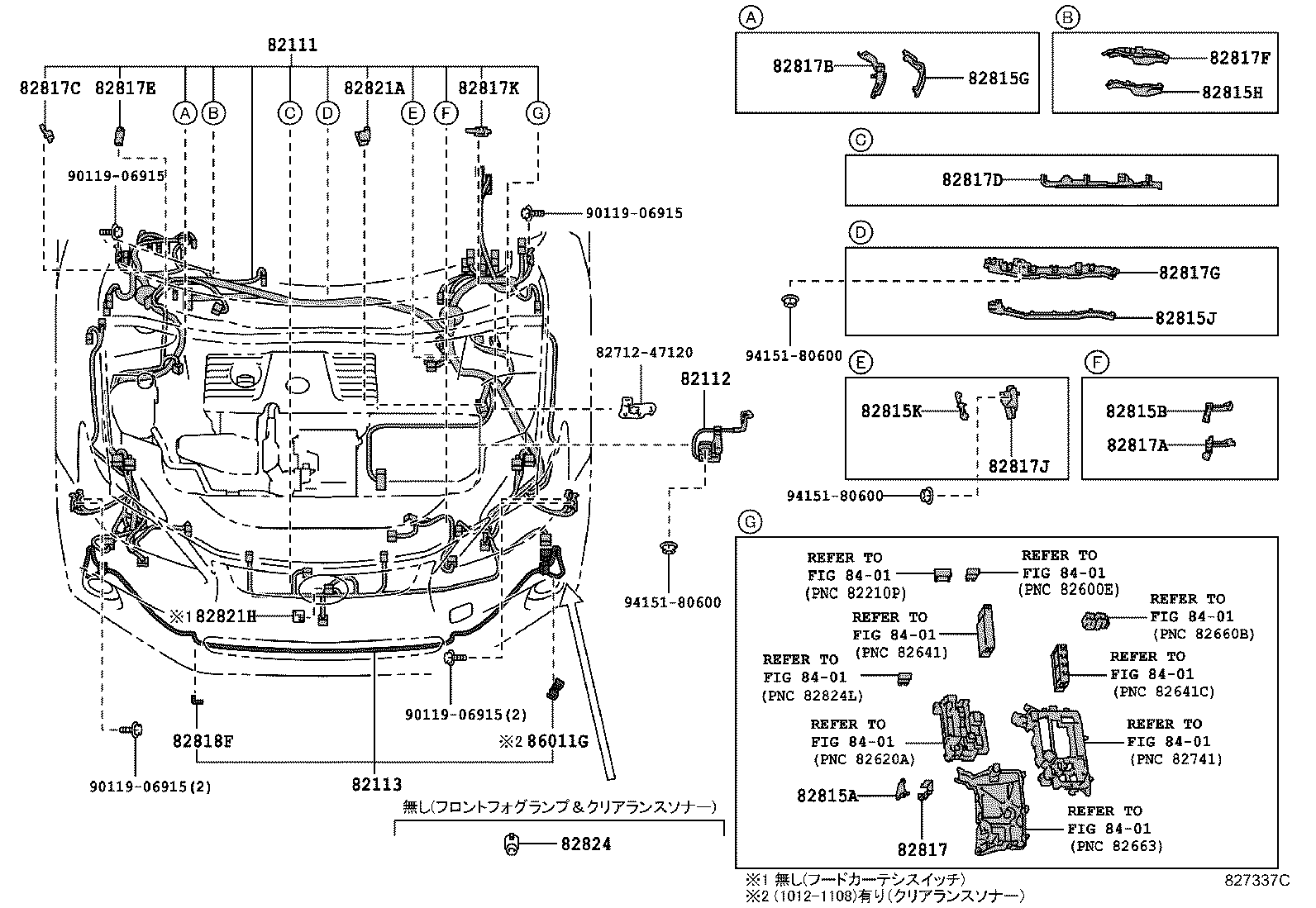

ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-76030 |
ZWA10 |
1 | ||
| 82111-76050 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82111-76031 |
ZWA10 |
1 | ||
| 82111-76060 |
ZWA10 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82111-76040 |
ZWA10 寒冷地仕様 |
1 | ||
| 82111-76041 |
ZWA10 寒冷地仕様 |
1 | ||
| 82111-76051 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82111-76061 |
ZWA10 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82111-76051 |
ZWA10..B Creative Textile Interior *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82111-76061 |
ZWA10..B Creative Textile Interior *(A)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾋｰﾀｰ−有り(PTCﾋｰﾀ) |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-47030 |
ZWA10 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-76020 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ |
1 | ||
| 82113-76010 |
ZWA10..E ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-76030 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-76020 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82113-76030 |
ZWA10..B ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-76030 |
ZWA10..E ﾌﾛﾝﾄﾌｫｸﾞ&ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-76020 |
ZWA10..E ﾌﾛﾝﾄﾌｫｸﾞ&ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82113-76031 |
ZWA10..B ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-76031 |
ZWA10..E ﾌﾛﾝﾄﾌｫｸﾞ&ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-76030 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-76031 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-76020 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ |
1 | ||
| 82113-76020 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-76011 |
ZWA10..E ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-76020 |
ZWA10..B |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47390 |
ZWA10 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-76080 |
ZWA10 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-76160 |
ZWA10 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-47570 |
ZWA10 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-76150 |
ZWA10 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-76170 |
ZWA10 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47620 |
ZWA10 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-76230 |
ZWA10 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-76370 |
ZWA10 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-76110 |
ZWA10 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-76120 |
ZWA10 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-76130 |
ZWA10 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-47810 |
ZWA10 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-76360 |
ZWA10 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-76380 |
ZWA10 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-76100 |
ZWA10 |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12860 |
ZWA10..E ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82817-12860 |
ZWA10..E ﾌﾛﾝﾄﾌｫｸﾞ&ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82817-12860 |
ZWA10..B |
1 | ||
| 82817-12860 |
ZWA10..E ﾌﾛﾝﾄﾌｫｸﾞ&ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-76010 |
ZWA10 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-35040 |
ZWA10..E |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-76110 |
ZWA10..E |
1 | ||
| 86011G - CONDENSER | ||||
| 90980-04206 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| Common parts | ||||
| 82712-47120 | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF12(1012-1312)

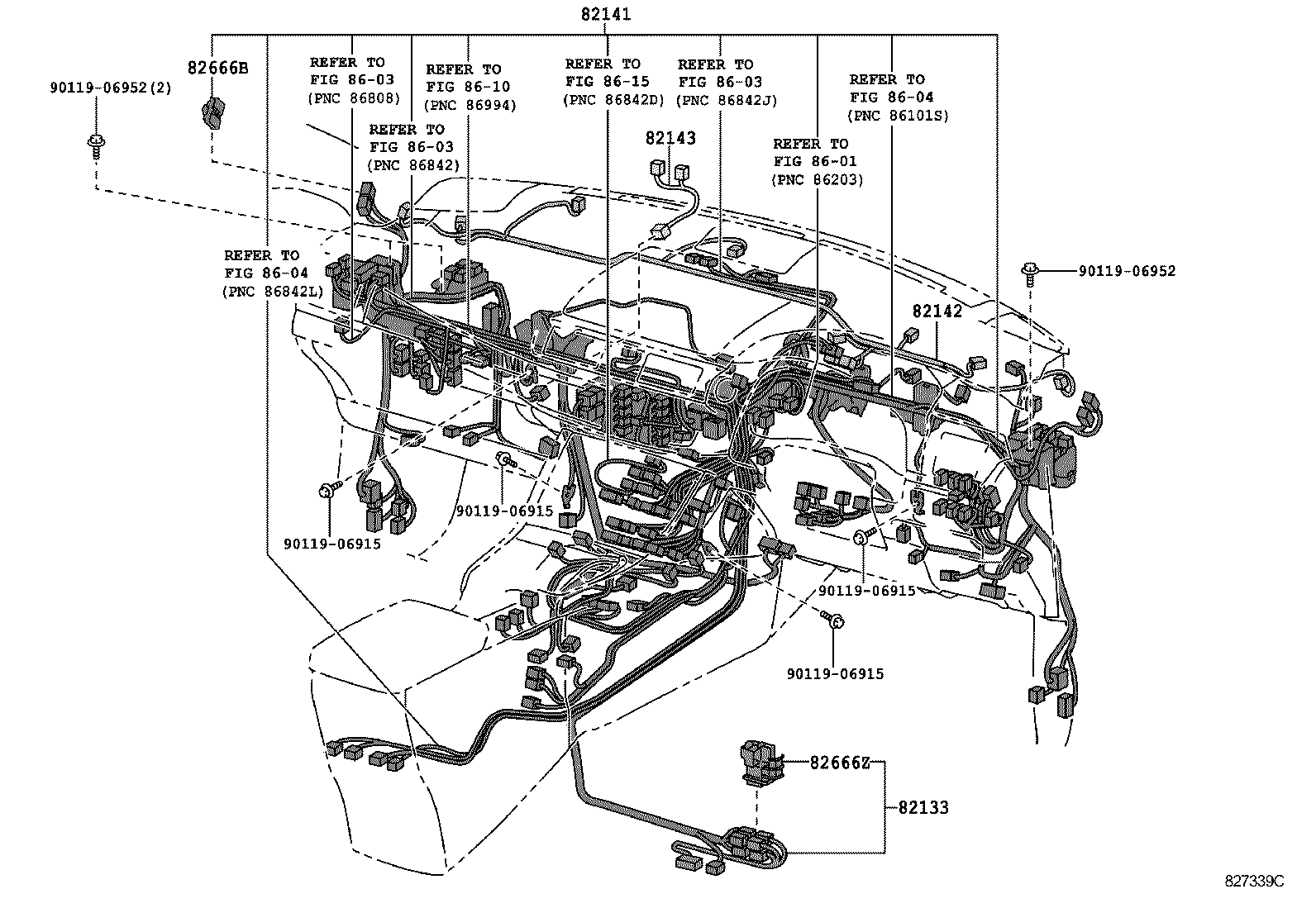

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-76050 |
ZWA10..B version L&ｼｰﾄ表皮−本革 |
1 | ||
| 82141-76070 |
ZWA10..B version L&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82141-76070 |
ZWA10..B version L&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82141-76070 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82141-76050 |
ZWA10..B F SPORT&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82141-76070 |
ZWA10..B version L&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82141-76071 |
ZWA10..B version L&ｼｰﾄ表皮−本革 |
1 | ||
| 82141-76070 |
ZWA10..B version L&ｼｰﾄ表皮−本革&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82141-76030 |
ZWA10 |
1 | ||
| 82141-76060 |
ZWA10 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｵｰﾃﾞｨｵ−AM/FMCD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82141-76061 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82141-76071 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82141-76070 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82141-76071 |
ZWA10..B F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82141-76060 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82141-76071 |
ZWA10..B version L&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革 |
1 | ||
| 82141-76071 |
ZWA10..B F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82141-76500 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(Fｽﾎﾟｰﾂ専用)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76061 |
ZWA10 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り) |
1 | ||
| 82141-76500 |
ZWA10..B F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(Fｽﾎﾟｰﾂ専用)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76070 |
ZWA10..B F SPORT&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82141-76510 |
ZWA10..B version L&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄ表皮−本革&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76500 |
ZWA10 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76510 |
ZWA10..B F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76070 |
ZWA10..B F SPORT&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｵｰﾃﾞｨｵ−AM/FM CD10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82141-76500 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76510 |
ZWA10..B version L&ｼｰﾄ表皮−本革&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76510 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76510 |
ZWA10..B F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76071 |
ZWA10..B Creative Textile Interior *(A)&間欠ﾜｲﾊﾟ−雨滴感知式 |
1 | ||
| 82141-76640 |
ZWA10..B F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82141-76071 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82141-76071 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&Creative Textile Interior *(A)&間欠ﾜｲﾊﾟ−雨滴感知式 |
1 | ||
| 82141-76510 |
ZWA10..B F SPORT&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ&ﾊﾟﾄﾞﾙｽｲｯﾁ)&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76650 |
ZWA10 |
1 | ||
| 82141-76510 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&Creative Textile Interior *(A)&間欠ﾜｲﾊﾟ−雨滴感知式&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76071 |
ZWA10..B Creative Textile Interior *(A) |
1 | ||
| 82141-76510 |
ZWA10..B Creative Textile Interior *(A)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76071 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&Creative Textile Interior *(A) |
1 | ||
| 82141-76510 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&Creative Textile Interior *(A)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82141-76510 |
ZWA10..B Creative Textile Interior *(A)&間欠ﾜｲﾊﾟ−雨滴感知式&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-76100 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り) |
1 | ||
| 82142-76050 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 82142-76040 |
ZWA10 |
1 | ||
| 82142-76051 |
ZWA10 |
1 | ||
| 82142-76050 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 82142-76100 |
ZWA10..E ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式) |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82140-76010 |
ZWA10 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60220 |
ZWA10 |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-76210 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8603 | ||||
| 8604 | ||||
| 8610 | ||||
| 8615 | ||||

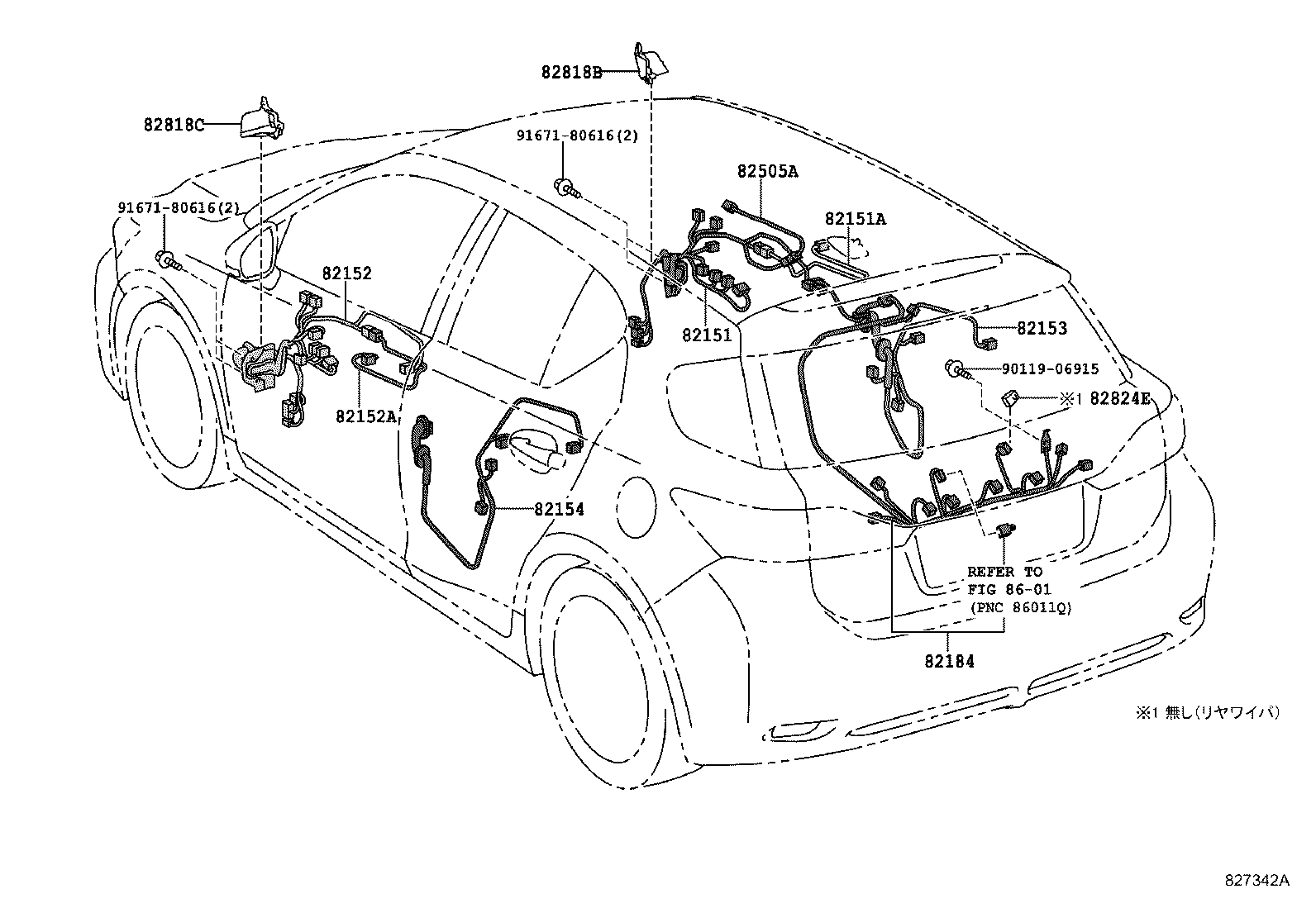

ILLUST NO. 4 OF12(1012- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-76040 |
ZWA10 |
1 | ||
| 82151-76050 |
ZWA10..B version L&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82151-76220 |
ZWA10..B F SPORT&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ |
1 | ||
| 82151-76051 |
ZWA10..B version L&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82151-76051 |
ZWA10..B Creative Textile Interior *(A) |
1 | ||
| 82151-76050 |
ZWA10..B F SPORT&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82151-76041 |
ZWA10 |
1 | ||
| 82151-76220 |
ZWA10..B version L&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ |
1 | ||
| 82151-76051 |
ZWA10..B F SPORT&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-76010 |
ZWA10..B |
1 | ||
| 82155-76011 |
ZWA10..B |
1 | ||
| 82155-76011 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ) |
1 | ||
| 82155-76010 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-76050 |
ZWA10..B version L&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ |
1 | ||
| 82152-76040 |
ZWA10 |
1 | ||
| 82152-76051 |
ZWA10..B version L&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82152-76050 |
ZWA10..B version L&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82152-76041 |
ZWA10 |
1 | ||
| 82152-76051 |
ZWA10..B Creative Textile Interior *(A) |
1 | ||
| 82152-76051 |
ZWA10..B F SPORT&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82152-76050 |
ZWA10..B F SPORT&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82152-76050 |
ZWA10..B F SPORT&間欠ﾜｲﾊﾟ−雨滴感知式&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-76010 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ) |
1 | ||
| 82156-76010 |
ZWA10..B |
1 | ||
| 82156-76011 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ) |
1 | ||
| 82156-76011 |
ZWA10..B |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-76020 |
ZWA10 |
1 | ||
| 82153-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-76020 |
ZWA10 |
1 | ||
| 82154-76010 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-76200 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ) |
1 | ||
| 82184-76190 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ |
1 | ||
| 82184-76180 |
ZWA10..E |
1 | ||
| 82184-76200 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ)&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 82184-76190 |
ZWA10..E ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ |
1 | ||
| 82184-76210 |
ZWA10..B EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82184-76211 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ) |
1 | ||
| 82184-76191 |
ZWA10..E |
1 | ||
| 82184-76210 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ)&ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ |
1 | ||
| 82184-76210 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82184-76210 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ)&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ |
1 | ||
| 82184-76211 |
ZWA10..B |
1 | ||
| 82184-76210 |
ZWA10..B ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ |
1 | ||
| 82184-76200 |
ZWA10..B |
1 | ||
| 82184-76210 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ)&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82184-76210 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82184-76210 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ |
1 | ||
| 82505A - WIRING SUB-ASSY, FRONT DOOR | ||||
| 82505-76010 |
ZWA10..B ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82505-76010 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82505-76010 |
ZWA10..B ｼｰﾄ表皮−本革 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-76280 |
ZWA10 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-76290 |
ZWA10 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-76040 |
ZWA10..E |
1 | ||
| 82824-76040 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82824-76040 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ |
1 | ||
| 82824-76040 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 6 OF12(1012- )

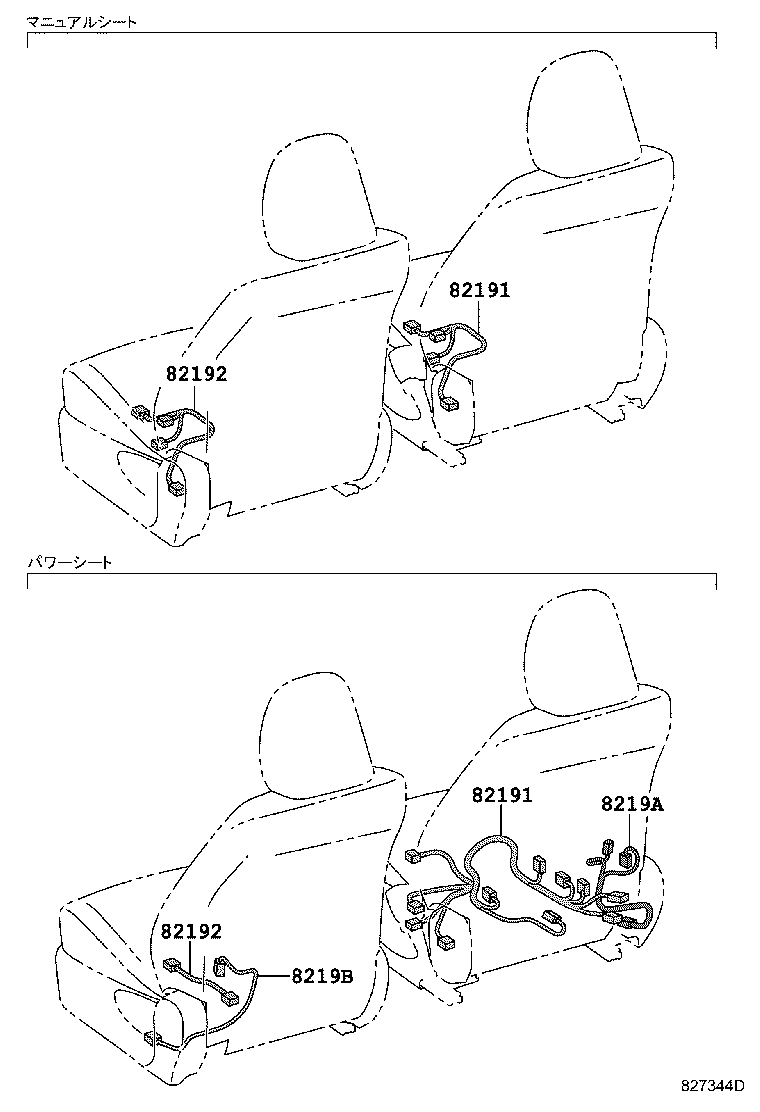

ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-76020 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82191-76020 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ |
1 | ||
| 82191-76020 |
ZWA10..B ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82191-76020 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82191-76010 |
ZWA10..E |
1 | ||
| 82191-76010 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-76020 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82191-76020 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ |
1 | ||
| 82191-76020 |
ZWA10..B ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82191-76020 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82191-76010 |
ZWA10..E |
1 | ||
| 82191-76010 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-76050 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82192-76050 |
ZWA10..B ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82191-76030 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82191-76030 |
ZWA10..E |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-76050 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82192-76050 |
ZWA10..B ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82191-76030 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82191-76030 |
ZWA10..E |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-76010 |
ZWA10..B ｼｰﾄ表皮−本革 |
1 | ||
| 8219A-76010 |
ZWA10..B ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ |
1 | ||
| 8219A-76010 |
ZWA10..B ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 8219A-76010 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-76040 |
ZWA10..B ｼｰﾄ表皮−本革 |
1 | ||
| 8219B-76040 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
ILLUST NO. 7 OF12(1012- )

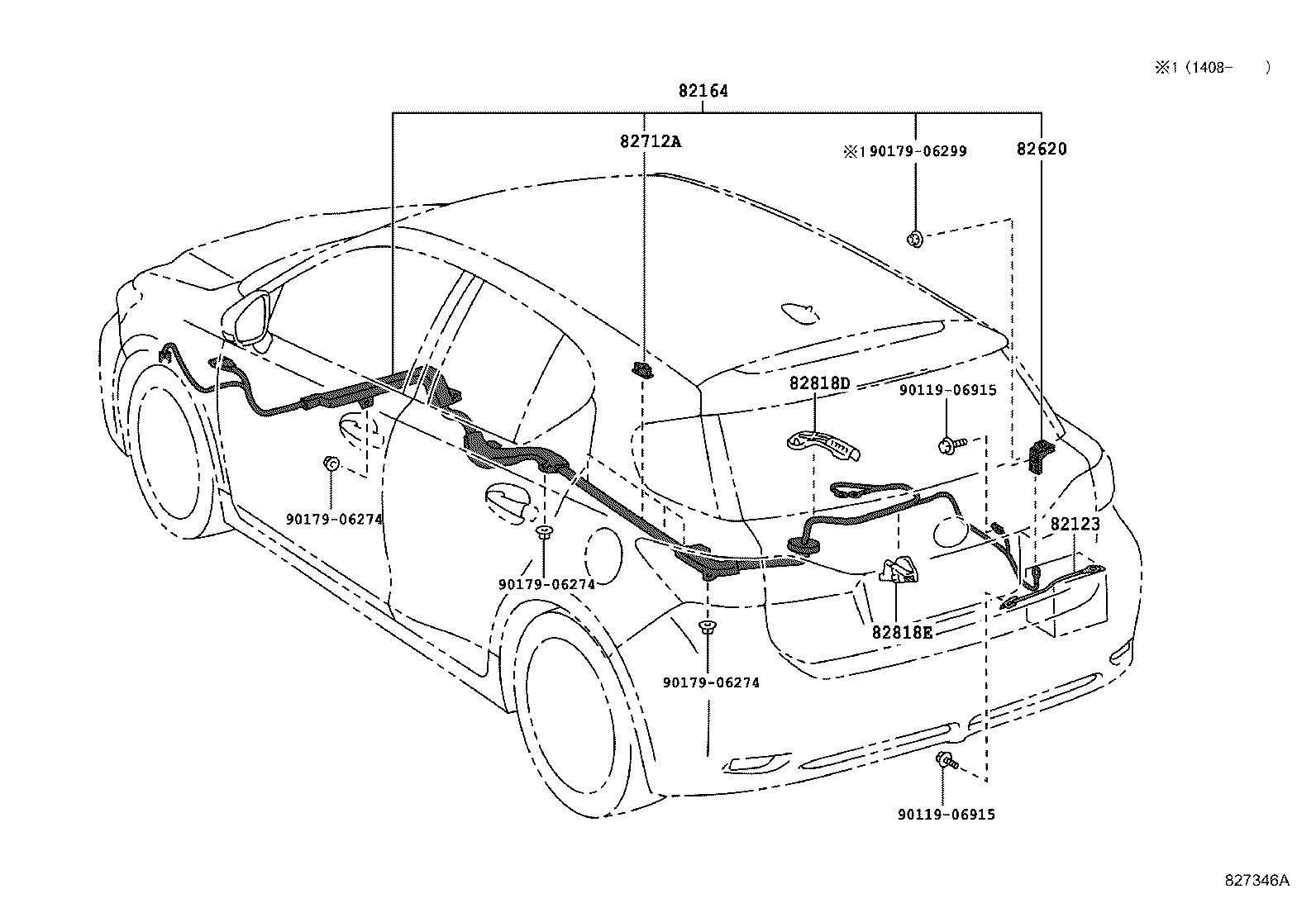

ｺｳｱﾂｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-76010 |
ZWA10 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-76030 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82164-76010 |
ZWA10 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47070 |
ZWA10 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-47270 |
ZWA10 |
4 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47440 |
ZWA10 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-76320 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 90179-06299 | ||||

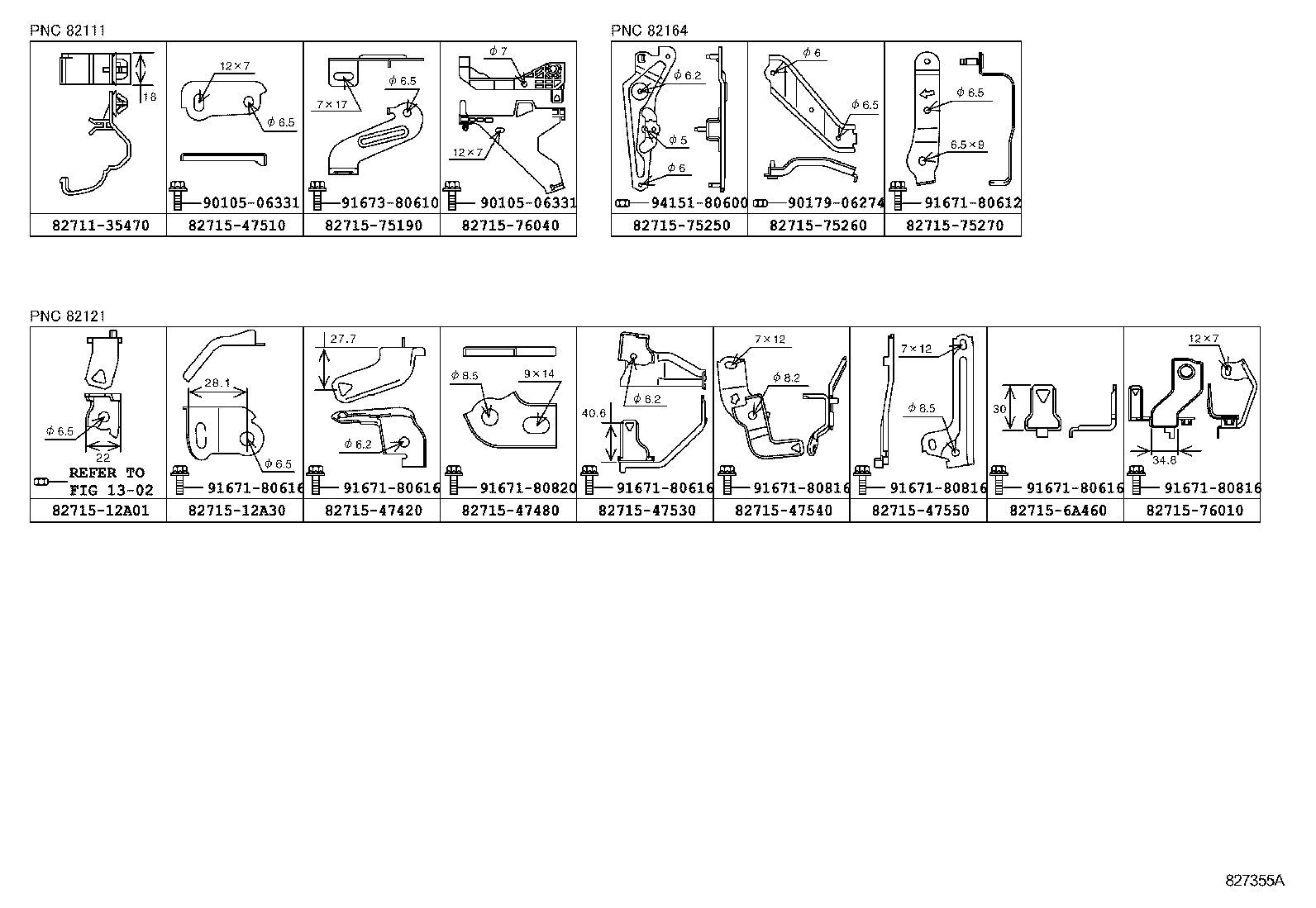

ILLUST NO. 8 OF12(1012- )
ｸﾗﾝﾌﾟ&ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35470 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-47420 | ||||
| 82715-47480 | ||||
| 82715-47510 | ||||
| 82715-47530 | ||||
| 82715-47540 | ||||
| 82715-47550 | ||||
| 82715-6A460 | ||||
| 82715-75190 | ||||
| 82715-75250 | ||||
| 82715-75260 | ||||
| 82715-75270 | ||||
| 82715-76010 | ||||
| 82715-76040 | ||||
| 90105-06331 | ||||
| 90179-06274 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80610 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1302 | ||||

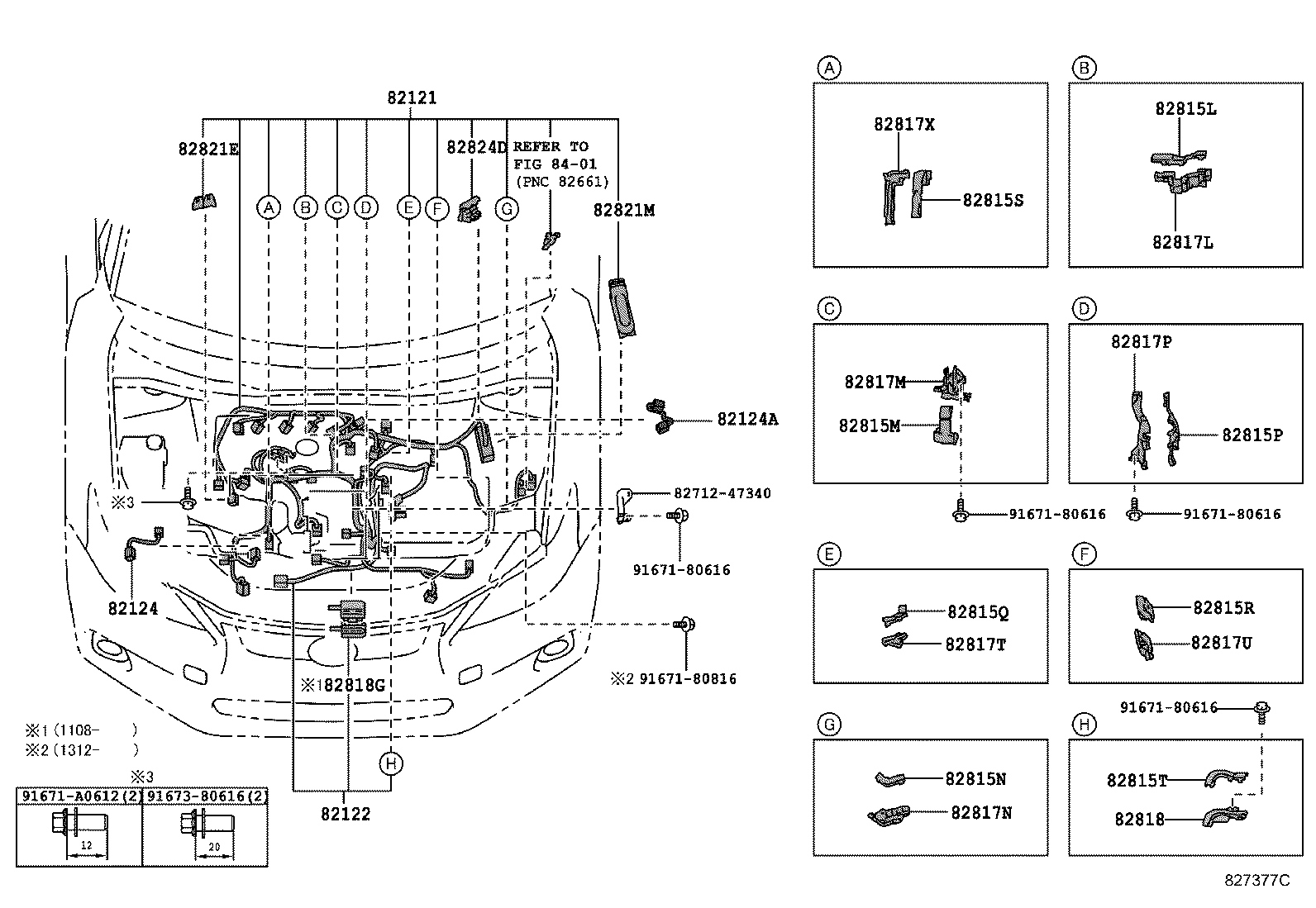

ILLUST NO. 2 OF12(1012- )
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-76010 |
ZWA10 |
1 | ||
| 82121-76011 |
ZWA10 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-47030 |
ZWA10 |
1 | ||
| 82122-47010 |
ZWA10 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZWA10 |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82124-47040 |
ZWA10 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-47480 |
ZWA10 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-47490 |
ZWA10 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-47500 |
ZWA10 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-47510 |
ZWA10 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-47520 |
ZWA10 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-47530 |
ZWA10 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-47541 |
ZWA10 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-47470 |
ZWA10 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-47720 |
ZWA10 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-47730 |
ZWA10 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-47740 |
ZWA10 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-47750 |
ZWA10 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-47760 |
ZWA10 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-47770 |
ZWA10 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-47781 |
ZWA10 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47700 |
ZWA10 |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-47K70 |
ZWA10 |
2 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20410 |
ZWA10 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-76020 |
ZWA10 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-34100 |
ZWA10 |
1 | ||
| Common parts | ||||
| 82712-47340 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-A0612 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

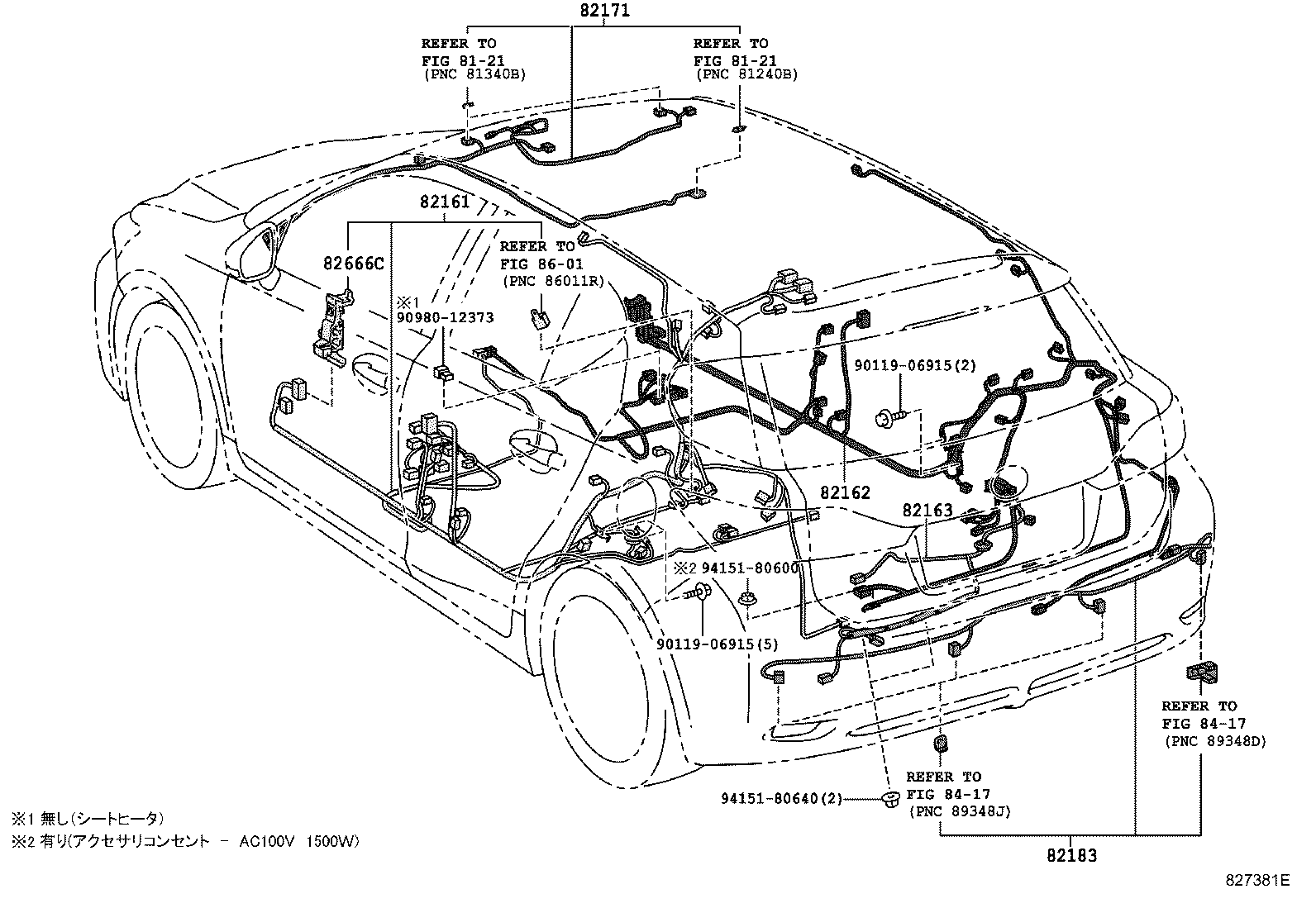

ILLUST NO. 5 OF12(1012-1312)
ﾌﾛｱ&ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-76290 |
ZWA10..B |
1 | ||
| 82161-76300 |
ZWA10..E |
1 | ||
| 82161-76321 |
ZWA10..B |
1 | ||
| 82161-76330 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｲﾝﾅﾐﾗｰ−自動防眩&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82161-76330 |
ZWA10..E ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82161-76331 |
ZWA10..E |
1 | ||
| 82161-76330 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82161-76300 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82161-76320 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｵｰﾃﾞｨｵ−AM/FMCD 10ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82161-76400 |
ZWA10..B Creative Textile Interior *(A)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ&ｱﾝﾃﾅ−ｼｬｰｸﾌｨﾝ(ﾗｼﾞｵ&電話&地上波ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 82161-76331 |
ZWA10..B ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82161-76330 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｲﾝﾅﾐﾗｰ−自動防眩&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82161-76400 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82161-76400 |
ZWA10..B Creative Textile Interior *(A)&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ｱﾝﾃﾅ−ｼｬｰｸﾌｨﾝ(ﾗｼﾞｵ&電話&地上波ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 82161-76400 |
ZWA10..B ｼｰﾄ表皮−本革&ｼｰﾄﾋｰﾀ−有り(運転席&助手席) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-76060 |
ZWA10..B ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82162-76050 |
ZWA10..B |
1 | ||
| 82162-76100 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 82162-76090 |
ZWA10..E ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 82162-76030 |
ZWA10..E |
1 | ||
| 82162-76100 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 82162-76091 |
ZWA10..B |
1 | ||
| 82162-76090 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ｵｰﾃﾞｨｵ−AM/FMCD 10ｽﾋﾟｰｶ |
1 | ||
| 82162-76100 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 82162-76060 |
ZWA10..B ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ(ﾒﾓﾘｽｲｯﾁ無し)/助手席:4ｳｪｲﾏﾆｭｱﾙ |
1 | ||
| 82162-76101 |
ZWA10..B ｼｰﾄ表皮−本革 |
1 | ||
| 82162-76050 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ) |
1 | ||
| 82162-76380 |
ZWA10..E ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82162-76250 |
ZWA10..B Creative Textile Interior *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82162-76101 |
ZWA10..B Creative Textile Interior *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ |
1 | ||
| 82162-76100 |
ZWA10..B ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB&ｵﾌｽｲｯﾁ有り)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｼｰﾄﾋｰﾀ−有り(運転席&助手席)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:8ｳｪｲﾊﾟﾜｰ&ｼｰﾄﾒﾓﾘ/助手席:4ｳｪｲﾊﾟﾜｰ&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 82162-76171 |
ZWA10..E |
1 | ||
| 82162-76101 |
ZWA10..B Creative Textile Interior *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ) |
1 | ||
| 82162-76240 |
ZWA10..B ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82162-76250 |
ZWA10..B ｼｰﾄ表皮−本革&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82162-76240 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82162-76250 |
ZWA10..B Creative Textile Interior *(A)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82162-76250 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 82162-76101 |
ZWA10..B ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82162-76091 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-76021 |
ZWA10..B Creative Textile Interior *(A)&ﾍｯﾄﾞﾗﾝﾌﾟﾚﾍﾞﾘﾝｸﾞ装置−ｵｰﾄ |
1 | ||
| 82163-76021 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82163-76020 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-76020 |
ZWA10..E |
1 | ||
| 82171-76050 |
ZWA10..E 自動車電話−BLUETOOTH対応&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82171-76090 |
ZWA10..E ｲﾝﾅﾐﾗｰ−自動防眩&自動車電話−BLUETOOTH対応&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82171-76050 |
ZWA10..E 盗難防止ｼｽﾃﾑ−有り(*IM,*SEH,*IS,ﾌｰﾄﾞｶｰﾃｼｽｲｯﾁ) |
1 | ||
| 82171-76090 |
ZWA10..E 盗難防止ｼｽﾃﾑ−有り(*IM,*SEH,*IS,ﾌｰﾄﾞｶｰﾃｼｽｲｯﾁ)&ｲﾝﾅﾐﾗｰ−自動防眩&自動車電話−BLUETOOTH対応&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82171-76050 |
ZWA10..B |
1 | ||
| 82171-76090 |
ZWA10..E 盗難防止ｼｽﾃﾑ−有り(*IM,*SEH,*IS,ﾌｰﾄﾞｶｰﾃｼｽｲｯﾁ)&ｲﾝﾅﾐﾗｰ−自動防眩 |
1 | ||
| 82171-76050 |
ZWA10..E 盗難防止ｼｽﾃﾑ−有り(*IM,*SEH,*IS,ﾌｰﾄﾞｶｰﾃｼｽｲｯﾁ)&自動車電話−BLUETOOTH対応&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 82171-76230 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&ｲﾝﾅﾐﾗｰ−自動防眩 |
1 | ||
| 82171-76360 |
ZWA10..B version L&ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ&ｼｰﾄ表皮−本革 |
1 | ||
| 82171-76350 |
ZWA10..B F SPORT&ｲﾝﾅﾐﾗｰ−自動防眩&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82171-76390 |
ZWA10..B version L&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&ｲﾝﾅﾐﾗｰ−自動防眩&ｼｰﾄ表皮−本革 |
1 | ||
| 82171-76130 |
ZWA10..E 盗難防止ｼｽﾃﾑ−有り(*IM,*SEH,*IS,ﾌｰﾄﾞｶｰﾃｼｽｲｯﾁ)&ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ |
1 | ||
| 82171-76350 |
ZWA10..B version L&ｲﾝﾅﾐﾗｰ−自動防眩&ｼｰﾄ表皮−本革 |
1 | ||
| 82171-76090 |
ZWA10 ｲﾝﾅﾐﾗｰ−自動防眩 |
1 | ||
| 82171-76130 |
ZWA10 ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ |
1 | ||
| 82171-76390 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&ｲﾝﾅﾐﾗｰ−自動防眩&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82171-76400 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82171-76231 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&ｲﾝﾅﾐﾗｰ−自動防眩 |
1 | ||
| 82171-76360 |
ZWA10..B F SPORT&ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82171-76400 |
ZWA10..B version L&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ&ｼｰﾄ表皮−本革 |
1 | ||
| 82171-76391 |
ZWA10..B version L&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&ｲﾝﾅﾐﾗｰ−自動防眩&ｼｰﾄ表皮−本革 |
1 | ||
| 82171-76391 |
ZWA10..B Creative Textile Interior *(A)&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&間欠ﾜｲﾊﾟ−雨滴感知式&ｲﾝﾅﾐﾗｰ−自動防眩 |
1 | ||
| 82171-76190 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 82171-76351 |
ZWA10..B Creative Textile Interior *(A)&ｲﾝﾅﾐﾗｰ−自動防眩 |
1 | ||
| 82171-76351 |
ZWA10..B version L&ｲﾝﾅﾐﾗｰ−自動防眩&ｼｰﾄ表皮−本革 |
1 | ||
| 82171-76270 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ |
1 | ||
| 82171-76051 |
ZWA10 |
1 | ||
| 82171-76351 |
ZWA10..B F SPORT&ｲﾝﾅﾐﾗｰ−自動防眩&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82171-76391 |
ZWA10..B Creative Textile Interior *(A)&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&ｲﾝﾅﾐﾗｰ−自動防眩 |
1 | ||
| 82171-76351 |
ZWA10..B Creative Textile Interior *(A)&間欠ﾜｲﾊﾟ−雨滴感知式&ｲﾝﾅﾐﾗｰ−自動防眩 |
1 | ||
| 82171-76091 |
ZWA10 ｲﾝﾅﾐﾗｰ−自動防眩 |
1 | ||
| 82171-76391 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&ｲﾝﾅﾐﾗｰ−自動防眩&ｼｰﾄ表皮−本革(Fｽﾎﾟｰﾂ専用) |
1 | ||
| 82171-76191 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-76010 |
ZWA10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82183-76010 |
ZWA10..B ﾊﾞﾝﾊﾟ−F SPORT,VERSION C,VERSION L ; ｴｱﾛﾀｲﾌﾟ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-75100 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90980-12373 | ||||
| 94151-80600 | ||||
| 94151-80640 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8601 | ||||

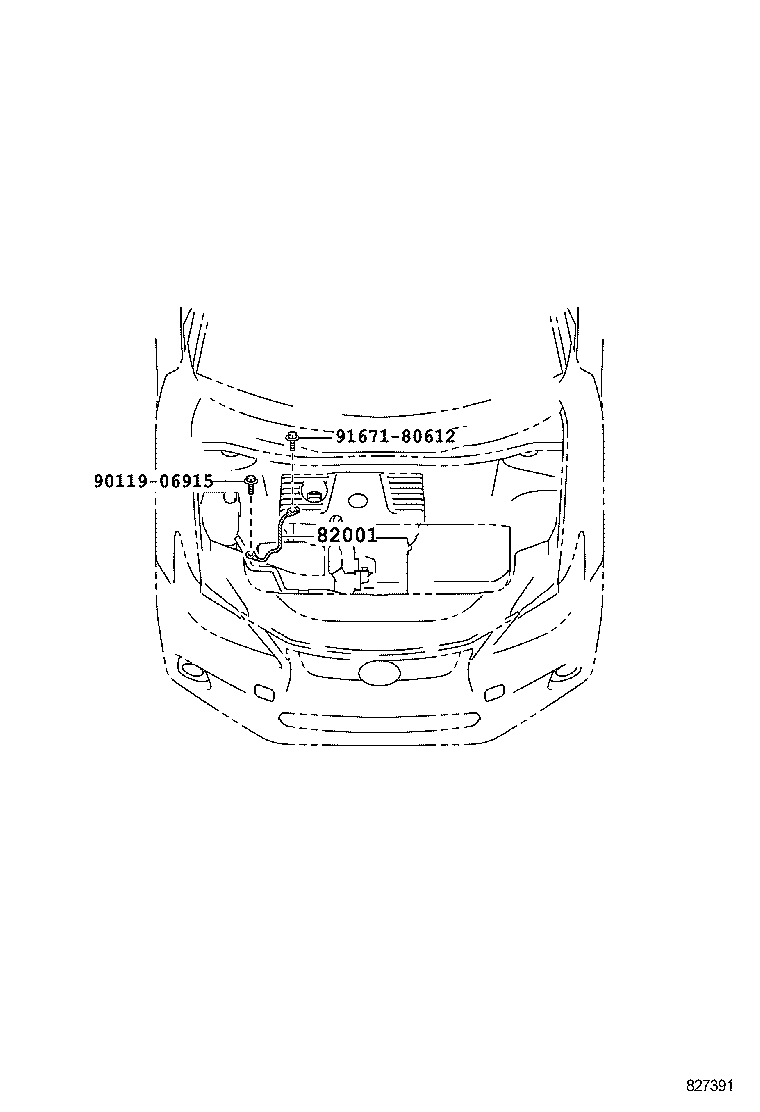

ILLUST NO. 9 OF12(1012- )
ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07450 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80612 | ||||
ILLUST NO.10 OF12(1012- )

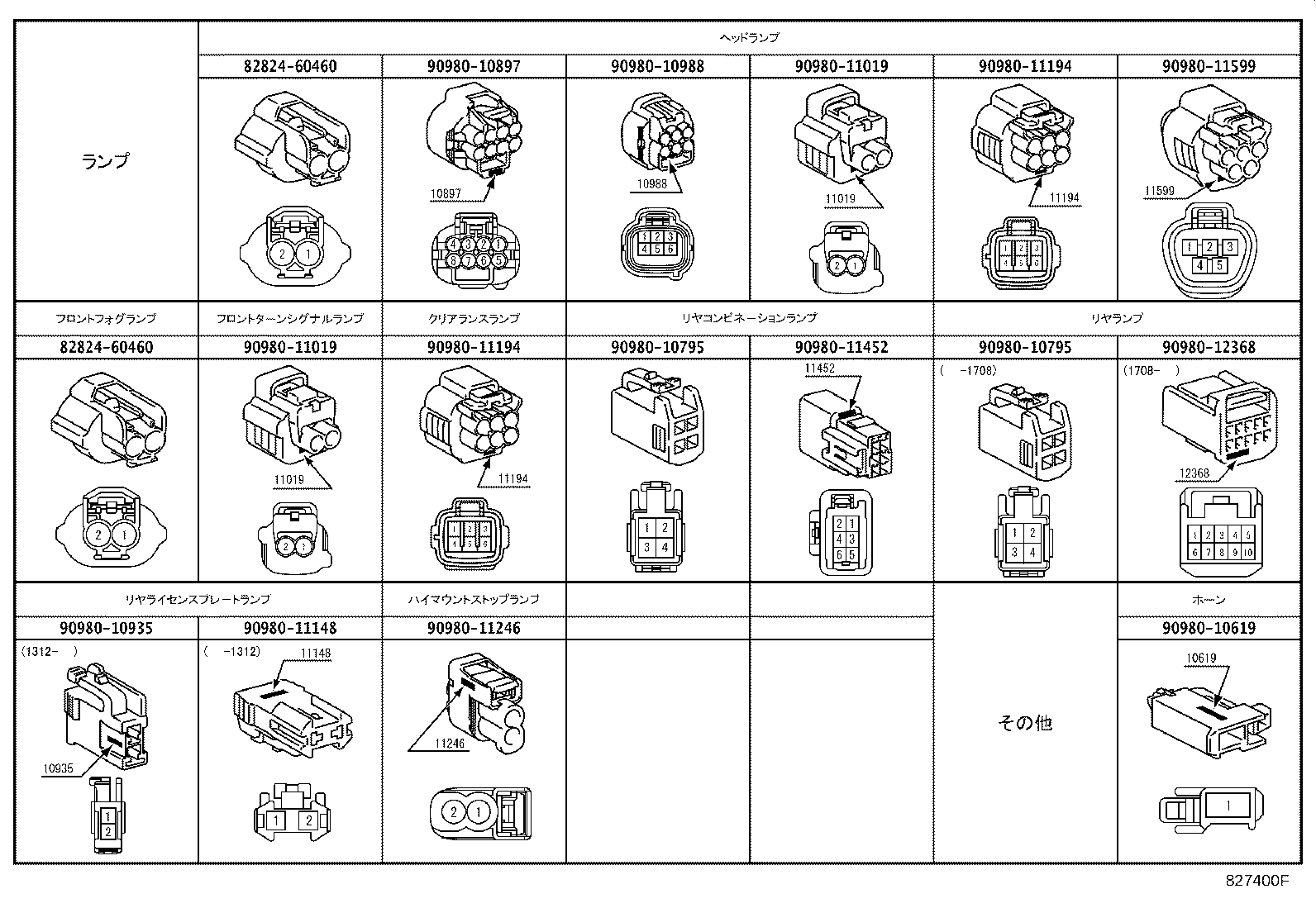

ｺﾈｸﾀ 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10897 | ||||
| 90980-10935 | ||||
| 90980-10988 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11194 | ||||
| 90980-11246 | ||||
| 90980-11452 | ||||
| 90980-11599 | ||||
| 90980-12368 | ||||

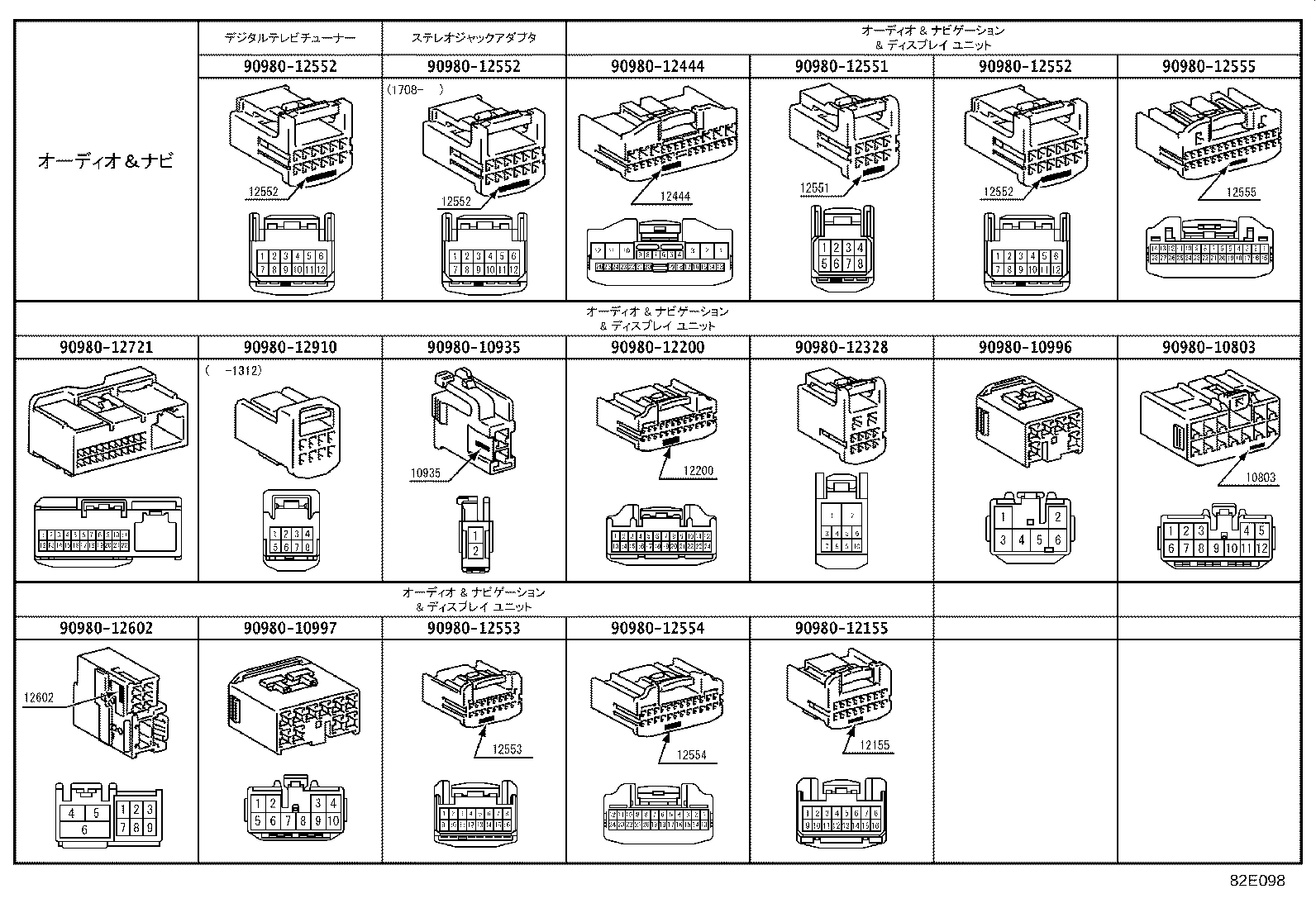

ILLUST NO.11 OF12(1012- )

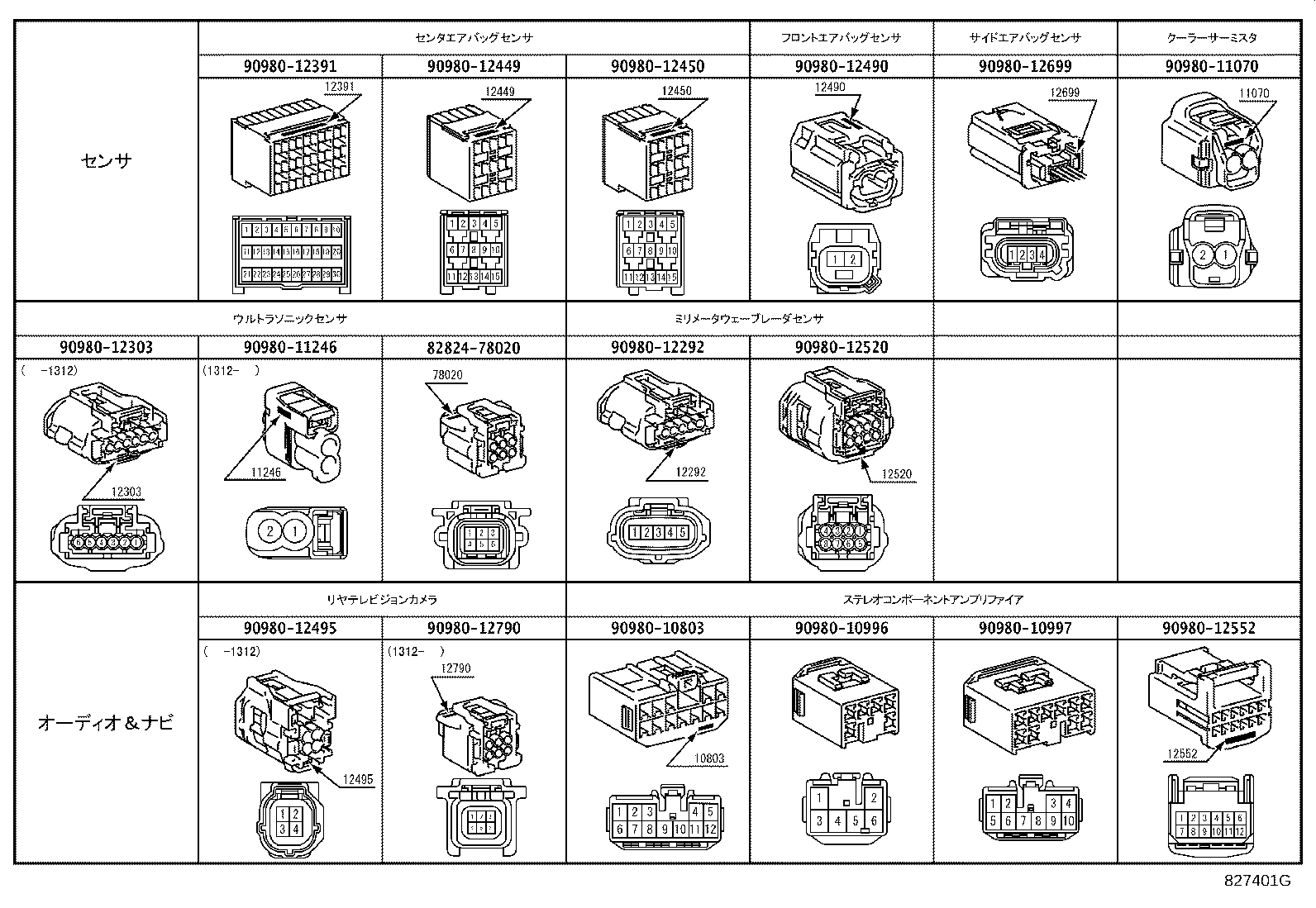

ｺﾈｸﾀ 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11246 | ||||
| 90980-12292 | ||||
| 90980-12303 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12495 | ||||
| 90980-12520 | ||||
| 90980-12552 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
ILLUST NO.12 OF12(1012- )
ｺﾈｸﾀ 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10803 | ||||
| 90980-10935 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12155 | ||||
| 90980-12200 | ||||
| 90980-12328 | ||||
| 90980-12444 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12602 | ||||
| 90980-12721 | ||||
| 90980-12910 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
