ZWA10-AHXBB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

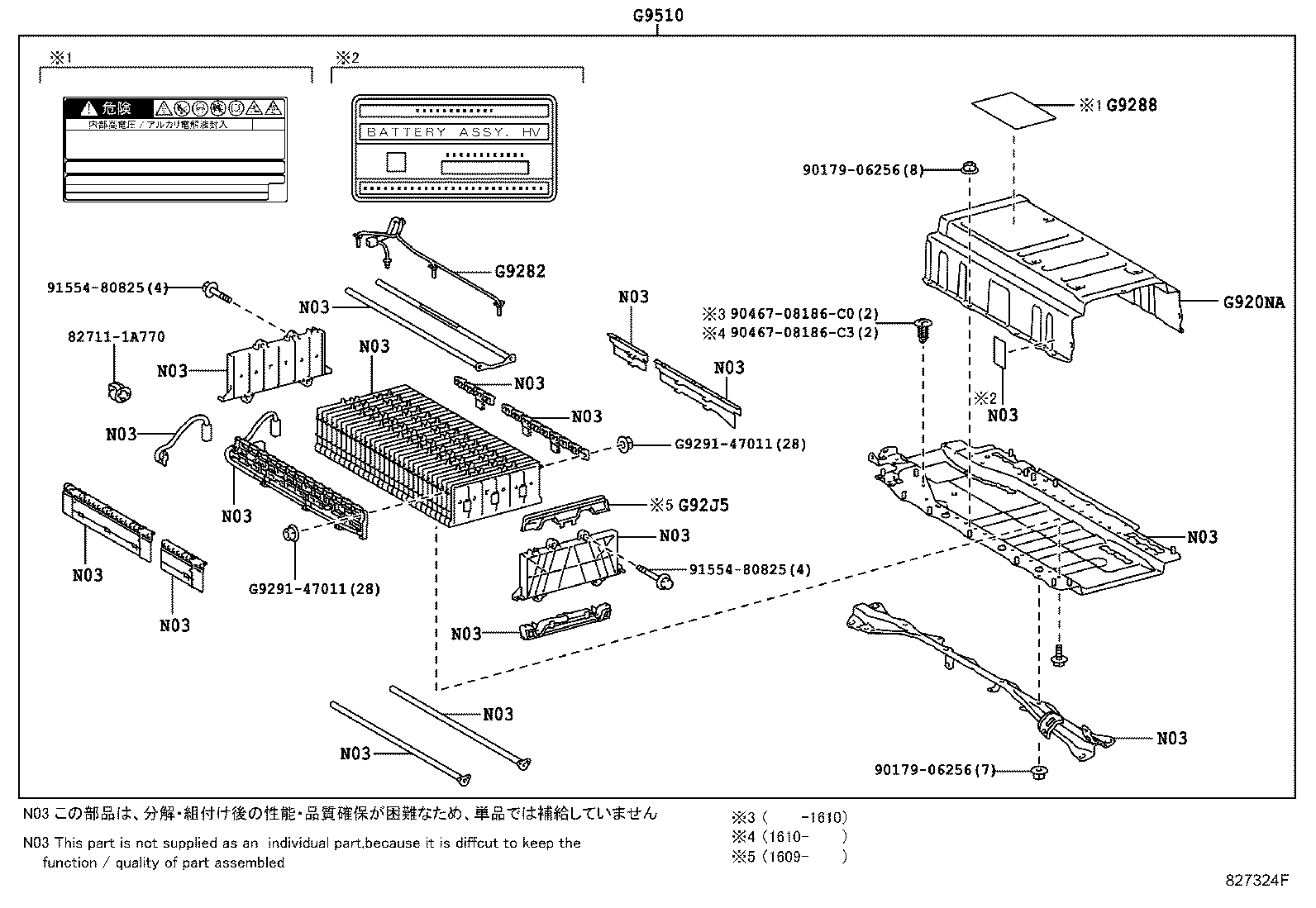

ILLUST NO. 4 OF 4(1012- )

Click highlighted areas on diagram

HVﾊﾞｯﾃﾘ

diagram 827111A770 9017906256 9017906256 9046708186C0 9046708186C3 9155480825 9155480825 G920NA G9282 G9288 G929147011 G929147011 G92J5 G9510
Part # Description Qty Price
G920NA - COVER SUB-ASSY, HV BATTERY, LH
G920N-47010

ZWA10

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-47060

ZWA10

 1
G9288 - LABEL, BATTERY CHARGING NOTICE
G9288-48010

ZWA10

 1
G9288-47050

ZWA10

ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)

 1
G92J5 - PACKING, HYBRID BATTERY, NO.1
G92J5-47020

ZWA10

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-76010

ZWA10

 1
Common parts
82711-1A770
90179-06256
90467-08186C0
90467-08186C3
91554-80825
G9291-47011

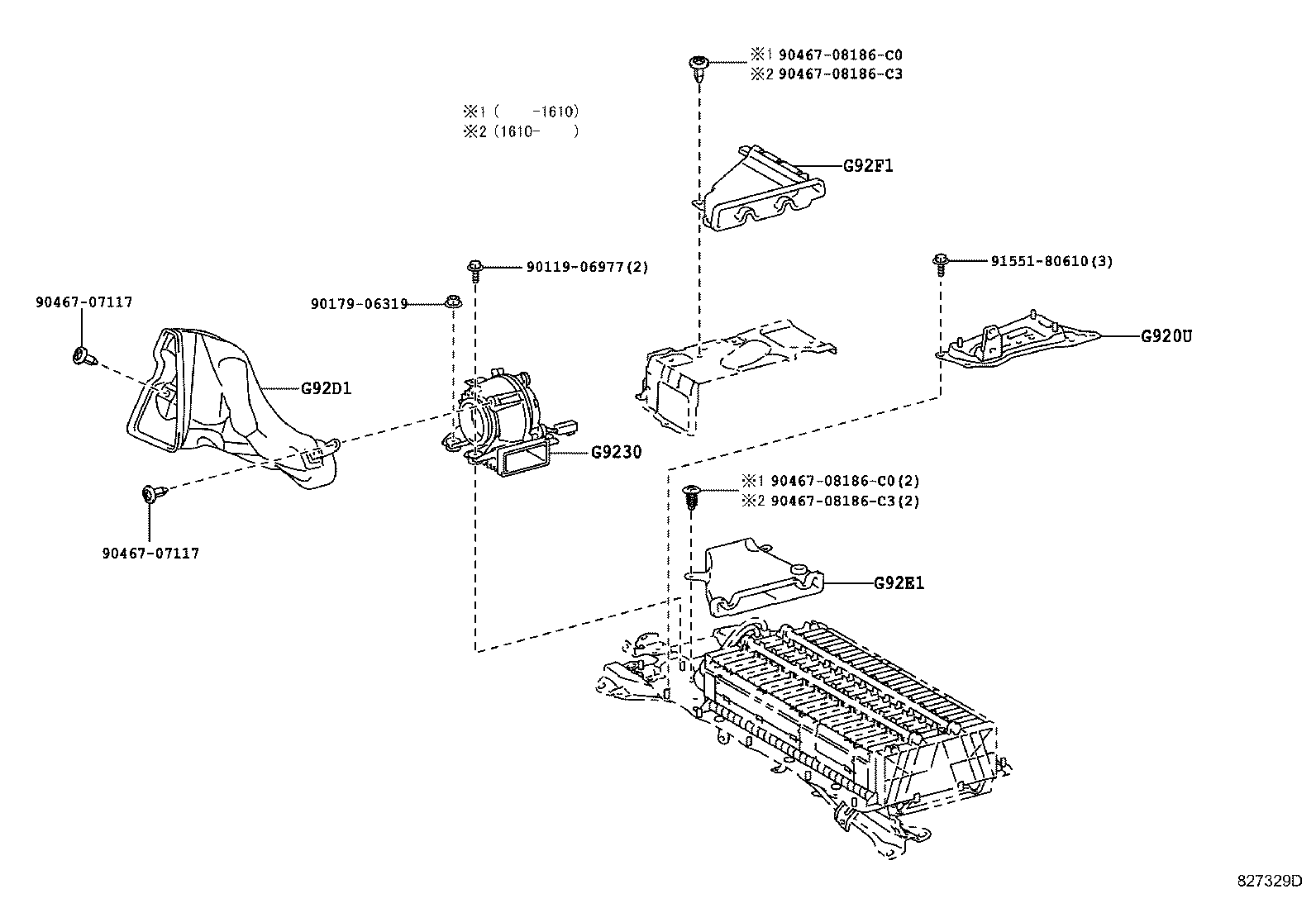

ILLUST NO. 2 OF 4(1012- )

Click highlighted areas on diagram

HVﾊﾞｯﾃﾘ

diagram 9011906977 9017906319 9046707117 9046707117 9046708186C0 9046708186C0 9046708186C3 9046708186C3 9155180610 G920U G9230 G92D1 G92E1 G92F1
Part # Description Qty Price
G920U - BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.4
G920U-47010

ZWA10

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-76010

ZWA10

 1
G9230-47070

ZWA10

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92D1-76010

ZWA10

 1
G92E1 - DUCT, HV BATTERY COVER INTAKE, NO.1
G92E1-47010

ZWA10

 1
G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1
G92F1-76010

ZWA10

 1
Common parts
90119-06977
90179-06319
90467-07117
90467-08186C0
90467-08186C3
91551-80610

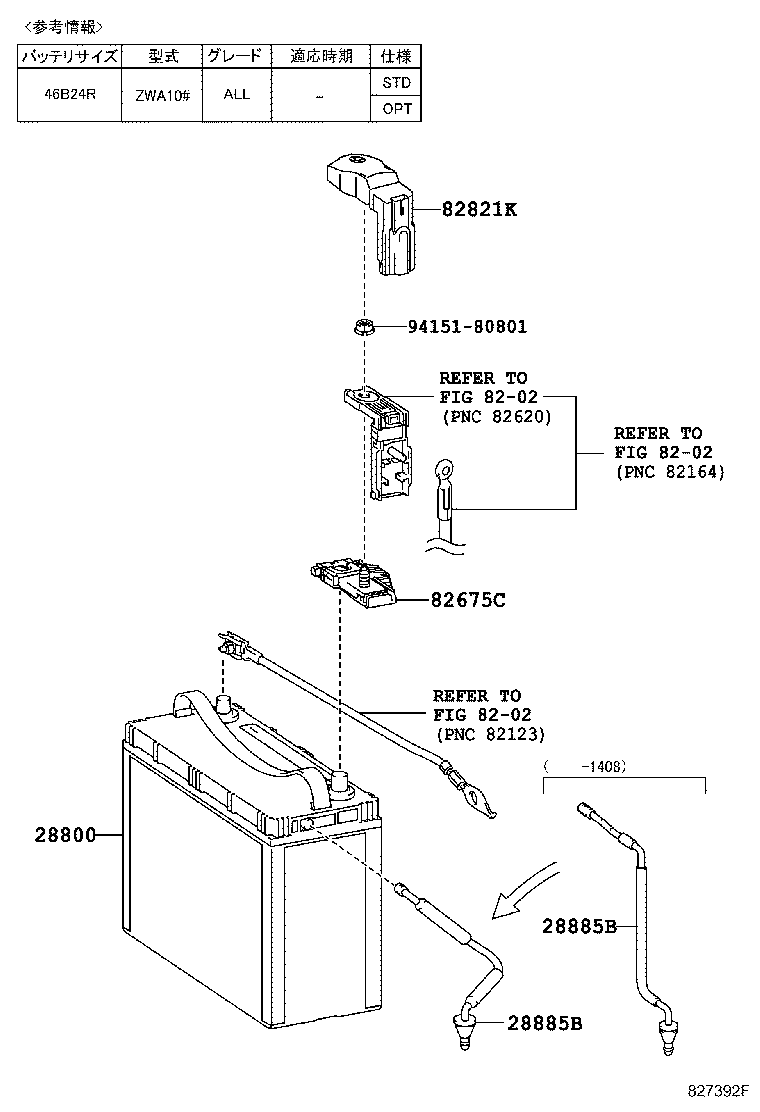

ILLUST NO. 1 OF 4(1012- )

Click highlighted areas on diagram

12Vﾊﾞｯﾃﾘ

diagram 28800 28885B 28885B 8202 8202 8202 82675C 82821K 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-37070

2ZRFXE..ZWA10

S46B24R

 1
28885B - HOSE, BATTERY
28885-37020

2ZRFXE..ZWA10

 1
28885B - HOSE, BATTERY
28885-37020

2ZRFXE..ZWA10

 1
82675C - TERMINAL, JUNCTION
82675-76010

ZWA10

 1
82821K - COVER, CONNECTOR
82821-47110

ZWA10

 1
Common parts
94151-80801
Linked diagrams
8202

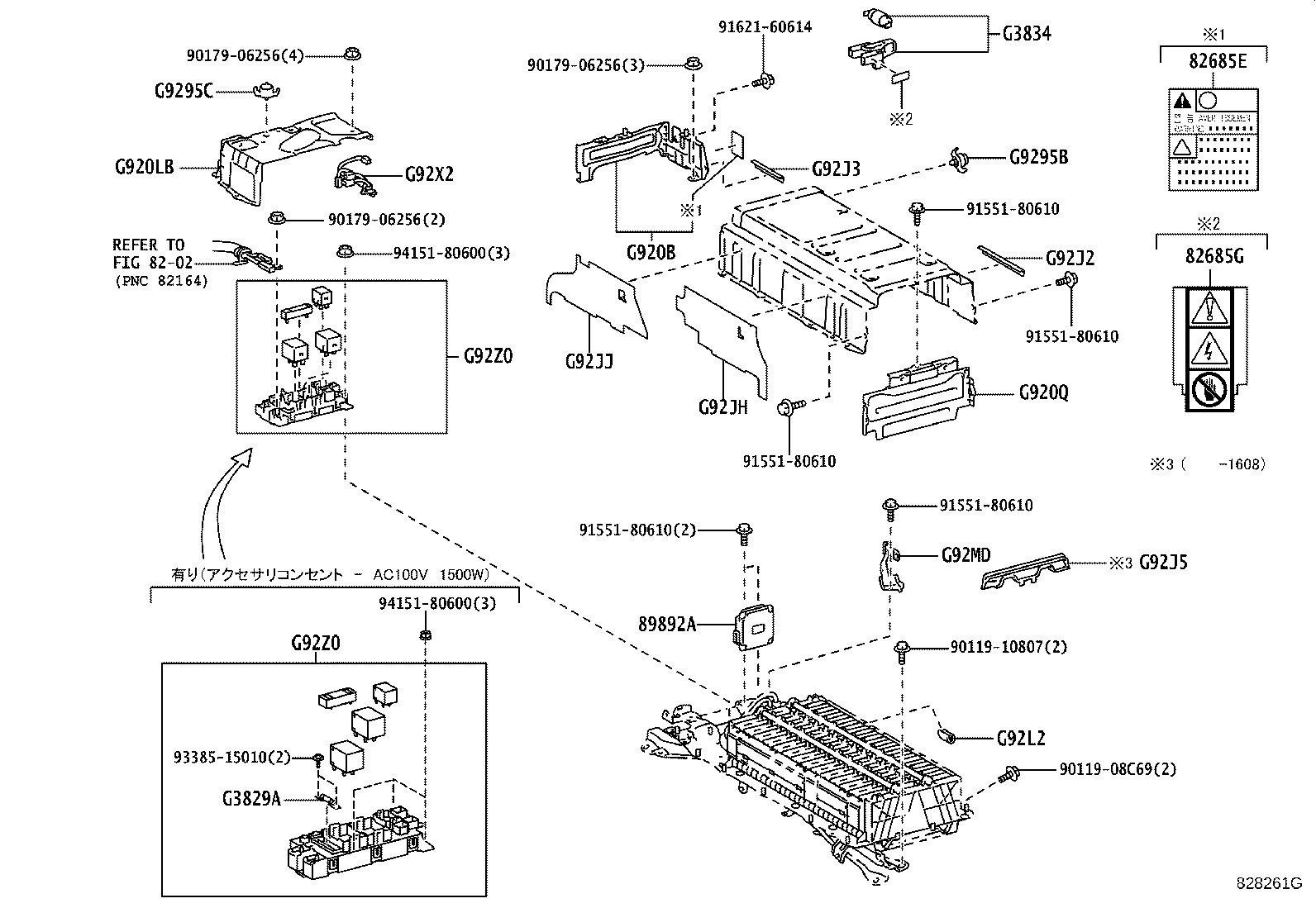

ILLUST NO. 3 OF 4(1012- )

Click highlighted areas on diagram

HVﾊﾞｯﾃﾘ

diagram 8202 82685E 82685G 89892A 9011908C69 9011910807 9017906256 9017906256 9017906256 9155180610 9155180610 9155180610 9155180610 9155180610 9162160614 9338515010 9415180600 9415180600 G3829A G3834 G920B G920LB G920Q G9295B G9295C G92J2 G92J3 G92J5 G92JH G92JJ G92L2 G92MD G92X2 G92Z0 G92Z0
Part # Description Qty Price
82685E - PLATE, SERVICE PLUG CAUTION
82685-76010

ZWA10

 1
89892A - SENSOR, BATTERY VOLTAGE
89892-47080

ZWA10

 1
89892-47020

ZWA10

 1
G3829A - FUSE, ELECTRIC VEHICLE
90982-11051

ZWA10

15A,ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)

 1
G3834 - GRIP, SERVICE PLUG
G3834-48010

ZWA10

 1
G920B - BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.1
G920B-47020

ZWA10

 1
G920LB - COVER SUB-ASSY, HYBRID BATTERY, RH
G920L-47010

ZWA10

 1
G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1
G920Q-47010

ZWA10

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

ZWA10

 1
G9295C - STRIKER, BATTERY COVER LOCK, NO.2
G9295-30020

ZWA10

 1
G92J2 - SHEET, HV BATTERY CARRIER, NO.2
G92J2-12010

ZWA10

 1
G92J3 - SHEET, HV BATTERY CARRIER, NO.3
G92J3-12010

ZWA10

 1
G92J5 - PACKING, HYBRID BATTERY, NO.1
G92J5-47020

ZWA10

 1
G92JH - SHEET, HYBRID BATTERY COVER
G92JH-76010

ZWA10

 1
G92JJ - SHEET, HV BATTERY SHIELD
G92JJ-76010

ZWA10

 1
G92L2 - PLATE, HV BATTERY LOWER COVER
G92L2-76010

ZWA10

 1
G92MD - BRACKET, HV BATTERY UPPER CARRIER, NO.7
G92MD-47010

ZWA10

 1
G92X2 - WIRE, HV BATTERY PACK, NO.2
G92X2-47010

ZWA10

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-47011

ZWA10

 1
G92Z0-48011

ZWA10

ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-47011

ZWA10

 1
G92Z0-48011

ZWA10

ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)

 1
Common parts
90119-08C69
90119-10807
90179-06256
91551-80610
91621-60614
93385-15010
94151-80600
Linked diagrams
8202
