ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
(1012- )

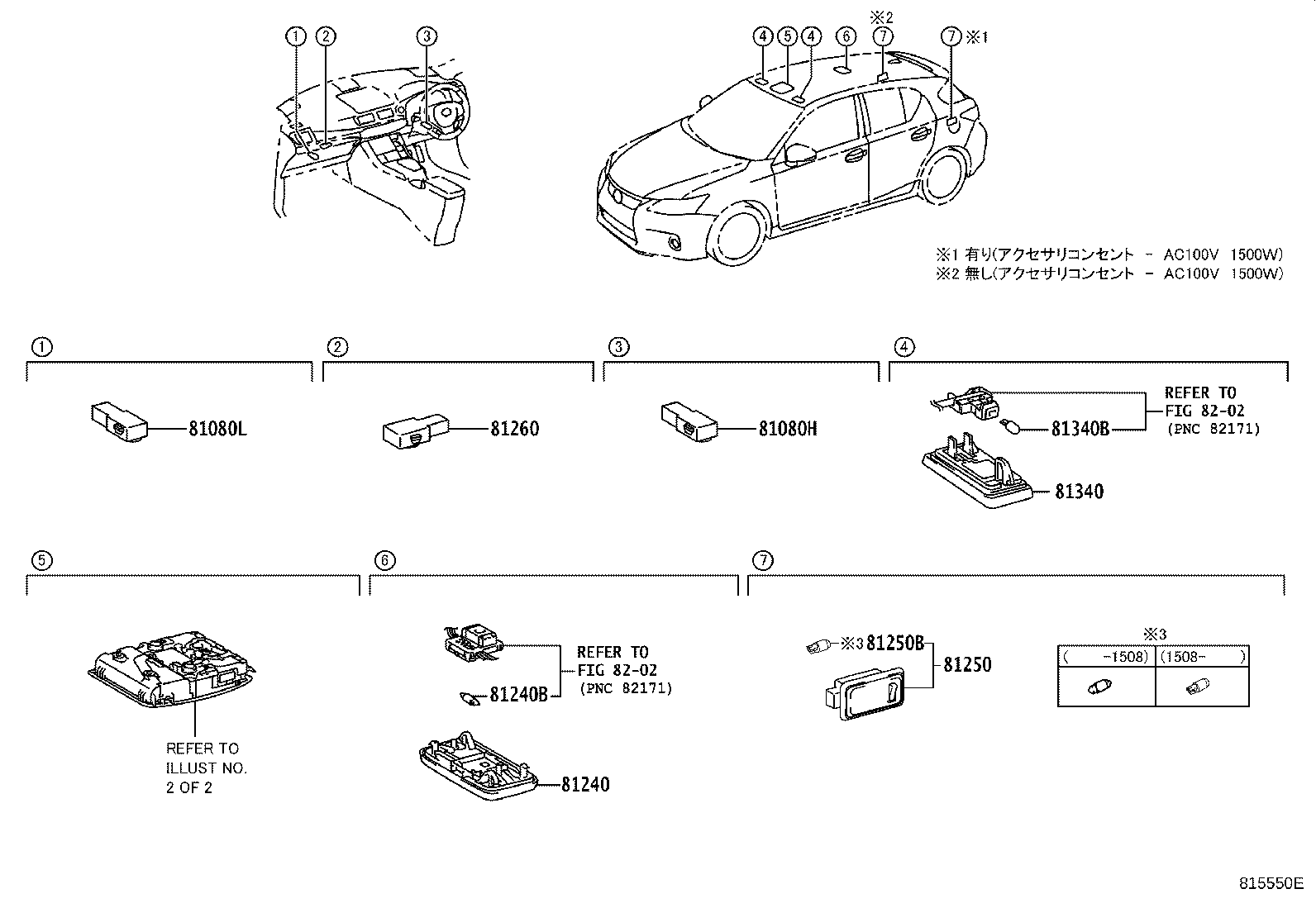

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-22040 |
ZWA10 |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-22040 |
ZWA10 |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-60060B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81240-60060B0 |
ZWA10..B LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81240-60060C0 |
ZWA10..B F SPORT,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-1401179 |
ZWA10 12V 8W |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-48010 |
ZWA10 |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-1305079 |
ZWA10 12V 5W |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-22040 |
ZWA10 |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30100B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
2 | ||
| 81340-30100C0 |
ZWA10..B F SPORT,BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 81340-30100B0 |
ZWA10..B LT.GRAY,TRIM0#,2#,3#,4#,8# |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-1106279 |
ZWA10 12V 8W |
2 | ||
| Linked diagrams | ||||
| 8202 | ||||

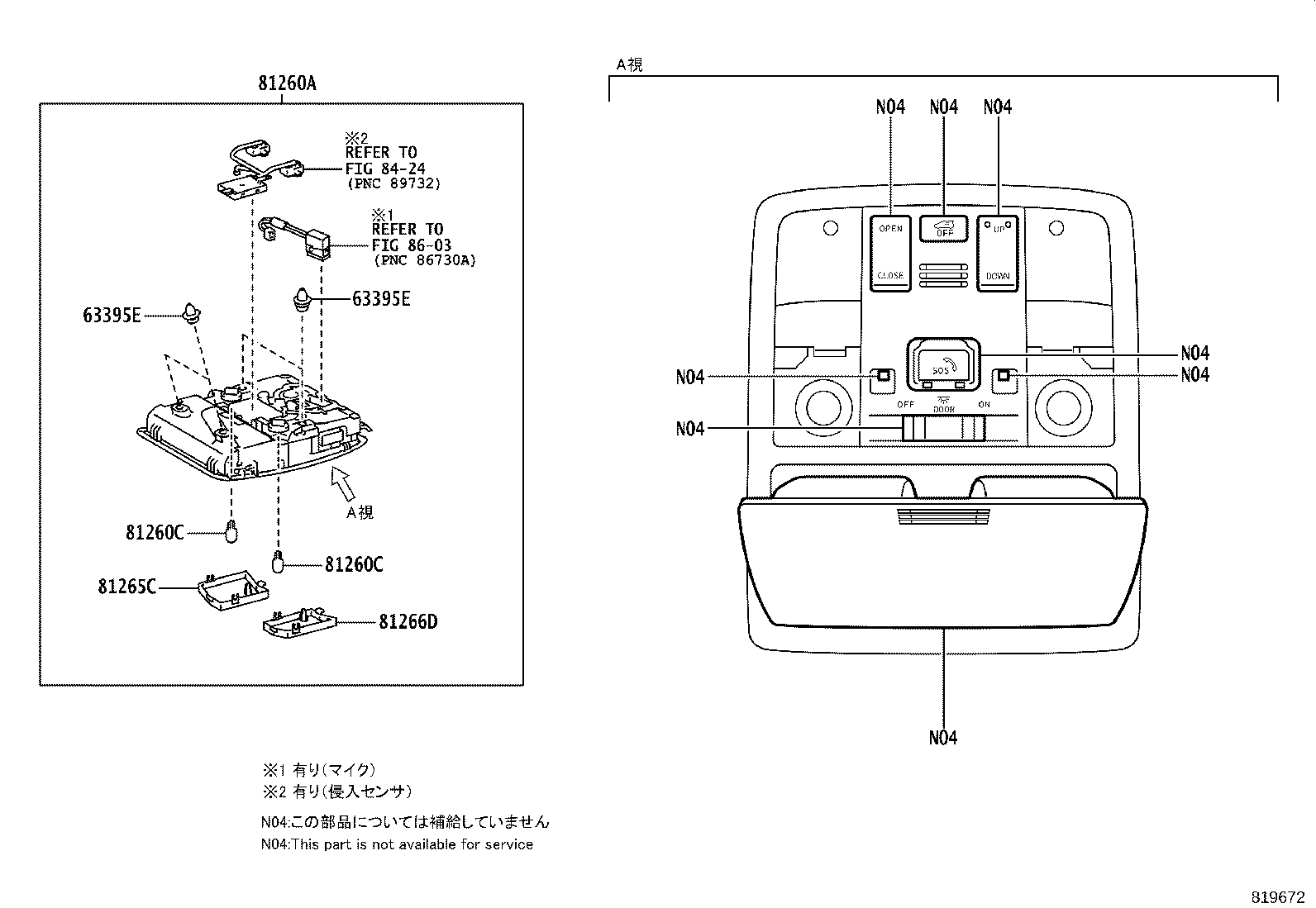

ILLUST NO. 2 OF 2(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-10167 |
ZWA10 |
4 | ||
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-10167 |
ZWA10 |
4 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-76020B0 |
ZWA10..B LT.GRAY,TRIM0#,2#,4#,8# |
1 | ||
| 81260-76010B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76120B0 |
ZWA10..E 自動車電話−BLUETOOTH対応&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76130C0 |
ZWA10..B F SPORT&自動車電話−BLUETOOTH対応&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76020B0 |
ZWA10..E 盗難防止ｼｽﾃﾑ−有り(*IM,*SEH,*IS,ﾌｰﾄﾞｶｰﾃｼｽｲｯﾁ),LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76130B0 |
ZWA10..B 自動車電話−BLUETOOTH対応&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76260C0 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&自動車電話−BLUETOOTH対応&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76020C0 |
ZWA10..B F SPORT,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76260B0 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式)&自動車電話−BLUETOOTH対応&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76150C0 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76130B0 |
ZWA10..E 盗難防止ｼｽﾃﾑ−有り(*IM,*SEH,*IS,ﾌｰﾄﾞｶｰﾃｼｽｲｯﾁ)&自動車電話−BLUETOOTH対応&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD),LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76150B0 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76131B0 |
ZWA10..E 盗難防止ｼｽﾃﾑ−有り(*IM,*SEH,*IS,ﾌｰﾄﾞｶｰﾃｼｽｲｯﾁ),LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76120B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 81260-76261C0 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 81260-76131B0 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 81260-76261B0 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 81260-76131C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-1205079 |
ZWA10 12V 5W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-1205079 |
ZWA10 12V 5W |
2 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-60370 |
ZWA10 |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-60370 |
ZWA10 |
1 | ||
| Linked diagrams | ||||
| 8424 | ||||
| 8603 | ||||
