ZWA10-AHXBB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012-1312)

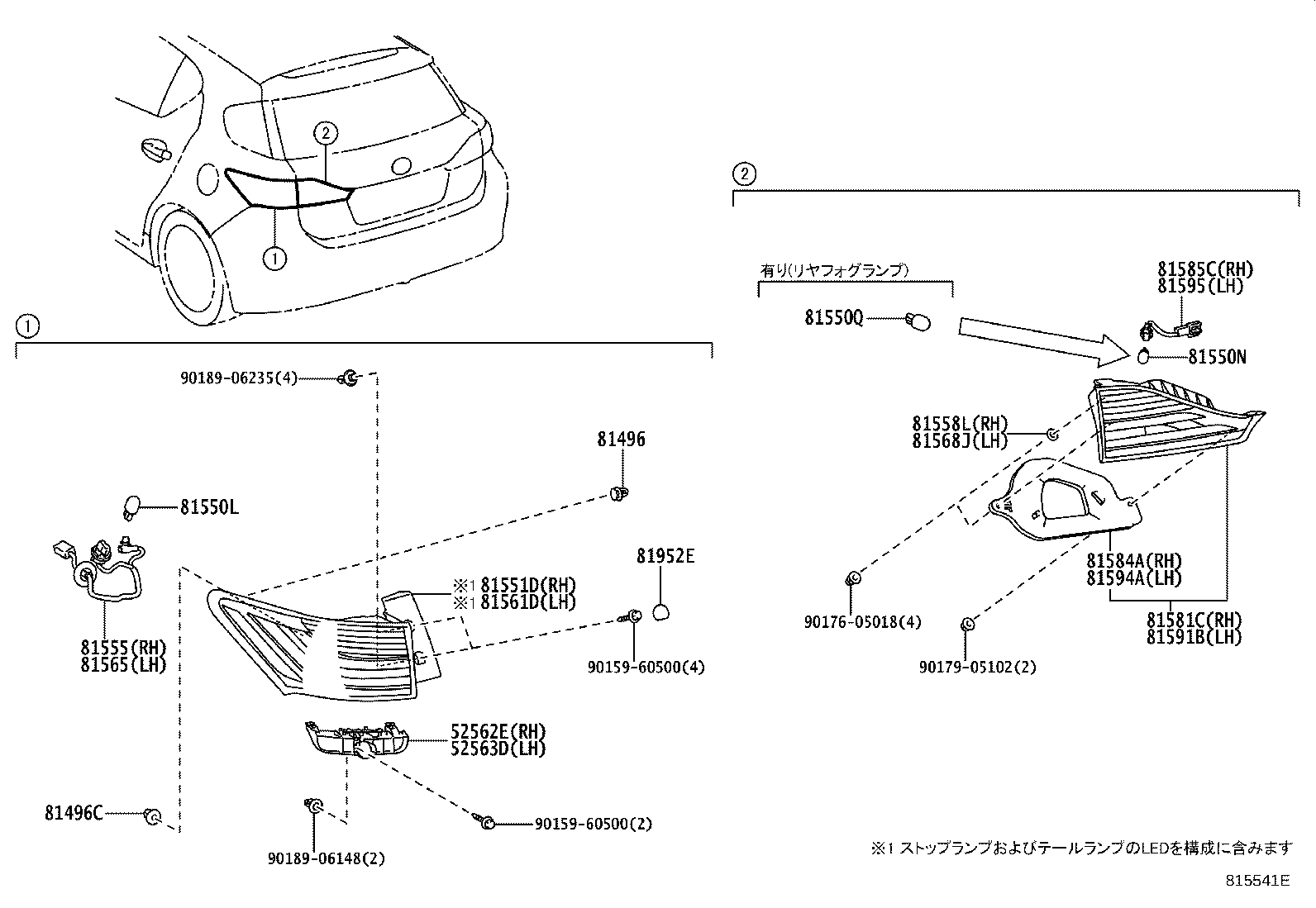

Click highlighted areas on diagram

diagram 52562E 52563D 81496 81496C 81550L 81550N 81550Q 81551D 81555 81558L 81561D 81565 81568J 81581C 81584A 81585C 81591B 81594A 81595 81952E 9015960500 9015960500 9017605018 9017905102 9018906148 9018906235
Part # Description Qty Price
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-76010

ZWA10

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-76010

ZWA10

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010

ZWA10

 2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-52020

ZWA10

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-1502179

ZWA10

12V 21W,ｱﾝﾊﾞｰ

 2
81550N - BULB, BACK UP LAMP
90981-1105979

ZWA10

12V 16W,寒冷地仕様

 1
90981-1105979

ZWA10

12V 16W

 2
81550Q - BULB, REAR FOG LAMP, NO.1
90981-1304379

ZWA10

12V 21W,寒冷地仕様

 1
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-76020

ZWA10

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-76020

ZWA10

 1
81558L - PROTECTOR, REAR COMBINATION LAMP, RH
81558-24040

ZWA10

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-76020

ZWA10

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-76020

ZWA10

 1
81568J - PROTECTOR, REAR COMBINATION LAMP, LH
81558-24040

ZWA10

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-76020

ZWA10

 1
81581-76030

ZWA10

寒冷地仕様

 1
81584A - GASKET, REAR LAMP RH
81584-76020

ZWA10

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-76030

ZWA10

寒冷地仕様

 1
81585-76020

ZWA10

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-76020

ZWA10

 1
81594A - GASKET, REAR LAMP LH
81594-76020

ZWA10

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-76020

ZWA10

 1
81952E - COVER, REAR LAMP
81952-22010

ZWA10

 4
Common parts
90159-60500
90176-05018
90179-05102
90189-06148
90189-06235
