ZWA10-AHXBB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

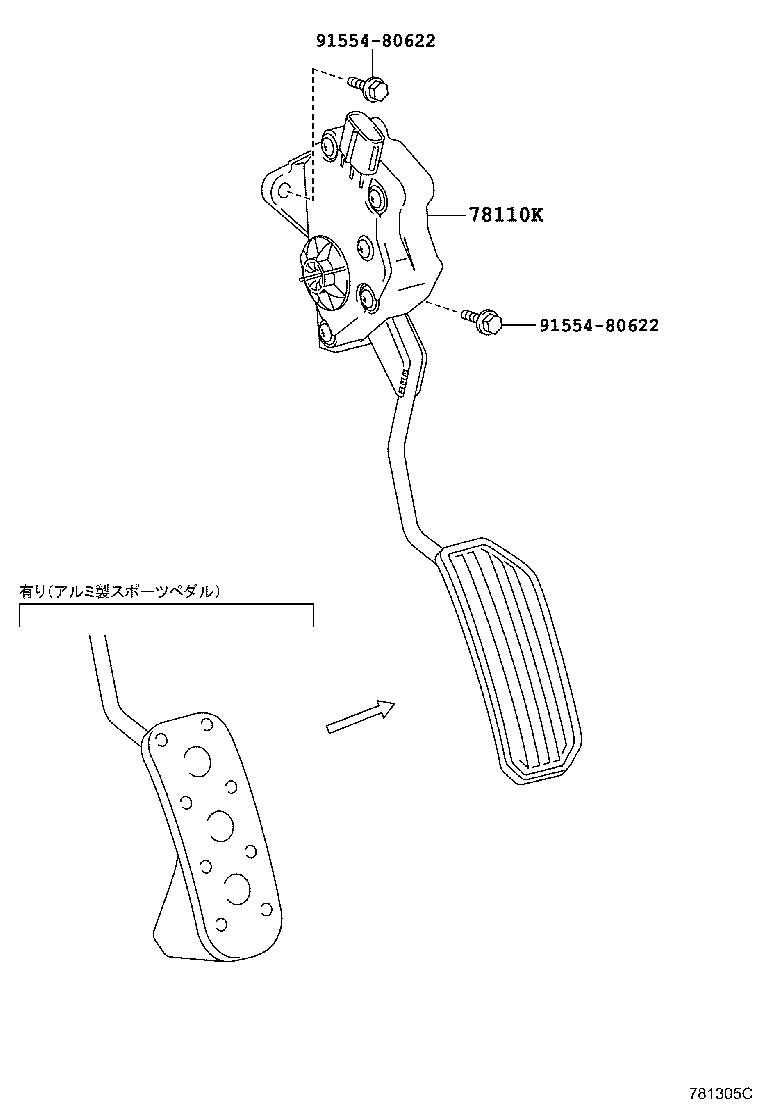

diagram 78110K 9155480622 9155480622
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-76011

ZWA10

 1
78110-76031

ZWA10..B

F SPORT

 1
Common parts
91554-80622
