ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

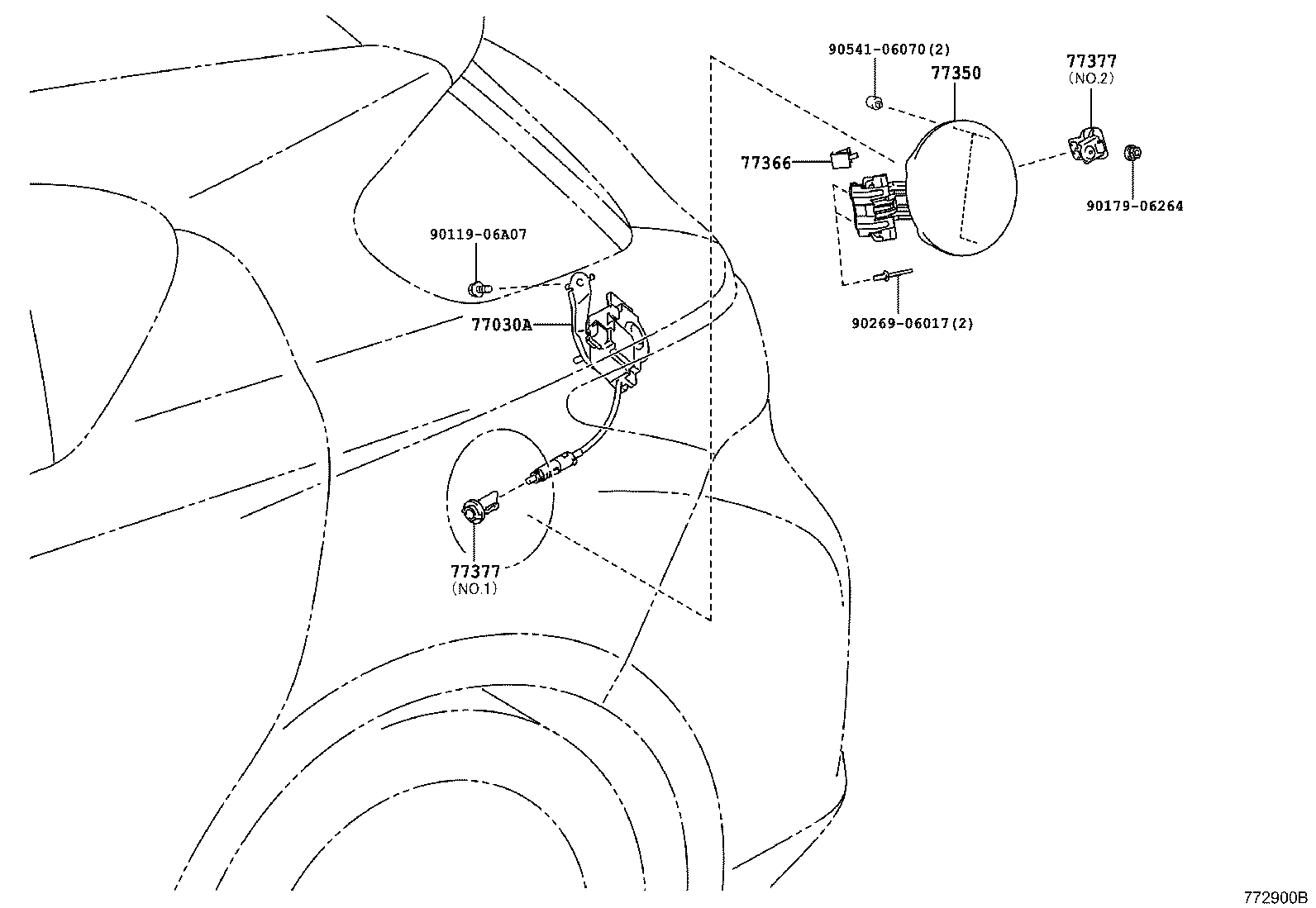

ILLUST NO. 3 OF 3(1012- )
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾘｯﾄﾞ ｵｰﾌﾟﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-76010 |
ZWA10 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-76010 |
ZWA10 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-48030 |
ZWA10 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-75010 |
ZWA10 NO.1 |
1 | ||
| 77377-53010 |
ZWA10 NO.2 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-75010 |
ZWA10 NO.1 |
1 | ||
| 77377-53010 |
ZWA10 NO.2 |
1 | ||
| Common parts | ||||
| 90119-06A07 | ||||
| 90179-06264 | ||||
| 90269-06017 | ||||
| 90541-06070 | ||||

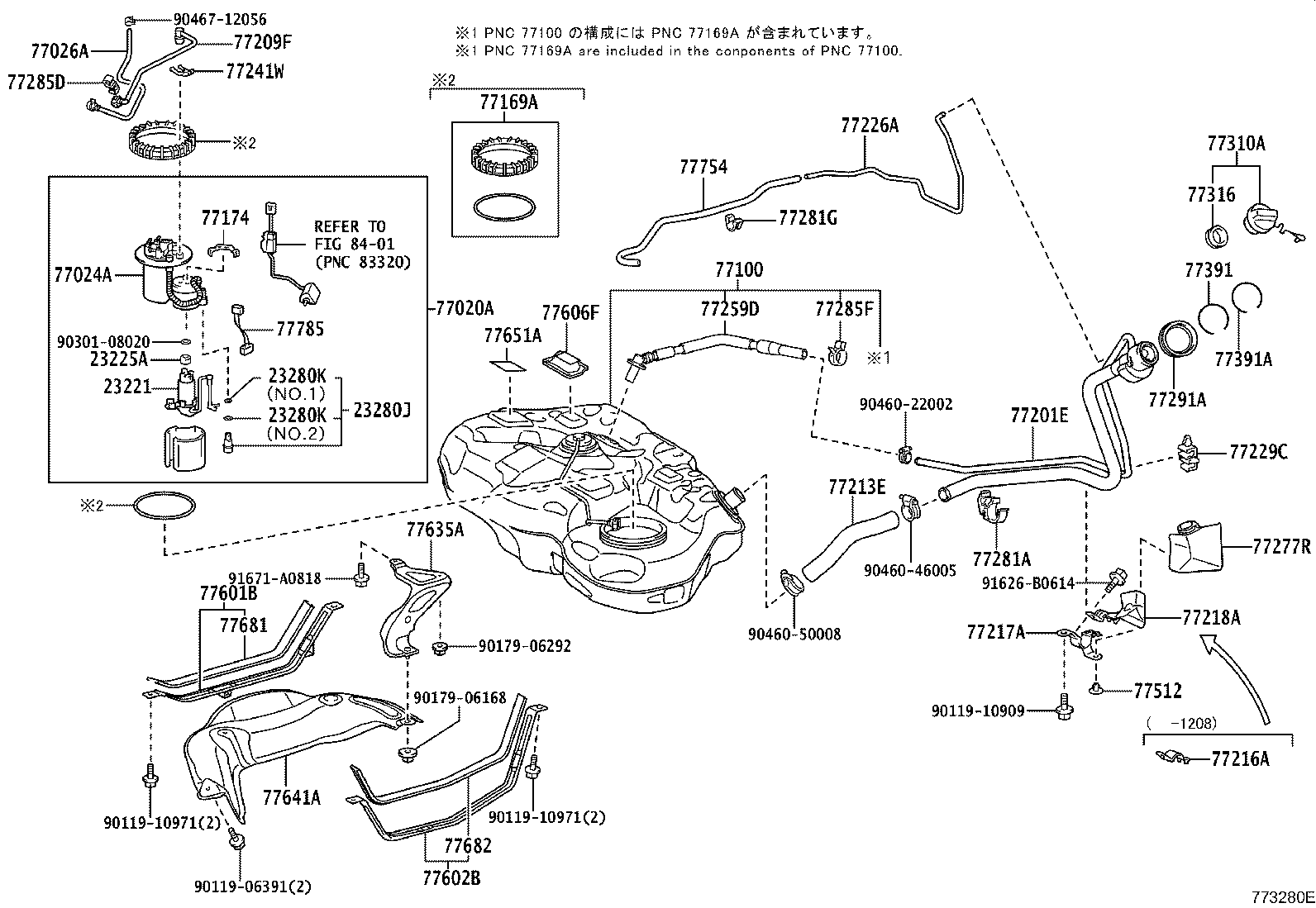

ILLUST NO. 1 OF 3(1012-1201)
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-37130 |
2ZRFXE..ZWA10 |
1 | ||
| 23220-21211 |
2ZRFXE..ZWA10 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ZRFXE..ZWA10 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFXE..ZWA10 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2ZRFXE..ZWA10 NO.2 |
1 | ||
| 90301-04013 |
2ZRFXE..ZWA10 NO.1 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2ZRFXE..ZWA10 NO.2 |
1 | ||
| 90301-04013 |
2ZRFXE..ZWA10 NO.1 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-47090 |
ZWA10 |
1 | ||
| 77020-47091 |
ZWA10 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-47040 |
ZWA10 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-47020 |
ZWA10 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-76060 |
ZWA10 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52040 |
ZWA10 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-75010 |
ZWA10 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-76010 |
ZWA10 |
1 | ||
| 77201-76030 |
ZWA10 |
1 | ||
| 77201-76011 |
ZWA10 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-47060 |
ZWA10 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-21060 |
ZWA10 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-76010 |
ZWA10 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-76010 |
ZWA10 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZWA10 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12180 |
ZWA10 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-75010 |
ZWA10 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-47050 |
ZWA10 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-47040 |
ZWA10 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-76011 |
ZWA10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
ZWA10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ZWA10 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ZWA10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-75010 |
ZWA10 |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
ZWA10 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-47040 |
ZWA10 |
1 | ||
| 77601-47090 |
ZWA10 |
1 | ||
| 77601-76010 |
ZWA10 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-76010 |
ZWA10 |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-12190 |
ZWA10 |
2 | ||
| 77635A - STAY, FUEL TANK LOWER PROTECTOR, NO.1 | ||||
| 77635-76010 |
ZWA10 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-76010 |
ZWA10 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
ZWA10 |
3 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-47020 |
ZWA10 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-47020 |
ZWA10 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-47030 |
ZWA10 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12010 |
ZWA10 |
1 | ||
| 77785-12020 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-10909 | ||||
| 90119-10971 | ||||
| 90179-06168 | ||||
| 90179-06292 | ||||
| 90301-08020 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90467-12056 | ||||
| 91671-A0818 | ||||
| Linked diagrams | ||||
| 8401 | ||||

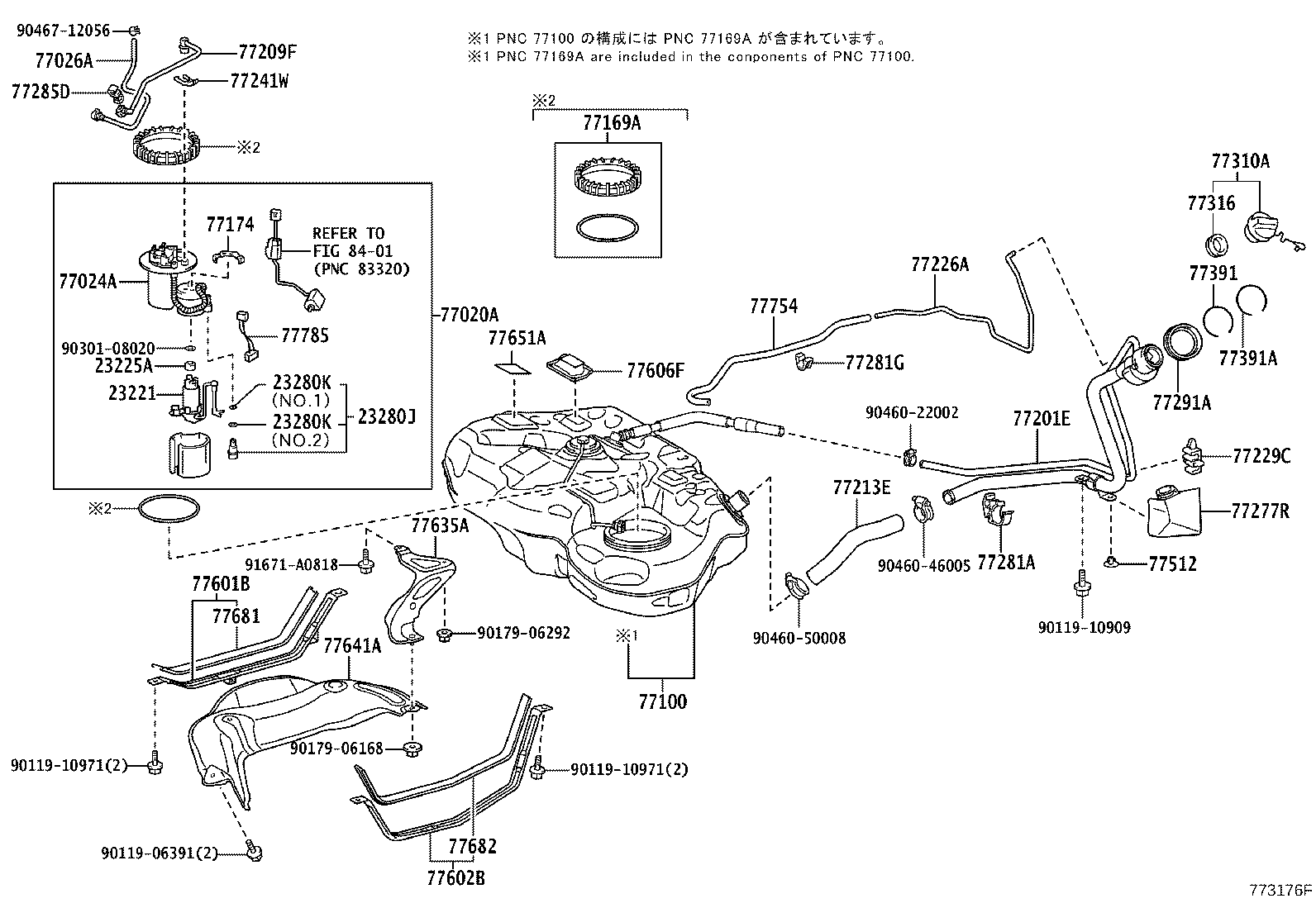

ILLUST NO. 1 OF 3(1201- )
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-37130 |
2ZRFXE..ZWA10 |
1 | ||
| 23220-21211 |
2ZRFXE..ZWA10 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ZRFXE..ZWA10 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFXE..ZWA10 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2ZRFXE..ZWA10 NO.2 |
1 | ||
| 90301-04013 |
2ZRFXE..ZWA10 NO.1 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2ZRFXE..ZWA10 NO.2 |
1 | ||
| 90301-04013 |
2ZRFXE..ZWA10 NO.1 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-47090 |
ZWA10 |
1 | ||
| 77020-47091 |
ZWA10 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-47040 |
ZWA10 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-47020 |
ZWA10 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-76060 |
ZWA10 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52040 |
ZWA10 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-75010 |
ZWA10 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-76010 |
ZWA10 |
1 | ||
| 77201-76030 |
ZWA10 |
1 | ||
| 77201-76011 |
ZWA10 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-47060 |
ZWA10 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-21060 |
ZWA10 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12190 |
ZWA10 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-47080 |
ZWA10 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-47050 |
ZWA10 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-76010 |
ZWA10 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-76010 |
ZWA10 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZWA10 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-76010 |
ZWA10 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12180 |
ZWA10 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-75010 |
ZWA10 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-47050 |
ZWA10 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-47040 |
ZWA10 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 90467-24002 |
ZWA10 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-76011 |
ZWA10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
ZWA10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ZWA10 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ZWA10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-75010 |
ZWA10 |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
ZWA10 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-47040 |
ZWA10 |
1 | ||
| 77601-47090 |
ZWA10 |
1 | ||
| 77601-76010 |
ZWA10 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-76010 |
ZWA10 |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-12190 |
ZWA10 |
2 | ||
| 77635A - STAY, FUEL TANK LOWER PROTECTOR, NO.1 | ||||
| 77635-76010 |
ZWA10 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-76010 |
ZWA10 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
ZWA10 |
3 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-47020 |
ZWA10 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-47020 |
ZWA10 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-47030 |
ZWA10 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12010 |
ZWA10 |
1 | ||
| 77785-12020 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-10909 | ||||
| 90119-10971 | ||||
| 90179-06168 | ||||
| 90179-06292 | ||||
| 90301-08020 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90467-12056 | ||||
| 91626-B0614 | ||||
| 91671-A0818 | ||||
| Linked diagrams | ||||
| 8401 | ||||

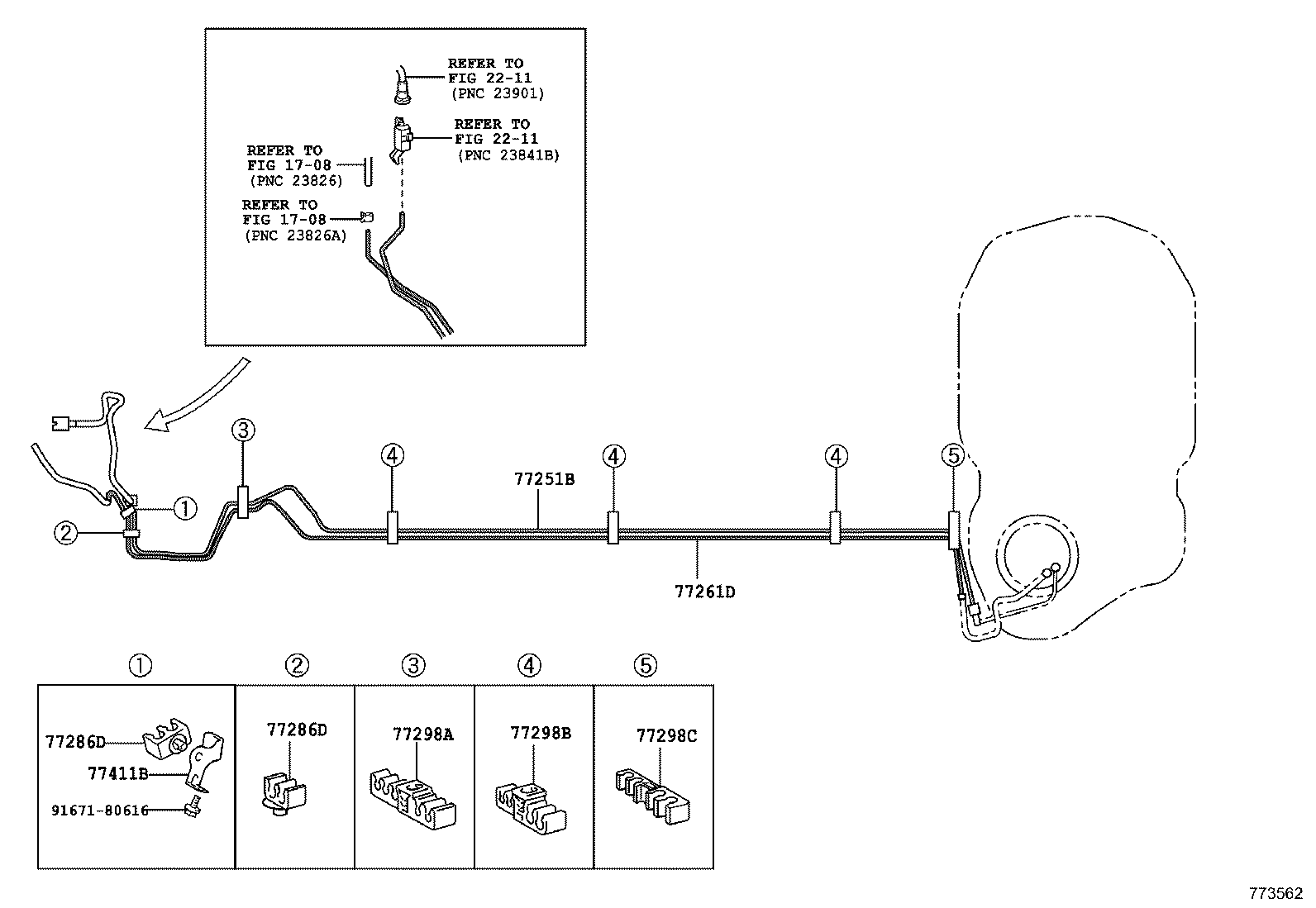

ILLUST NO. 2 OF 3(1012- )
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-76010 |
ZWA10 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-76010 |
ZWA10 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-12120 |
ZWA10 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-12120 |
ZWA10 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68010 |
ZWA10 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52070 |
ZWA10 |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12120 |
ZWA10 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-47010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
