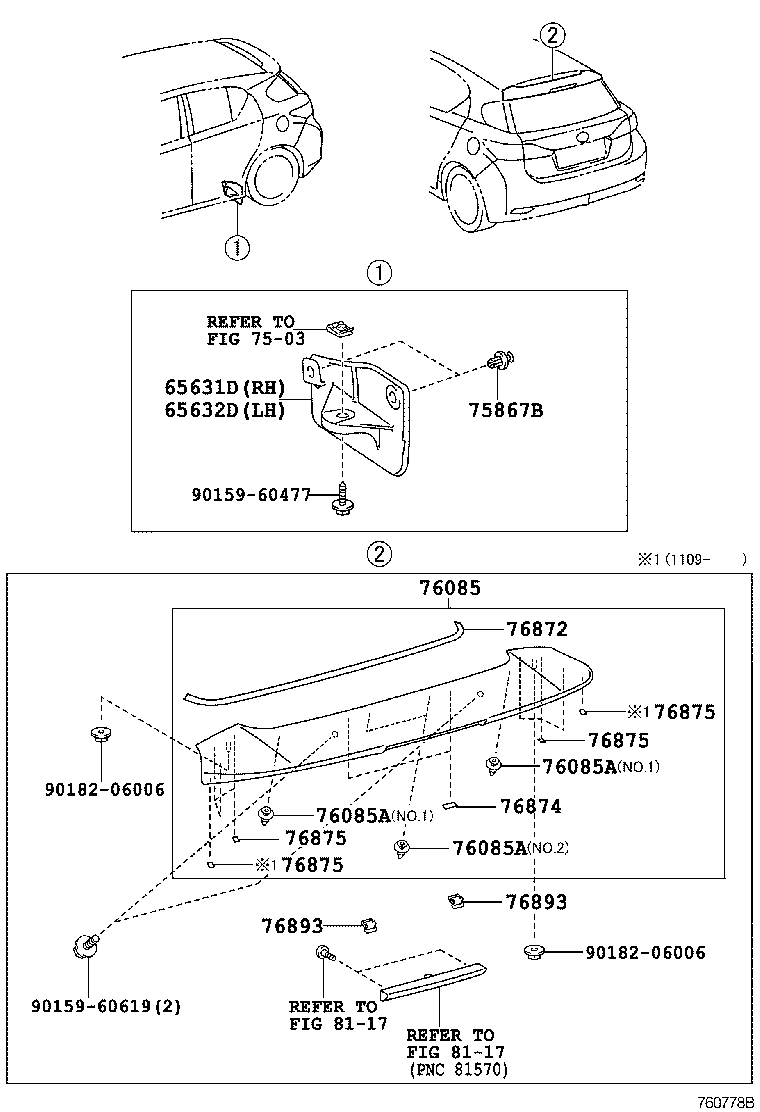

Toyota Lexus ct200h ZWA10 MUDGUARD & SPOILER

Part #	Description	Period	Qty
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-76010	ZWA10	12/2010 - 12/2013	1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-76010	ZWA10	12/2010 - 12/2013	1
75867B - CLIP, ROCKER PANEL MOULDING
75867-33050	ZWA10	07/2013 - 12/2013	4
75867-30140	ZWA10	12/2010 - 06/2013	4
76085 - SPOILER SUB-ASSY, REAR
76085-76900B1	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),DK.GRAY MC.,1G0	12/2010 - 08/2011	1
76085-76900B0	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),SILVER M.M.,1G1	12/2010 - 08/2012	1
76085-76900J1	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),SILVERY BLUE ME.,8U9	12/2010 - 08/2012	1
76085-76901B0	ZWA10 SILVER M.M.,1G1	12/2010 - 08/2012	1
76085-76901J1	ZWA10 SILVERY BLUE ME.,8U9	12/2010 - 08/2012	1
76085-76901B1	ZWA10 DK.GRAY MC.,1G0	12/2010 - 08/2011	1
76085-76900F0	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),FLARE YELLOW M.M.,5B1	12/2010 - 12/2013	1
76085-76900D0	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),RED MC.CS.,3R1	12/2010 - 12/2013	1
76085-76901D0	ZWA10 RED MC.CS.,3R1	12/2010 - 12/2013	1
76085-76900C0	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),BLACK,212	12/2010 - 12/2013	1
76085-76900E0	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),FIRE AGATE M.M.,4V3	12/2010 - 12/2013	1
76085-76900A0	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),WHITE PEARL CS.,077	12/2010 - 12/2013	1
76085-76901A0	ZWA10 WHITE PEARL CS.,077	12/2010 - 12/2013	1
76085-76900C1	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),BLACK OPAL MC.,214	12/2010 - 12/2013	1
76085-76901F0	ZWA10 FLARE YELLOW M.M.,5B1	12/2010 - 12/2013	1
76085-76900B2	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),MERCURY GRAY MC.,1H9	08/2011 - 12/2013	1
76085-76901E0	ZWA10 FIRE AGATE M.M.,4V3	12/2010 - 12/2013	1
76085-76901A1	ZWA10..B WHITE NOVA GF.,083	08/2012 - 12/2013	1
76085-76900B3	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),PLATINUM SILVER ME.,1J4	08/2012 - 12/2013	1
76085-76901B2	ZWA10 MERCURY GRAY MC.,1H9	08/2011 - 12/2013	1
76085-76900A1	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),WHITE NOVA GF.,083	08/2012 - 12/2013	1
76085-76900J0	ZWA10..B ﾘﾔｽﾎﾟｲﾗ−有り(小型ﾀｲﾌﾟ),BLUE ME.,8U1	12/2010 - 12/2013	1
76085-76901C2	ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217	10/2012 - 12/2013	1
76085-76901C1	ZWA10 BLACK OPAL MC.,214	12/2010 - 12/2013	1
76085-76901J0	ZWA10 BLUE ME.,8U1	12/2010 - 12/2013	1
76085-76901B3	ZWA10 PLATINUM SILVER ME.,1J4	08/2012 - 12/2013	1
76085-76901C0	ZWA10 BLACK,212	12/2010 - 12/2013	1
76085A - CAP(FOR REAR SPOILER)
90467-09203	ZWA10 NO.1 & NO.2	08/2013 - 12/2013	4
90467-09203	ZWA10 NO.2	09/2011 - 08/2013	2
90467-09206	ZWA10 NO.1	09/2011 - 08/2013	2
90467-09206	ZWA10 NO.1 & NO.2	12/2010 - 09/2011	4
76085A - CAP(FOR REAR SPOILER)
90467-09203	ZWA10 NO.1 & NO.2	08/2013 - 12/2013	4
90467-09203	ZWA10 NO.2	09/2011 - 08/2013	2
90467-09206	ZWA10 NO.1	09/2011 - 08/2013	2
90467-09206	ZWA10 NO.1 & NO.2	12/2010 - 09/2011	4
76085A - CAP(FOR REAR SPOILER)
90467-09203	ZWA10 NO.1 & NO.2	08/2013 - 12/2013	4
90467-09203	ZWA10 NO.2	09/2011 - 08/2013	2
90467-09206	ZWA10 NO.1	09/2011 - 08/2013	2
90467-09206	ZWA10 NO.1 & NO.2	12/2010 - 09/2011	4
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-76010	ZWA10	12/2010 - 12/2013	1
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-76010	ZWA10	12/2010 - 12/2013	2
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-76010	ZWA10	12/2010 - 09/2011	6
76875-76010	ZWA10	09/2011 - 12/2013	8
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-76010	ZWA10	12/2010 - 09/2011	6
76875-76010	ZWA10	09/2011 - 12/2013	8
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-76010	ZWA10	12/2010 - 09/2011	6
76875-76010	ZWA10	09/2011 - 12/2013	8
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-76010	ZWA10	12/2010 - 09/2011	6
76875-76010	ZWA10	09/2011 - 12/2013	8
76893 - COVER, REAR SPOILER, NO.1
76893-76010	ZWA10	12/2010 - 12/2013	2
76893 - COVER, REAR SPOILER, NO.1
76893-76010	ZWA10	12/2010 - 12/2013	2
Common parts
90159-60477
90159-60619
90182-06006
Linked diagrams
7503
8117

ZWA10-AHXBB (2010)

(1012-1312)
