ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

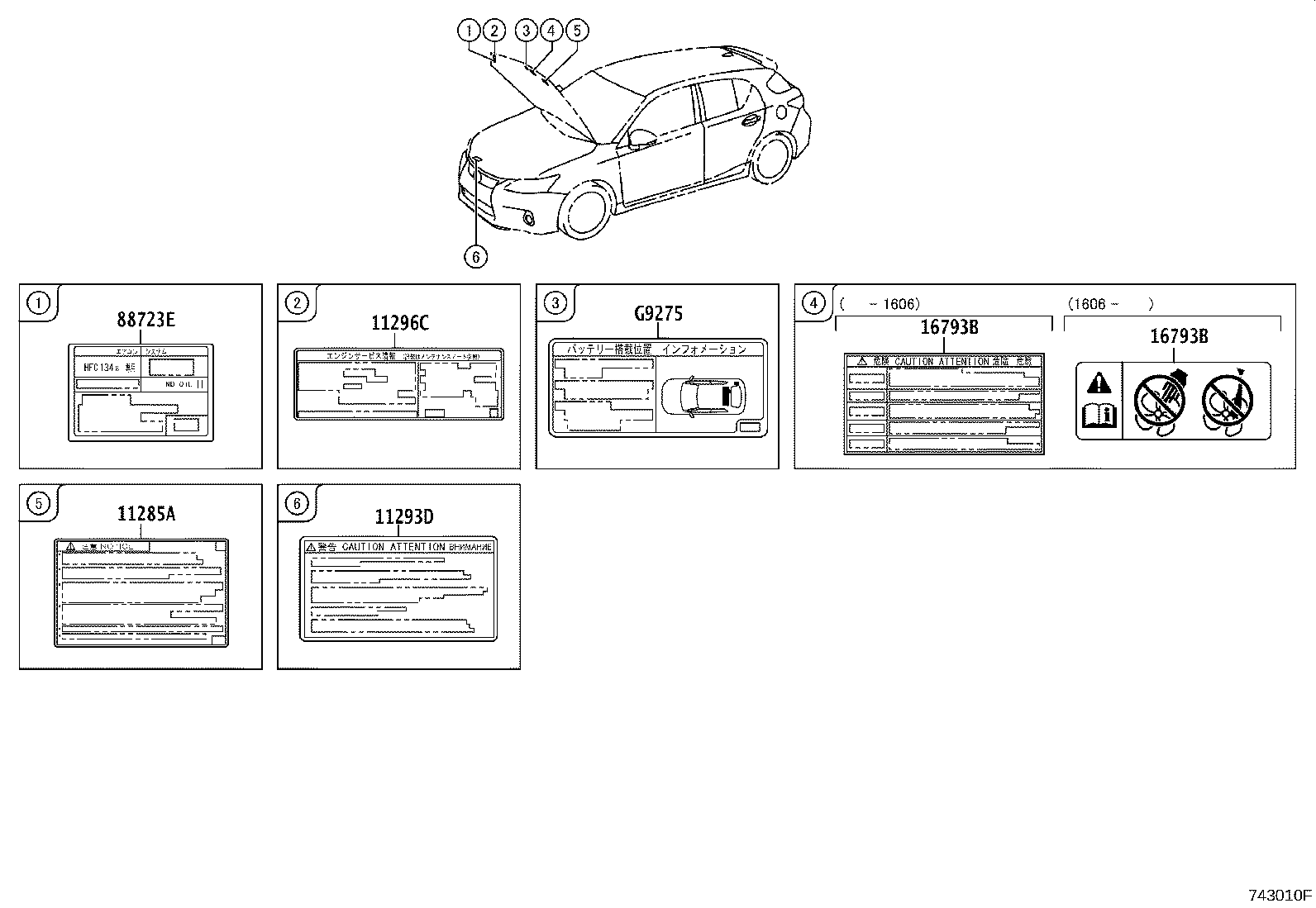

ILLUST NO. 1 OF 3(1012- )
Click highlighted areas on diagram
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11285A - LABEL, COOLANT SYSTEM NOTICE | ||||
| 11285-37060 |
2ZRFXE..ZWA10 |
1 | ||
| 11293D - LABEL, ENGINE CAUTION | ||||
| 11293-21081 |
2ZRFXE..ZWA10 |
1 | ||
| 11296C - LABEL, ENGINE SERVICE INFORMATION | ||||
| 11296-37070 |
2ZRFXE..ZWA10 |
1 | ||
| 16793B - LABEL, COOLING FAN INFORMATION | ||||
| 16793-28040 |
2ZRFXE..ZWA10 |
1 | ||
| 16793B - LABEL, COOLING FAN INFORMATION | ||||
| 16793-28040 |
2ZRFXE..ZWA10 |
1 | ||
| 88723E - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-47030 |
ZWA10 |
1 | ||
| G9275 - LABEL, BATTERY CAUTION, NO.1 | ||||
| G9275-76010 |
ZWA10 |
1 | ||

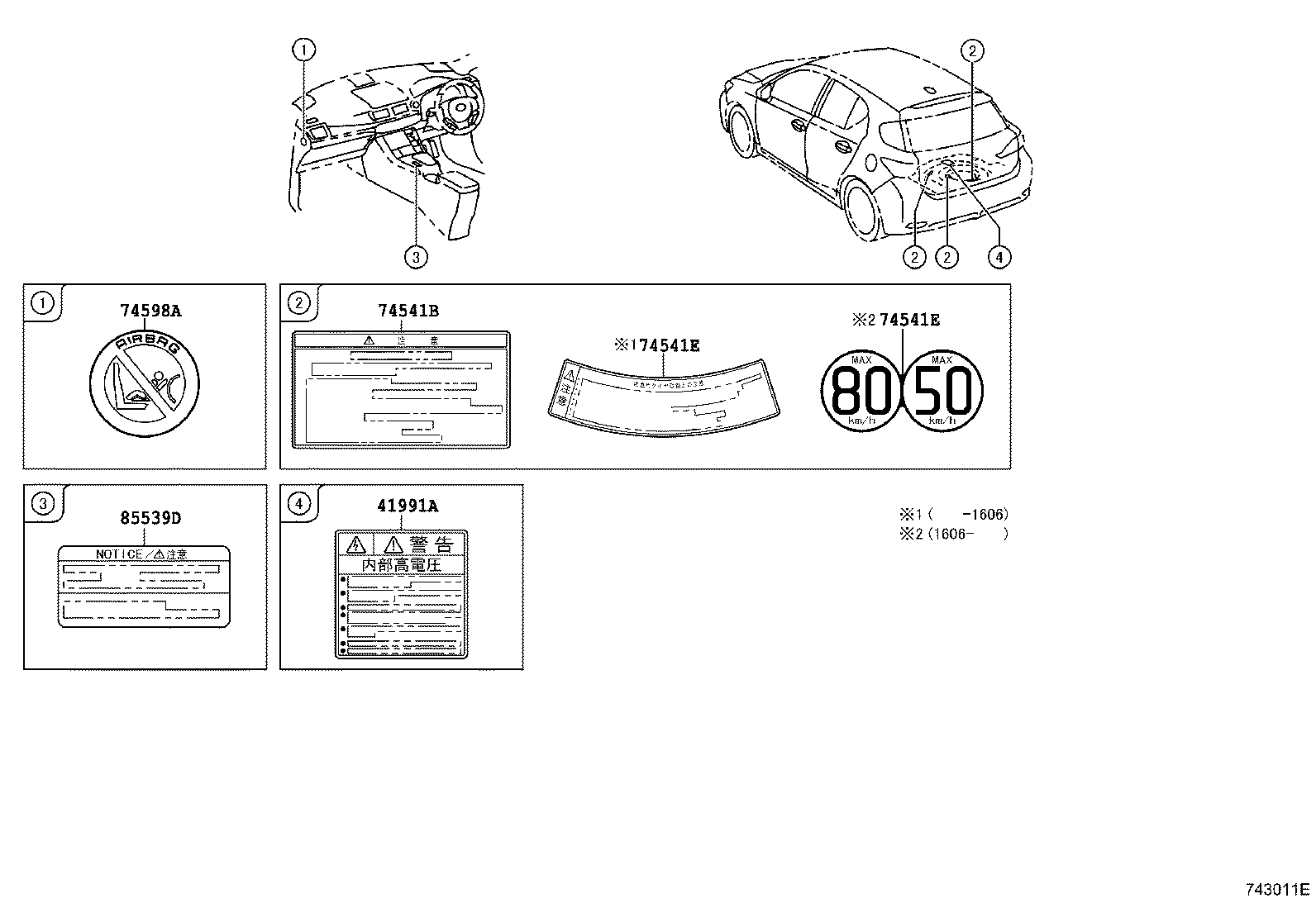

ILLUST NO. 3 OF 3(1012- )
Click highlighted areas on diagram
ﾅｲｿｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41991A - PLATE, CAUTION | ||||
| 41991-76010 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 74541B - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-28060 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17) |
1 | ||
| 74598A - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
ZWA10 |
1 | ||
| 85539D - LABEL, POWER OUTLET NOTICE | ||||
| 85539-76010 |
ZWA10 |
1 | ||

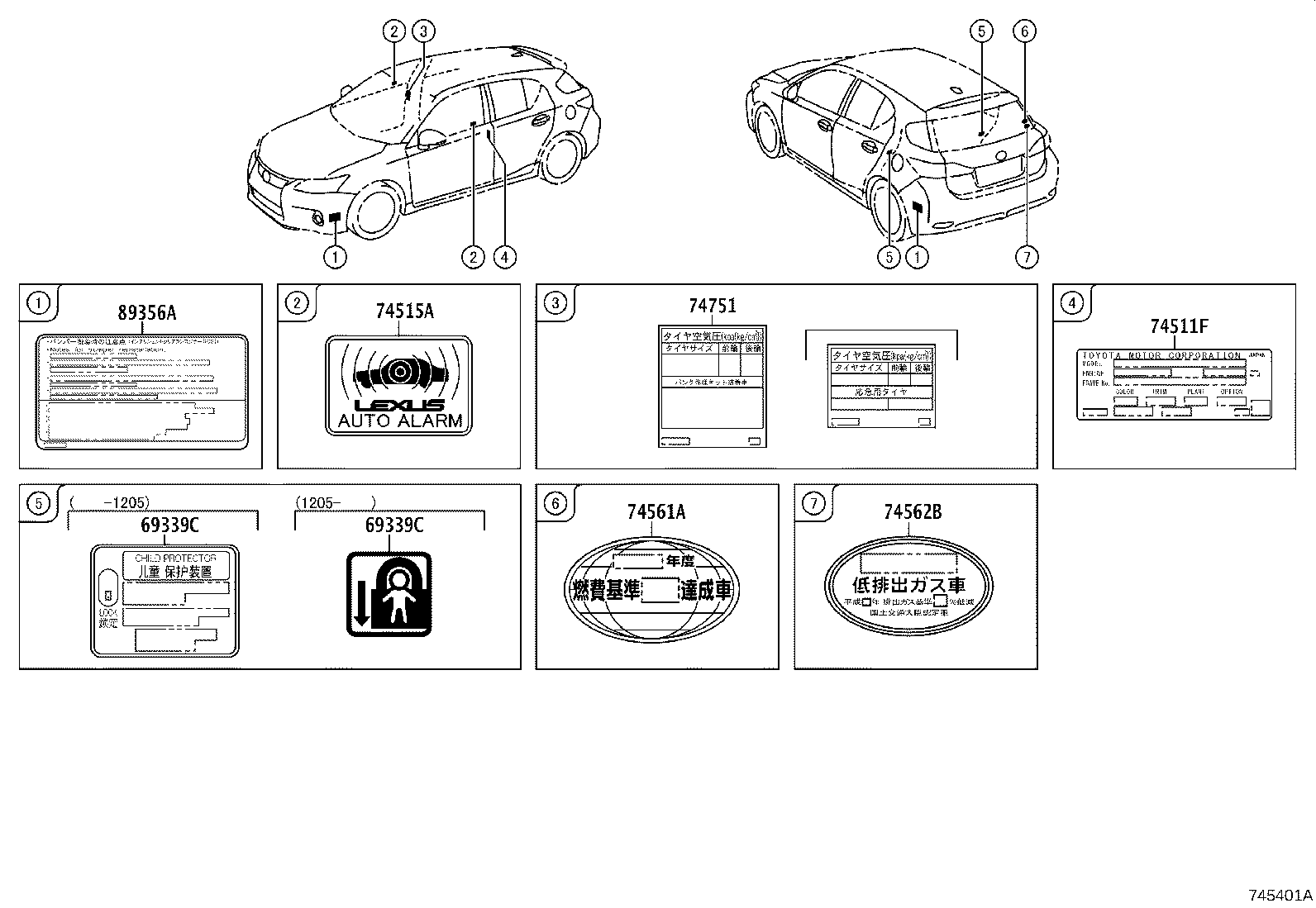

ILLUST NO. 2 OF 3(1012- )
Click highlighted areas on diagram
ｶﾞｲｿｳﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69339C - LABEL, CHILD PROTECTOR INFORMATION | ||||
| 69339-33040 |
ZWA10 |
2 | ||
| 69339-33030 |
ZWA10 |
2 | ||
| 69339C - LABEL, CHILD PROTECTOR INFORMATION | ||||
| 69339-33040 |
ZWA10 |
2 | ||
| 69339-33030 |
ZWA10 |
2 | ||
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-2B300 |
ZWA10 *111 |
1 | ||
| 74515A - PLATE, THEFT WARNING | ||||
| 74515-30040 |
ZWA10..E 盗難防止ｼｽﾃﾑ−有り(*IM,*SEH,*IS,ﾌｰﾄﾞｶｰﾃｼｽｲｯﾁ) |
2 | ||
| 74515-30040 |
ZWA10..B |
2 | ||
| 74561A - LABEL, FUEL CONSUMPTION INFORMATION | ||||
| 74561-48110 |
ZWA10 平成27年度 燃費基準+20%達成車 |
1 | ||
| 74561-28020 |
ZWA10 平成22年度 燃費基準+25%達成車 |
1 | ||
| 74562B - LABEL, EMISSION INFORMATION | ||||
| 74562-47010 |
ZWA10 H17 排出ｶﾞｽ75%低減 |
1 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-76110 |
ZWA10..E ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17) |
1 | ||
| 42661-76120 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17) |
1 | ||
| 42661-76040 |
ZWA10..E |
1 | ||
| 42661-76050 |
ZWA10..B |
1 | ||
