ZWA10-AHXBB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

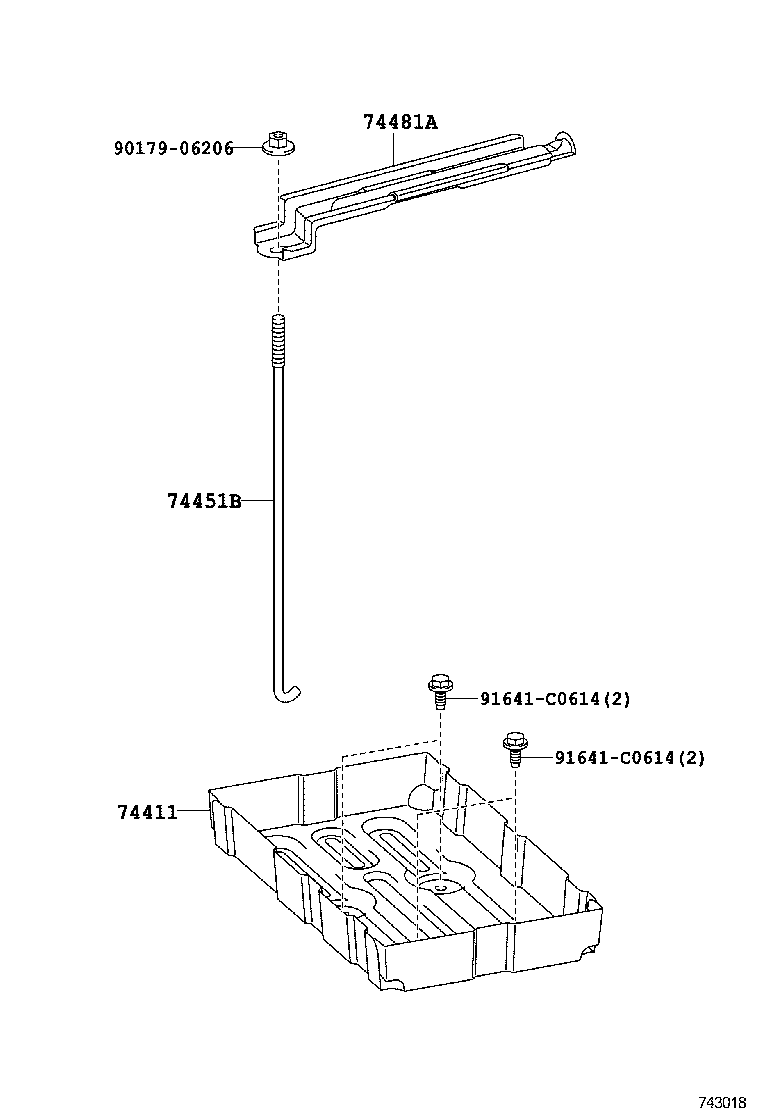

diagram 74411 74451B 74481A 9017906206 91641C0614 91641C0614
Part # Description Qty Price
74411 - CARRIER, BATTERY
74413-76010

ZWA10

 1
74451B - BOLT, BATTERY CLAMP
74451-30110

ZWA10

 1
74451-16010

ZWA10

 1
74481A - CLAMP, BATTERY
74481-76010

ZWA10

 1
Common parts
90179-06206
91641-C0614
