Toyota Lexus ct200h ZWA10 ARMREST & VISOR

ZWA10-AHXBB (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

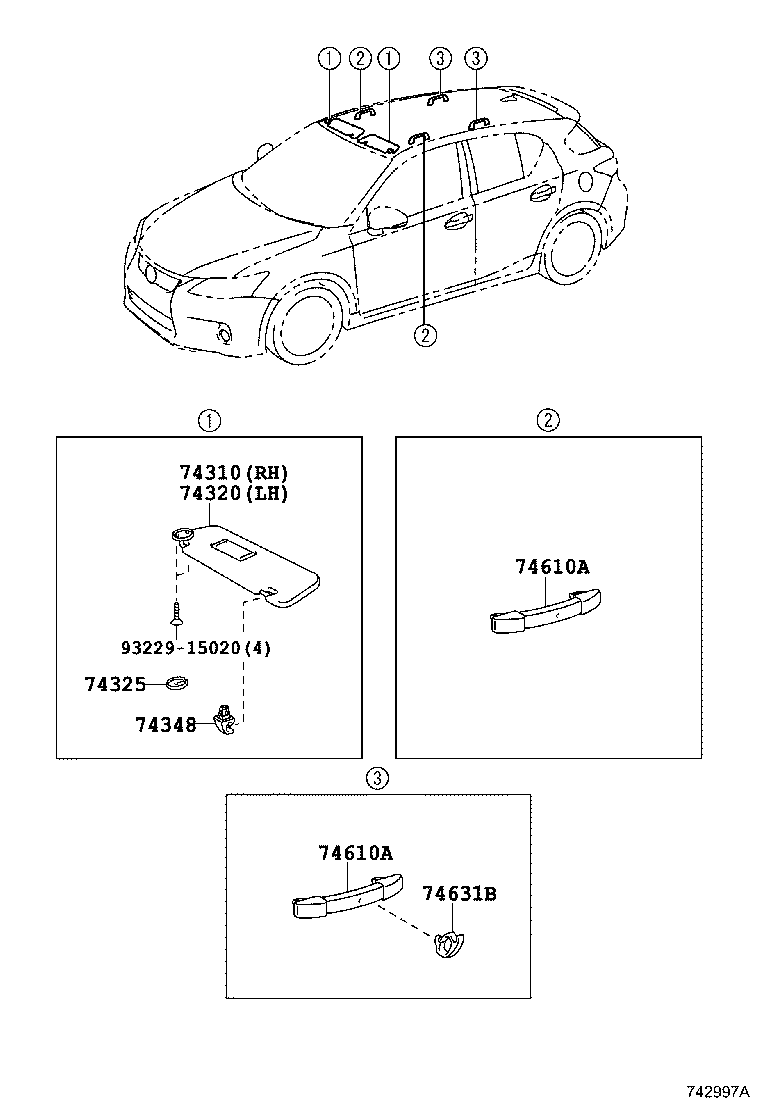

Click highlighted areas on diagram

ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ

Part #	Description	Period	Qty
74310 - VISOR ASSY, RH
74310-76010B0	ZWA10 LT.GRAY,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2013	1
74310-76130C1	ZWA10..B F SPORT,BLACK,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2013	1
74320 - VISOR ASSY, LH
74320-76010B0	ZWA10 LT.GRAY,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2013	1
74320-76080C1	ZWA10..B F SPORT,BLACK,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2013	1
74325 - COVER, VISOR BRACKET
74317-60020B1	ZWA10 LT.GRAY,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2013	2
74348 - HOLDER, VISOR
74348-33040B1	ZWA10 LT.GRAY,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2013	2
74348-33040C0	ZWA10..B F SPORT,BLACK,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2013	2
74610A - GRIP SUB-ASSY, ASSIST
74610-30270B0	ZWA10 LT.GRAY,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2013	4
74610-30270C0	ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80	12/2010 - 12/2013	4
74610A - GRIP SUB-ASSY, ASSIST
74610-30270B0	ZWA10 LT.GRAY,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2013	4
74610-30270C0	ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80	12/2010 - 12/2013	4
74631B - HOOK, COAT
74631-30080C0	ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80	12/2010 - 12/2013	2
74631-30080B2	ZWA10 LT.GRAY,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2013	2
Common parts
93229-15020

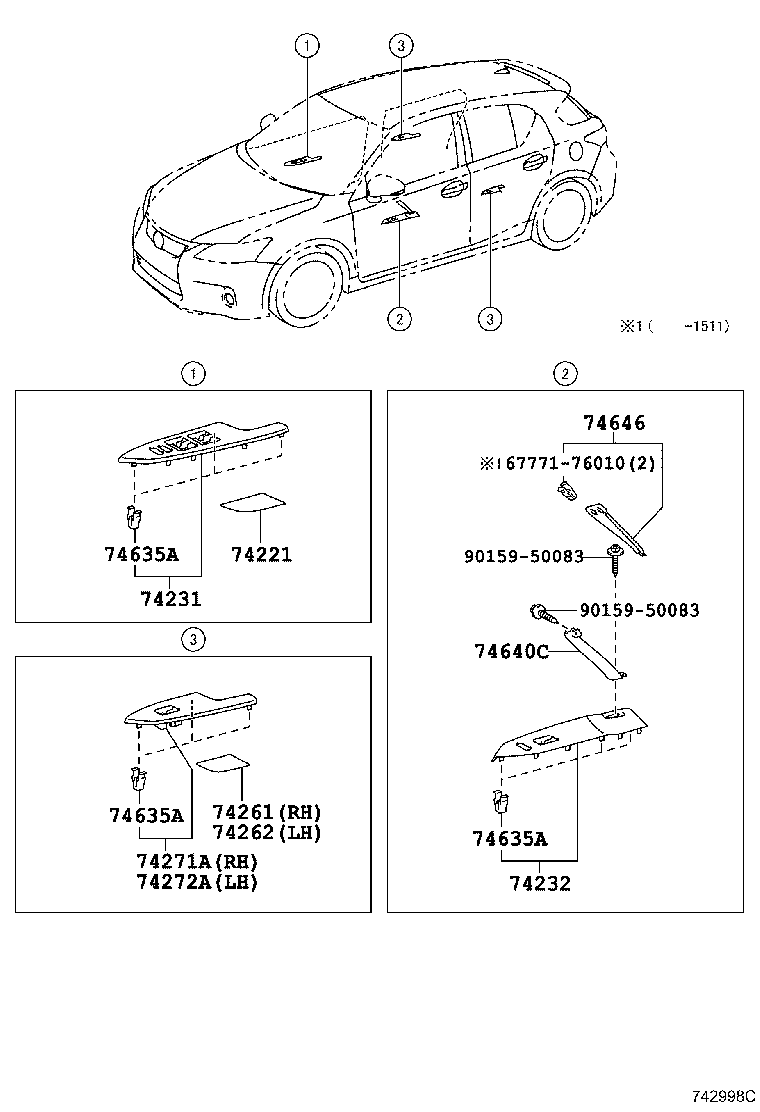

Click highlighted areas on diagram

ｱｰﾑﾚｽﾄ

Part #	Description	Period	Qty
74221 - COVER, DOOR ARMREST, RH
74221-76010	ZWA10	12/2010 - 12/2013	1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-76020	ZWA10	12/2010 - 12/2013	1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-76020	ZWA10	12/2010 - 12/2013	1
74261 - COVER, REAR DOOR ARMREST, RH
74261-76010	ZWA10	12/2010 - 12/2013	1
74262 - COVER, REAR DOOR ARMREST, LH
74262-76010	ZWA10	12/2010 - 12/2013	1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-76010	ZWA10	12/2010 - 12/2013	1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-76010	ZWA10	12/2010 - 12/2013	1
74635A - CLIP
90467-10203	ZWA10	12/2010 - 12/2013	12
74635A - CLIP
90467-10203	ZWA10	12/2010 - 12/2013	12
74635A - CLIP
90467-10203	ZWA10	12/2010 - 12/2013	12
74640C - GRIP ASSY, DOOR ASSIST, LH
74642-76010B0	ZWA10 ORNAMENT SILVER,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2013	1
74646 - COVER, DOOR ASSIST GRIP, LH
74646-76020C0	ZWA10 BLACK,TRIM0#,2#,3#,4#,8#	01/2013 - 12/2013	1
74646-76010C1	ZWA10 BLACK,TRIM0#,2#,3#,4#,8#	12/2010 - 12/2012	1
Common parts
67771-76010
90159-50083
