ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

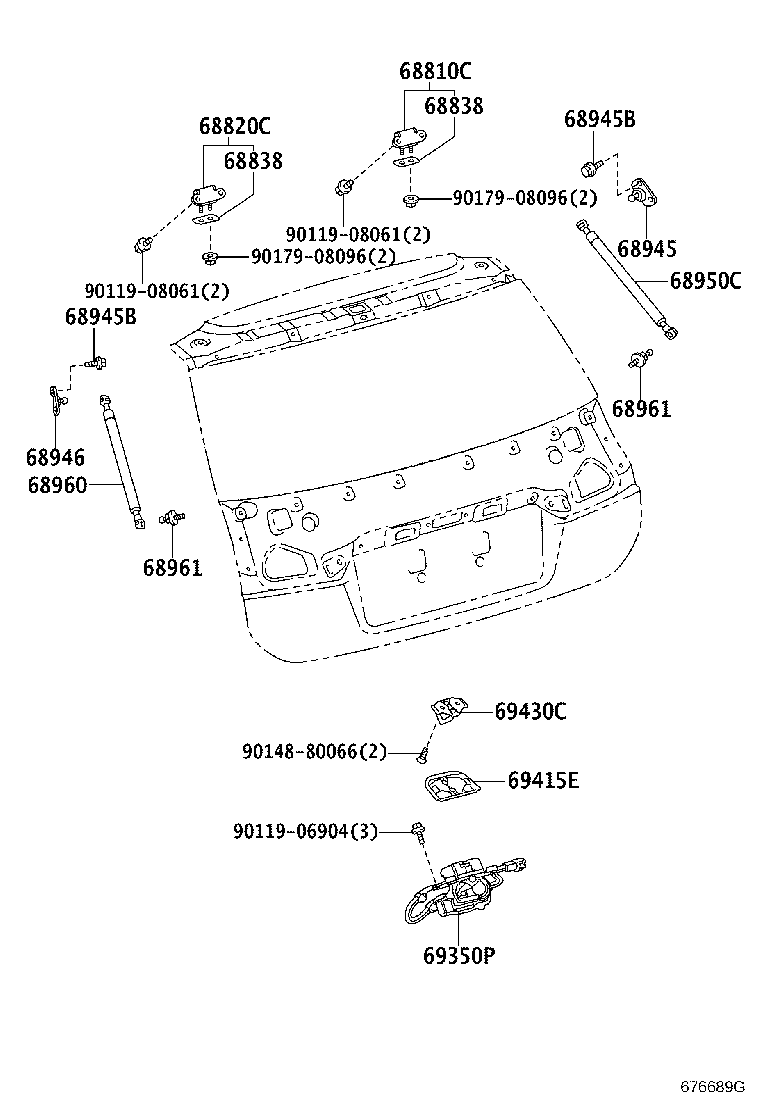

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-47010 |
ZWA10 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-47010 |
ZWA10 |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-44020 |
ZWA10 厚さ=1.0 |
2 | ||
| 68838-32010 |
ZWA10 厚さ=2.0 |
2 | ||
| 68838-52020 |
ZWA10 厚さ=1.6 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-44020 |
ZWA10 厚さ=1.0 |
2 | ||
| 68838-32010 |
ZWA10 厚さ=2.0 |
2 | ||
| 68838-52020 |
ZWA10 厚さ=1.6 |
2 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-76010 |
ZWA10 |
1 | ||
| 68945B - BOLT, BACK DOOR DAMPER STAY BRACKET | ||||
| 90105-06119 |
ZWA10 |
4 | ||
| 68945B - BOLT, BACK DOOR DAMPER STAY BRACKET | ||||
| 90105-06119 |
ZWA10 |
4 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-76010 |
ZWA10 |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-76030 |
ZWA10..B |
1 | ||
| 68950-76031 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 68950-76030 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 68950-76031 |
ZWA10..E |
1 | ||
| 68950-76031 |
ZWA10..B |
1 | ||
| 68950-76010 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 68950-76010 |
ZWA10..E |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-76030 |
ZWA10..B |
1 | ||
| 68960-76010 |
ZWA10..E |
1 | ||
| 68960-76010 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 68960-76031 |
ZWA10..B |
1 | ||
| 68960-76030 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 68960-76031 |
ZWA10..E |
1 | ||
| 68960-76031 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-20140 |
ZWA10 |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-20140 |
ZWA10 |
2 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-47020 |
ZWA10 |
1 | ||
| 69350-47040 |
ZWA10 |
1 | ||
| 69415E - COVER, BACK DOOR LOCK STRIKER | ||||
| 69415-47020 |
ZWA10 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69431-47010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-06904 | ||||
| 90119-08061 | ||||
| 90148-80066 | ||||
| 90179-08096 | ||||
