ZWA10-AHXBB (2010)
Toyota Lexus Ct200h

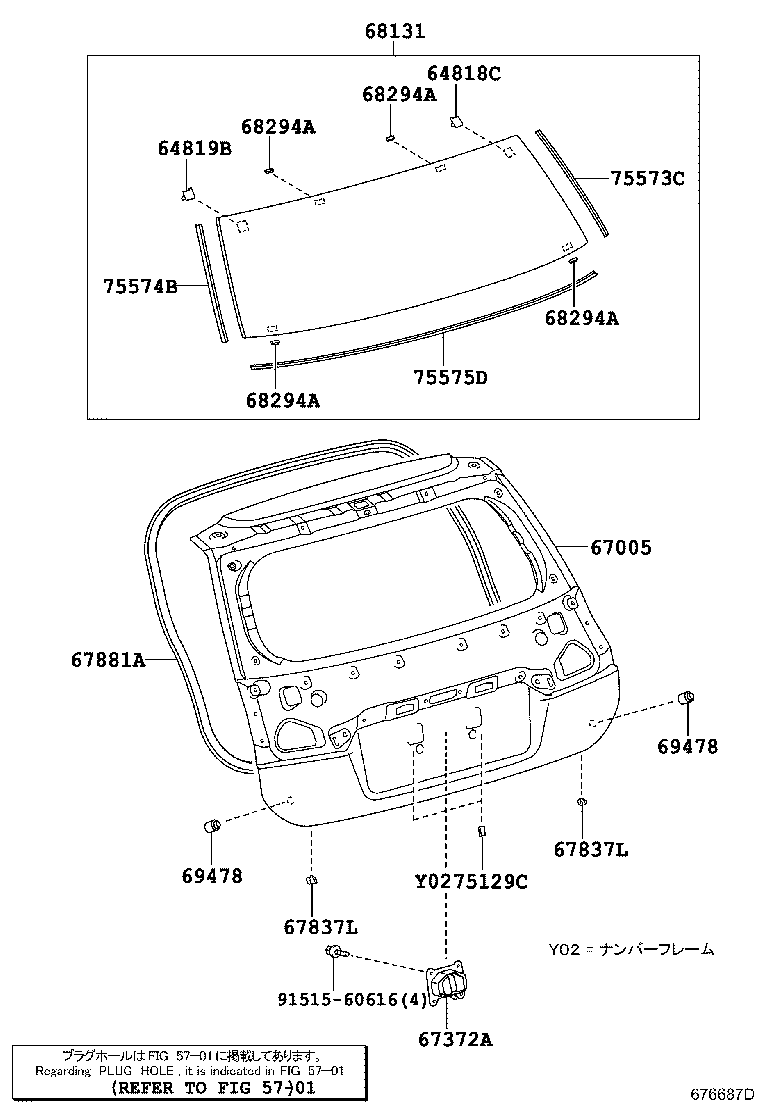

ILLUST NO. 1 OF 2(1012- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818C - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-76010 |
ZWA10 |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-76010 |
ZWA10 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-76030 |
ZWA10 |
1 | ||
| 67005-76010 |
ZWA10 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD) |
1 | ||
| 67005-76010 |
ZWA10 |
1 | ||
| 67005-76010 |
ZWA10 ｲﾝﾅﾐﾗｰ−自動防眩&ﾊﾞｯｸﾓﾆﾀ |
1 | ||
| 67372A - WEIGHT, BACK DOOR | ||||
| 67372-76010 |
ZWA10 |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-76010 |
ZWA10 |
2 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-76010 |
ZWA10 |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-76010 |
ZWA10 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-76050 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 68105-76070 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し |
1 | ||
| 68105-76070 |
ZWA10..E |
1 | ||
| 68105-76050 |
ZWA10..E |
1 | ||
| 68105-76050 |
ZWA10..B |
1 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
ZWA10 |
4 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
ZWA10 |
4 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
ZWA10 |
4 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
ZWA10 |
4 | ||
| 69478 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 69478-47010 |
ZWA10 |
2 | ||
| 69478 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 69478-47010 |
ZWA10 |
2 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-13020 |
ZWA10 |
2 | ||
| 75129-30010 |
ZWA10 |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-76010 |
ZWA10 |
1 | ||
| 75574B - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75574-76010 |
ZWA10 |
1 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-76010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 91515-60616 | ||||
| Linked diagrams | ||||
| 5701 | ||||

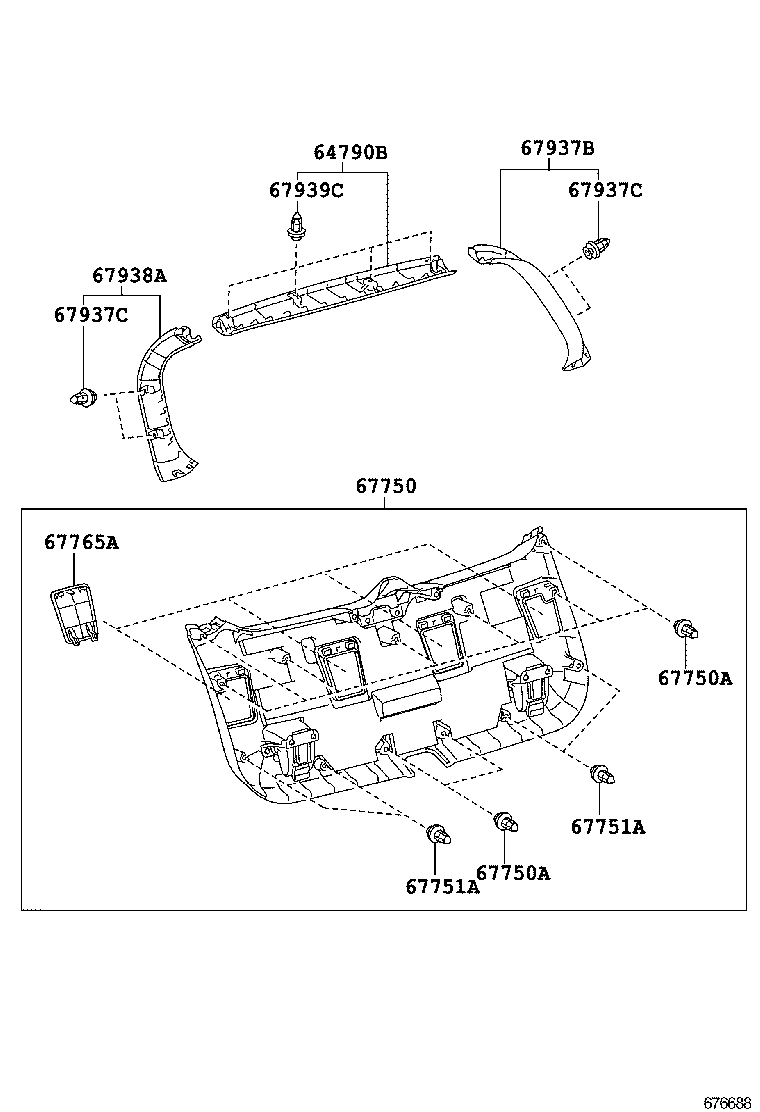

ILLUST NO. 2 OF 2(1012- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64790B - PANEL ASSY, BACK DOOR TRIM, UPPER | ||||
| 64790-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64790-76011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-76020C0 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67750-76010C0 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67750-76020C0 |
ZWA10..E ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67750-76010C0 |
ZWA10..B ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−無し,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67750-76020C0 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
ZWA10 |
9 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
ZWA10 |
9 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10188 |
ZWA10 |
4 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10188 |
ZWA10 |
4 | ||
| 67765A - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67765-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
4 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-76011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67937-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
ZWA10 |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
ZWA10 |
4 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-76011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67938-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
ZWA10 |
4 | ||
