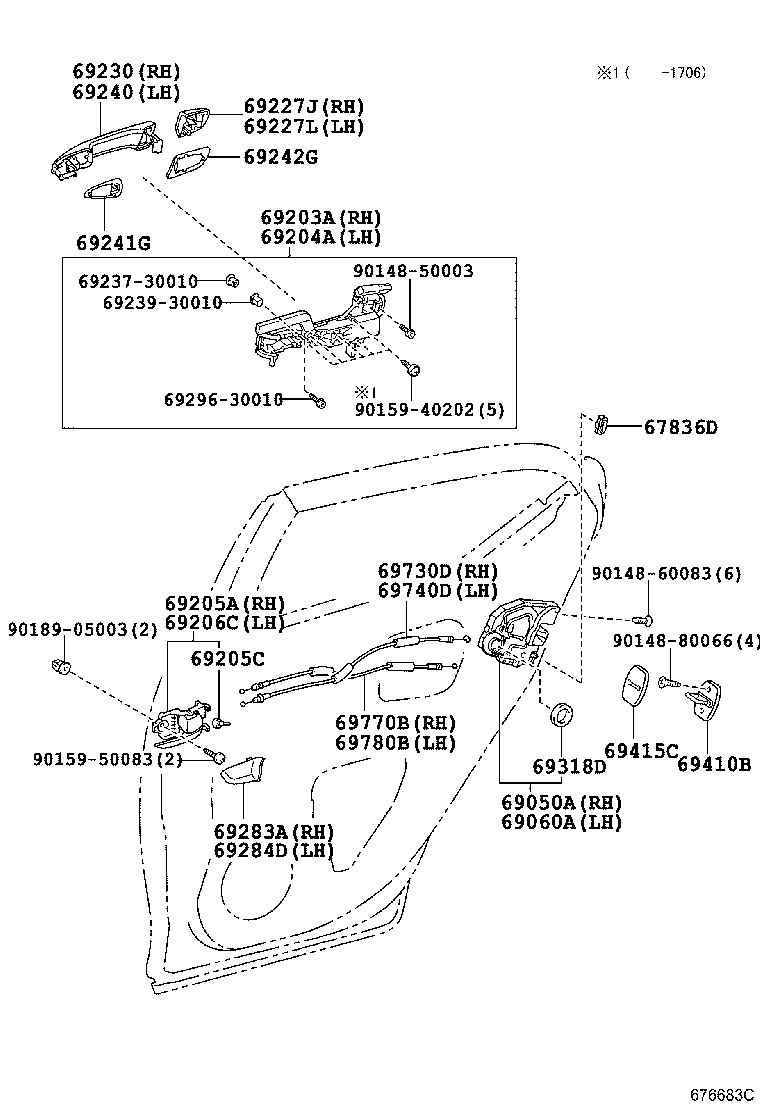

ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67836D - COVER, REAR DOOR LOCK CHILD PROTECTION | ||||
| 67836-12040 |
ZWA10 |
2 | ||
| 69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH | ||||
| 69050-33131 |
ZWA10 |
1 | ||
| 69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH | ||||
| 69060-33131 |
ZWA10 |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-75020 |
ZWA10 |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-75020 |
ZWA10 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-75010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
ZWA10 |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-75010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-48010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
1 | ||
| 69227-48010C1 |
ZWA10 BLACK OPAL MC.,214 |
1 | ||
| 69227-48010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
1 | ||
| 69227-48010B2 |
ZWA10 SILVER M.M.,1G1 |
1 | ||
| 69227-48010D0 |
ZWA10 RED MC.CS.,3R1 |
1 | ||
| 69227-48010J2 |
ZWA10 BLUE ME.,8U1 |
1 | ||
| 69227-48010C0 |
ZWA10 BLACK,212 |
1 | ||
| 69227-48010B0 |
ZWA10 DK.GRAY MC.,1G0 |
1 | ||
| 69227-48010A2 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 69227-48010A0 |
ZWA10 WHITE PEARL CS.,077 |
1 | ||
| 69227-48010B4 |
ZWA10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69227-48010B6 |
ZWA10 PLATINUM SILVER ME.,1J4 |
1 | ||
| 69227-48010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 69227-48010E2 |
ZWA10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69228-48010B0 |
ZWA10 DK.GRAY MC.,1G0 |
1 | ||
| 69228-48010C1 |
ZWA10 BLACK OPAL MC.,214 |
1 | ||
| 69228-48010C0 |
ZWA10 BLACK,212 |
1 | ||
| 69228-48010E2 |
ZWA10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69228-48010B2 |
ZWA10 SILVER M.M.,1G1 |
1 | ||
| 69228-48010A0 |
ZWA10 WHITE PEARL CS.,077 |
1 | ||
| 69228-48010B6 |
ZWA10 PLATINUM SILVER ME.,1J4 |
1 | ||
| 69228-48010D0 |
ZWA10 RED MC.CS.,3R1 |
1 | ||
| 69228-48010A2 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 69228-48010B4 |
ZWA10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69228-48010J2 |
ZWA10 BLUE ME.,8U1 |
1 | ||
| 69228-48010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
1 | ||
| 69228-48010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
1 | ||
| 69228-48010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-76010A0 |
ZWA10 WHITE PEARL CS.,077 |
1 | ||
| 69210-76010B2 |
ZWA10 DK.GRAY MC.,1G0 |
1 | ||
| 69210-76010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
1 | ||
| 69210-76010B4 |
ZWA10 PLATINUM SILVER ME.,1J4 |
1 | ||
| 69210-76010B0 |
ZWA10 SILVER M.M.,1G1 |
1 | ||
| 69210-76010B1 |
ZWA10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69210-76010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
1 | ||
| 69210-76010C1 |
ZWA10 BLACK OPAL MC.,214 |
1 | ||
| 69210-76010E0 |
ZWA10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69210-76010J0 |
ZWA10 BLUE ME.,8U1 |
1 | ||
| 69210-76010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 69210-76010A2 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 69210-76010D0 |
ZWA10 RED MC.CS.,3R1 |
1 | ||
| 69210-76010C0 |
ZWA10 BLACK,212 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-76010J0 |
ZWA10 BLUE ME.,8U1 |
1 | ||
| 69220-76010B2 |
ZWA10 DK.GRAY MC.,1G0 |
1 | ||
| 69220-76010D0 |
ZWA10 RED MC.CS.,3R1 |
1 | ||
| 69220-76010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
1 | ||
| 69220-76010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 69220-76010E0 |
ZWA10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69220-76010B1 |
ZWA10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69220-76010B0 |
ZWA10 SILVER M.M.,1G1 |
1 | ||
| 69220-76010C0 |
ZWA10 BLACK,212 |
1 | ||
| 69220-76010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
1 | ||
| 69220-76010C1 |
ZWA10 BLACK OPAL MC.,214 |
1 | ||
| 69220-76010A0 |
ZWA10 WHITE PEARL CS.,077 |
1 | ||
| 69220-76010B4 |
ZWA10 PLATINUM SILVER ME.,1J4 |
1 | ||
| 69220-76010A2 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-48030 |
ZWA10 右側 |
1 | ||
| 69242-48030 |
ZWA10 左側 |
1 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-48041 |
ZWA10 左側 |
1 | ||
| 69241-48041 |
ZWA10 右側 |
1 | ||
| 69241-48050 |
ZWA10 右側 |
1 | ||
| 69242-48050 |
ZWA10 左側 |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30050C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30050C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ZWA10 |
2 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-33030 |
ZWA10 |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-33010 |
ZWA10 |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-76010 |
ZWA10 |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-76010 |
ZWA10 |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-76010 |
ZWA10 |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-76010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69239-30010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90159-40202 | ||||
| 90159-50083 | ||||
| 90189-05003 | ||||
