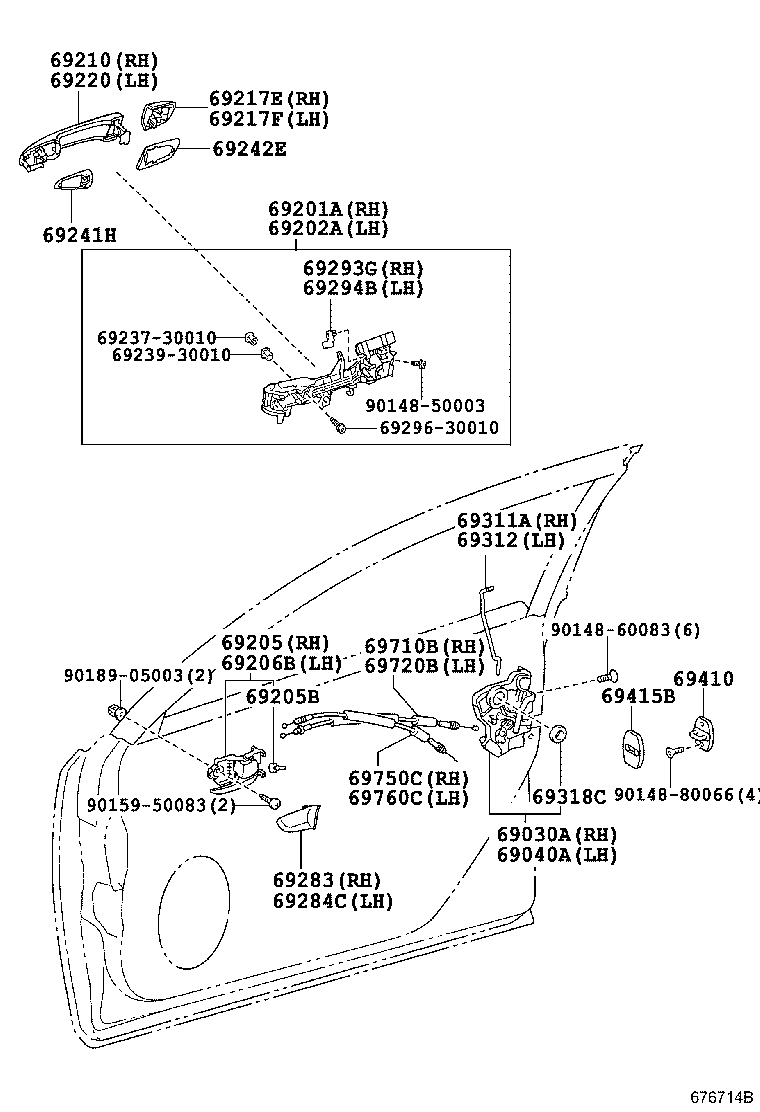

ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-42210 |
ZWA10 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-42230 |
ZWA10 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-48011 |
ZWA10 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-48011 |
ZWA10 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-75010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
ZWA10 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-75010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-48040B0 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),DK.GRAY MC.,1G0 |
1 | ||
| 69210-48040J1 |
ZWA10..B SILVERY BLUE ME.,8U9 |
1 | ||
| 69210-48040B2 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),SILVER M.M.,1G1 |
1 | ||
| 69210-48040J1 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),SILVERY BLUE ME.,8U9 |
1 | ||
| 69210-48040B2 |
ZWA10..B SILVER M.M.,1G1 |
1 | ||
| 69210-48040B0 |
ZWA10..B DK.GRAY MC.,1G0 |
1 | ||
| 69210-48040C0 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),BLACK,212 |
1 | ||
| 69210-48040D0 |
ZWA10..B RED MC.CS.,3R1 |
1 | ||
| 69210-48040A0 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),WHITE PEARL CS.,077 |
1 | ||
| 69210-48040C0 |
ZWA10..B BLACK,212 |
1 | ||
| 69210-76010B0 |
ZWA10..E SILVER M.M.,1G1 |
1 | ||
| 69210-76010J1 |
ZWA10..E SILVERY BLUE ME.,8U9 |
1 | ||
| 69210-76010B2 |
ZWA10..E DK.GRAY MC.,1G0 |
1 | ||
| 69210-48040J2 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),BLUE ME.,8U1 |
1 | ||
| 69210-48040C1 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),BLACK OPALMC.,214 |
1 | ||
| 69210-48040F0 |
ZWA10..B FLARE YELLOW M.M.,5B1 |
1 | ||
| 69210-76010E0 |
ZWA10..E FIRE AGATE M.M.,4V3 |
1 | ||
| 69210-76010A0 |
ZWA10..E WHITE PEARL CS.,077 |
1 | ||
| 69210-48040D0 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),RED MC.CS.,3R1 |
1 | ||
| 69210-48040C1 |
ZWA10..B BLACK OPAL MC.,214 |
1 | ||
| 69210-48040A0 |
ZWA10..B WHITE PEARL CS.,077 |
1 | ||
| 69210-76010C0 |
ZWA10..E BLACK,212 |
1 | ||
| 69210-48040B4 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),MERCURY GRAY MC.,1H9 |
1 | ||
| 69210-48040J2 |
ZWA10..B BLUE ME.,8U1 |
1 | ||
| 69210-76010D0 |
ZWA10..E RED MC.CS.,3R1 |
1 | ||
| 69210-48040B4 |
ZWA10..B MERCURY GRAY MC.,1H9 |
1 | ||
| 69210-76010J0 |
ZWA10..E BLUE ME.,8U1 |
1 | ||
| 69210-76010F0 |
ZWA10..E FLARE YELLOW M.M.,5B1 |
1 | ||
| 69210-48040E2 |
ZWA10..B FIRE AGATE M.M.,4V3 |
1 | ||
| 69210-76010C1 |
ZWA10..E BLACK OPAL MC.,214 |
1 | ||
| 69210-48040A2 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 69210-76010B1 |
ZWA10..E MERCURY GRAY MC.,1H9 |
1 | ||
| 69210-48040E2 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),FIRE AGATEM.M.,4V3 |
1 | ||
| 69210-48040F0 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),FLARE YELLOW M.M.,5B1 |
1 | ||
| 69210-48040B6 |
ZWA10..B PLATINUM SILVER ME.,1J4 |
1 | ||
| 69210-76010B4 |
ZWA10..E PLATINUM SILVER ME.,1J4 |
1 | ||
| 69210-48040B6 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),PLATINUM SILVER ME.,1J4 |
1 | ||
| 69210-48040C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-48010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
1 | ||
| 69217-48010C0 |
ZWA10 BLACK,212 |
1 | ||
| 69217-48010B0 |
ZWA10 DK.GRAY MC.,1G0 |
1 | ||
| 69217-48010A0 |
ZWA10 WHITE PEARL CS.,077 |
1 | ||
| 69217-48010B2 |
ZWA10 SILVER M.M.,1G1 |
1 | ||
| 69217-48010D0 |
ZWA10 RED MC.CS.,3R1 |
1 | ||
| 69217-48010E2 |
ZWA10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69217-48010A2 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 69217-48010J2 |
ZWA10 BLUE ME.,8U1 |
1 | ||
| 69217-48010B4 |
ZWA10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69217-48010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 69217-48010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
1 | ||
| 69217-48010B6 |
ZWA10 PLATINUM SILVER ME.,1J4 |
1 | ||
| 69217-48010C1 |
ZWA10 BLACK OPAL MC.,214 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69218-48010J1 |
ZWA10 SILVERY BLUE ME.,8U9 |
1 | ||
| 69218-48010A0 |
ZWA10 WHITE PEARL CS.,077 |
1 | ||
| 69218-48010C1 |
ZWA10 BLACK OPAL MC.,214 |
1 | ||
| 69218-48010B0 |
ZWA10 DK.GRAY MC.,1G0 |
1 | ||
| 69218-48010D0 |
ZWA10 RED MC.CS.,3R1 |
1 | ||
| 69218-48010B2 |
ZWA10 SILVER M.M.,1G1 |
1 | ||
| 69218-48010F0 |
ZWA10 FLARE YELLOW M.M.,5B1 |
1 | ||
| 69218-48010C0 |
ZWA10 BLACK,212 |
1 | ||
| 69218-48010J2 |
ZWA10 BLUE ME.,8U1 |
1 | ||
| 69218-48010B4 |
ZWA10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69218-48010E2 |
ZWA10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69218-48010C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 69218-48010A2 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 69218-48010B6 |
ZWA10 PLATINUM SILVER ME.,1J4 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-48040B2 |
ZWA10..B SILVER M.M.,1G1 |
1 | ||
| 69220-48040B0 |
ZWA10..B DK.GRAY MC.,1G0 |
1 | ||
| 69220-48040B2 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),SILVER M.M.,1G1 |
1 | ||
| 69220-48040J1 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),SILVERY BLUE ME.,8U9 |
1 | ||
| 69220-48040C0 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),BLACK,212 |
1 | ||
| 69220-48040J1 |
ZWA10..B SILVERY BLUE ME.,8U9 |
1 | ||
| 69220-76010B0 |
ZWA10..E SILVER M.M.,1G1 |
1 | ||
| 69220-48040C1 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),BLACK OPALMC.,214 |
1 | ||
| 69220-48040A0 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),WHITE PEARL CS.,077 |
1 | ||
| 69220-48040A0 |
ZWA10..B WHITE PEARL CS.,077 |
1 | ||
| 69220-76010B2 |
ZWA10..E DK.GRAY MC.,1G0 |
1 | ||
| 69220-48040D0 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),RED MC.CS.,3R1 |
1 | ||
| 69220-48040E2 |
ZWA10..B FIRE AGATE M.M.,4V3 |
1 | ||
| 69220-48040D0 |
ZWA10..B RED MC.CS.,3R1 |
1 | ||
| 69220-48040B0 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),DK.GRAY MC.,1G0 |
1 | ||
| 69220-48040C0 |
ZWA10..B BLACK,212 |
1 | ||
| 69220-48040C1 |
ZWA10..B BLACK OPAL MC.,214 |
1 | ||
| 69220-48040F0 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),FLARE YELLOW M.M.,5B1 |
1 | ||
| 69220-76010F0 |
ZWA10..E FLARE YELLOW M.M.,5B1 |
1 | ||
| 69220-48040F0 |
ZWA10..B FLARE YELLOW M.M.,5B1 |
1 | ||
| 69220-76010C1 |
ZWA10..E BLACK OPAL MC.,214 |
1 | ||
| 69220-48040J2 |
ZWA10..B BLUE ME.,8U1 |
1 | ||
| 69220-76010D0 |
ZWA10..E RED MC.CS.,3R1 |
1 | ||
| 69220-48040E2 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),FIRE AGATEM.M.,4V3 |
1 | ||
| 69220-76010J1 |
ZWA10..E SILVERY BLUE ME.,8U9 |
1 | ||
| 69220-76010E0 |
ZWA10..E FIRE AGATE M.M.,4V3 |
1 | ||
| 69220-48040B4 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),MERCURY GRAY MC.,1H9 |
1 | ||
| 69220-48040A2 |
ZWA10..B WHITE NOVA GF.,083 |
1 | ||
| 69220-76010B1 |
ZWA10..E MERCURY GRAY MC.,1H9 |
1 | ||
| 69220-76010A0 |
ZWA10..E WHITE PEARL CS.,077 |
1 | ||
| 69220-76010J0 |
ZWA10..E BLUE ME.,8U1 |
1 | ||
| 69220-48040B6 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),PLATINUM SILVER ME.,1J4 |
1 | ||
| 69220-48040B6 |
ZWA10..B PLATINUM SILVER ME.,1J4 |
1 | ||
| 69220-76010C0 |
ZWA10..E BLACK,212 |
1 | ||
| 69220-76010B4 |
ZWA10..E PLATINUM SILVER ME.,1J4 |
1 | ||
| 69220-48040J2 |
ZWA10..E ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&無し(ﾊﾟﾆｯｸﾎﾞﾀﾝ),BLUE ME.,8U1 |
1 | ||
| 69220-48040B4 |
ZWA10..B MERCURY GRAY MC.,1H9 |
1 | ||
| 69220-48040C2 |
ZWA10..B Creative Textile Interior *(A),STARLIGHT BLACK GF.,217 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-48030 |
ZWA10 右側 |
1 | ||
| 69242-48030 |
ZWA10 左側 |
1 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69241-48041 |
ZWA10 右側 |
1 | ||
| 69242-48050 |
ZWA10 左側 |
1 | ||
| 69242-48041 |
ZWA10 左側 |
1 | ||
| 69241-48050 |
ZWA10 右側 |
1 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30050C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30050C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ZWA10 |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ZWA10 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-76010 |
ZWA10 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-76010 |
ZWA10 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ZWA10 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33030 |
ZWA10 |
2 | ||
| 69415B - COVER, DOOR LOCK STRIKER, FRONT | ||||
| 69415-33010 |
ZWA10 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-76010 |
ZWA10 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-76010 |
ZWA10 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-76010 |
ZWA10 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-76010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69239-30010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90159-50083 | ||||
| 90189-05003 | ||||
