ZWA10-AHXBB (2010)
Toyota Lexus Ct200h

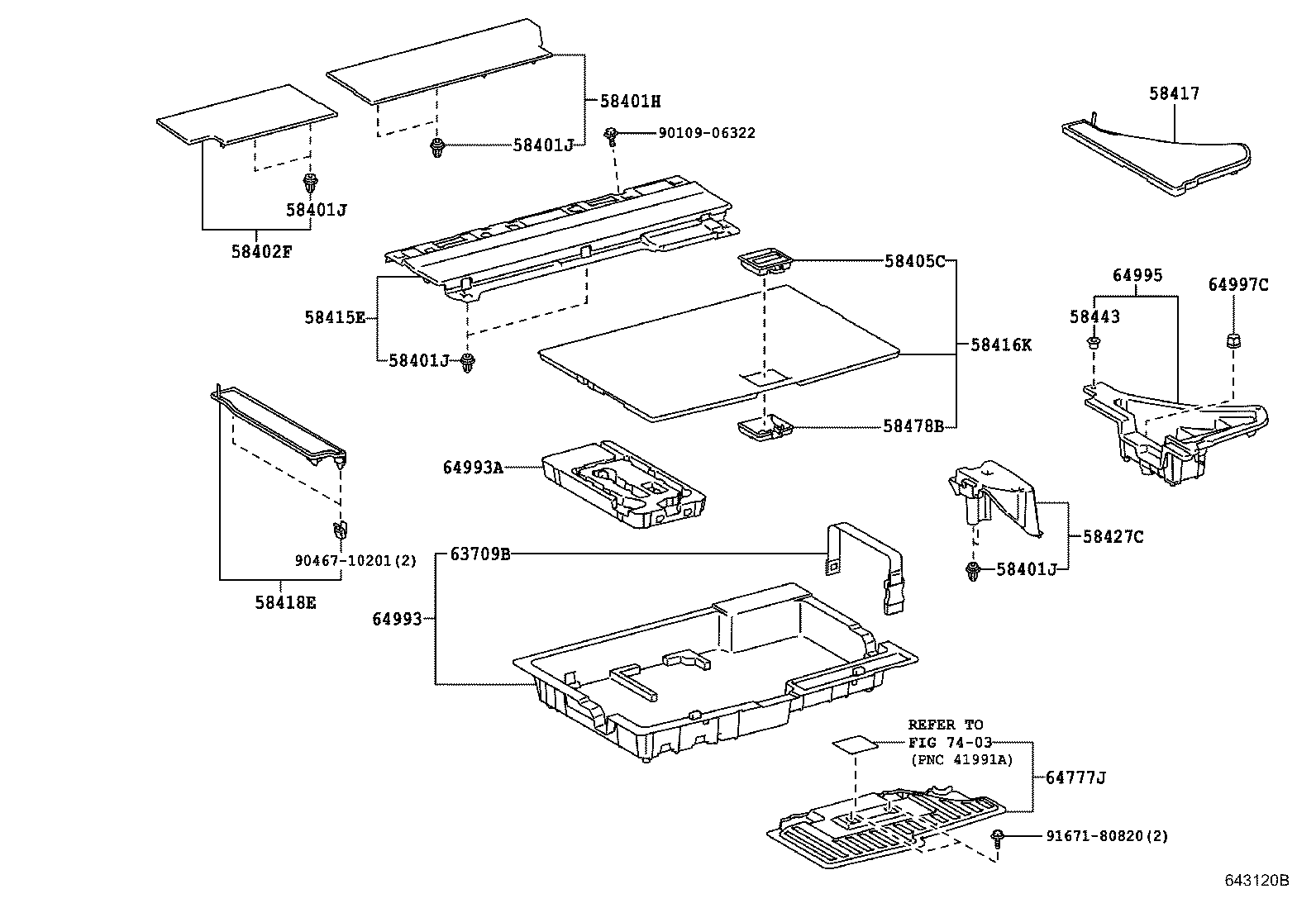

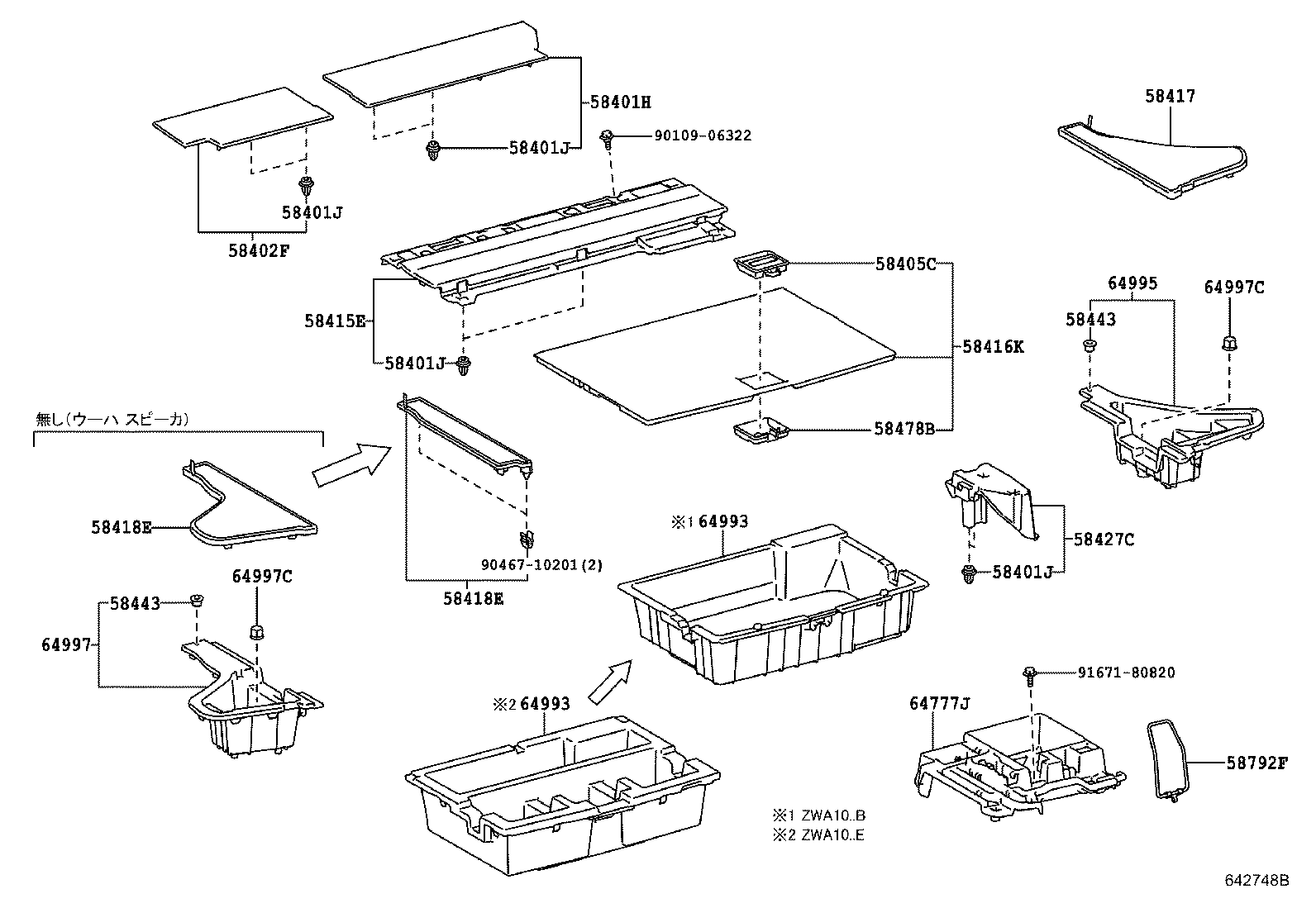

ILLUST NO. 1 OF 2(1012- )
ﾃﾞｯｷﾎﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58401H - BOARD SUB-ASSY, REAR FLOOR, NO.1 | ||||
| 58401-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58402F - BOARD SUB-ASSY, REAR FLOOR, NO.2 | ||||
| 58402-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58405C - LOCK SUB-ASSY, DECK BOARD | ||||
| 58405-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58415E - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416K - BOARD, REAR FLOOR, NO.2 | ||||
| 58416-76010C1 |
ZWA10..E ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76010C1 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58417 - BOARD, REAR FLOOR, NO.3 | ||||
| 58490-76011C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58490-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58490-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418E - BOARD, REAR FLOOR, NO.4 | ||||
| 58418-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76021C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418E - BOARD, REAR FLOOR, NO.4 | ||||
| 58418-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76021C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58427C - SPACER, REAR FLOOR BOARD | ||||
| 58427-47010 |
ZWA10 |
1 | ||
| 58443 - CUSHION, DECK BOARD, NO.1 | ||||
| 58443-33010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 58443-33010 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 58443-33010 |
ZWA10 |
1 | ||
| 58443-33010 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10 |
2 | ||
| 58443 - CUSHION, DECK BOARD, NO.1 | ||||
| 58443-33010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 58443-33010 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 58443-33010 |
ZWA10 |
1 | ||
| 58443-33010 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10 |
2 | ||
| 58478B - PROTECTOR, DECK BOARD | ||||
| 58478-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58792F - SUPPORT, JACK CARRIER | ||||
| 58792-48010 |
ZWA10 |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-76020 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64777-76020 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64777-76020 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 64777-76030 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 64777-76020 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17) |
1 | ||
| 64777-76010 |
ZWA10 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-76020 |
ZWA10..E |
1 | ||
| 64993-76040 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 64993-76030 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 64993-76010 |
ZWA10..B |
1 | ||
| 64993-76030 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17) |
1 | ||
| 64993-76030 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64993-76030 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-76020 |
ZWA10..E |
1 | ||
| 64993-76040 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 64993-76030 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 64993-76010 |
ZWA10..B |
1 | ||
| 64993-76030 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17) |
1 | ||
| 64993-76030 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64993-76030 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-76010 |
ZWA10 |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-76010 |
ZWA10 |
1 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 90467-06193C0 |
ZWA10 BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06147 |
ZWA10 |
1 | ||
| 90467-06193C0 |
ZWA10 BLACK |
2 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 90467-06193C0 |
ZWA10 BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06147 |
ZWA10 |
1 | ||
| 90467-06193C0 |
ZWA10 BLACK |
2 | ||
| Common parts | ||||
| 90109-06322 | ||||
| 90467-10201 | ||||
| 91671-80820 | ||||

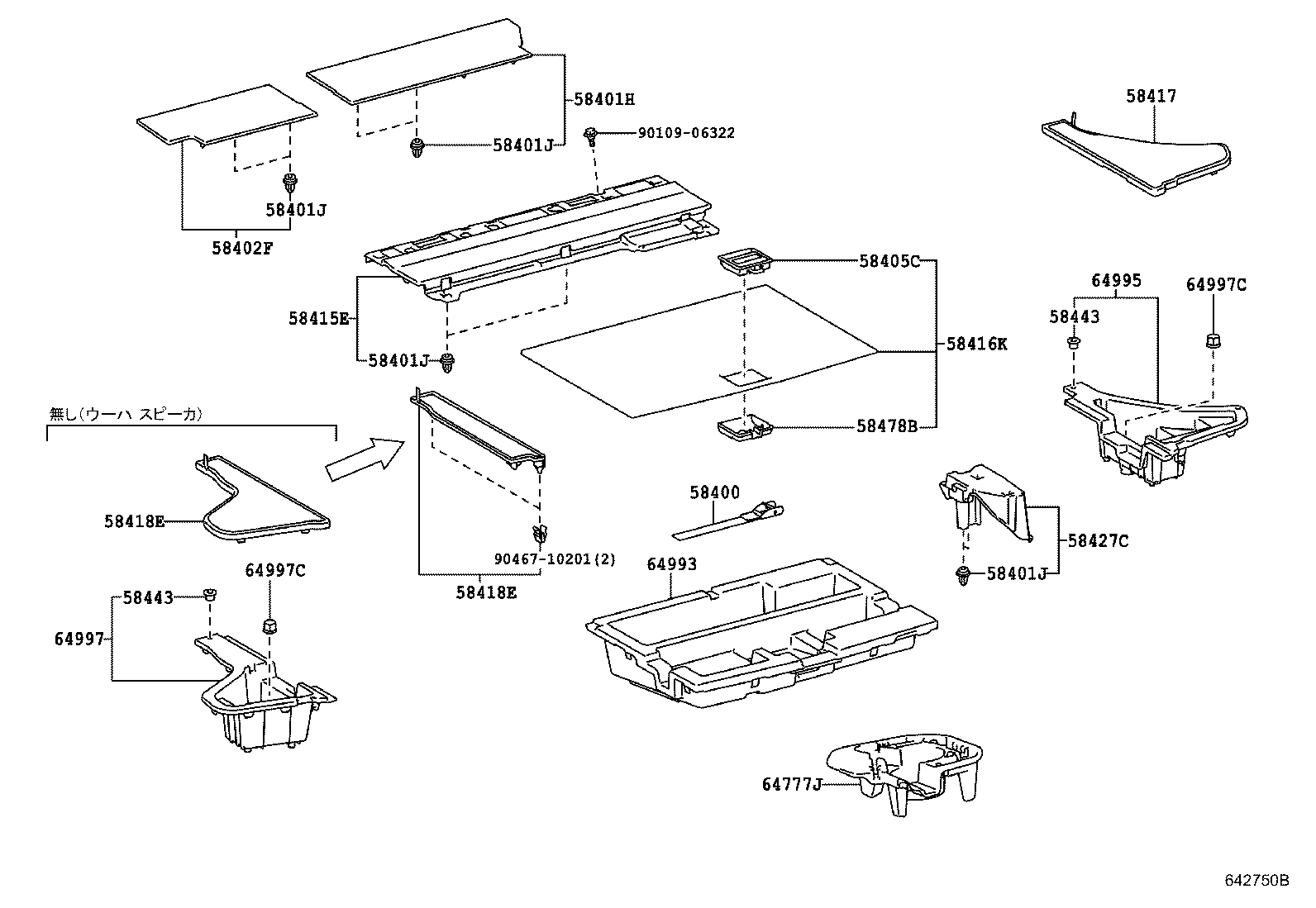

ILLUST NO. 1 OF 2(1012- )
ﾃﾞｯｷﾎﾞｰﾄﾞ,ｱﾘ(ｽﾍﾟｱﾀｲﾔ-ｵｳｷｭｳﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58400 - BELT ASSY, LUGGAGE HOLD, NO.1 | ||||
| 58400-76010C0 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58401H - BOARD SUB-ASSY, REAR FLOOR, NO.1 | ||||
| 58401-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58402F - BOARD SUB-ASSY, REAR FLOOR, NO.2 | ||||
| 58402-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58405C - LOCK SUB-ASSY, DECK BOARD | ||||
| 58405-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58415E - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416K - BOARD, REAR FLOOR, NO.2 | ||||
| 58416-76010C1 |
ZWA10..E ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76010C1 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416K - BOARD, REAR FLOOR, NO.2 | ||||
| 58416-76010C1 |
ZWA10..E ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76010C1 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58417 - BOARD, REAR FLOOR, NO.3 | ||||
| 58490-76011C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58490-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58490-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418E - BOARD, REAR FLOOR, NO.4 | ||||
| 58418-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76021C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418E - BOARD, REAR FLOOR, NO.4 | ||||
| 58418-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76021C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58427C - SPACER, REAR FLOOR BOARD | ||||
| 58427-47010 |
ZWA10 |
1 | ||
| 58443 - CUSHION, DECK BOARD, NO.1 | ||||
| 58443-33010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 58443-33010 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 58443-33010 |
ZWA10 |
1 | ||
| 58443-33010 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10 |
2 | ||
| 58443 - CUSHION, DECK BOARD, NO.1 | ||||
| 58443-33010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 58443-33010 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 58443-33010 |
ZWA10 |
1 | ||
| 58443-33010 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10 |
2 | ||
| 58478B - PROTECTOR, DECK BOARD | ||||
| 58478-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-76020 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64777-76020 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64777-76020 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 64777-76030 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 64777-76020 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17) |
1 | ||
| 64777-76010 |
ZWA10 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-76020 |
ZWA10..E |
1 | ||
| 64993-76040 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 64993-76030 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 64993-76010 |
ZWA10..B |
1 | ||
| 64993-76030 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17) |
1 | ||
| 64993-76030 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64993-76030 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-76010 |
ZWA10 |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-76010 |
ZWA10 |
1 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 90467-06193C0 |
ZWA10 BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06147 |
ZWA10 |
1 | ||
| 90467-06193C0 |
ZWA10 BLACK |
2 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 90467-06193C0 |
ZWA10 BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06147 |
ZWA10 |
1 | ||
| 90467-06193C0 |
ZWA10 BLACK |
2 | ||
| Common parts | ||||
| 90109-06322 | ||||
| 90467-10201 | ||||
ILLUST NO. 1 OF 2(1208- )
ﾃﾞｯｷﾎﾞｰﾄﾞ,ｱﾘ(ｱｸｾｻﾘｺﾝｾﾝﾄAC100V1500W)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58401H - BOARD SUB-ASSY, REAR FLOOR, NO.1 | ||||
| 58401-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 67771-58020 |
ZWA10 |
8 | ||
| 58402F - BOARD SUB-ASSY, REAR FLOOR, NO.2 | ||||
| 58402-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58405C - LOCK SUB-ASSY, DECK BOARD | ||||
| 58405-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58415E - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416K - BOARD, REAR FLOOR, NO.2 | ||||
| 58416-76010C1 |
ZWA10..E ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76010C1 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58416-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58417 - BOARD, REAR FLOOR, NO.3 | ||||
| 58490-76011C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58490-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58490-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418E - BOARD, REAR FLOOR, NO.4 | ||||
| 58418-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C1 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76021C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58418-76020C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58427C - SPACER, REAR FLOOR BOARD | ||||
| 58427-47010 |
ZWA10 |
1 | ||
| 58443 - CUSHION, DECK BOARD, NO.1 | ||||
| 58443-33010 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 58443-33010 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 58443-33010 |
ZWA10 |
1 | ||
| 58443-33010 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 58443-33010 |
ZWA10 |
2 | ||
| 58478B - PROTECTOR, DECK BOARD | ||||
| 58478-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63709B - BAND SUB-ASSY, ROOM RACK | ||||
| 63709-76010 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 64777J - CUSHION, SPARE WHEEL | ||||
| 64777-76020 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64777-76020 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64777-76020 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 64777-76030 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 64777-76020 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17) |
1 | ||
| 64777-76010 |
ZWA10 |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-76020 |
ZWA10..E |
1 | ||
| 64993-76040 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 64993-76030 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 64993-76010 |
ZWA10..B |
1 | ||
| 64993-76030 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17) |
1 | ||
| 64993-76030 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64993-76030 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 64993A - BOX, DECK FLOOR, REAR INNER | ||||
| 64993-76050 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 64995 - BOX, DECK FLOOR, RH | ||||
| 64995-76010 |
ZWA10 |
1 | ||
| 64997C - CLIP(FOR DECK FLOOR BOX) | ||||
| 90467-06193C0 |
ZWA10 BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B version L&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B version L&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK |
1 | ||
| 90467-06193C0 |
ZWA10..B F SPORT&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK |
1 | ||
| 90467-06147 |
ZWA10 |
1 | ||
| 90467-06193C0 |
ZWA10 BLACK |
2 | ||
| Common parts | ||||
| 90109-06322 | ||||
| 90467-10201 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 7403 | ||||

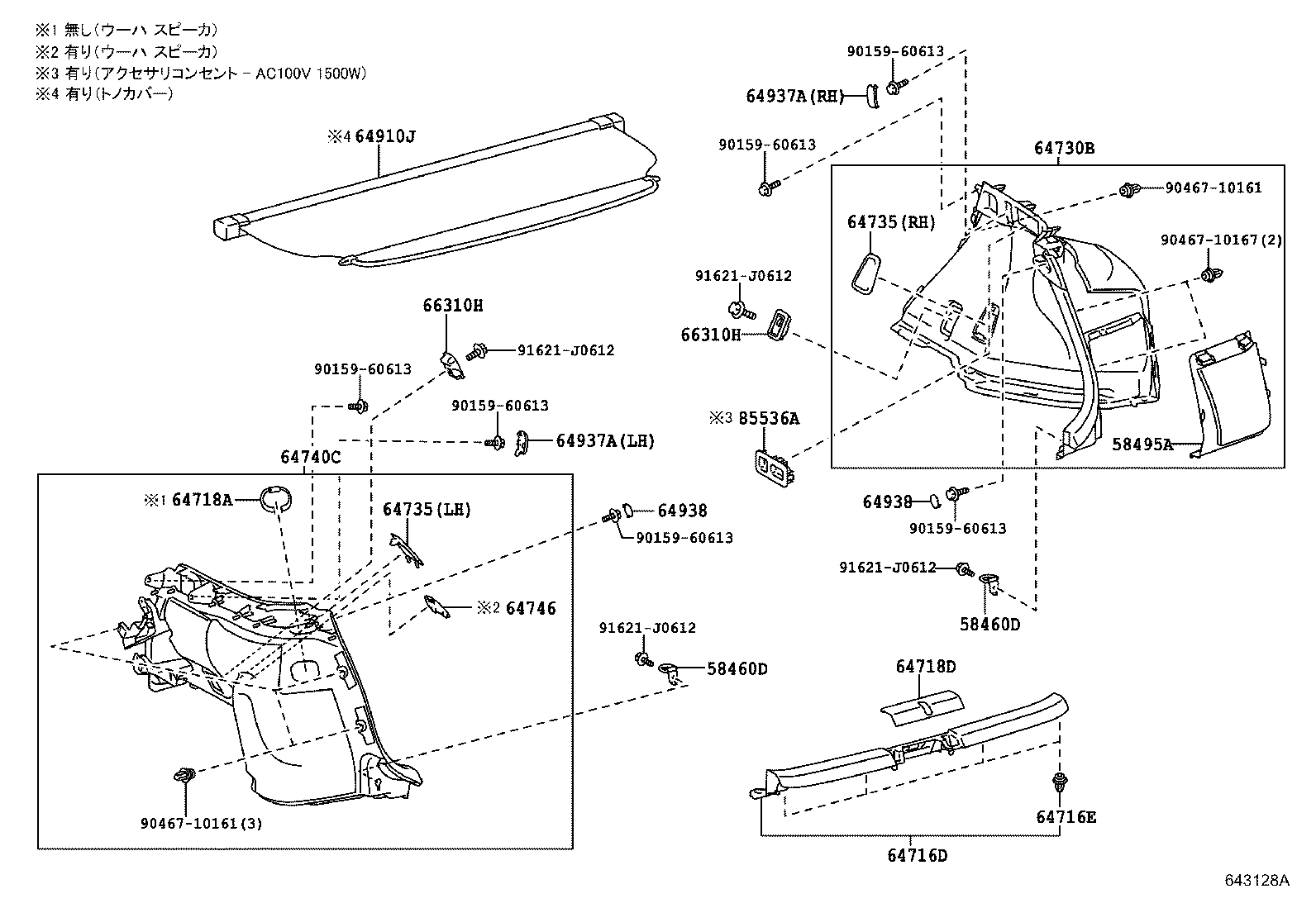

ILLUST NO. 2 OF 2(1012- )
ﾃﾞｯｷﾄﾘﾑｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZWA10 |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
ZWA10 |
2 | ||
| 58495A - PLATE, REAR FLOOR BOARD, UPPER NO.3 | ||||
| 58495-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64716-76011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
ZWA10 |
4 | ||
| 64718A - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-22020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64718-76011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-76020C0 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64730-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8#,左側 |
1 | ||
| 64735-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8#,右側 |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8#,左側 |
1 | ||
| 64735-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8#,右側 |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-76020C2 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64740-76030C0 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64740-76020C2 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64740-76020C2 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64740-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-76010C0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64746-76010C0 |
ZWA10 ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64746-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-76010C1 |
ZWA10..E ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64910-76010C1 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64910-76010C2 |
ZWA10..E ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ&ﾄﾉｶﾊﾞｰ−有り,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64910-76010C2 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8#,左側 |
1 | ||
| 64937-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8#,右側 |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8#,左側 |
1 | ||
| 64937-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8#,右側 |
1 | ||
| 64938 - HOOK, TONNEAU COVER, A | ||||
| 64938-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 64938 - HOOK, TONNEAU COVER, A | ||||
| 64938-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 85536A - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-76010C0 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| Common parts | ||||
| 90159-60613 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 91621-J0612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
