ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
(1012- )
ﾅｼ(ﾑｰﾝﾙｰﾌ)

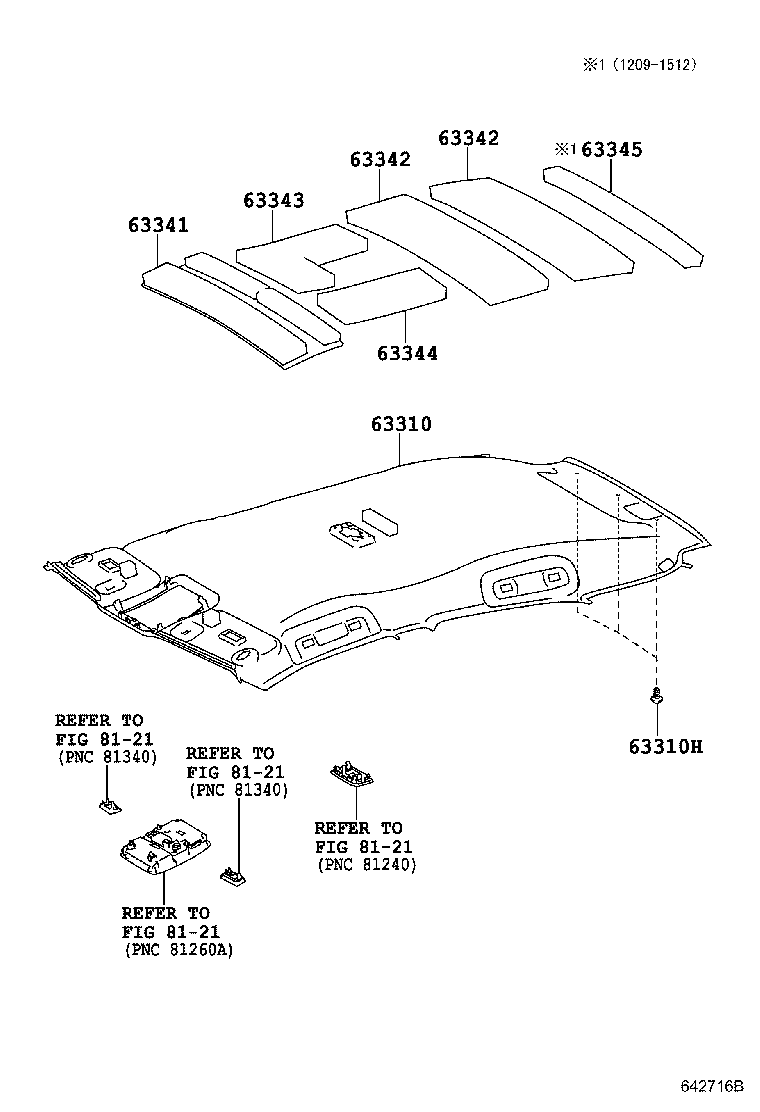

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-76010B0 |
ZWA10..E LIGHT GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63310-76020C0 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 63310-76020B0 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),LIGHT GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 63310-76010B0 |
ZWA10..B LIGHT GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 63310-76010C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164C0 |
ZWA10..B F SPORT,BLACK,TRIM0#,2#,30,31,40,42,80,81 |
3 | ||
| 90467-05164B0 |
ZWA10..B LT.GRAY,TRIM0#,20,21,22,23,30,40,80 |
3 | ||
| 90467-05164B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-76010 |
ZWA10 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63342-76020 |
ZWA10 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63342-76020 |
ZWA10 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-76040 |
ZWA10 |
1 | ||
| 63343-76010 |
ZWA10 |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-76010 |
ZWA10 |
1 | ||
| 63344-76020 |
ZWA10 |
1 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-76020 |
ZWA10 |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
(1012- )B
ｱﾘ(ﾑｰﾝ ﾙｰﾌ)

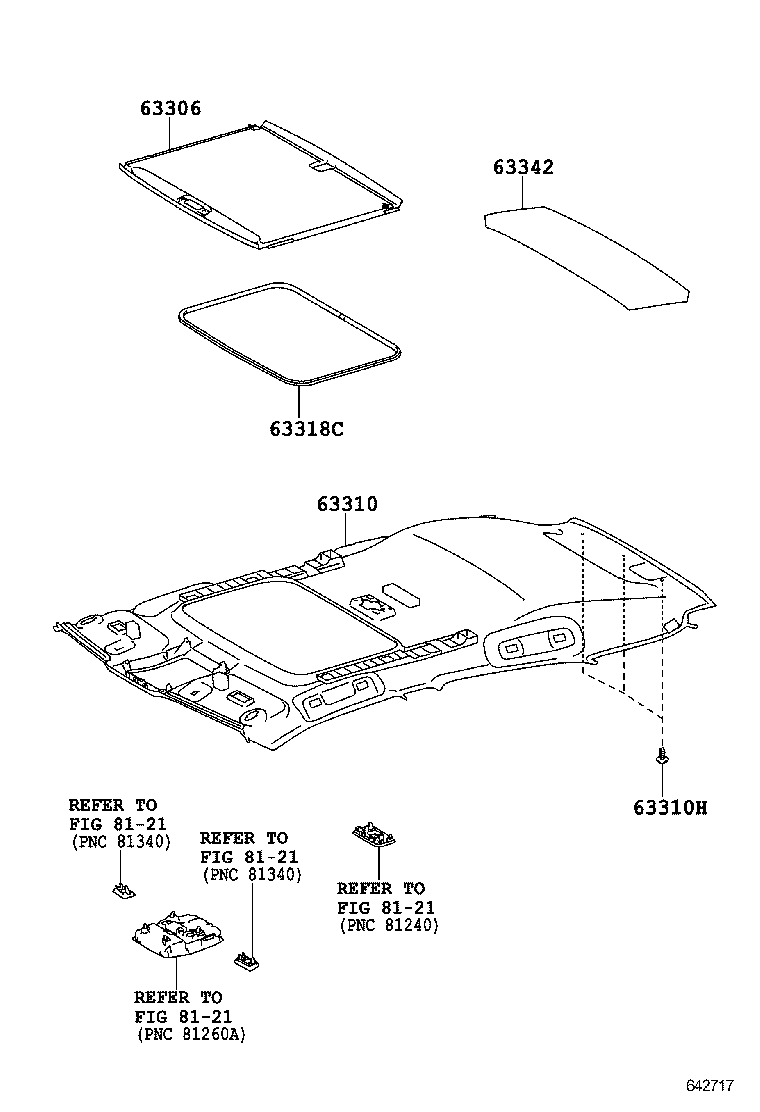

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-76010C1 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 63306-76030C0 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 63306-76010B0 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),LIGHT GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 63306-76030B0 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),LIGHT GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-76010B0 |
ZWA10..E LIGHT GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63310-76020C0 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 63310-76020B0 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),LIGHT GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 63310-76010B0 |
ZWA10..B LIGHT GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 63310-76010C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164C0 |
ZWA10..B F SPORT,BLACK,TRIM0#,2#,30,31,40,42,80,81 |
3 | ||
| 90467-05164B0 |
ZWA10..B LT.GRAY,TRIM0#,20,21,22,23,30,40,80 |
3 | ||
| 90467-05164B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
3 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-76010B2 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),LT.GRAY,TRIM00,01,20,23,30,40,80 |
1 | ||
| 63318-76010C1 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63342-76020 |
ZWA10 |
2 | ||
| Linked diagrams | ||||
| 8121 | ||||
