ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
(1012- )

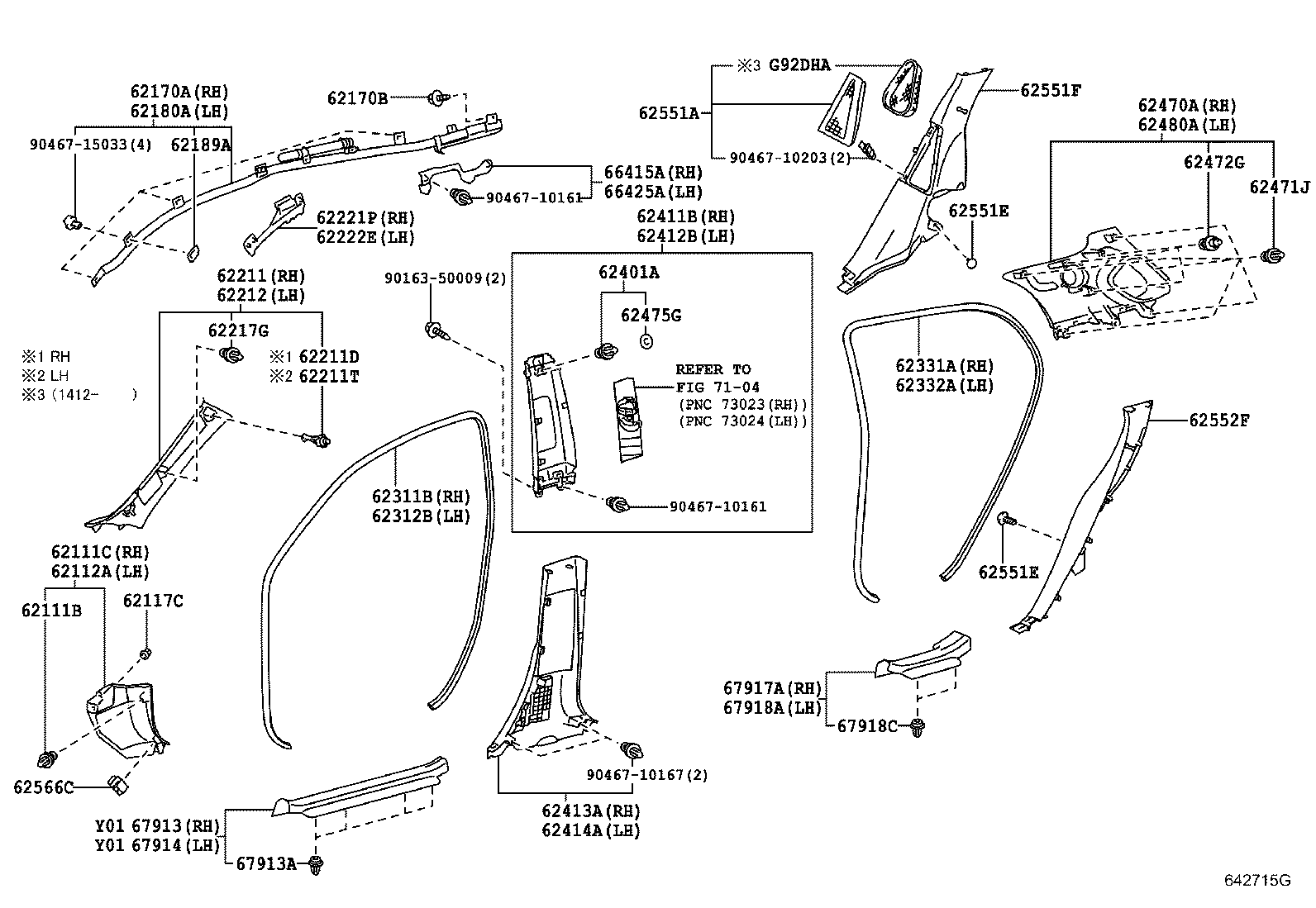

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
ZWA10 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62111-76011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-76011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62112-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-06193C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 90467-06147 |
ZWA10 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-76010 |
ZWA10 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90159-06001 |
ZWA10 |
10 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-76010 |
ZWA10 |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-20010 |
ZWA10 |
8 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-76010B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62210-76020B0 |
ZWA10..E ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62210-76010C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62210-76010B0 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62210-76020C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62210-76021C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62210-76020B0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62210-76021B0 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62210-76020B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62210-76020C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62210-76020C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62210-76020B0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62210-76021B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62210-76020B0 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90950-08005 |
ZWA10 |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90950-08005 |
ZWA10 |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-76010C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62220-76020B0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62220-76020B0 |
ZWA10..E ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62220-76020C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62220-76010B0 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62220-76020B0 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62220-76010B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62220-76021B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62220-76020C0 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62220-76020B0 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62220-76021C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62220-76020B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62220-76020C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62220-76021B0 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
ZWA10 |
2 | ||
| 62221P - SPACER, FRONT PILLAR, NO.1 RH | ||||
| 62221-76010 |
ZWA10 |
1 | ||
| 62222E - SPACER, FRONT PILLAR, NO.1 LH | ||||
| 62222-76010 |
ZWA10 |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 62707-48010 |
ZWA10 |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62410-76011B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62410-76011B0 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62410-76010C1 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62410-76010B0 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62410-76010B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62410-76011C1 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62420-76010B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62420-76010B0 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62420-76011C1 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62420-76010C1 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62420-76011B0 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62420-76011B0 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-76010B1 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62470-76010C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62470-76010B1 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62470-76011C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62470-76011B1 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62470-76011B1 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62470-76020C1 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM00,01,20,23 |
1 | ||
| 62470-76020B3 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,LT.GRAY,TRIM00,01,20 |
1 | ||
| 62470-76021C1 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM00,01,20,23 |
1 | ||
| 62470-76021B3 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,LT.GRAY,TRIM00,01,20 |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
ZWA10 |
10 | ||
| 62472G - CLIP(FOR ROOF SIDE GARNISH) | ||||
| 63395-12150 |
ZWA10 |
6 | ||
| 62475G - SEAL, ROOF SIDE, INNER | ||||
| 62475-48060 |
ZWA10 |
2 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-76020C1 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM00,01,20,23 |
1 | ||
| 62480-76010B1 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62480-76010C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62480-76020B3 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,LT.GRAY,TRIM00,01,20 |
1 | ||
| 62480-76010B1 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62480-76011B1 |
ZWA10..B LT.GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 62480-76021C1 |
ZWA10..B F SPORT&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,BLACK,TRIM00,01,20,23 |
1 | ||
| 62480-76011B1 |
ZWA10..E LT.GRAY,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62480-76011C0 |
ZWA10..B F SPORT,BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 62480-76021B3 |
ZWA10..B ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR,LT.GRAY,TRIM00,01,20 |
1 | ||
| 62551A - COVER, REAR SEAT SIDE, RH | ||||
| 64712-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64712-76011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62551E - CLIP(FOR REAR SEAT SIDE GARNISH) | ||||
| 90467-05161C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 62551E - CLIP(FOR REAR SEAT SIDE GARNISH) | ||||
| 90467-05161C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-76011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62551-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 62566C - CLAMP, COWL SIDE TRIM | ||||
| 62566-30010 |
ZWA10 |
2 | ||
| 66415A - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-76010 |
ZWA10 |
1 | ||
| 66425A - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-76010 |
ZWA10 |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67910-76021C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67910-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67910-76030C0 |
ZWA10..B F SPORT,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67910-76031C0 |
ZWA10..B F SPORT,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-10161 |
ZWA10 |
8 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67920-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67920-76021C0 |
ZWA10..B F SPORT,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67920-76011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67920-76020C0 |
ZWA10..B F SPORT,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-76021C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67930-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67940-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67940-76011C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 67918C - CLIP(FOR REAR SCUFF PLATE) | ||||
| 90467-10161 |
ZWA10 |
4 | ||
| Common parts | ||||
| 90163-50009 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10203 | ||||
| 90467-15033 | ||||
| Linked diagrams | ||||
| 7104 | ||||
