ZWA10-AHXBB (2010)
Toyota Lexus Ct200h

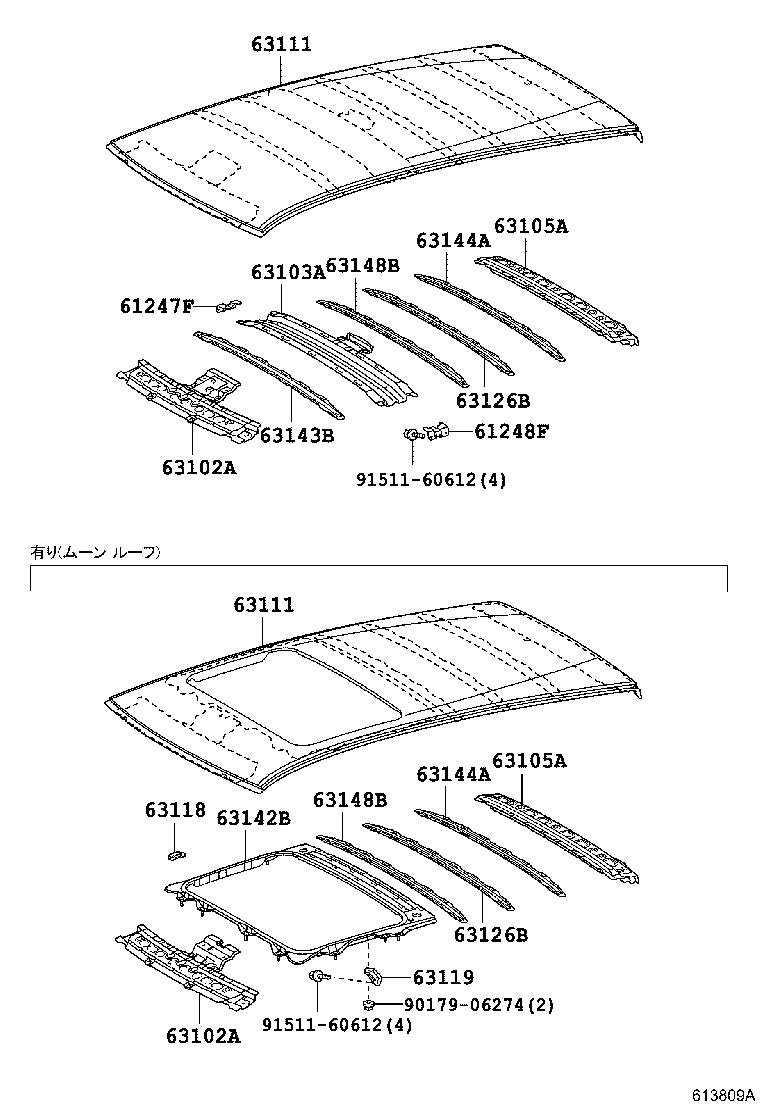

ILLUST NO. 1 OF 2(1012- )
ﾙｰﾌﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER | ||||
| 61247-76010 |
ZWA10 |
1 | ||
| 61248F - REINFORCEMENT, ROOF SIDE RAIL, INNER, LH | ||||
| 61247-76010 |
ZWA10 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-76902 |
ZWA10 |
1 | ||
| 63102-76901 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-76902 |
ZWA10 |
1 | ||
| 63102-76901 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-76010 |
ZWA10 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-76010 |
ZWA10 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-76010 |
ZWA10 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-76010 |
ZWA10 |
1 | ||
| 63111-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-76010 |
ZWA10 |
1 | ||
| 63111-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2 | ||||
| 63126-76010 |
ZWA10 |
1 | ||
| 63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2 | ||||
| 63126-76010 |
ZWA10 |
1 | ||
| 63142B - REINFORCEMENT, ROOF PANEL, REAR | ||||
| 63142-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-76010 |
ZWA10 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-76010 |
ZWA10 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-76010 |
ZWA10 |
1 | ||
| 63148B - REINFORCEMENT, ROOF PANEL SIDE | ||||
| 63148-76010 |
ZWA10 |
1 | ||
| 63148B - REINFORCEMENT, ROOF PANEL SIDE | ||||
| 63148-76010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91511-60612 | ||||

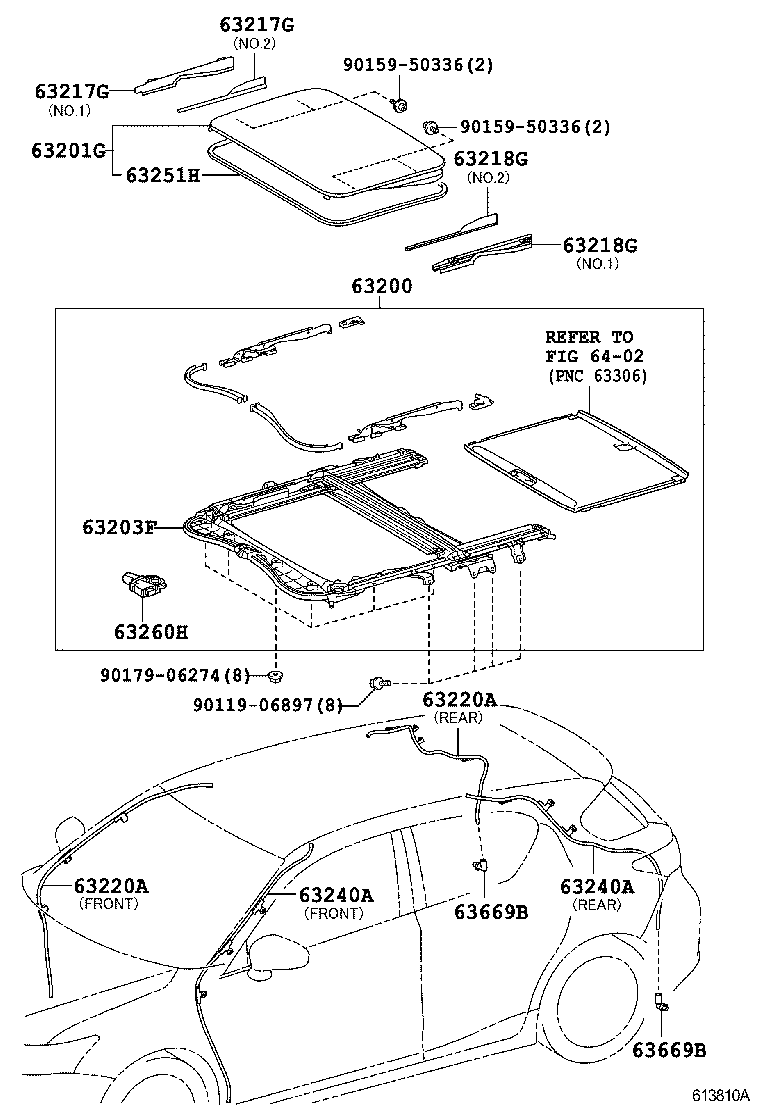

ILLUST NO. 2 OF 2(1012- )
ﾑｰﾝﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63200 - HOUSING ASSY, MOON ROOF | ||||
| 63200-76020B0 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),LIGHT GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 63200-76010C1 |
ZWA10..B F SPORT&ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 63200-76020C0 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),BLACK,TRIM00,01,20,23,30,40,80 |
1 | ||
| 63200-76010B0 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),LIGHT GRAY,TRIM00,01,20,30,40,80 |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-76010 |
ZWA10..B *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ,ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞｮ) |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),NO.2 |
1 | ||
| 63217-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),NO.1 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),NO.2 |
1 | ||
| 63217-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),NO.1 |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),NO.1 |
1 | ||
| 63218-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),NO.2 |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),NO.1 |
1 | ||
| 63218-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),NO.2 |
1 | ||
| 63220A - HOSE ASSY, SLIDING ROOF DRAIN, RH | ||||
| 63220-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),ﾌﾛﾝﾄ |
1 | ||
| 63220-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),ﾘﾔ |
1 | ||
| 63220A - HOSE ASSY, SLIDING ROOF DRAIN, RH | ||||
| 63220-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),ﾌﾛﾝﾄ |
1 | ||
| 63220-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),ﾘﾔ |
1 | ||
| 63240A - HOSE ASSY, SLIDING ROOF DRAIN, LH | ||||
| 63240-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),ﾌﾛﾝﾄ |
1 | ||
| 63240-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),ﾘﾔ |
1 | ||
| 63240A - HOSE ASSY, SLIDING ROOF DRAIN, LH | ||||
| 63240-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),ﾌﾛﾝﾄ |
1 | ||
| 63240-76020 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式),ﾘﾔ |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-76011 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63260-76010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
ZWA10..B ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ&ｱｳﾀｰｽﾗｲﾄﾞ式) |
2 | ||
| Common parts | ||||
| 90119-06897 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 6402 | ||||
