ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

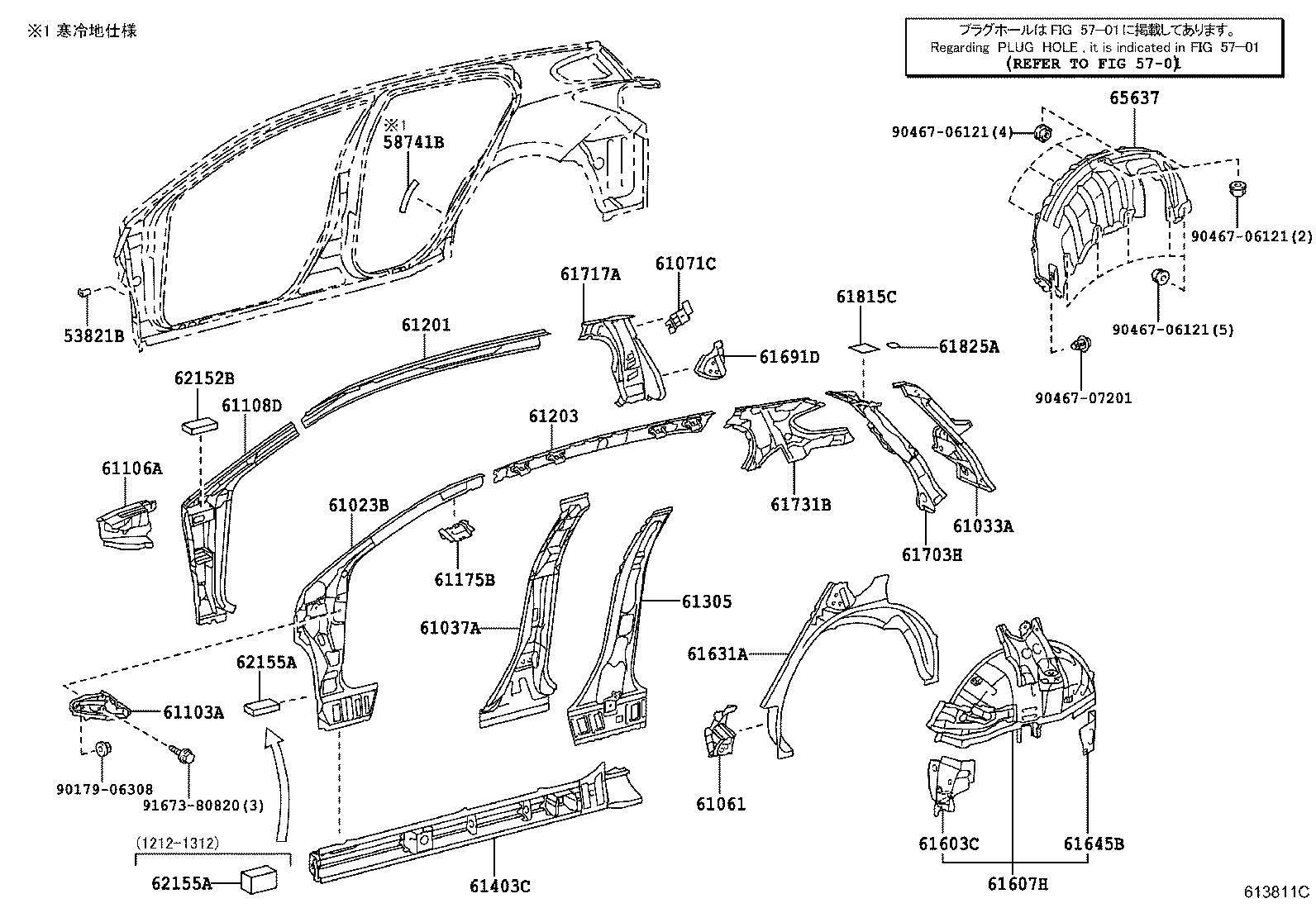

ILLUST NO. 2 OF 2(1012- )
Click highlighted areas on diagram
ｲﾝﾅﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-75020 |
ZWA10 |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-76010 |
ZWA10 寒冷地仕様 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-76901 |
ZWA10 |
1 | ||
| 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE | ||||
| 61033-76010 |
ZWA10 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-76901 |
ZWA10 |
1 | ||
| 61061 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH | ||||
| 61061-76010 |
ZWA10 |
1 | ||
| 61071C - REINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH | ||||
| 61071-76010 |
ZWA10 |
1 | ||
| 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH | ||||
| 61103-76010 |
ZWA10 |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-76010 |
ZWA10 |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-76901 |
ZWA10 |
1 | ||
| 61175B - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 RH | ||||
| 61175-76010 |
ZWA10 |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-76010 |
ZWA10 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-76010 |
ZWA10 |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-76010 |
ZWA10 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-76901 |
ZWA10 |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-75010 |
ZWA10 |
1 | ||
| 61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-76010 |
ZWA10 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-76010 |
ZWA10 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-76010 |
ZWA10 |
1 | ||
| 61691D - REINFORCE, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 61691-76010 |
ZWA10 |
1 | ||
| 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61703-76010 |
ZWA10 |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-76010 |
ZWA10 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-76010 |
ZWA10 |
1 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-28010 |
ZWA10 |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-52060 |
ZWA10 |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
ZWA10 |
2 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62152-76020 |
ZWA10 |
2 | ||
| 62152-12050 |
ZWA10 |
2 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62152-76020 |
ZWA10 |
2 | ||
| 62152-12050 |
ZWA10 |
2 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-76011 |
ZWA10 |
1 | ||
| 65637-76020 |
ZWA10 寒冷地仕様 |
1 | ||
| 65637-76010 |
ZWA10 |
1 | ||
| 65637-76021 |
ZWA10 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90179-06308 | ||||
| 90467-06121 | ||||
| 90467-07201 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||

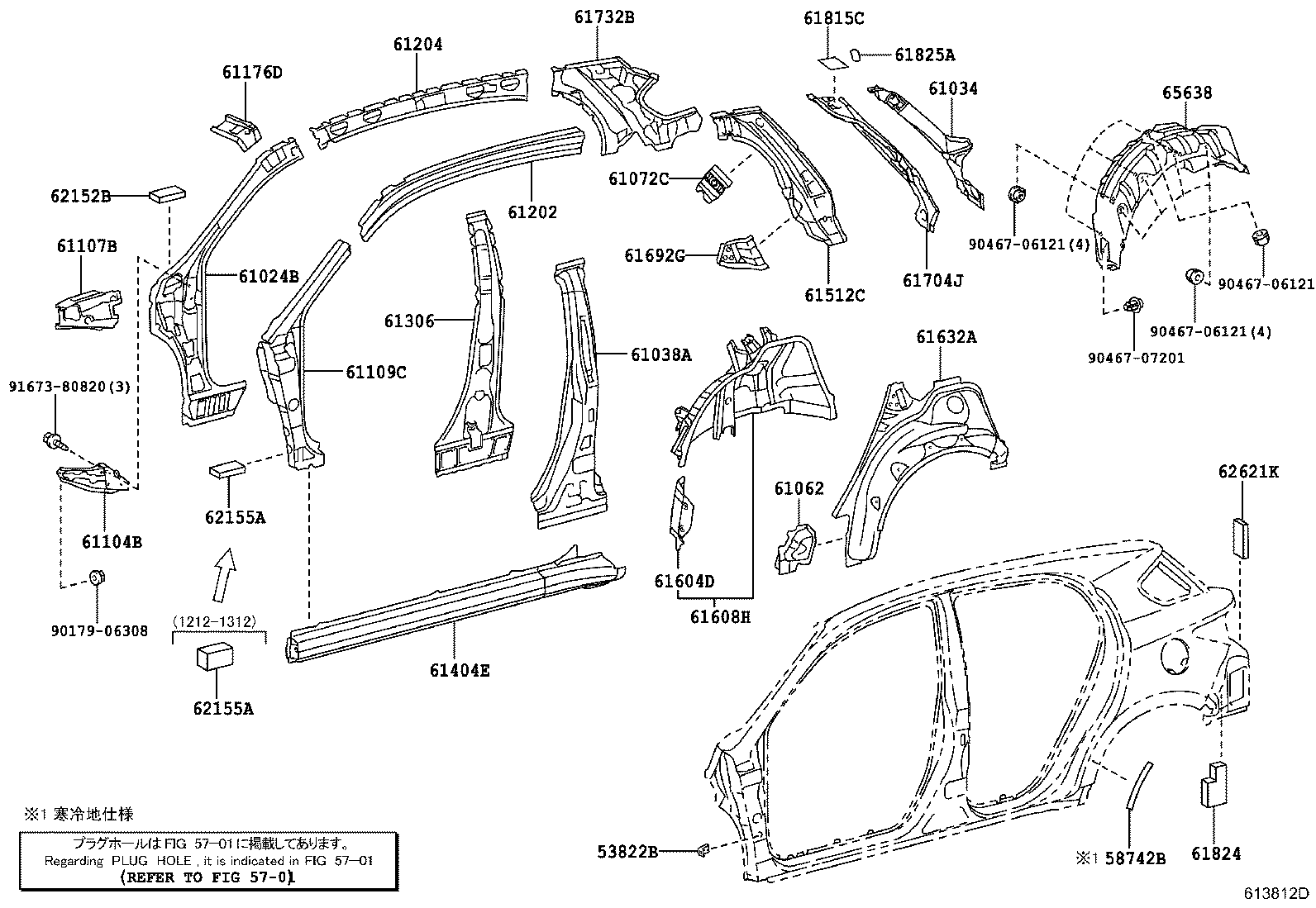

ILLUST NO. 2 OF 2(1012- )
Click highlighted areas on diagram
ｲﾝﾅﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-75020 |
ZWA10 |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-76010 |
ZWA10 寒冷地仕様 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-76901 |
ZWA10 |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-76010 |
ZWA10 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-76901 |
ZWA10 |
1 | ||
| 61062 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH | ||||
| 61062-76010 |
ZWA10 |
1 | ||
| 61072C - REINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH | ||||
| 61072-76010 |
ZWA10 |
1 | ||
| 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH | ||||
| 61104-76010 |
ZWA10 |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-76010 |
ZWA10 |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-76901 |
ZWA10 |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-76010 |
ZWA10 |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-76010 |
ZWA10 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-76010 |
ZWA10 |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-76010 |
ZWA10 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-76901 |
ZWA10 |
1 | ||
| 61512C - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61502-76010 |
ZWA10 |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-75010 |
ZWA10 |
1 | ||
| 61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-76010 |
ZWA10 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-76010 |
ZWA10 |
1 | ||
| 61692G - REINFORCE, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 61692-76010 |
ZWA10 |
1 | ||
| 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61704-76010 |
ZWA10 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-76010 |
ZWA10 |
1 | ||
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-28010 |
ZWA10 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-76010 |
ZWA10 |
1 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-52060 |
ZWA10 |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
ZWA10 |
2 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62152-76020 |
ZWA10 |
2 | ||
| 62152-12050 |
ZWA10 |
2 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62152-76020 |
ZWA10 |
2 | ||
| 62152-12050 |
ZWA10 |
2 | ||
| 62621K - PAD, QUARTER WHEEL HOUSE, INNER | ||||
| 62621-76010 |
ZWA10 |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-76021 |
ZWA10 寒冷地仕様 |
1 | ||
| 65638-76010 |
ZWA10 |
1 | ||
| 65638-76020 |
ZWA10 寒冷地仕様 |
1 | ||
| 65638-76011 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90179-06308 | ||||
| 90467-06121 | ||||
| 90467-07201 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5701 | ||||

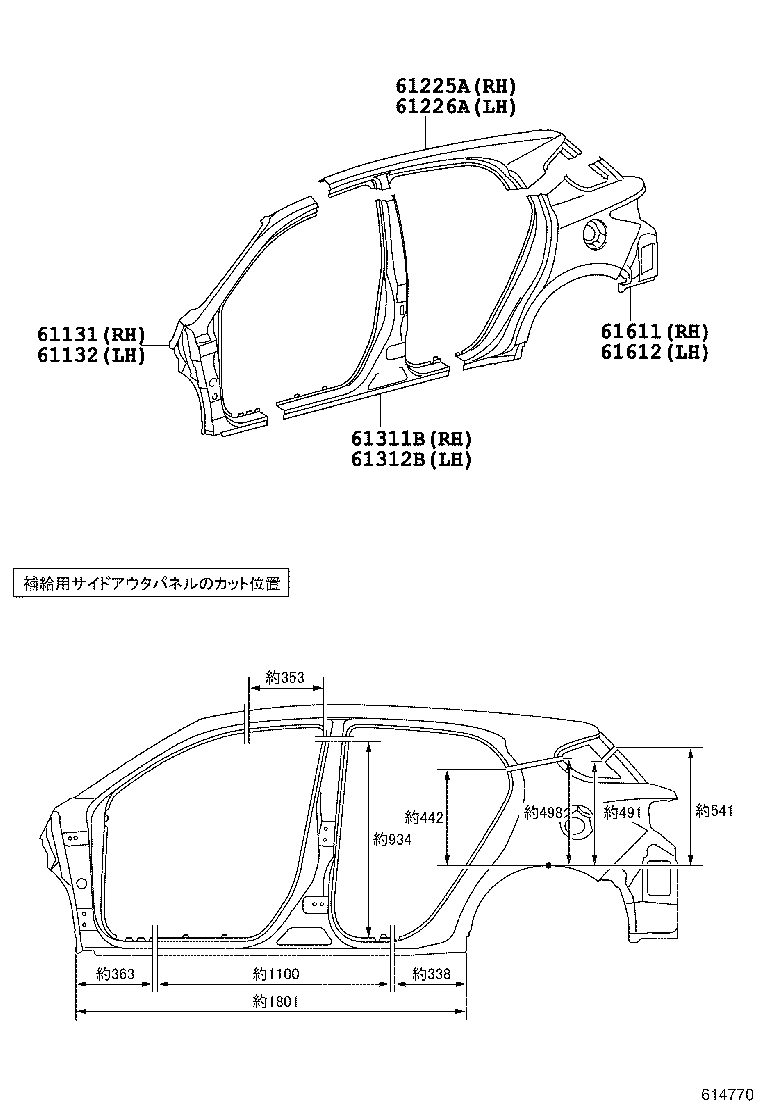

ILLUST NO. 1 OF 2(1012- )
Click highlighted areas on diagram
ｱｳﾀﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-76010 |
ZWA10 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-76010 |
ZWA10 |
1 | ||
| 61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH | ||||
| 61225-76010 |
ZWA10 |
1 | ||
| 61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH | ||||
| 61226-76010 |
ZWA10 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-76010 |
ZWA10 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-76010 |
ZWA10 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-76010 |
ZWA10 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-76010 |
ZWA10 |
1 | ||
