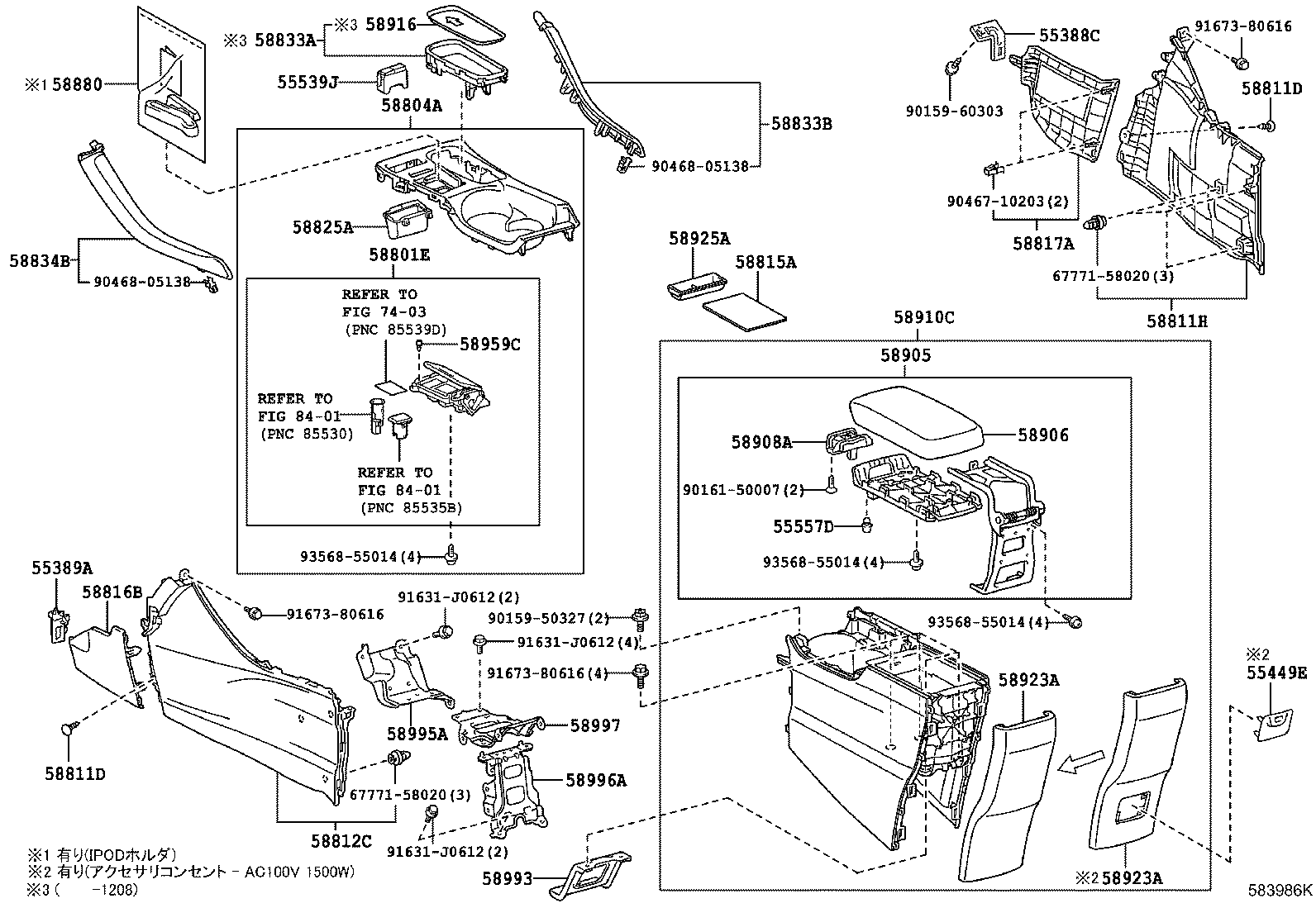

ZWA10-AHXBB (2010)
Toyota Lexus Ct200h
(1012-1312)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55388C - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55389-42020 |
ZWA10 |
1 | ||
| 55389A - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55388-42020 |
ZWA10 |
1 | ||
| 55388-75050 |
ZWA10 |
1 | ||
| 55449E - BASE, SWITCH | ||||
| 55449-76010C0 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-76040 |
ZWA10 |
1 | ||
| 55557D - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
ZWA10 |
2 | ||
| 58801E - BOX SUB-ASSY, CONSOLE, UPPER | ||||
| 58802-76020 |
ZWA10 |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-76080 |
ZWA10 |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-06020C0 |
ZWA10 BLACK |
2 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-06020C0 |
ZWA10 BLACK |
2 | ||
| 58811H - BOX, CONSOLE, RH | ||||
| 58812-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58812C - BOX, CONSOLE, LH | ||||
| 58811-76030C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-76010 |
ZWA10 |
1 | ||
| 58816B - INSERT, CONSOLE BOX | ||||
| 58817-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58816-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-76020 |
ZWA10 |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-76020 |
ZWA10 |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58834-76020C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58834-76020C3 |
ZWA10..B Creative Textile Interior *(A),BLACK/RED,TRIM20 |
1 | ||
| 58834-76020C4 |
ZWA10..B Creative Textile Interior *(A),BLACK/BLUE,TRIM20 |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58833-76040C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58833-76040C3 |
ZWA10..B Creative Textile Interior *(A),BLACK/RED,TRIM20 |
1 | ||
| 58833-76040C4 |
ZWA10..B Creative Textile Interior *(A),BLACK/BLUE,TRIM20 |
1 | ||
| 58880 - BOX ASSY, EQUIPMENT SET | ||||
| 58880-76010 |
ZWA10 ｵｰﾃﾞｨｵ入力端子−AUX&USB&IPODﾎﾙﾀﾞ |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-76010C1 |
ZWA10..B BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58905-76010C1 |
ZWA10..E BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58905-76011C1 |
ZWA10..E BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58905-76011C3 |
ZWA10..B version L&ｼｰﾄ表皮−本革,WATER WHITE/BLACK,TRIM01 |
1 | ||
| 58905-76012C1 |
ZWA10..B BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58905-76012C3 |
ZWA10..B version L&ｼｰﾄ表皮−本革,WATER WHITE/BLACK,TRIM01 |
1 | ||
| 58905-76011C2 |
ZWA10..B version L&ｼｰﾄ表皮−本革,IVORY/BLACK,TRIM00 |
1 | ||
| 58905-76010C3 |
ZWA10..B version L&ｼｰﾄ表皮−本革,WATER WHITE/BLACK,TRIM01 |
1 | ||
| 58905-76010C2 |
ZWA10..B version L&ｼｰﾄ表皮−本革,IVORY/BLACK,TRIM00 |
1 | ||
| 58905-76012C2 |
ZWA10..B version L&ｼｰﾄ表皮−本革,IVORY/BLACK,TRIM00 |
1 | ||
| 58905-76012C1 |
ZWA10..E BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58905-76011C1 |
ZWA10..B BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58905-76012C5 |
ZWA10..B Creative Textile Interior *(A),BLACK/BLACK/BLUE,TRIM20 |
1 | ||
| 58905-76012C4 |
ZWA10..B Creative Textile Interior *(A),BLACK/BLACK/RED,TRIM20 |
1 | ||
| 58906 - DOOR SUB-ASSY, UPPER CONSOLE | ||||
| 58906-76010C0 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58906-76011A0 |
ZWA10..B version L&ｼｰﾄ表皮−本革,IVORY,TRIM00 |
1 | ||
| 58906-76010A0 |
ZWA10..B version L&ｼｰﾄ表皮−本革,IVORY,TRIM00 |
1 | ||
| 58906-76010A1 |
ZWA10..B version L&ｼｰﾄ表皮−本革,WATER WHITE,TRIM01 |
1 | ||
| 58906-76011C0 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58906-76011C0 |
ZWA10..B BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58906-76011A1 |
ZWA10..B version L&ｼｰﾄ表皮−本革,WATER WHITE,TRIM01 |
1 | ||
| 58906-76010C0 |
ZWA10..E BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58906-76011C1 |
ZWA10..B Creative Textile Interior *(A),BLACK/RED,TRIM20 |
1 | ||
| 58906-76011C2 |
ZWA10..B Creative Textile Interior *(A),BLACK/BLUE,TRIM20 |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-76010C1 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58908-76021C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-76020C2 |
ZWA10..B version L&ｼｰﾄ表皮−本革,WATER WHITE/BLACK,TRIM01 |
1 | ||
| 58910-76020C0 |
ZWA10..B BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58910-76021C0 |
ZWA10..B BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58910-76021C0 |
ZWA10..E BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58910-76022C0 |
ZWA10..E BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58910-76020C1 |
ZWA10..B version L&ｼｰﾄ表皮−本革,IVORY/BLACK,TRIM00 |
1 | ||
| 58910-76020C0 |
ZWA10..E BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58910-76032C1 |
ZWA10..B version L&ｼｰﾄ表皮−本革&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),WATER WHITE/BLACK,TRIM01 |
1 | ||
| 58910-76022C1 |
ZWA10..B version L&ｼｰﾄ表皮−本革,IVORY/BLACK,TRIM00 |
1 | ||
| 58910-76022C5 |
ZWA10..B Creative Textile Interior *(A),BLACK/BLACK/RED,TRIM20 |
1 | ||
| 58910-76032C5 |
ZWA10..B Creative Textile Interior *(A)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK/BLACK/RED,TRIM20 |
1 | ||
| 58910-76021C1 |
ZWA10..B version L&ｼｰﾄ表皮−本革,IVORY/BLACK,TRIM00 |
1 | ||
| 58910-76021C2 |
ZWA10..B version L&ｼｰﾄ表皮−本革,WATER WHITE/BLACK,TRIM01 |
1 | ||
| 58910-76022C6 |
ZWA10..B Creative Textile Interior *(A),BLACK/BLACK/BLUE,TRIM20 |
1 | ||
| 58910-76032C2 |
ZWA10..B ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK/BLACK,TRIM00,01,2#,3#,4#,8# |
1 | ||
| 58910-76022C0 |
ZWA10..B BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58910-76032C4 |
ZWA10..B Creative Textile Interior *(A)&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK/BLACK/BLUE,TRIM20 |
1 | ||
| 58910-76022C2 |
ZWA10..B version L&ｼｰﾄ表皮−本革,WATER WHITE/BLACK,TRIM01 |
1 | ||
| 58910-76032C0 |
ZWA10..B version L&ｼｰﾄ表皮−本革&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),IVORY/BLACK,TRIM00 |
1 | ||
| 58910-76032C2 |
ZWA10..E ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK/BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-76020 |
ZWA10 |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-76020C0 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58923-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-76020C0 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58923-76010C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 58925A - POCKET, CONSOLE BOX, REAR | ||||
| 58925-76010 |
ZWA10 |
1 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZWA10 |
2 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-76010 |
ZWA10 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-76020 |
ZWA10 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-76020 |
ZWA10 |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-76010 |
ZWA10 |
1 | ||
| Common parts | ||||
| 67771-58020 | ||||
| 90159-50327 | ||||
| 90159-60303 | ||||
| 90161-50007 | ||||
| 90467-10203 | ||||
| 90468-05138 | ||||
| 91631-J0612 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8401 | ||||
