ZWA10-AHXBB (2010)
Toyota Lexus Ct200h

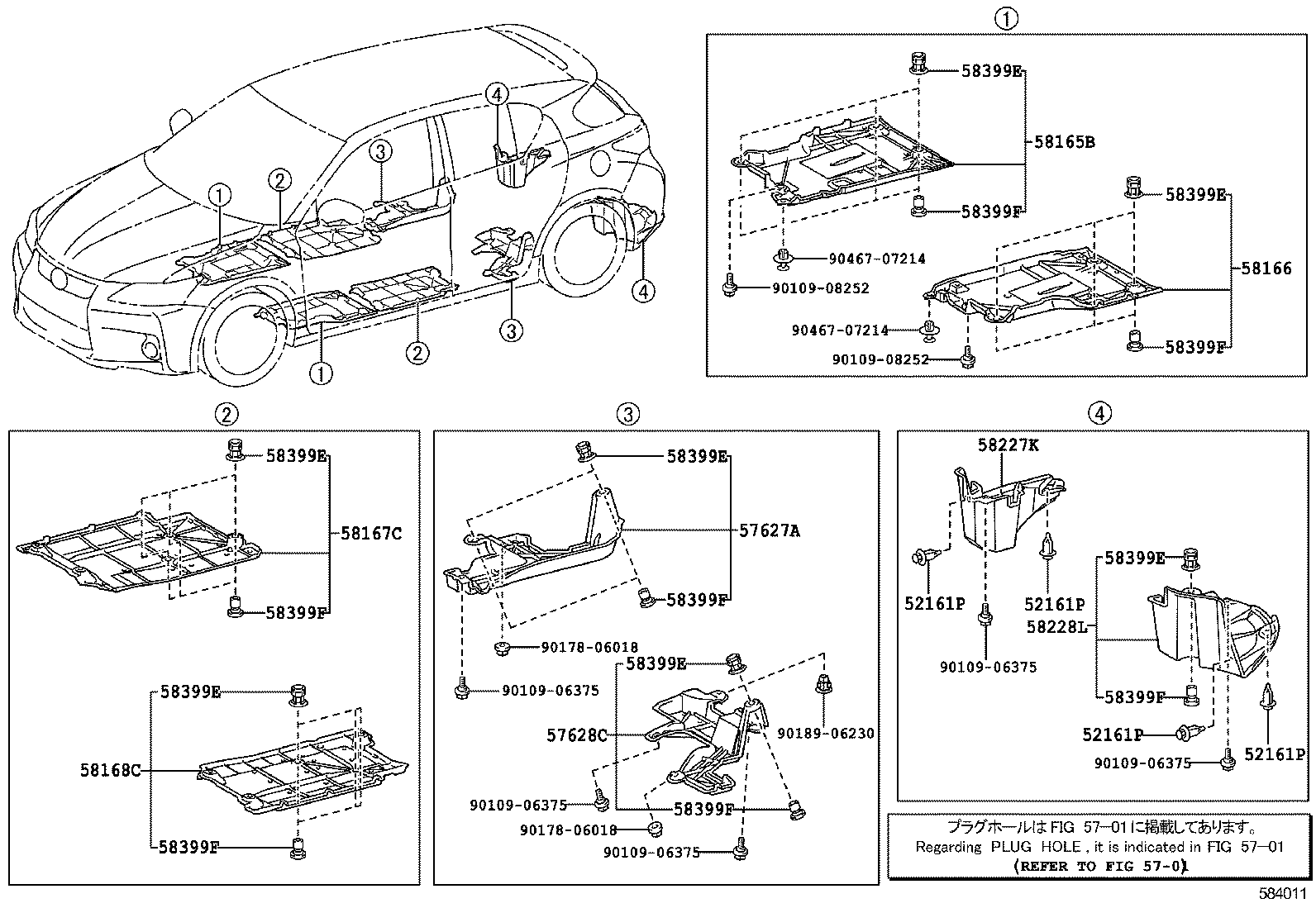

ILLUST NO. 2 OF 2(1012- )
ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
4 | ||
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
4 | ||
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
4 | ||
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZWA10 |
4 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-76010 |
ZWA10 |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-76010 |
ZWA10 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-76010 |
ZWA10 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-76010 |
ZWA10 |
1 | ||
| 58167C - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-76010 |
ZWA10 |
1 | ||
| 58168C - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-76010 |
ZWA10 |
1 | ||
| 58227K - PLATE, FLOOR PANEL SIDE, RH | ||||
| 58227-76010 |
ZWA10 |
1 | ||
| 58228L - PLATE, FLOOR PANEL SIDE, LH | ||||
| 58228-76010 |
ZWA10 |
1 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 90467-17026A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 90467-17026A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 90467-17026A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 90467-17026A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 90467-17026A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 90467-17026A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17024A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 90467-17026A0 |
ZWA10 SUPER WHITE 2 |
16 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZWA10 BLACK |
16 | ||
| 90467-17025C0 |
ZWA10 BLACK |
16 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZWA10 BLACK |
16 | ||
| 90467-17025C0 |
ZWA10 BLACK |
16 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZWA10 BLACK |
16 | ||
| 90467-17025C0 |
ZWA10 BLACK |
16 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZWA10 BLACK |
16 | ||
| 90467-17025C0 |
ZWA10 BLACK |
16 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZWA10 BLACK |
16 | ||
| 90467-17025C0 |
ZWA10 BLACK |
16 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZWA10 BLACK |
16 | ||
| 90467-17025C0 |
ZWA10 BLACK |
16 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZWA10 BLACK |
16 | ||
| 90467-17025C0 |
ZWA10 BLACK |
16 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90109-08252 | ||||
| 90178-06018 | ||||
| 90189-06230 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5701 | ||||

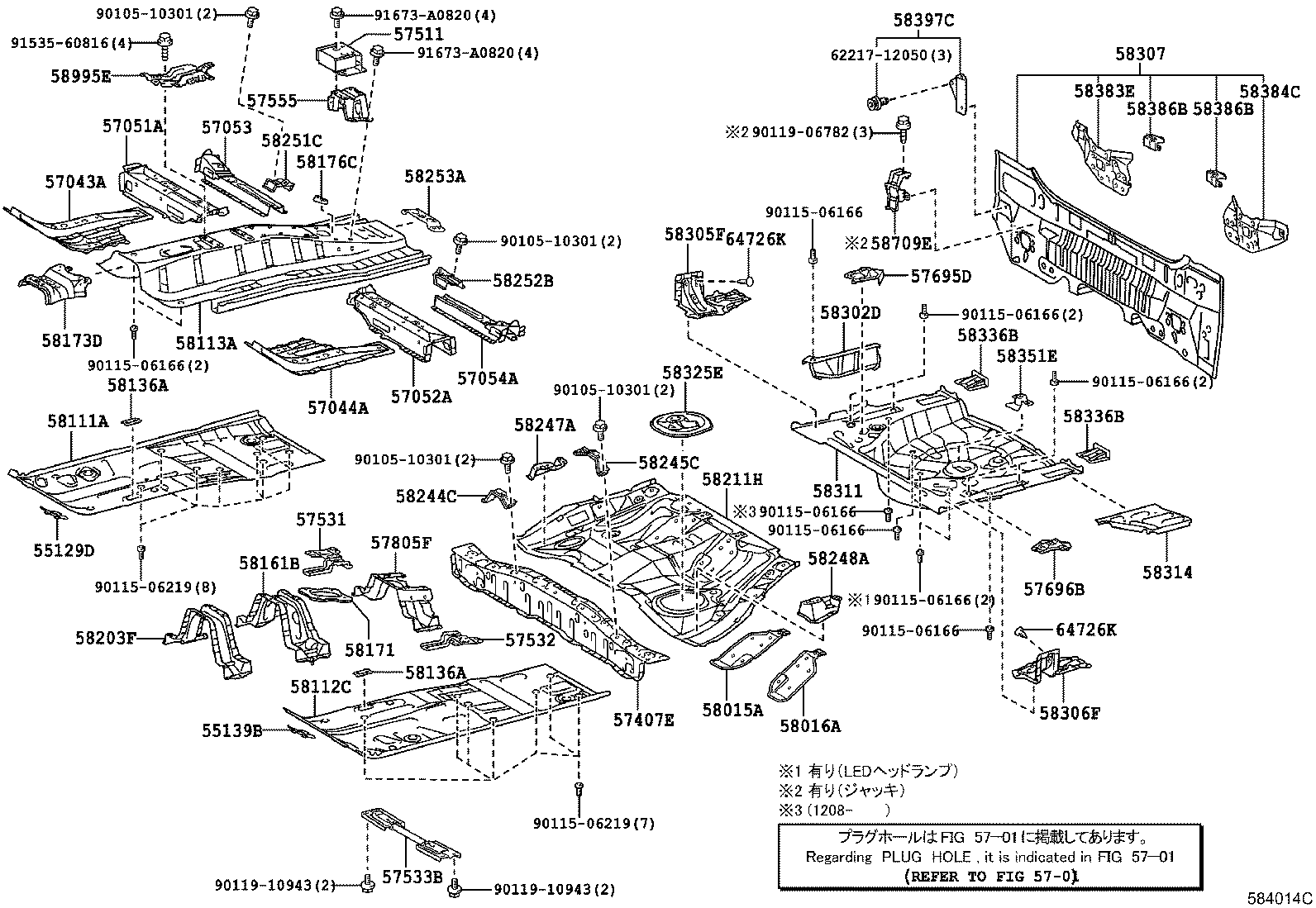

ILLUST NO. 1 OF 2(1012- )
ﾌﾛｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129D - COVER, DASH PANEL HOLE, RH | ||||
| 55129-12040 |
ZWA10 |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-12050 |
ZWA10 |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-12020 |
ZWA10 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-12020 |
ZWA10 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-12060 |
ZWA10 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-12010 |
ZWA10 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-12010 |
ZWA10 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-12010 |
ZWA10 |
1 | ||
| 57407E - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-12101 |
ZWA10 |
1 | ||
| 57511 - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57511-76010 |
ZWA10 |
1 | ||
| 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH | ||||
| 57531-12010 |
ZWA10 |
1 | ||
| 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH | ||||
| 57532-12010 |
ZWA10 |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57501-12020 |
ZWA10 |
1 | ||
| 57555 - REINFORCEMENT, CENTER FLOOR, NO.5 | ||||
| 57555-76010 |
ZWA10 |
1 | ||
| 57555-76011 |
ZWA10 |
1 | ||
| 57695D - BRACKET, REAR FLOOR MOUNTING, NO.2 RH | ||||
| 57695-76010 |
ZWA10 |
1 | ||
| 57695-76020 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 57695-76020 |
ZWA10..B ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 57695-76020 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 57695-76020 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 57695-76020 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 57696B - BRACKET, REAR FLOOR MOUNTING, NO.2 LH | ||||
| 57696-76020 |
ZWA10..B ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)&ｵｰﾃﾞｨｵ−AM/FM DVD 13ｽﾋﾟｰｶ *MAR |
1 | ||
| 57696-76020 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 57696-76020 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 57696-76020 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 57696-76020 |
ZWA10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W)&ｵｰﾃﾞｨｵ−AM/FM CD 10ｽﾋﾟｰｶ |
1 | ||
| 57696-76010 |
ZWA10 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-12151 |
ZWA10 |
1 | ||
| 57805-12150 |
ZWA10 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-47041 |
ZWA10 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-47031 |
ZWA10 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-76901 |
ZWA10 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-76901 |
ZWA10 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-76901 |
ZWA10 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12040 |
ZWA10 |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12040 |
ZWA10 |
2 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-12231 |
ZWA10 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-12120 |
ZWA10 |
1 | ||
| 58173D - BRACKET, COMPUTER MOUNTING, NO.4 | ||||
| 58173-12020 |
ZWA10 |
1 | ||
| 58176C - REINFORCEMENT, PARKING BRAKE BASE, NO.2 | ||||
| 58176-12020 |
ZWA10 |
1 | ||
| 58203F - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING | ||||
| 58203-12070 |
ZWA10 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-47050 |
ZWA10 |
1 | ||
| 58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH | ||||
| 58244-47010 |
ZWA10 |
1 | ||
| 58245C - BRACKET, REAR SEAT CUSHION MOUNTING, LH | ||||
| 58245-47010 |
ZWA10 |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-47010 |
ZWA10 |
1 | ||
| 58247-47011 |
ZWA10 |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58248-47010 |
ZWA10 |
1 | ||
| 58248-47011 |
ZWA10 |
1 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-12040 |
ZWA10 |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-12040 |
ZWA10 |
1 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-12060 |
ZWA10 |
1 | ||
| 58302D - PANEL SUB-ASSY, REAR FLOOR, FRONT | ||||
| 58302-76010 |
ZWA10 |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-12040 |
ZWA10 |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-12030 |
ZWA10 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-76010 |
ZWA10 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-76010 |
ZWA10 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-76010 |
ZWA10 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-12140 |
ZWA10 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12090 |
ZWA10 |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12090 |
ZWA10 |
2 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-12060 |
ZWA10 |
1 | ||
| 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH | ||||
| 58383-76010 |
ZWA10 |
1 | ||
| 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH | ||||
| 58384-76010 |
ZWA10 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-12020 |
ZWA10 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-12020 |
ZWA10 |
2 | ||
| 58397C - COVER, BODY LOWER BACK, RH | ||||
| 58397-76010 |
ZWA10 |
1 | ||
| 58709E - CARRIER SUB-ASSY, JACK | ||||
| 58709-76010 |
ZWA10 ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17) |
1 | ||
| 58709-76010 |
ZWA10 ｱｸｾｻﾘｺﾝｾﾝﾄ−有り(AC100V 1500W) |
1 | ||
| 58995E - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-76030 |
ZWA10 |
1 | ||
| 64726K - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-12040 |
ZWA10 |
2 | ||
| 64726K - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-12040 |
ZWA10 |
2 | ||
| Common parts | ||||
| 62217-12050 | ||||
| 90105-10301 | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90119-06782 | ||||
| 90119-10943 | ||||
| 91535-60816 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 5701 | ||||
